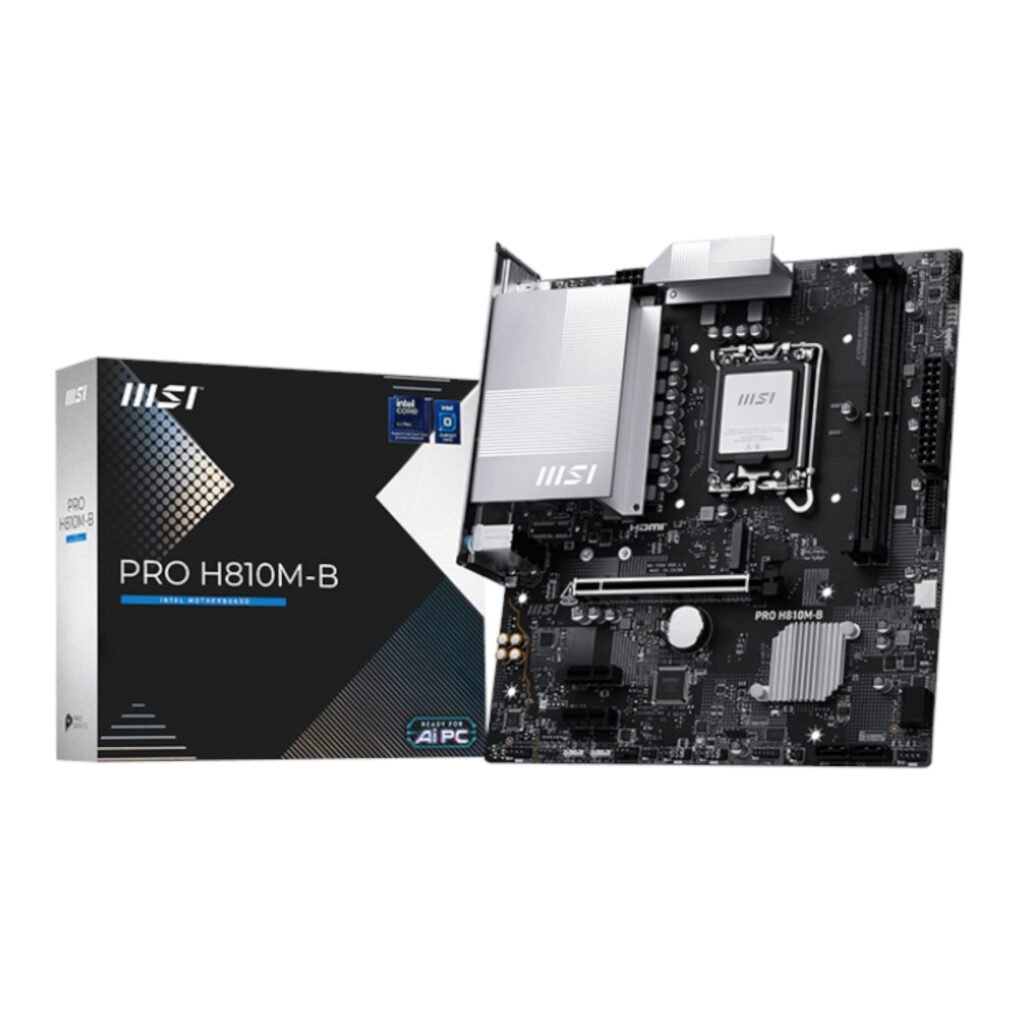

MSI PRO H810M-B Intel B860 LGA 1851 Micro-ATX Motherboard
R2413.00 Incl. Vat
Or as low as Out of stock
KEY FEATURES:
– Micro-ATX Form Factor
– Intel B860 Chipset, Socket LGA 1851
– Supports Intel Core Ultra Series 2 Processors
– 2x DDR5 DIMM Slots, Supports Up To 128GB (2x64GB)
– Supports Up to DDR5-6400 (OC)
– 1x PCIe 5.0 x16 Slot (x16 Physical)
– 2x PCIe 4.0 x1 Slots (x1 Physical)
– 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
– 4x SATA 3.0 Ports
– Supports Front-Panel USB 10Gbps Type-C Chassis Port
– 2x USB 5Gbps Type-A Ports
– 4x USB 2.0 Type-A Ports
– 1x HDMI 2.1 (TMDS) Port
– 1x DisplayPort 1.4 Port
– 2x 3.5mm Audio Jacks (Headphone, Microphone)
– Realtek 2.5 Gigabit Ethernet RJ-45 LAN
– Realtek ALC897 High Definition Audio CODEC
– 4+1+1 Phase Digital VRM Solution
– MSI EZ Debug LED
– MSI EZ Memory Protection
– MSI M.2 CLIP II Latch
– Supports Windows 11 64-bit
– 3 Year Warranty
Description

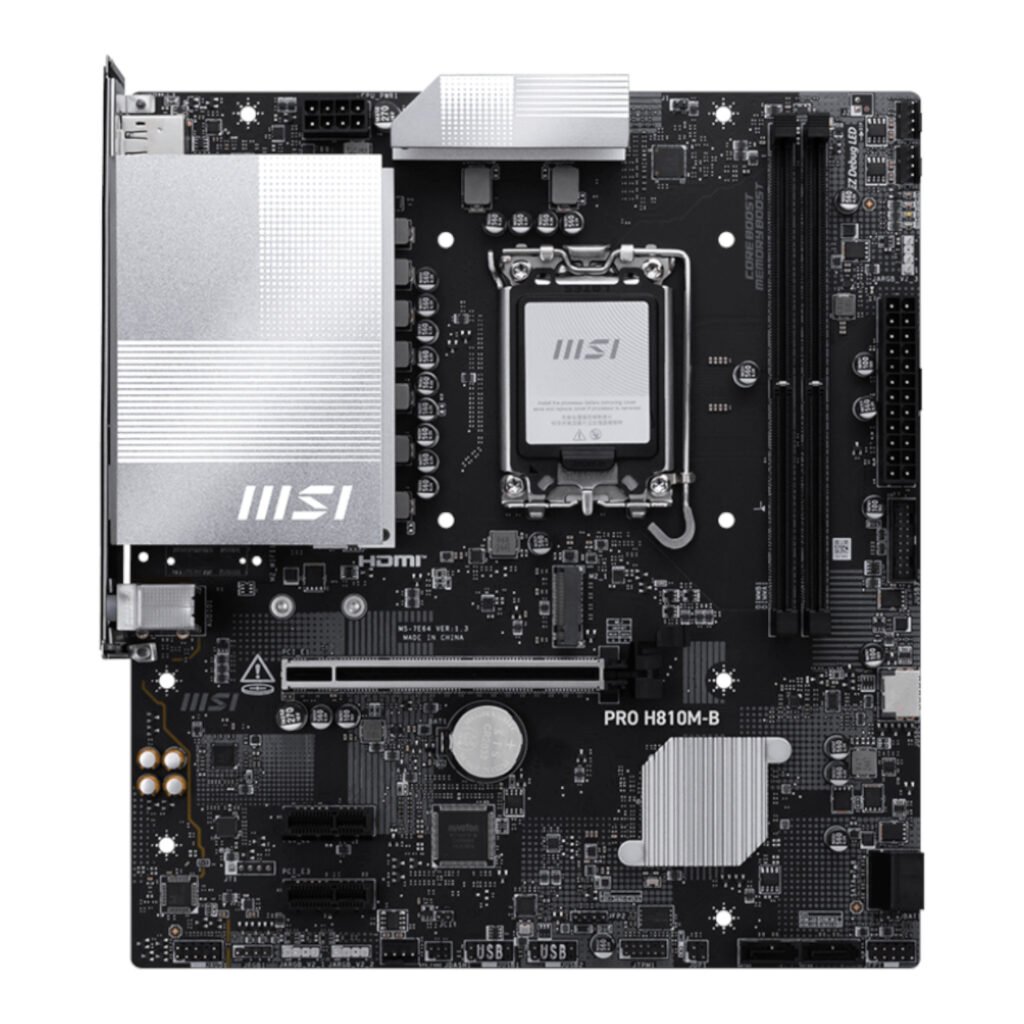

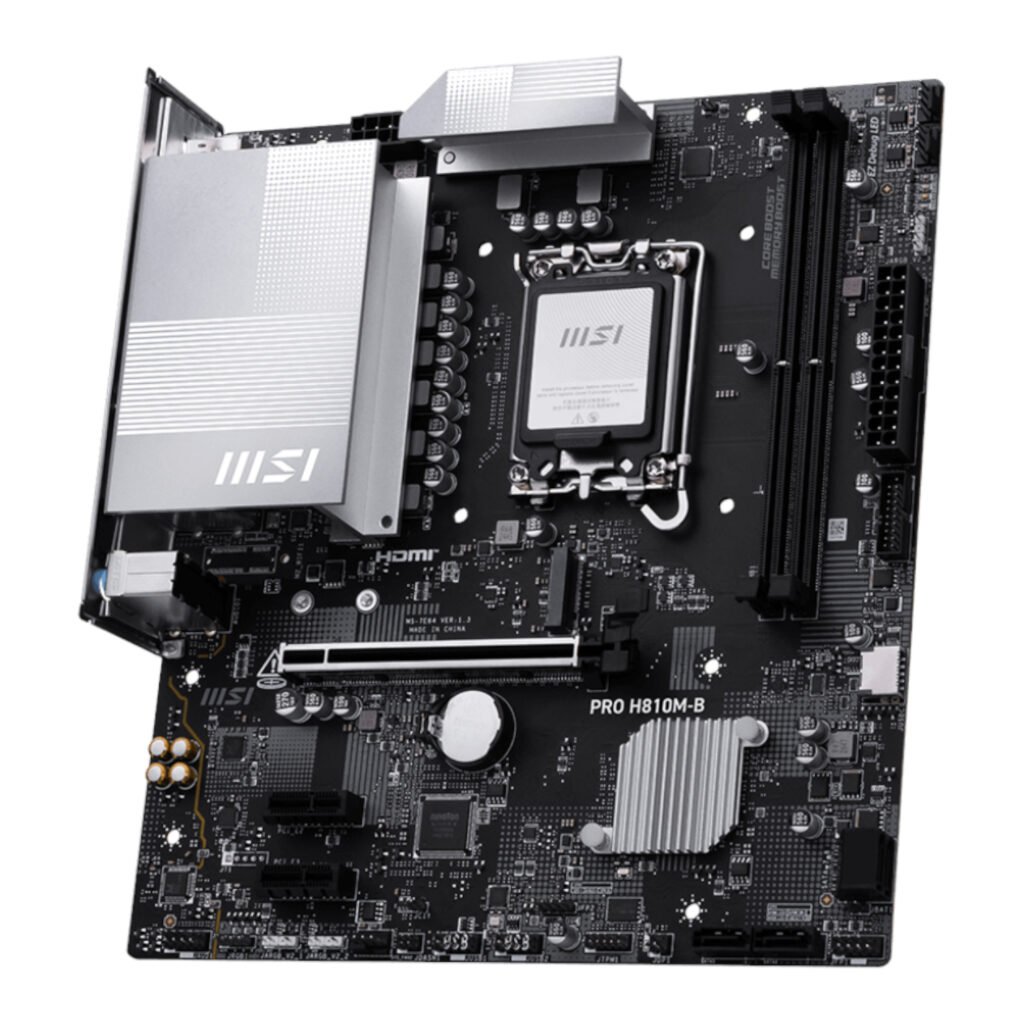

MSI PRO H810M-B Intel B860 LGA 1851 Micro-ATX Motherboard
PRO H810M-B
Boost your productivity and performance with the MSI H810M-B PRO LGA1851 M-ATX DDR5 Motherboard, a reliable and high-performance platform tailored for professionals, creators, and DIY PC builders. Designed to support the latest Intel® Core™ Ultra (Series 2) processors on the LGA 1851 socket, this Micro-ATX motherboard combines clean aesthetics with cutting-edge functionality. It boasts PCIe 5.0 support for next-generation graphics and DDR5 memory capabilities of up to 6400 MT/s, making it ideal for demanding multitasking environments, workstations, and light gaming rigs. Its sleek silver colour scheme blends seamlessly into both black and white chassis builds, offering flexibility in custom PC designs.

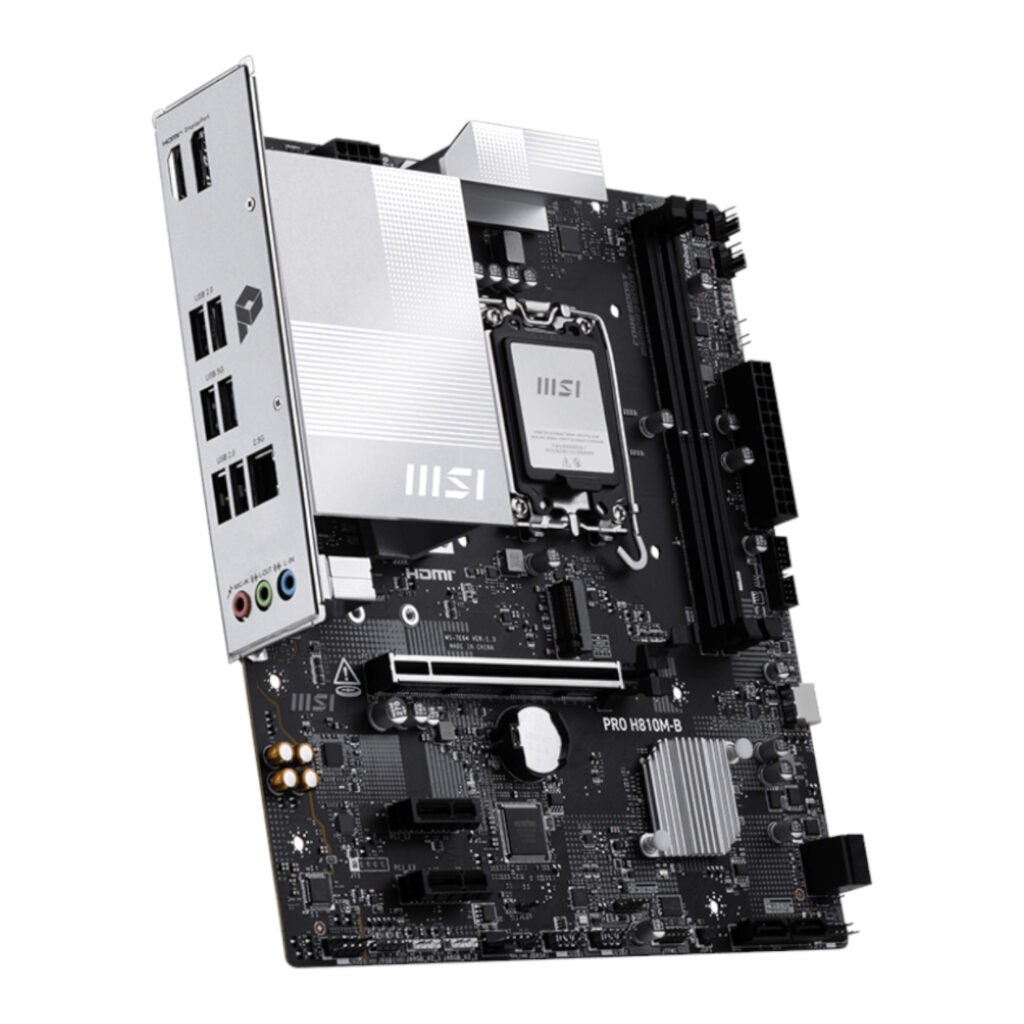

Ease of use is at the core of the PRO Series philosophy, with the EZ PCIe Clip II and EZ M.2 Clip II simplifying installation even in tight cases. The pre-installed I/O shield ensures a precise fit and streamlined setup process while providing extra protection to motherboard components. Reinforced PCIe steel slots and clearly marked keep-out zones provide mechanical durability and build clarity, making this motherboard a breeze to assemble and maintain. Whether you’re upgrading an existing system or building a new one, MSI’s thoughtful design minimizes installation hassles and maximizes system longevity.
Under the hood, MSI incorporates premium features like Core Boost and Memory Boost technologies, which work together to deliver pinpoint power delivery and signal integrity for enhanced system performance. With advanced DDR5 memory support, XMP profiles, and Memory Extension Mode, users can achieve faster speeds, lower latency, and better system responsiveness across all applications. Frozr AI Cooling and Cooling Wizard further optimize thermal management by automatically adjusting fan speeds based on CPU and GPU temperatures, ensuring cool, quiet, and stable operation during intensive workloads or long gaming sessions.
Connectivity and multimedia features are robust, including 2.5G LAN for faster and more stable networking, Lightning Gen 4 M.2 storage, and USB 10Gbps Type-C support for high-speed data transfers. Audio Boost technology delivers studio-grade 7.1 HD audio, while Mystic Light integration allows for RGB lighting customization through MSI Center software. Whether you’re streaming, editing, gaming, or designing, the MSI H810M-B PRO delivers all the essential tools for a seamless and professional-grade experience in a compact Micro-ATX form factor.
FEATURES:
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, Dual Channel DDR5 6400 MT/s (MAX)
- Core Boost: With premium layout and digital power design for better performance
- Memory Boost: Advanced technology to deliver pure data signals for stability and compatibility
- Frozr Guard: Extended Heatsink and MOSFET thermal pads rated for 7W/mK
- EZ DIY: EZ M.2 Clip II and EZ PCIe Clip II
- Lightning Fast experience: PCIe 5.0 slot and Lightning Gen 4 x4 M.2
- 2.5G LAN: Upgraded network solution for professional and multimedia use
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
SPECIFICATIONS |
|
| Brand | MSI |
| Series | PRO Series |
| Model | PRO H810M-B |
| CPU Support | LGA 1851 Supports Intel Core Ultra Processors (Series 2) |
| Chipset | Intel H810 Express |
| Memory Support | |
| Intel Core Ultra Processors (Series 2) | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB |
| Memory Support DDR5 6400 – 4800 (JEDEC) MT/s | |
| Max. overclocking frequency: | |
| 1DPC 1R Max speed up to 6400 MT/s | |
| 1DPC 2R Max speed up to 6400 MT/s | |
| Supports Intel POR Speed and JEDEC Speed | |
| Supports Intel XMP 3.0 | |
| Supports Dual-Controller Dual-Channel mode | |
| Supports Non-ECC, Un-buffered memory | |
| Supports CUDIMM | |
| Video | |
| DisplayPort | 1x DisplayPort, supporting a maximum resolution of 4K @ 60 Hz, Support for DisplayPort 1.4 and HDCP 2.3 |
| HDMI | 1x HDMI 2.1 (TMDS) port, supporting a maximum resolution of 4K @ 60 Hz, Support for FRL, HDR and HDCP 2.3 |
| Integrated Intel graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 5.0 x16 Electrical, x16 Physical Slot |
| Intel H810 Chipset | 2x PCIe 4.0 x1 Electrical, x1 Physical Slots |
| Storage | |
| CPU Direct | M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
| Intel H810 Chipset | 4x SATA 6G |
| Support for SATA RAID 0, RAID 1, and RAID 10 | |
| Networking | |
| LAN | Realtek 2.5Gbps LAN Adapter |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek ALC897 Codec |
| 7.1-Channel Surround Audio with front-panel jack retasking | |

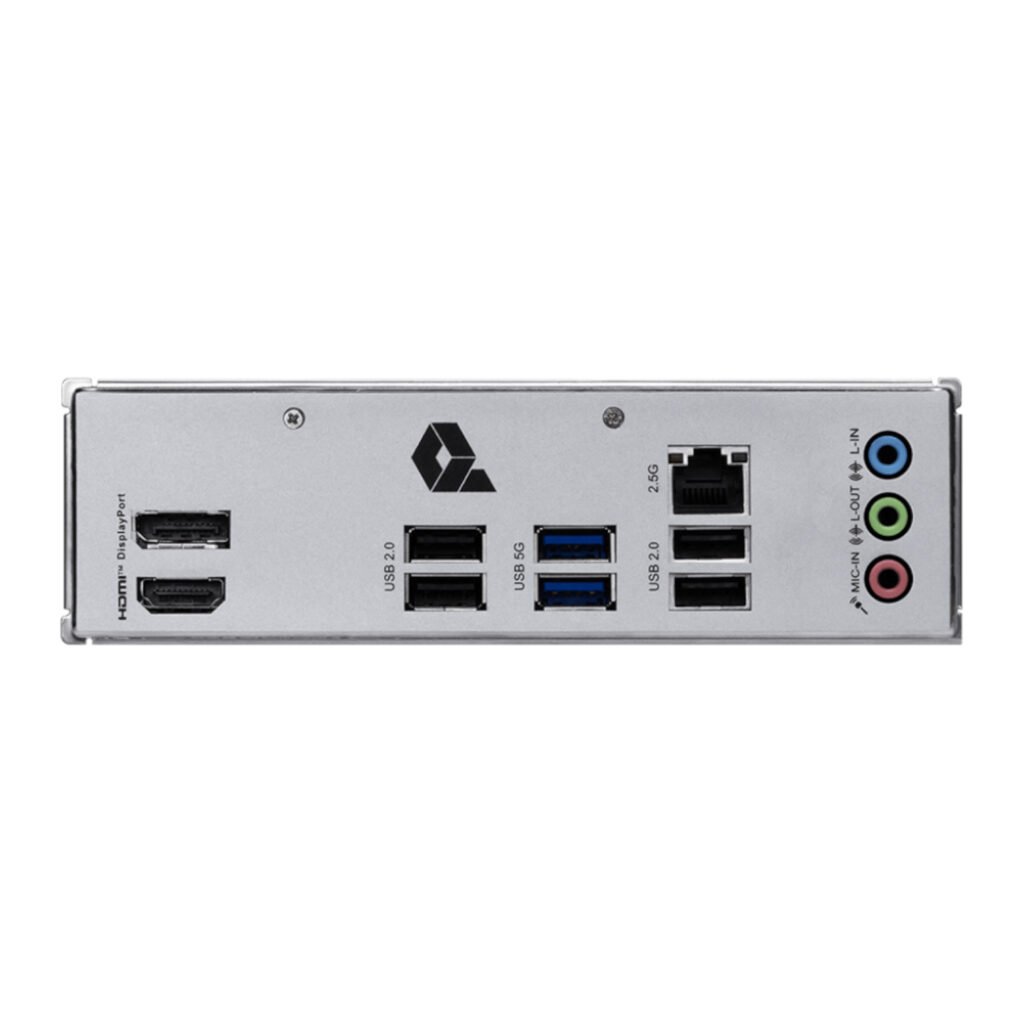

| Connectivity | |
| Ports | 2x USB 5Gbps Type-A Ports |
| 4x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 (TMDS) Port | |
| 1x DisplayPort 1.4 Port | |
| 2x 3.5mm Audio Jacks (Headphone, Microphone) | |
| 1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN | |
| Buttons | N/A |
| General | |
| Internal Connectors | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 2x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Tuning Controller connector(JDASH) | |
| 3x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 5Gbps Type A ports | |
| 1x USB 10Gbps Type C ports | |
| I/O Controller | NUVOTON NCT6687D-M Controller Chip |
| LED Displays | 4x EZ Debug LEDs, 1x EZ Memory Detection LED |
| BIOS | 1x 256 Mb flash |
| UEFI AMI BIOS | |
| Form Factor | Micro-ATX Form Factor, 243.84 x 220mm (H x W) |
| Operating System Support | Windows 11 64-bit |
| Boxed Accessories | 1x Quick installation guide |
| 1x European Union Regulatory Notices | |
| 1x SATA Cable | |
| 1x EZ M.2 Clip II | |
| 1x EZ M.2 Clip II Remover | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
