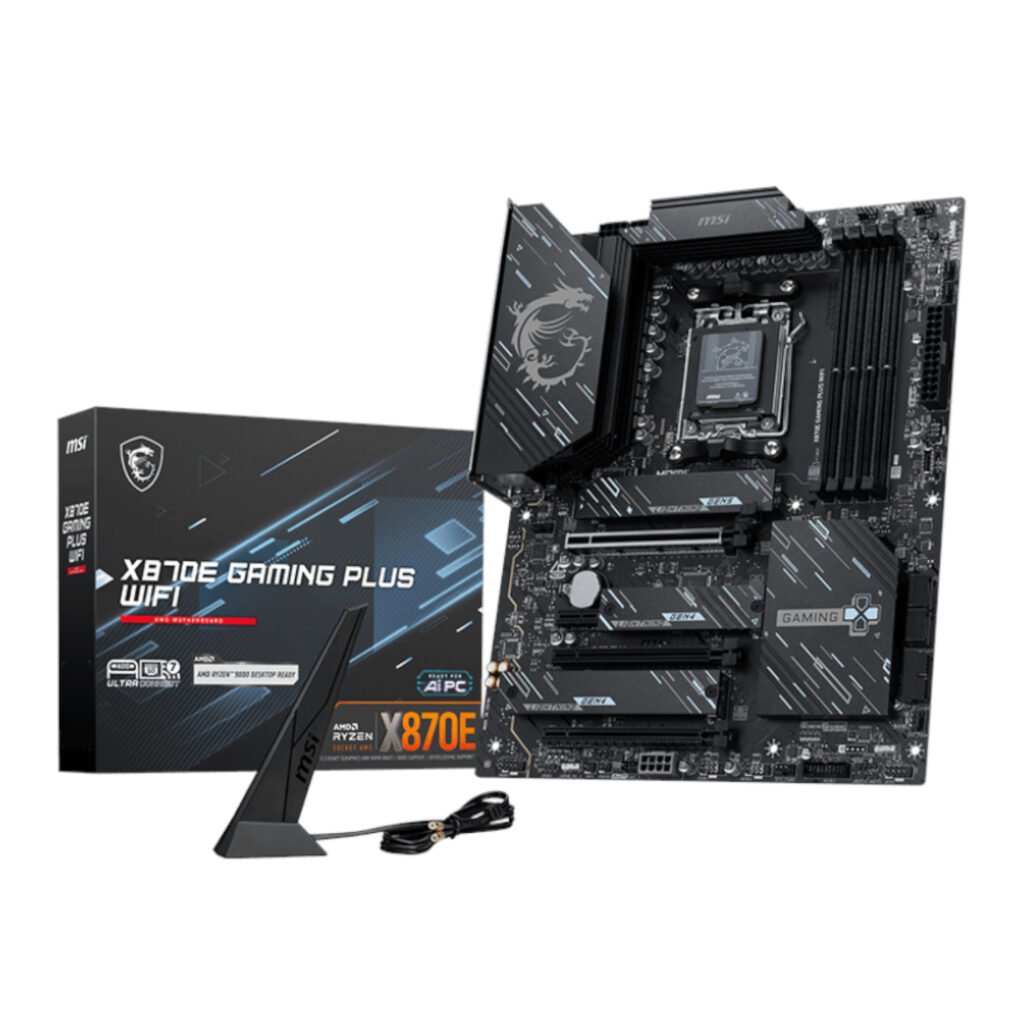

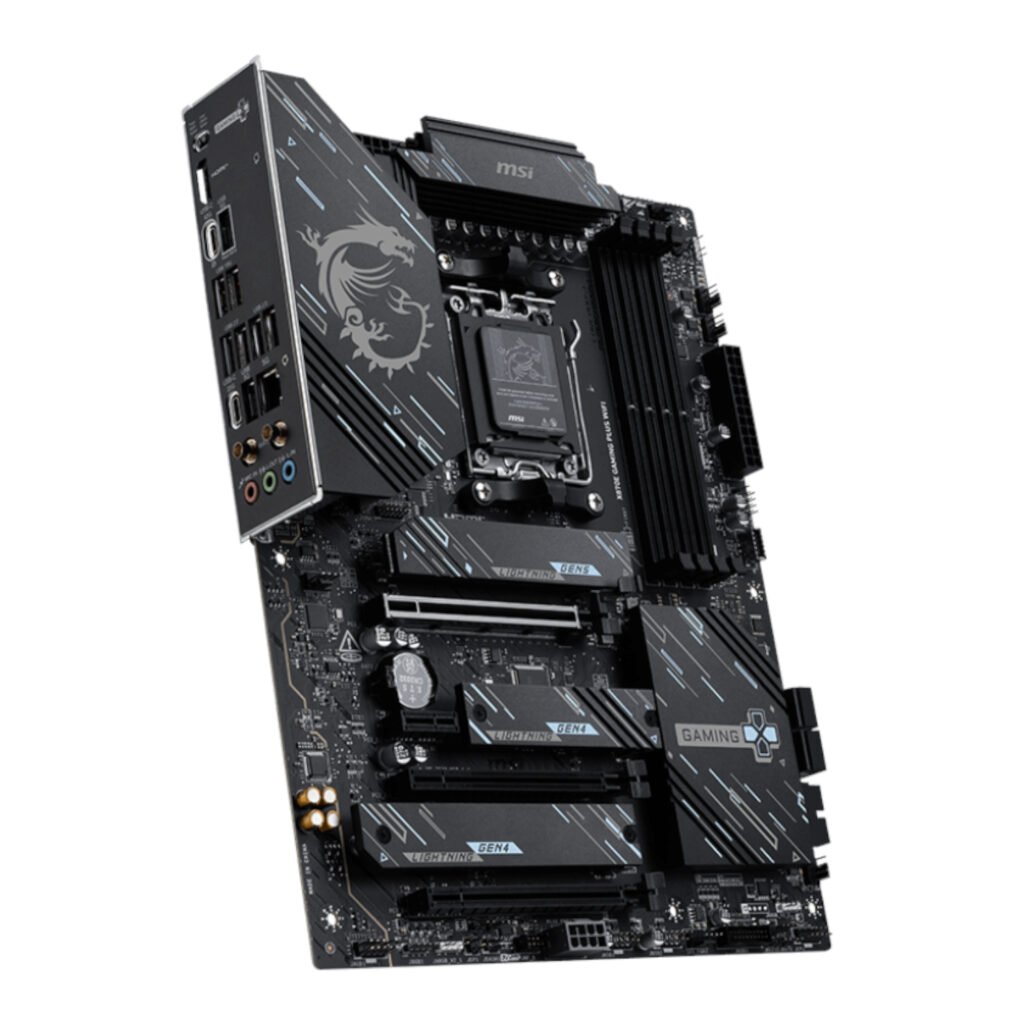

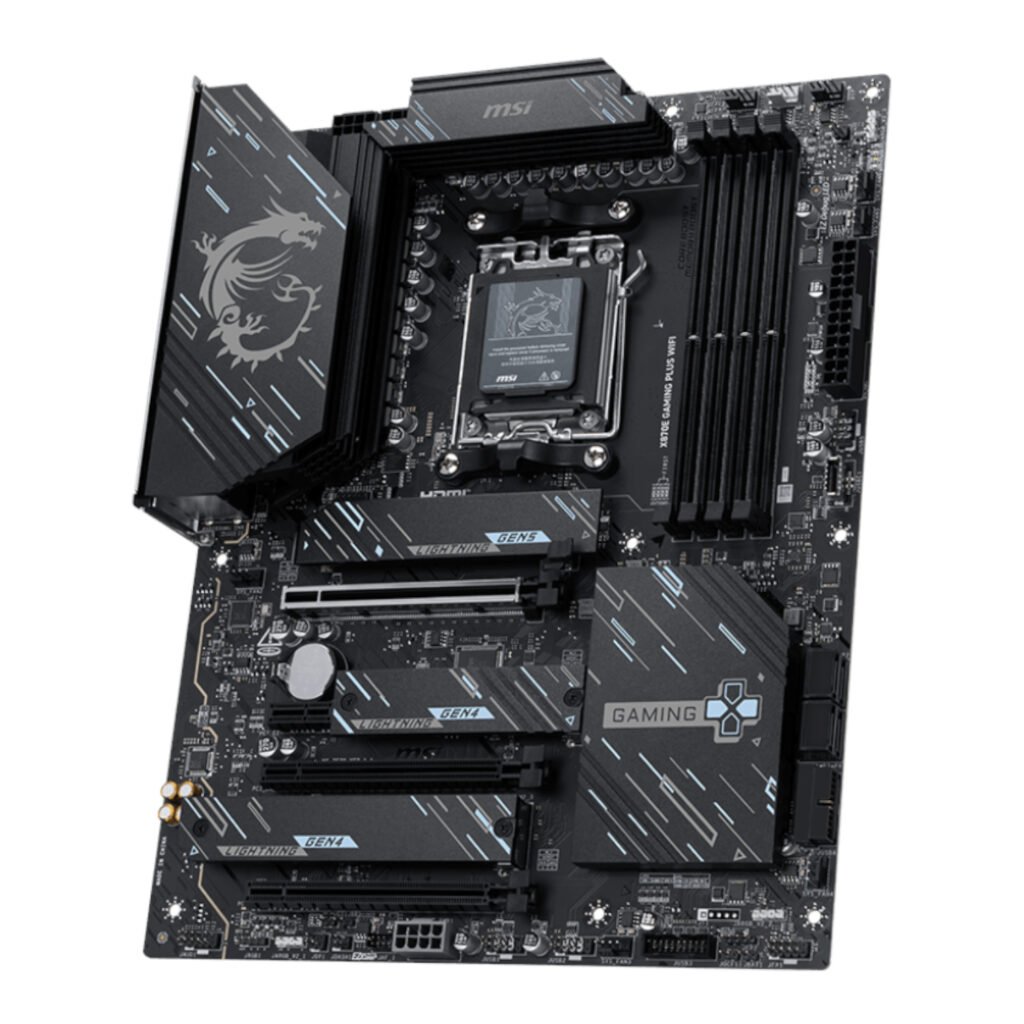

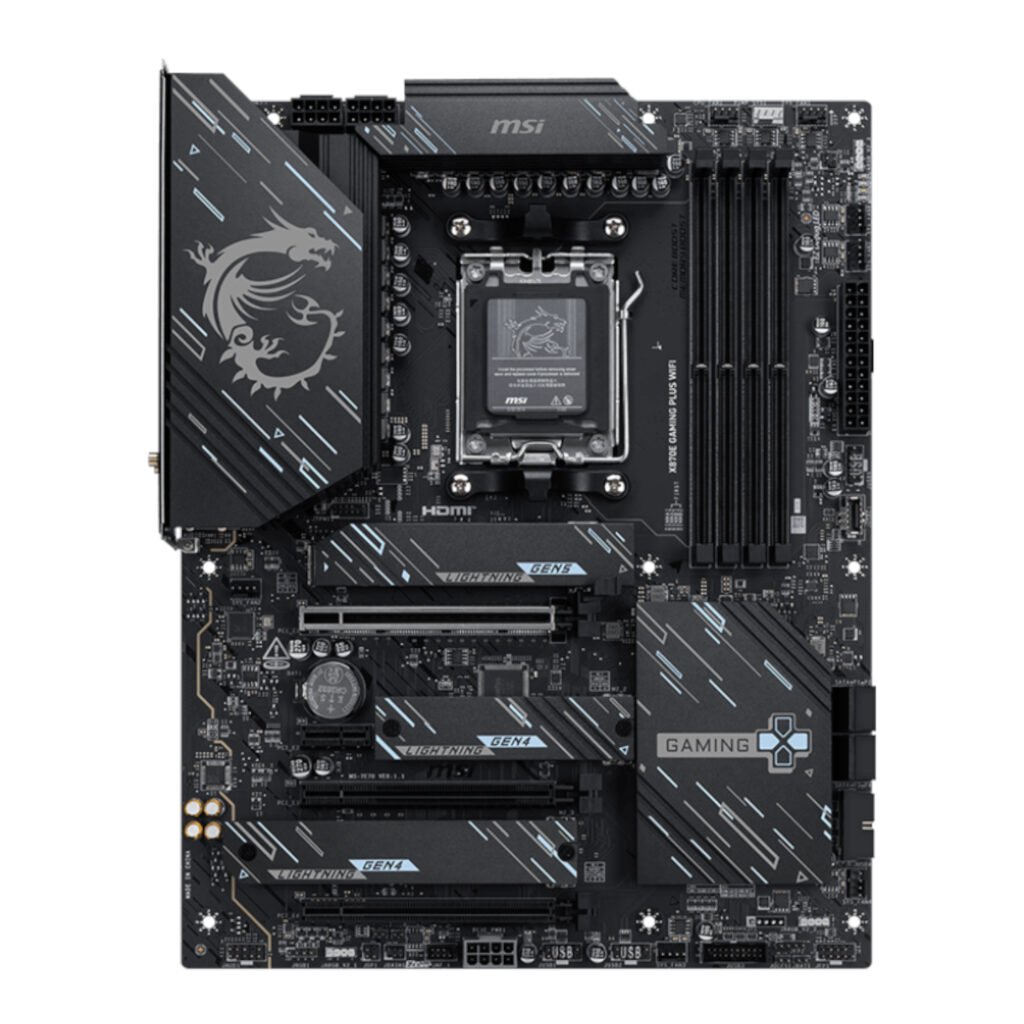

MSI X870E Gaming Plus WIFI AM5 ATX Motherboard
R5622.00 Incl. Vat
Or as low as KEY FEATURES:
– ATX Motherboard with AMD X870E chipset & AM5 socket
– Supports DDR5 8000+ MHz (OC), up to 256GB, AMD EXPO ready
– 2x PCIe 5.0 x16, 1x PCIe 4.0 x16, 2x PCIe 4.0 x1 slots
– 3x M.2 PCIe 5.0/4.0 & 6x SATA 6Gb/s for high-speed storage
– High-speed USB: 1x 20Gbps Type-C, 3x 10Gbps Type-A, 4x 5Gbps Type-A
– 2.5Gb LAN + WiFi 7 + Bluetooth 5.4
– Realtek ALC897 7.1 HD Audio
– 14-phase power design for stable performance
– Premium cooling with Mystic Light RGB sync
– EZ Debug LED & BIOS Flash Button
– 3-Year Warranty
Description
MSI X870E Gaming Plus WIFI AM5 ATX Motherboard
Power your next-gen gaming setup with the MSI X870E Gaming Plus WIFI AM5 ATX Gaming Motherboard, engineered for seamless performance with AMD Ryzen™ 9000, 8000, and 7000 Series processors. Boasting DDR5 memory support up to 8200+ MT/s (OC), PCIe 5.0 slots, and blazing-fast USB4 and 5G LAN connectivity, this board is built for gamers, creators, and power users alike. With Wi-Fi 7 and Bluetooth 5.4, it delivers unmatched wireless speed and reliability, ensuring smooth gameplay and lag-free streaming. MSI’s exclusive EZ DIY features, including EZ M.2 Shield Frozr II, EZ M.2 Clip II, and EZ PCIe Clip II, simplify hardware installation, even in tight builds.
The X870E Gaming Plus WIFI offers robust performance through a 14+2+1 digital power phase VRM design, complete with dual 8-pin power connectors and 60A Smart Power Stages for clean, stable power delivery to the CPU and GPU. With Frozr Guard thermal solutions, extended heatsinks, and 7W/mK MOSFET thermal pads, it keeps your system cool under pressure. MSI’s Memory Boost and Core Boost technologies further elevate system responsiveness, allowing for efficient multitasking, high frame rates, and intense overclocking potential. Whether you’re gaming, rendering, or diving into AI workloads, this motherboard is your ultimate powerhouse.
Designed with creators and DIY builders in mind, the pre-installed I/O shield and clean circuit layout enhance durability while reducing setup time. The EZ M.2 Clip II Remover tool and rebounding EZ PCIe Clip II make upgrading SSDs or GPUs quick and effortless. Featuring a comprehensive Cooling Wizard via MSI Center, users can manage fan and pump speeds with precision, reducing system noise while maximizing thermal efficiency. The motherboard supports multi-zone RGB lighting with Mystic Light, allowing full customization and syncing with compatible MSI components for a personalized look.
Enjoy intuitive system tuning through the redesigned CLICK BIOS X and gain full control of your PC’s performance. With USB 4.0, HDMI 2.1 4K@60Hz support, and multiple high-speed M.2 slots including Gen5 x4 for lightning-fast storage, the MSI X870E Gaming Plus WIFI delivers future-ready connectivity and expansion. This board is optimized for next-gen gaming and productivity, making it an ideal foundation for building a powerful and aesthetically pleasing high-performance PC.
FEATURES:
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution – the latest solution for professional and multimedia use
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Compatibility
Operating System Support:
Requires Windows® 11, 64-bit
Processor Support:
This MSI Motherboard supports AMD Ryzen™ Desktop Processors for Socket AM5.
Specifications
| Make and Model | MSI X870E GAMING PLUS WIFI Motherboard |
|---|---|
| Part Number | X870E GAMING PLUS WIFI |
| Operating System | Supports Windows® 11, 64-bit |
| Chipset | AMD X870E Chipset |
| CPU Support | Supports AMD Ryzen™ Desktop Processors for Socket AM5 |
| Memory | 4x DDR5 DIMM RAM Sockets, 256GB Maximum (4x 64GB) Stock Clocked RAM Support: DDR5-5600 / 5400 / 5200 / 5000 / 4800 (JEDEC) Overclocked RAM Support: Up to DDR5-8200+ (OC) Ryzen™ 9000 Series Processors Maximum Overclocking Frequencies: Supports AMD POR Speed and JEDEC Speed The DIMM slots on this motherboard have double-sided latches. |
| Expansion Slots | 3x PCI-E x16 slots: PCI_E1: Up to PCIe 5.0 x16 Lightning Gen 5 Slot, depending on CPU* PCI_E2: Up to PCIe 5.0 x4 Slot, depending on CPU* PCI_E3: PCIe 4.0 x4 Slot * PCI_E1 & PCI_E2 slots: PCI_E1 + PCI_E2 & M.2_2 share bandwidth, and PCIe version support varies depending on your CPU. Please refer to the PCIe configuration table in the manual for more details. |
| Onboard Graphics | Requires Processor with integrated Graphics 1x HDMI™ 2.1 port supports up to 4K UHD @ 60Hz 1x USB 4 Type-C port supports DisplayPort v1.4* w/ HBR3 up to 4K @ 120Hz via Alt Display Mode * USB 4 Type-C port video output is only available on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Storage | 3x NVMe M.2 Slots:
Ryzen™ 9000 / 7000 Series Processors: Ryzen™ 8000 Series Processors: 4x SATA III (6 Gbps) connectors |
| LAN | Realtek® 8126VB 5Gb Ethernet Chipset: 1x RJ45 5Gb Ethernet LAN port |
| Wireless Communication | Wi-Fi 7 Wireless Codec: IEEE 802.11 be / ax / ac / n / g / b / a Tri Band (2.4 / 5 / 6 GHz) up to 320MHz with 5.8Gbps Bandwidth MU-MIMO TX / RX |
| Bluetooth | Wi-Fi 7 Wireless Codec: Bluetooth v5.4* w/ MLO, 4KQAM Bluetooth v5.4 requires Windows 11 24H2 update or higher, otherwise Bluetooth v5.3 is supported. |
| Audio | Realtek ALC897 AUDIO Codec: 7.1 Channel HD Audio 3x Rear 3.5mm Combo Audio jacks |
| USB | Rear I/O Panel: 1x USB 4 (40Gbps) Type-C port supports Alt Display Mode 1x USB 3.2 Gen2x2 (20Gbps) Type-C port 2x USB 3.2 Gen2 (10Gbps) Type-A ports 2x USB 3.2 Gen1 (5Gbps) Type-A ports 4x USB 2.0 (480Mbps) Type-A ports Internal USB Headers: |

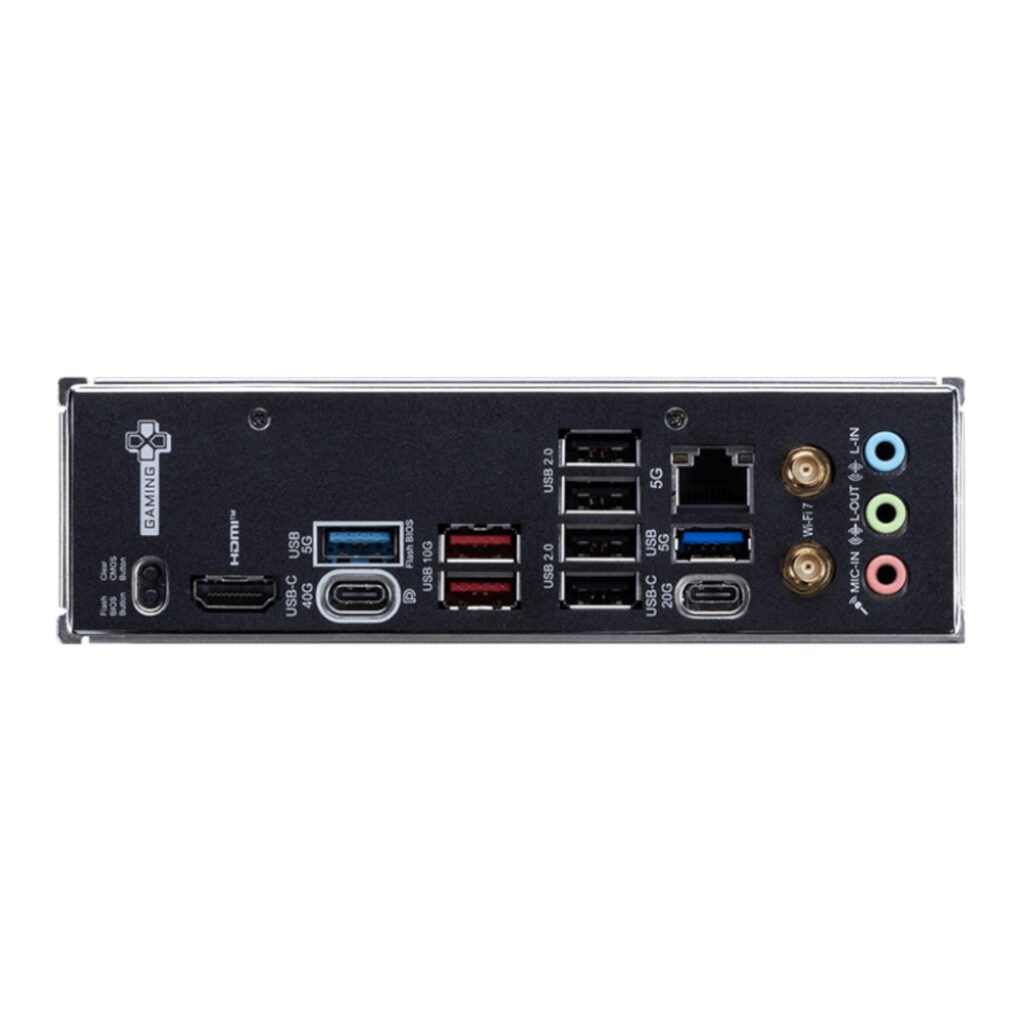

| Back Panel I/O | 1x USB 4 (40Gbps) Type-C port supports Alt Display Mode 1x USB 3.2 Gen2x2 (20Gbps) Type-C port 2x USB 3.2 Gen2 (10Gbps) Type-A ports 2x USB 3.2 Gen1 (5Gbps) Type-A ports 4x USB 2.0 (480Mbps) Type-A ports 1x HDMI™ 2.1 port supports up to 4K UHD @ 60Hz 1x RJ-45 5Gb LAN port 3x 3.5mm Combo Audio jacks 2x Antenna ports (2T2R) 1x Flash BIOS button |
| Internal I/O Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 1x USB 3.2 Gen2 (10Gbps) Type-C port via 1x USB 3.2 Gen2 Type-C Header |
| I/O Controller | N/A |
| BIOS | N/A |
| Form Factor | ATX Form Factor |
| Dimensions (LxW) | 304.8 x 243.8mm |
| Weight | N/A |
