Description
Part numberCC-H51EB-01

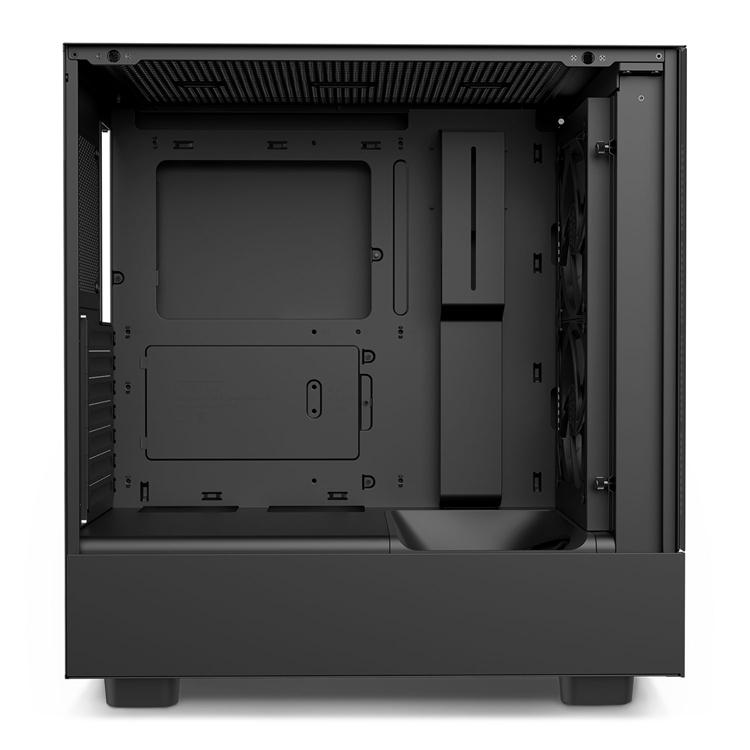

H5 Elite – Premium Compact Mid-Tower Case with Tempered Glass

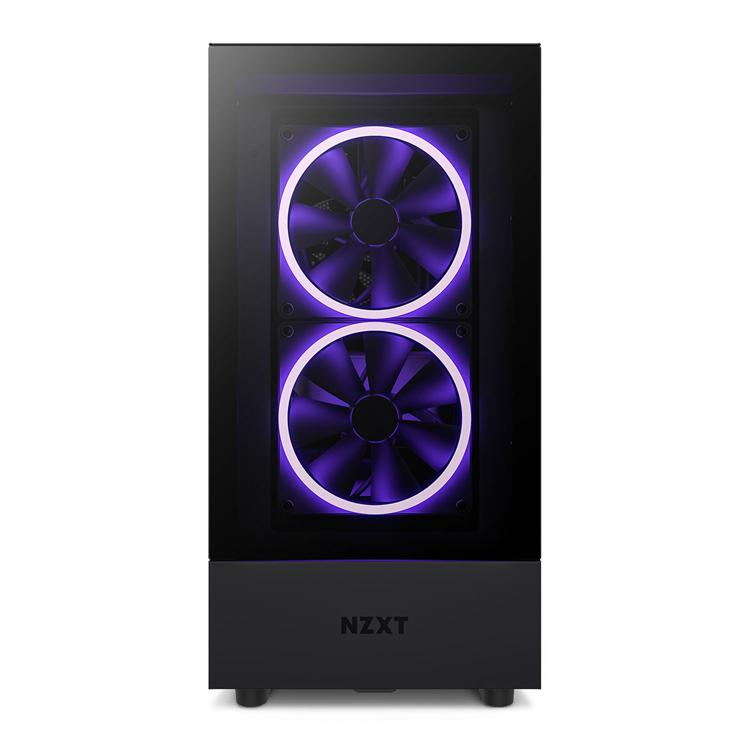

The H5 Elite features a tempered glass front panel and built-in RGB functionality to showcase various lighting components. With optimized thermal performance and intuitive cable management, the H5 Elite is an ideal chassis for most builds.
-
- Pre-installed fan on bottom inside panel is angled to cool GPU
-
- Tempered glass front panel and built-in RGB controller
-
- Perforated top panel provides optimal ventilation
-
- Intuitive cable management system with wide channels, hooks, & straps
-
- Tool-less access to front & side panels
-
- Front panel supports 2 x 140mm fans or 280mm radiator
-
- Top panel supports up to 2 x 120mm fans or 240mm radiator
-
- Includes two pre-installed F140 RGB fans & one F120Q fan
* Case version fans and specs may vary from retail version.
- Includes two pre-installed F140 RGB fans & one F120Q fan
Features
Fan Capacity
Fan mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel.
Fan mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel.
-
- Top: 2x 120mm
-
- Front: 2x 140mm / 2x 120mm
-
- Rear: 1x 120mm
-
- Bottom: 1x 120mm
Radiator Capacity
The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.
The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.
Additional Information:
Specifications
| Product | H5 Elite Mid Tower ATX Computer Case w/ Tempered Glass |
|---|---|
| Part Number | CC-H51EB-01 |
| Color | Black |
| Chassis Type | Mid Tower |
| Material | SGCC Steel, Tempered glass side panel |
| Motherboard | ATX, MicroATX, and Mini-ITX |
| Expansion Slots | 7 |
| Drive Bays | 3.5″: 1 2.5″: 1+1 |
| Maximum GPU Length | Up to 365mm |
| Maximum CPU Cooler Height | Up to 165mm |
| Maximum ATX PSU Length | ATX PSU |
| Cable Management | ~23mm |
| Fan Mount Locations | Front: 2 x 140 mm Top: 2 x 120 mm Rear: 1 x 120 mm Bottom: 1 x 120 mmIncludes: 2 x Front-mounted F Series RGB 140mm (Case Version) 1 x Bottom-mounted F Series Quiet 120mm (Case Version) |
| Filters | Yes |
| Radiator Support | Front: Up to 280 mm Top: Up to 240 mm Rear: Up to 120 mm |
| Front I/O | 1 x USB 3.2 Gen 2 Type-C 1 x USB 3.2 Gen 1 Type A 1 x Audio/Mic jack |
| Power Supply | Not included |
| Dimensions (WxHxD) | 227 x 464 x 446 mm |
| Weight | 8.1kg |
Package Contents
-
- NZXT H5 Elite Mid Tower ATX Computer Case w/ Tempered Glass (Black)
-
- Accessory Kit
-
- User Information
