Description
Part numberCC-H51FB-01

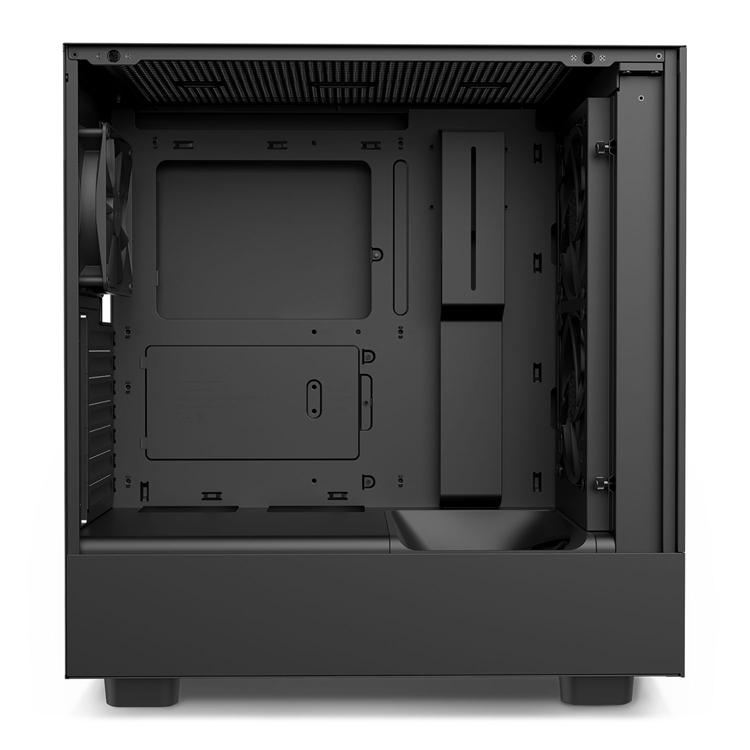

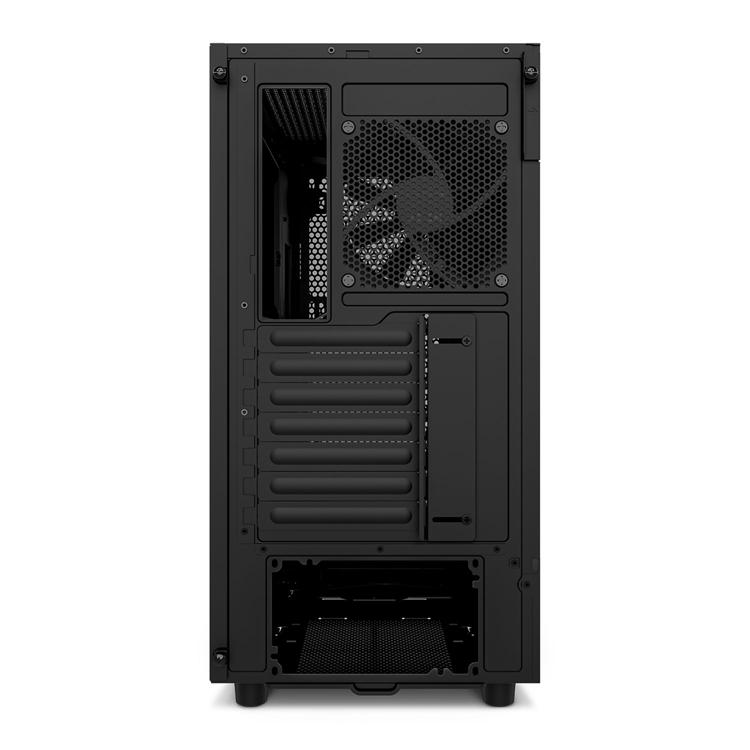

H5 Flow – Compact Mid-tower Airflow Case with Tempered Glass
The H5 Flow features a perforated front panel to generate an extra dimension of airflow for maximum cooling potential. With optimized thermal performance and intuitive cable management, the H5 Flow is an ideal chassis for most builds.
-
- Dedicated fan on bottom inside panel is angled to cool GPU
-

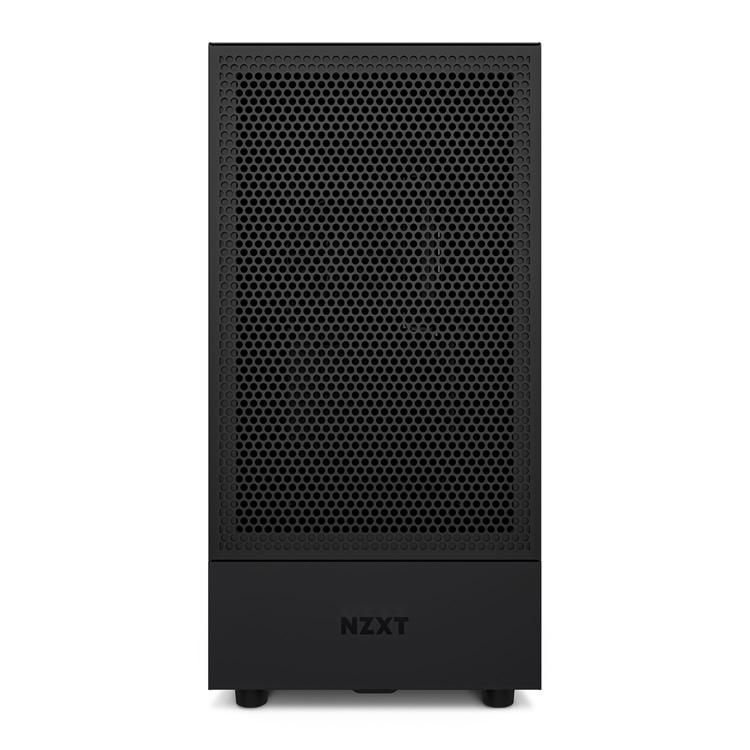

- Perforated front panel provides optimal ventilation
-
- Intuitive cable management system with wide channels, hooks, & straps
-
- Tool less access to front and side panels
-
- Front panel supports up to 2 x 140mm fans or 280mm radiator
-
- Top panel supports up to 2 x 120mm fans or 240mm radiator
-
- Includes two pre-installed F120Q fans
* Case version fans and specs may vary from retail version.
- Includes two pre-installed F120Q fans
Features
Fan Capacity
Fan mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel.
Radiator Capacity
The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.
Fan mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel.
Radiator Capacity
The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.
Additional Information:
Specifications
| Product | H5 Flow Mid Tower ATX Computer Case w/ Tempered Glass |
|---|---|
| Part Number | CC-H51FB-01 |
| Color | Black |
| Chassis Type | Mid Tower |
| Material | SGCC Steel, Tempered glass side panel |
| Motherboard | ATX, MicroATX, and Mini-ITX |
| Expansion Slots | 7 |
| Drive Bays | 3.5″: 1 2.5″: 1+1 |
| Maximum GPU Length | Up to 365mm |
| Maximum CPU Cooler Height | Up to 165mm |
| Maximum ATX PSU Length | ATX PSU |
| Cable Management | ~23mm |
| Fan Mount Locations | Front: 2 x 120 / 2 x 140 mm Top: 2 x 120 mm Rear: 1 x 120 mm Bottom: 1 x 120 mmIncludes: 1 x rear-mounted F Series Quiet 120mm (case version) 1 x bottom-mounted F Series Quiet 120mm (case version) |
| Filters | Yes |
| Radiator Support | Front: Up to 280 mm Top: Up to 240 mm Rear: Up to 120 mm |
| Front I/O | 1 x USB 3.2 Gen 2 Type-C 1 x USB 3.2 Gen 1 Type A 1 x Audio/Mic jack |
| Power Supply | Not included |
| Volume | 41L |
| Dimensions (WxHxD) | 227 x 464 x 446 mm |
| Weight | 7.01kg |
Package Contents
-
- NZXT H5 Flow Mid Tower ATX Computer Case w/ Tempered Glass (Black)
-
- Accessory Kit
-
- User Information
