Description
H1 Tempered Glass Mini-ITX PC Case from NZXT in White
GREAT THINGS COME IN SMALL PACKAGES
Introducing the all new NZXT H1, a new Mini-ITX vertical chassis with huge capabilities. NZXT have streamlined the building process by maintaining full-sized GPU compatibility and integrating a PSU and all-in-one liquid cooler complete with pre-routed cable channels. NZXT have also built a dual-chamber exhaust layout maintaining superior cooling for both the GPU and CPU by providing each with a dedicated air source.
Full-Sized GPU Compatibility
SMALL BUT MIGHTY
The small compact vertical design gives you a small spatial footprint for your system whilst maintaining support for most full-size GPUs currently available on the market so you can keep your desk real estate without sacrificing graphical power.
Easily Install your Components
PRE-ROUTED CABLES TO KEEP IT SIMPLE
The integration of an easy to install, toolless SSD tray and riser card and with the pre-routed cables, the motherboard I/O face down, routing all cables through the bottom of the case for a clean, simplified appearance.

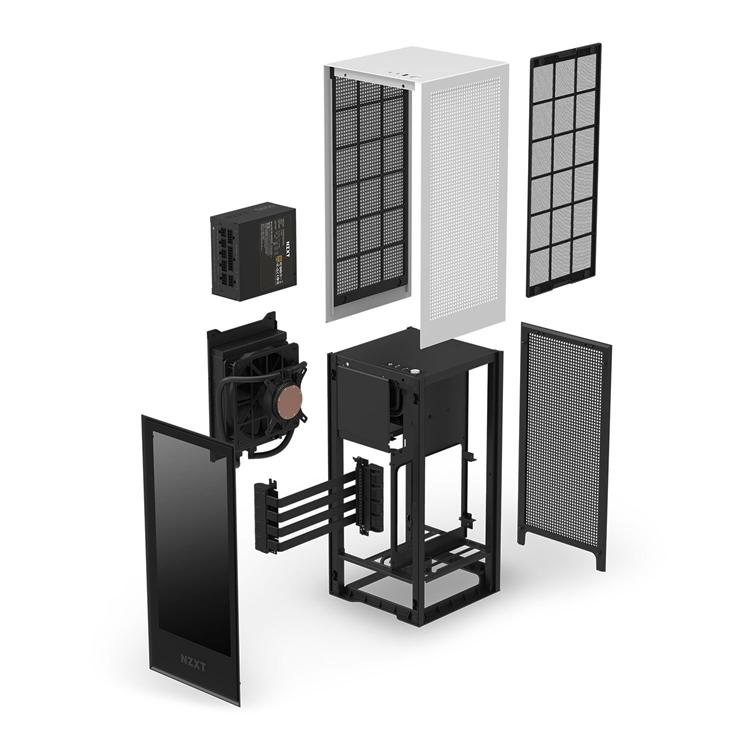

Whats Included in my Case?
INTEGRATED PSU, CPU COOLER AND RISER CABLE
By pre-installing key components like the power supply and AIO cooler NZXT have provided users with a better more streamlined building process combine this with the pre-routed cables that make it much easier to manage the clutter and you can see that build times have been vastly decreased. An integrated PCIe Riser Card is also included for vertical GPU mounting.

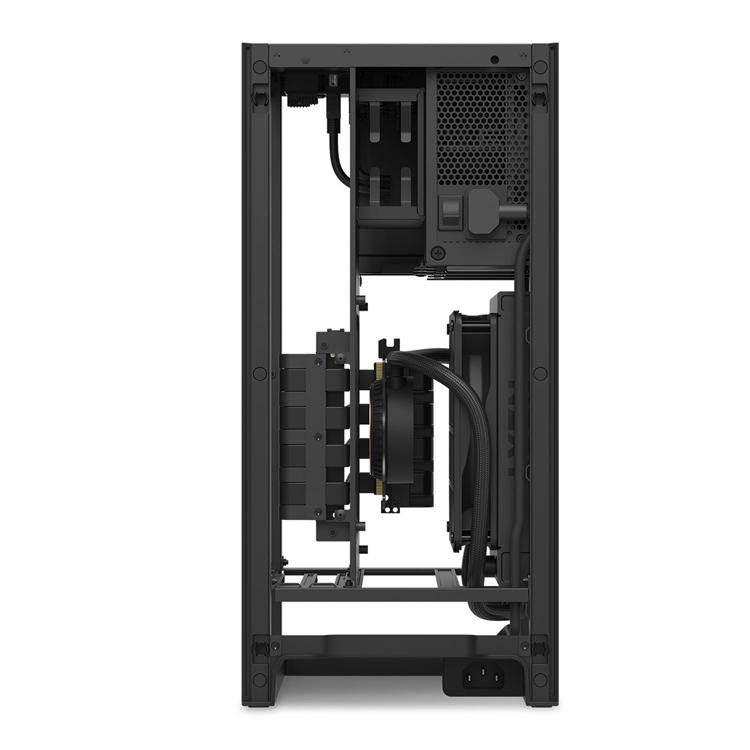

Optimal Airflow & Cooling for your PC
KEEP YOUR SYSTEM COOL
With a smaller chassis heat management becomes more difficult as there is less space for heat to dissipate however NZXT have implemented a dual-chamber exhaust system which is thermally designed to allow the GPU, CPU and PSU to pull in fresh air and push out hot air without affecting the temperatures of neighboring components.
Specifications
| Core Chassis Specifications |
| Case Edition |
H1 |
| Case Form Factor |
Mini-ITX |
| Motherboard Form Factor |
Mini-ITX |
| I/O, Bays & Expansion |
| Front/Side/Top Panel I/O |
|
| Drive Bays |
2 x 2.5″ Internal |
| Standard Expansion Slots |
2 |
| Vertical Expansion Slots |
|
| Fans & Filters |
| Fan Bays |
1 x 140mm |
| Fans Included |
1 x 140mm |
| Fan Controller/Hub |
|
| Dust Filters |
Side |
| Liquid Cooling Support |
| Front Radiator Compatibility |
|
| Top Radiator Compatibility |
|
| Bottom Radiator Compatibility |
|
| Rear Radiator Compatibility |
1 x 140mm |
| Side Radiator Compatibility |
|
| Clearances |
| Max CPU Cooler Height |
|
| Max GPU Card Length |
305 mm |
| Cable Routing Space |
|
| Side Panels |
| Window/s |
Yes |
| Window Configuration |
1 x Front |
| Window Construction |
Tempered Glass |
| LED Lighting Functionality |
| LED Lighting |
No |
| LED Lighting Emitters |
|
| LED Lighting Colour |
|
| LED Lighting Support & Control |
|
| Power Supply Compatibility |
| PSU Included |
Yes |
| PSU Wattage (If Included) |
650 W |
| PSU 80+ Rating (If Included) |
80 PLUS Gold |
| PSU Support |
SFX-L |
| PSU Mounting Location |
Top Mount, Rear |
| Max PSU Length |
130 mm |
| Chassis Physical Specifications |
| Colour |
White |
| Chassis Contruction Materials |
SGCC / Tempered Glass |
| Dimensions |
187 x 387.7 x 187.6 (WxHxD mm) |
| Weight |
6.53 kg (Approx) |
