Description
Part number24B1U5301H

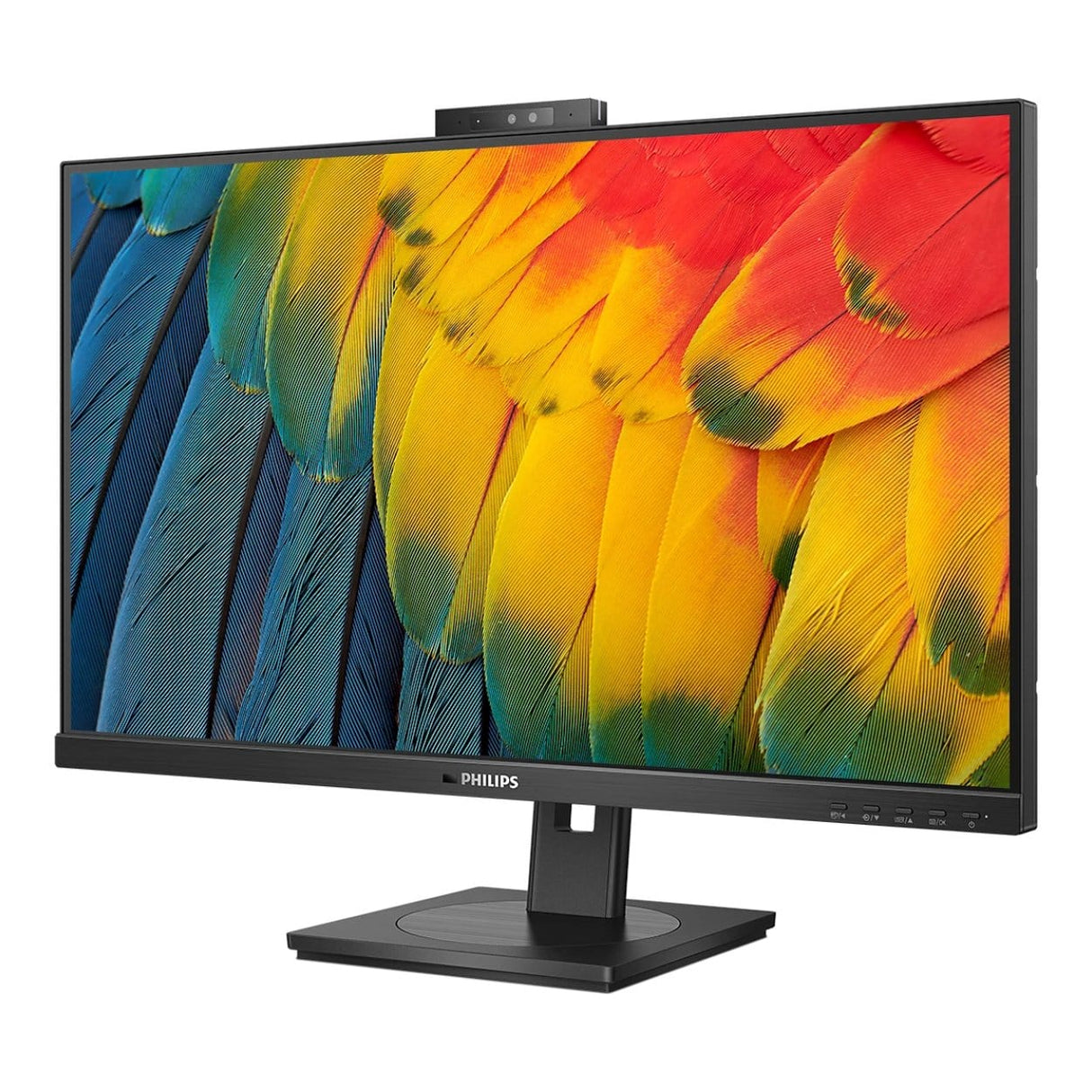

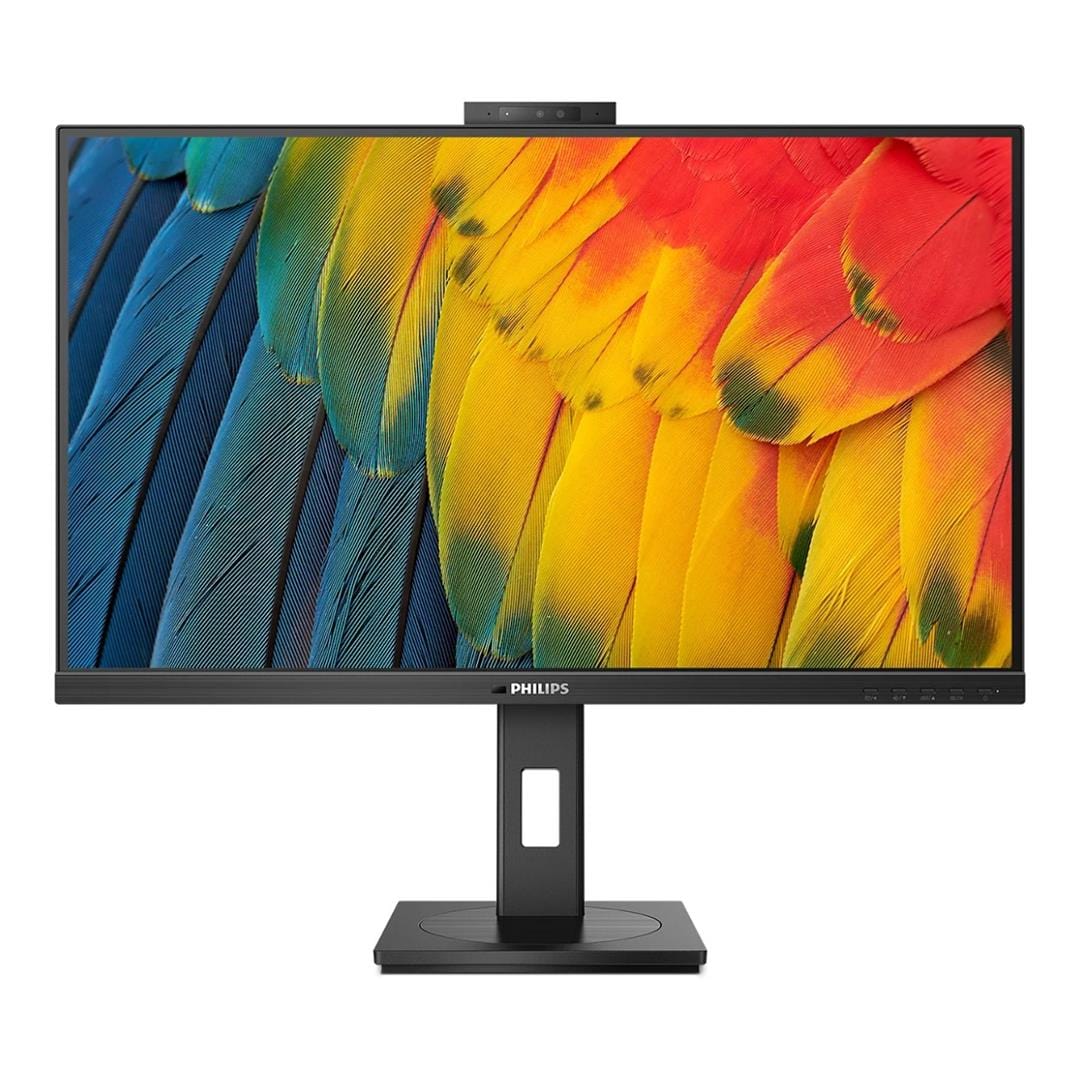

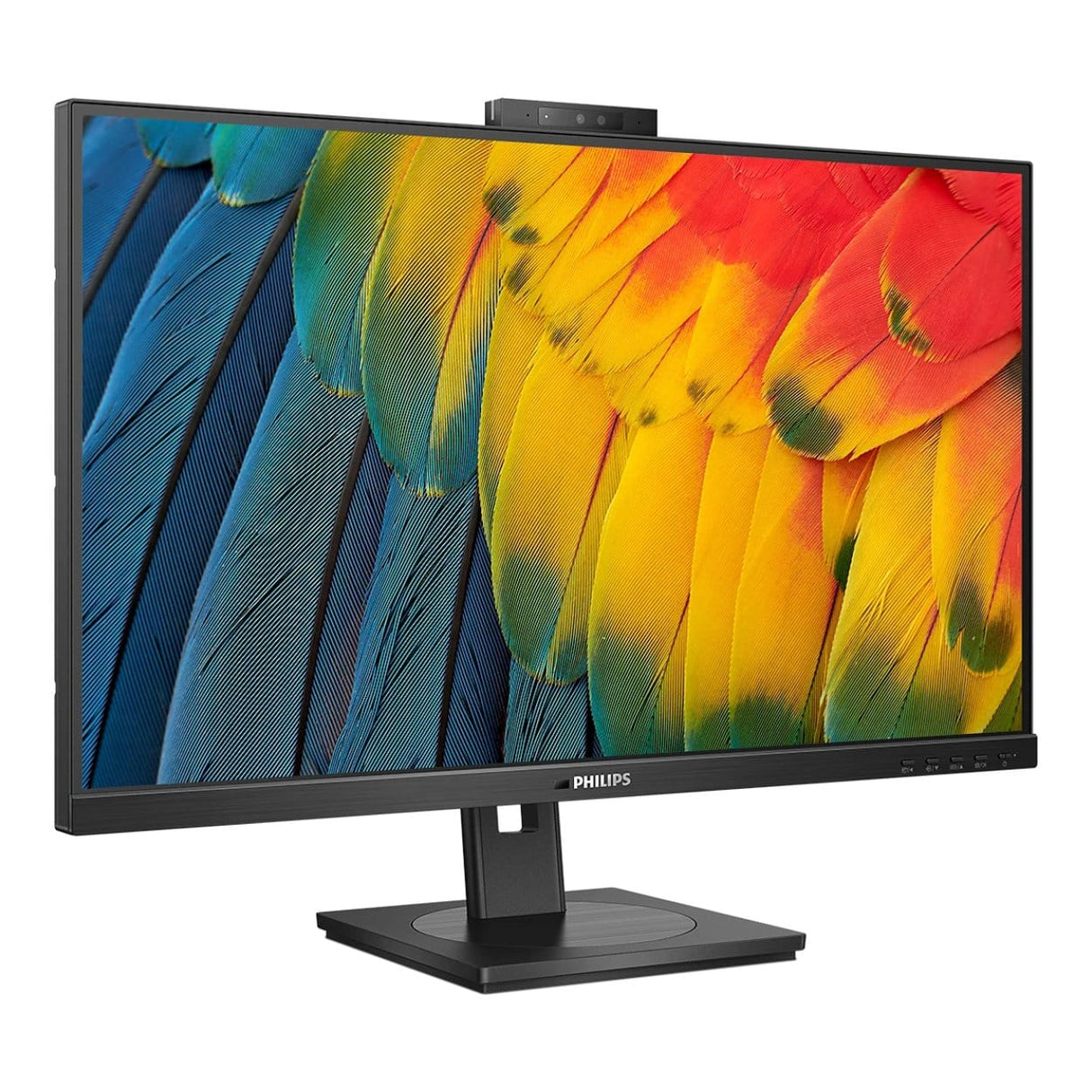

A do-it-all 23.8″ office monitor with USB-C one-cable docking (up to 90W charging), built-in RJ-45 Gigabit LAN, DisplayPort-out for daisy-chain, pop-up 5MP Windows Hello webcam with noise-cancelling mic and 2×5W speakers. IPS panel, 75Hz, 4ms GtG, sRGB 105%, and a fully adjustable stand keep work comfortable and clean.
Key Features
-
Panel & Size: 23.8″ IPS, anti-glare 3H / 25% haze, 178°/178° viewing.
-
Resolution & Refresh: Full HD 1920×1080 @ 75Hz • 4ms GtG response.
-
Brightness / Contrast / Color: 300 cd/m², 1000:1, 16.7M colours • sRGB 105%, NTSC 88% (typ.).
-
USB-C Docking (Up to 90W PD): Video (DP Alt Mode), data, laptop charging up to 90W (PD 3.0) over one cable.
-
Networking & Hub: RJ-45 (1GbE, WoL) via USB-C • USB 3.2 Gen2 hub: 4× USB-A (1 fast-charge), 1× USB-C (downstream, 15W).
-
Video I/O: HDMI 1.4 ×1, DisplayPort 1.4 ×1, USB-C (upstream) • DisplayPort-out ×1 for daisy-chain.
-
Webcam & Audio: Pop-up 5MP webcam with Windows Hello, noise-cancelling mic, 2×5W speakers; privacy shutter.
-
KVM & MultiView: Built-in KVM (USB-C/USB-C) and PIP/PBP to view/control two devices.
-
Eye Comfort & Smart Modes: LowBlue, Flicker-Free, EasyRead, SmartImage.
-
Ergonomics / Mount: Height 150 mm, Tilt −5°/30°, Swivel ±180°, Pivot ±90° • VESA 100×100, Kensington lock.
-
Audio Jacks: Headphone out / Mic-in combo.
-
Power & Efficiency: 15.3 W on (typ.), 0.3 W standby, internal PSU; PowerSensor & LightSensor save energy.
-
Cables in Box: HDMI, DP, USB-C to C, power.
- 3 Year Warranty
Why It’s a Great Choice
-
One-cable laptop workflow: USB-C carries video, data, and up to 90W charging—clean desk, fewer adapters.
-
Hybrid-work ready: Pop-up 5MP Hello camera, noise-cancelling mic, and 2×5W speakers deliver sharp calls with on-demand privacy.
-
Scales with your setup: RJ-45 networking from the monitor, DP-out for a second screen, KVM + MultiView to run two devices from one set of peripherals.
-
Comfort + colour: IPS with sRGB 105%, LowBlue, Flicker-Free, and a fully adjustable stand for long, accurate work sessions.
Specifications:
| Category | Details |
|---|---|
| Brand / Series / Model | Philips 5000 Series — 24B1U5301H |
| Panel / Backlight | 23.8″ IPS, W-LED • Anti-glare 3H / 25% haze • 178°/178° |
| Resolution & Refresh | 1920×1080 @ 75 Hz • 4 ms GtG • ~93 PPI |
| Brightness / Contrast | 300 cd/m² • 1000:1 (typ.) • SmartContrast dynamic |
| Colour / Gamut | 16.7M colours (8-bit) • sRGB 105% • NTSC 88% (typ.) |
| Effective Area | 527.04 × 296.46 mm |
| Scan Frequency | 30–85 kHz (H) • 48–75 Hz (V) |
| Inputs (Video) | HDMI 1.4 ×1 • DisplayPort 1.4 ×1 • USB-C (DP Alt Mode) |
| Outputs (Video) | DisplayPort-out ×1 (daisy-chain) |
| USB Hub | USB-C (upstream, data/DP/PD 90W) • USB-A ×4 (1 fast-charge) • USB-C (downstream, PD 15W) |
| Network | RJ-45 Ethernet up to 1 Gbps • Wake-on-LAN |
| Webcam / Mic | Pop-up 5MP Hello webcam • Noise-cancelling microphone • Privacy shutter |
| Speakers | 2 × 5 W stereo (built-in) |
| Audio Jack | Headphone out / Mic-in combo |
| KVM / MultiView | KVM (USB-C/USB-C) • MultiView PIP/PBP (2 devices) |
| Ergonomics / Mount | Height 150 mm • Tilt −5° to +30° • Swivel ±180° • Pivot ±90° • VESA 100×100 • Kensington |
| Power / Efficiency | On 15.3 W (typ.) • Standby 0.3 W • Internal PSU 100–240 V • Zero-watt AC switch |
| Dimensions (W×H×D) | 540 × 500 × 205 mm (with stand, max height) • 540 × 323 × 51 mm (without) • Box 600 × 406 × 198 mm |
| Weight | 5.50 kg (with stand) • 3.90 kg (without) • 8.32 kg (gross) |
| Compliance / Eco | TÜV Eye Comfort • Energy Star 8.0 • EPEAT • TCO Edge • RoHS • 85% PCR plastic • 100% recyclable packaging • PowerSensor / LightSensor |
| In the Box | HDMI, DP, USB-C to C, Power cable, stand, documentation |
| Colour / Finish | Black, professional finish |
| Warranty | 3 Year |
