Description

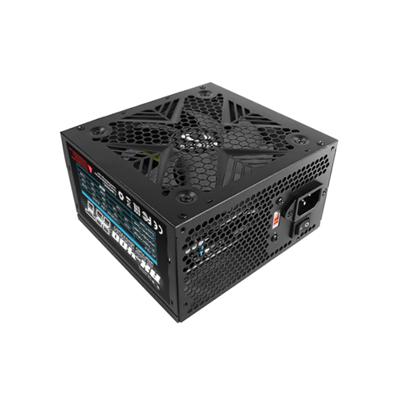

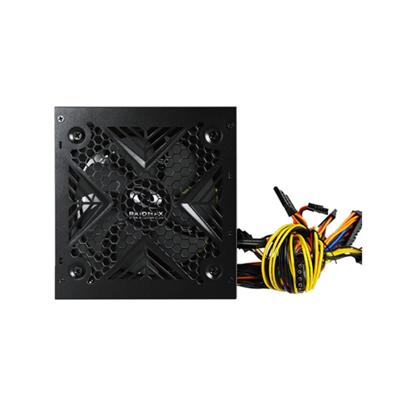

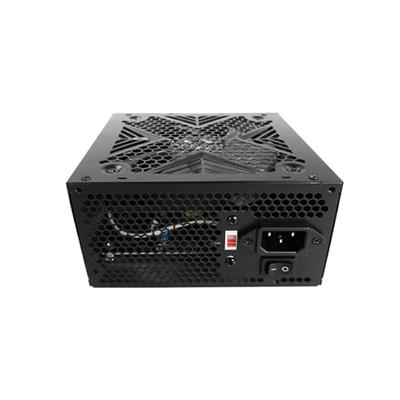

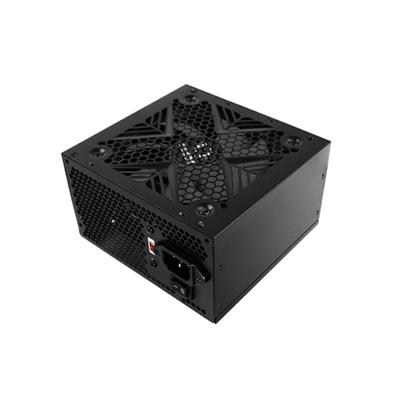

The Raidmax XT-Series 550W Non-Modular PSU is a great entry-level power supply. It utilises a single +12V rail output for enhanced stability. This power supply is designed with heavy-duty protective technologies, namely Over Voltage Protection (OVP), Over Power Protection (OPP) and Short Circuit Protection (SCP). Raidmax has designed the XT-Series with optimal heat dissipation via a honeycomb ventilation grid and a silent 120mm fan that automatically adjusts speeds based on thermal status.
FEATURES:
- Single +12V rail output for higher power usage
- C6/C7 power-saving mode on Intel Haswell CPU
- Supports Intel ATX12V V2.3
- Up to four SATA connectors for multiple HDDs/SSDs
- Over Voltage Protection (OVP)
- Over Power Protection (OPP)
- Short Circuit Protection (SCP)
- Honeycomb ventilation design for optimal heat dissipation
- Superior cooling performance with a Raidmax silent 120mm fan
SPECIFICATIONS:
| Model | RX-550XT |
| Capacity | 550w |
| 80 PLUS Rating | None |
| Modular | Non-Modular |
| Lighting | No |
| Fan Size | 120mm |
| ATX 24-pin Connectors | 1 |
| EPS Connectors | 1 x 4+4-pin |
| PCI-Express Connectors | 1 x 6+2-pin, 1 x 6-pin |
| SATA Connectors | 4 |
| PATA Connectors | 2 |
| Floppy Connectors | 0 |
| Dimensions | 150mm x 86mm x 140mm |
| Warranty | 1 Year |
