Description
ModelSST-DA1650-G
80 PLUS Gold
Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.

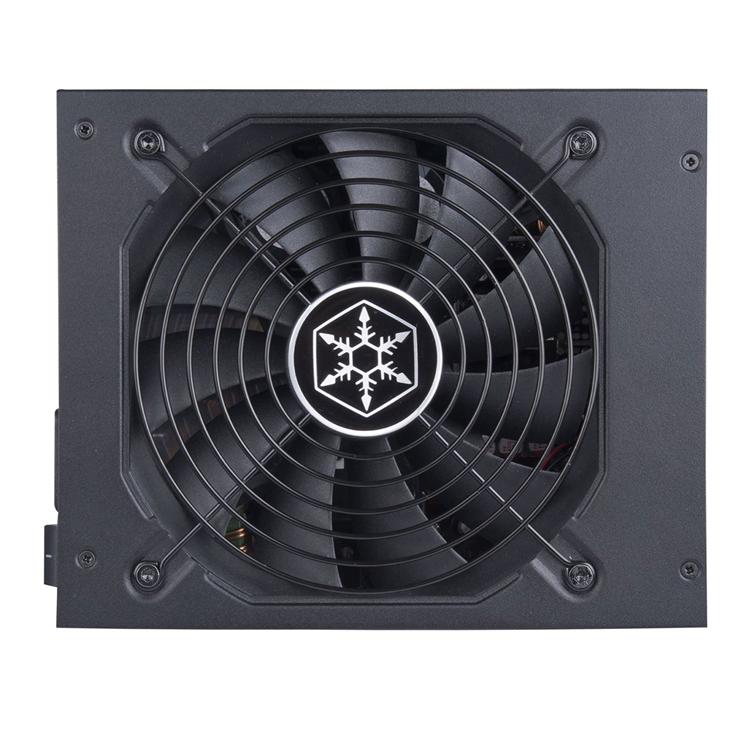

Ultra-Silent 135mm Fan
Ultra-silent 135mm FDB fan with intelligent RPM control provides cool performance at higher loading conditions and silent operation during idle to low loading conditions. Fanless mode operation works up to 30% loading (495W).
Powerful Single +12
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

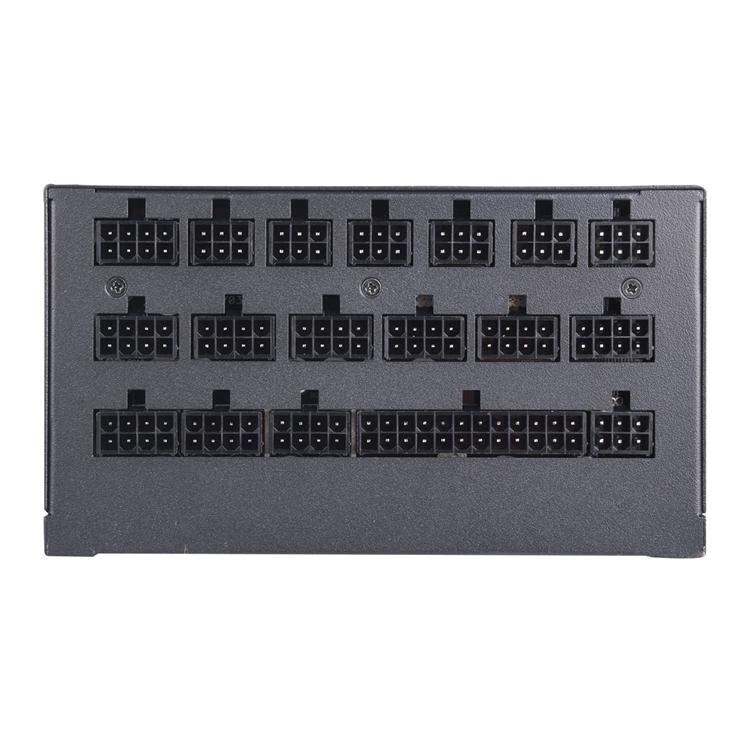

Flexible Cable Management
Flat cables have much greater flexibility to allow for tighter folding and management of cables.
High Stability
±2% regulation and low ripple & noise performance for high stability.
| SPECIFICATIONS | |
| Brand | Silverstone |
| Series | DA1650 Gold |
| Model | SST-DA1650-G |
| Max. DC Output | 1650W |
| Color | Black.（Lead-Free Paint） |
| Combined 3.3V & 5V | 130W |
| Combined 12V | 1650W |
| Input Voltage | 90V~264V |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC（PF>0.9 at Full Load） |
| Efficiency | 87% ~ 90% (at 20% ~ 100% loading) |
| MTBF | 100,000 hours |
| Operating temperature | 0°C ~ 50°C |
| Protection | Over current protection |
| Over power protection | |
| Over voltage protection | |
| Short circuit protection | |
| Under voltage protection | |
| Over temperature protection | |
| Connectors | 1 x 24 / 20-Pin motherboard connector (600mm) |
| 4 x 8 / 4-Pin EPS / ATX 12V connector (“750mm” x 4) | |
| 8 x 8 / 6-Pin PCIe connector (“600mm / 150mm” x 4) | |
| 4 x 8 / 6-Pin PCIe connector (“600mm” x 4) | |
| 16 x SATA connector (“600mm / 150mm / 150mm / 150mm” x 4) | |
| 6 x 4-Pin Peripheral connector (“600mm / 150mm / 150mm” x 2) | |
| 1 x 4-Pin Floppy adapter connector (100mm) | |
| Cooling System | Single 135mm FDB fan |
| Form factor | ATX / PS/2 |
| Noise Level | 0dBA ~ 36dBA |
| Dimension | 150 mm (W) x 86 mm (H) x 180 mm (D) |
| Weight | 2.09 kg |
| Certification | 80 PLUS Gold |
| Other | GPU Support list |
| Compatible with ATX12V v2.4 | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
