Description

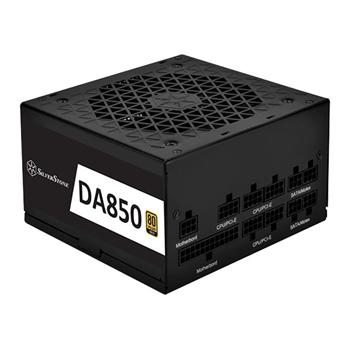

ModelSST-DA850-G
80 PLUS Gold
Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.
Built-In 120mm Fan
Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.
Powerful Single +12
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.
Flexible Cable Management
Flat cables have much greater flexibility to allow for tighter folding and management of cables.
Effective Heat Dissipation
Specially designed cover designed to effectively dissipate the residual heat.
| SPECIFICATIONS | |
| Brand | Silverstone |
| Series | DA850 Gold |
| Model | SST-DA850-G |
| Max. DC Output | 850W |
| Color | Black (Lead-Free Paint） |
| Combined 3.3V & 5V | 110W |
| Combined 12V | 846W |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| Efficiency | 87% ~ 90% (at 20% ~ 100% loading) |
| MTBF | 100,000 hours |
| Operating temperature | 0 ~ 40°C |
| Protection | Over current protection |
| Over power protection | |
| Over voltage protection | |
| Short circuit protection | |
| Over temperature protection | |
| Connectors | 1 x 24 / 20-Pin motherboard connector (600mm) |
| 2 x 8 / 4-Pin EPS / ATX 12V connector (“750mm” x 2) | |
| 2 x 8 / 6-Pin PCIe connector (“650mm / 150mm” x 3) | |
| 8 x SATA connector (“600mm / 150mm / 150mm / 150mm” x 2) | |
| 6 x 4-Pin Peripheral connector 2 x 4-Pin Floppy adapter connector (“600mm / 150mm / 150mm / 150mm” x 2) | |
| Cooling System | Silent 120mm FDB fan |
| Form factor | ATX (PS2) |
| Noise Level | 18 dBA minimum |
| Dimension | 150 mm (W) x 86 mm (H) x 140 mm (D) |
| Weight | 1.46 kg |
| Certification | 80 PLUS Gold |
| Other | GPU Support list |
| Compatible with ATX12V v2.4 | |
| Warranty Information | |
| Warranty | 5 Year Warranty |
