R3047.00 Incl. Vat
(Displayed price above applies to EFT / Bank Transfer payments only.)
KEY FEATURES:
– Mid-Tower Micro-ATX Form Factor
– Vertical Chimney Design
– Supports Micro-ATX, Mini-ITX Motherboards
– 1x USB 10Gbps Type-C Ports (Front Panel)
– 2x USB 5Gbps Type-A Ports (Front Panel)
– 2x 3.5mm Audio Jacks (Headphone, Microphone)
– 4x Horizontal PCI Slots
– Includes 2x Thermaltake CT140 140mm Fans (Top Exhaust)
– Supports Up to 8x 120mm Fans
– Supports Up to 420mm Radiator (Right Side)
– 3x 2.5″/3.5″ Combo Drive Bays (Removable)
– GPU Clearance: Up to 400mm (Power Cover Removed)
– CPU Cooler Clearance: Up to 210mm
– PSU Depth Clearance: Up to 220mm
– 1 Year Warranty
The Tower 300 is the newest addition to Thermaltake’s Tower Series and it sure shows; now with a redesigned octagonal prism shape to set itself apart. Looking good is not the only thing the Tower excels at either, it can support up to a 420mm AIO radiator on the right side along with a total of up to eight 120mm or 140mm fans. Want an even more unique look then the Tower 300 Chassis Stand Kit is a great addition for horizontal placements.
As the newest edition of the Tower Series, the Tower 300 inherited the classic vertical design but was updated with a new octagonal prism shape to meet today’s aesthetics. It may be small but it sure can pack a punch with support for up to 400mm GPUs, 420mm AIOs, and up to a 220mm PSU.
If cooling is a concern then the Tower 300 has you covered with being able to accommodate up to eight 120mm or 140mm fans. Also did someone say upgrades, well the Tower 300 has an optional 100mm LCD Screen lit as well, so your build can be exactly what you want!
The Tower 300 retains the iconic contours of its predecessors, with a vertical body design but in an octagonal prism shape, allowing the chassis to have a smaller footprint and providing flexibility and minimizing obstructions to your gaming and workspace.

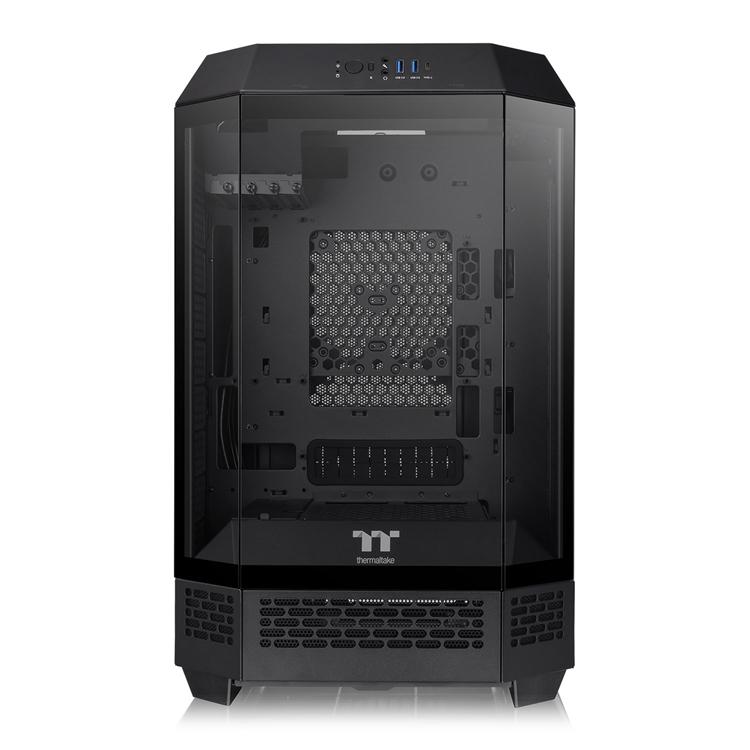

The front of the Tower 300 Micro Tower Case has Three Tempered Glass Panels to showcase your build’s Micro ATX or Mini ITX Motherboard, CPU Cooling, and all your ARGB Fans and Lighting Strips.
Featuring a vertical chassis design, The Tower 300 still has well-designed cold air intakes and hot air exhausts to keep the internal temperature low at all times.
The Tower 300 delivers exceptional cooling that it supports up to a 420mm radiator on the right side, which effectively reduces the temperature inside the chassis and maintains optimal system performance.

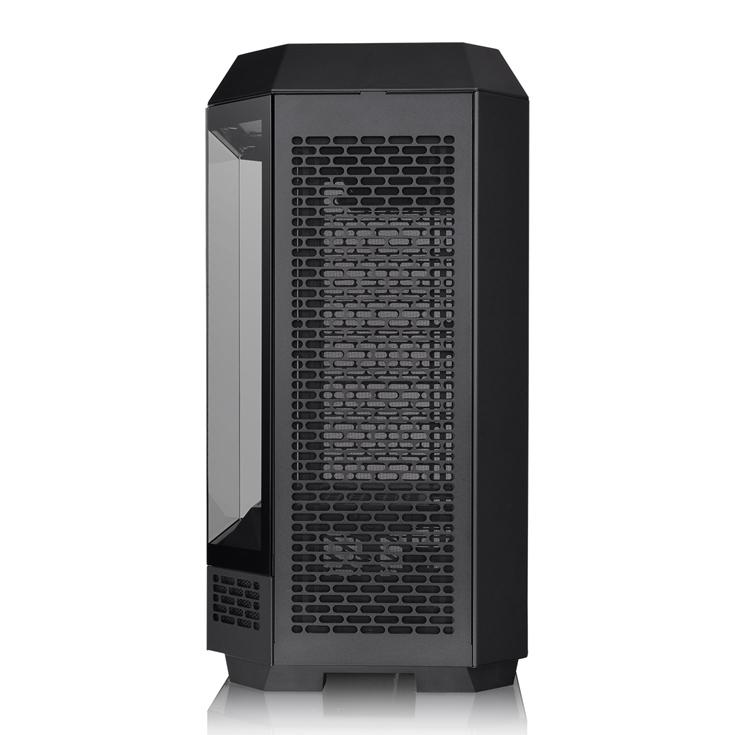

The Tower 300 features three 3mm tempered glass panels on the front and two perforated panels on each side. All are easily removable without tools.
The Tower 300 features two 140mm PWM fans on the top to provide good cooling performance.
On the right side, The Tower 300 has the capacity to support either three 120/140mm fans or a 420mm/360mm AIO radiator. Installation is a breeze thanks to the removable fan bracket, which simplifies the process.
Thermaltake always stress tests their products under harsh conditions to ensure product quality. The Tower 300 products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.
No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
Thermal images were taken during thermal testing. Thanks to two CT140 PC Cooling Fans pre-installed, we were able to ensure that The Tower 300 comes with massive airflow, which guarantees amazing cooling performance and a low interior temperature while using the most upscale components.
The Tower 300 has well-designed filters on the top, rear, inner sides, and inner bottom layer to protect the system from dust.
The Tower 300 has good hardware support. It can support a CPU cooler with a maximum height of 210mm, a GPU with a maximum length of 400mm (without power cover), a power supply with a length of up to 220mm, 3x 2.5 inch SSDs or 3x 3.5 inch HDDs. Dual CT140 140mm Fans are pre-installed on the top of the case to improve thermal efficiency. An additional 120mm or 140mm fan can be installed on top of the PSU cover, and an AIO Radiator from 120mm up to 420mm can be installed on the right side of the case, for maximum cooling performance.
Maximize your Tower 300’s visual effects by upgrading it with the optional Thermaltake 100mm LCD Screen Kit.
The 100mm / 3.9 inch Colour LCD Display allows you to monitor real-time information and upload any images or GIFs on the colour 128 x 400 pixel display to add extra flair using the TT RGB Plus 2.0 software. It also allows you to interact with the cooling components that feature the same LCD displays. The latest version includes weather mode and time mode for users to expand the usage of our LCD displays.
Personalize Your LCD Display
Through the TT RGB Plus 2.0, the 100mm LCD display presents real-time information and plays JPG and GIF files in colour with a 128 x 480 resolution. What’s more, users can even show the time and weather information on the display, bringing great visual aesthetics and highly customizable functions to your build.
With the optional chassis stand kit, which includes a bottom cover panel and a display stand for horizontal case placement, The Tower 300 allows for easy customization of the case for a unique viewing experience.
For the storage compatibility, The Tower 300 gives maximum support of up to three 2.5″ SSDs or three 3.5″ HDDs in total.
An USB 3.2 (Gen 2) Type-C and two USB 3.0 Type-A ports are placed on the top panel to grant direct access when needed.
Specifications
| Make and Model | Thermaltake Tower 300 Micro Tower Chassis, Black |
|---|---|
| Part Number | CA-1Y4-00S1WN-00 |
| Chassis | |
| Color | Black |
| Material | Chassis: SPCC Steel SPCC is a high grade commercial quality cold-rolled Carbon Steel that follows JIS G3141 Japanese standards |
| Motherboard Support | Micro ATX: 9.6 x 9.6″ Mini ITX: 6.7 x 6.7″ |
| Expansion Slots | 4 |
| Drive Bays | 3x 3.5″ or 3x 2.5″ Drive Bays |
| I/O Ports | |
| Front Panel Ports | 1x USB 3.2 Gen2 (10Gbps) Type-C port 2x USB 3.0 Gen1 (5Gbps) Type-A ports 1x 3.5mm Audio Mic In port 1x 3.5mm Audio Headphone Out port |
| Thermal Solution | |
| Included Fans | Top: 2x 140mm ThermalTake CT140 Fans Pre-installed Specifications (per Fan) FAN SPEED: 500 ~ 1,500 rpm MAX AIR PRESSURE: 2.3 mm-H2O MAX AIR FLOW: 77.37 CFM NOISE: 30.5 dBA BEARING TYPE: Hydraulic Bearing LIFE EXPECTATION: 40,000 hour @ 25° C |
| Fan Support | Top: 1 or 2x 120mm / 140mm Fans (2x 140mm ThermalTake CT140 Fans Pre-installed) Right Side: 1, 2 or 3x 120mm / 140mm FansRear: 1 or 2x 120mm / 140mm Fans Power Cover: 1x 120mm / 140mm Fan |
| Radiator Support | Right Side: 1x 420mm / 360mm / 280mm / 240mm / 140mm / 120mm Radiator |
| Clearances | |
| Component Space | CPU Cooler Height: Up to 210mm Video Card Space: With Power Cover: Up to 280mm Without Power Cover: Up to 400mmPower Supply Length: Up to 220mm |
| Power | |
| Power Supply | Fits ATX PS2 Power Supplies, up to 220mm long (Power Supply not included) |
| Dimensions & Weight | |
| Dimensions (LxWxH) | Vertical Placement: 281 x 342 x 551mm |
| Weight | 8.3kg |
| Weight | 12 kg |
|---|---|
| Chassis Brand | |
| Chassis Colour | |
| Chassis Form Factor | |
| Chassis Lighting | |
| Chassis Radiator Support | |
| Chassis Side Panel |
