Description
ALL THE ESSENTIALS YOU NEED FOR COMPUTING

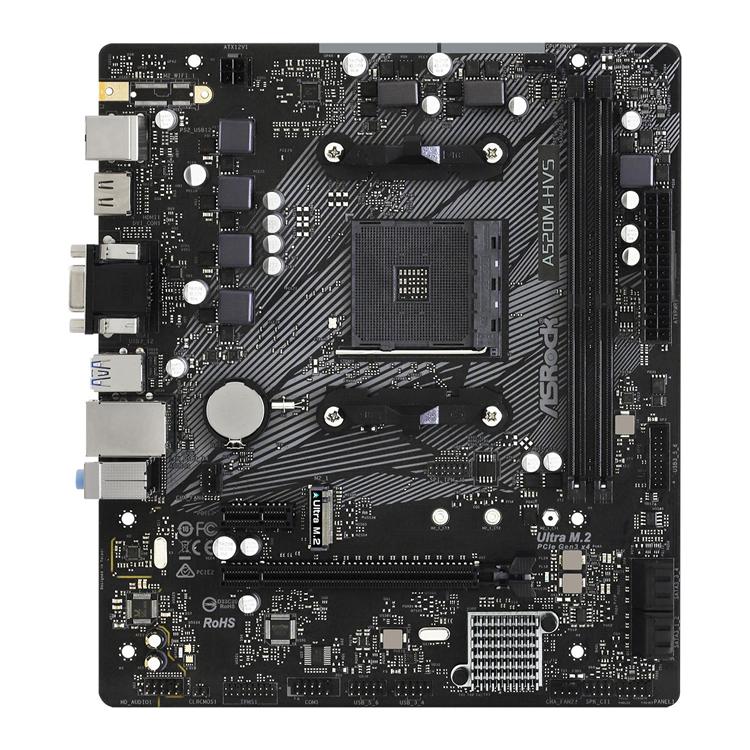

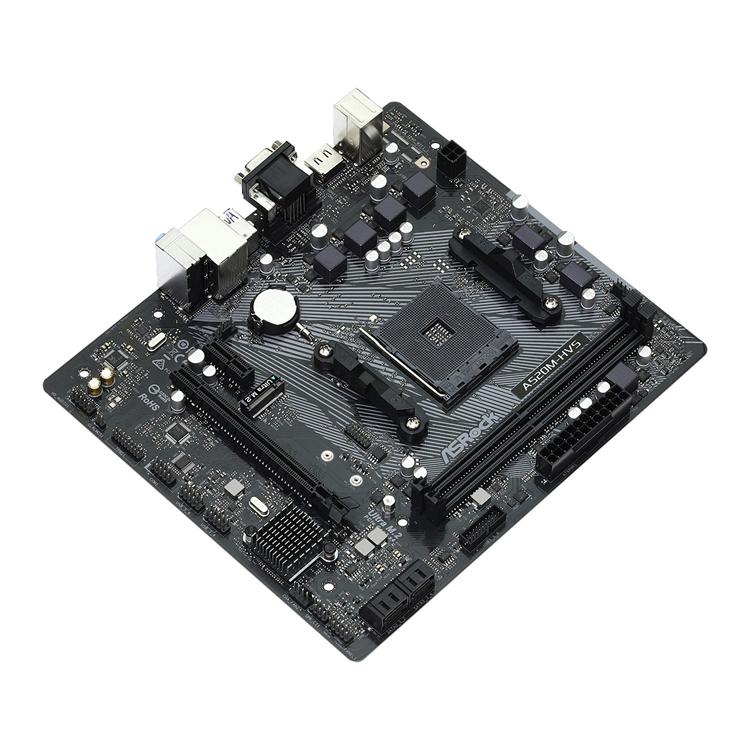

The ASRock A520M HVS is a great Micro ATX motherboard for professionals who command an excellent reliability for their system. Prepared with an M.2 slot that supports both SATA3 6Gb/s and four PCIe Gen3, the quality interface that excels data transfer speeds up to 32Gb/s. Featuring high quality manufactured 2oz Copper, for PCB layers providing lower temperatures and higher energy productivity for overclocking. With plenty of connectivity options, users can accomplish anything and everything.
The ASRock A520M HVS is a great Micro ATX motherboard for professionals who command an excellent reliability for their system. Prepared with an M.2 slot that supports both SATA3 6Gb/s and four PCIe Gen3, the quality interface that excels data transfer speeds up to 32Gb/s. Featuring high quality manufactured 2oz Copper, for PCB layers providing lower temperatures and higher energy productivity for overclocking. With plenty of connectivity options, users can accomplish anything and everything.
AMD A520 Chipset
AM4 CPU Socket
Micro ATX Form Factor
Faster Speeds with Ultra M.2
IMPRESSIVE DATA TRANSFER SPEEDS UP TO 32GB/S
The ASROCK A520 motherboard is equipped with a PCIe Gen3 x4 Ultra M.2 interface which pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
The ASROCK A520 motherboard is equipped with a PCIe Gen3 x4 Ultra M.2 interface which pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
Enhance your Productivity with Dual Graphics Outputs
IMPRESSIVE DATA TRANSFER SPEEDS UP TO 32GB/S
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now. The motherboard also supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now. The motherboard also supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Superior Motherboard Alloy
PREMIUM 50A POWER CHOKE
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
SAPPHIRE BLACK PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
HIGH DENSITY GLASS FABRIC PCB
ASRock features the High Density Glass Fabric PCB design, which reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Support Software and Premium Components
FULL SPIKE PROTECTION
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
LIVE UPDATE & APP SHOP
ASRock Live Update & APP Shop is designed for your convenience. Users can download various apps and support software, optimise your system with ease and keep your motherboard up to date with the:
ASROCK LIVE UPDATE & APP SHOP.
| SPECIFICATIONS | |
| Brand | ASRock |
| Series | HDV |
| Model | A520M-HDV |
| CPU | Supports AMD AM4 Socket Ryzen 3000, 4000 G-Series And 5000 And 5000 G-Series Desktop Processors* |
| 6 Power Phase Design | |
| Chipset | AMD A520 |
| Memory | Dual Channel DDR4 Memory Technology |
| 2 X DDR4 DIMM Slots | |
| AMD Ryzen Series CPUs (Vermeer) Support DDR4 4600 (OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & Non-ECC, Un-Buffered Memory* | |
| AMD Ryzen Series CPUs (Matisse) Support DDR4 4600 (OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & Non-ECC, Un-Buffered Memory* | |
| AMD Ryzen Series APUs (Cezanne) Support DDR4 4733 (OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & Non-ECC, Un-Buffered Memory* | |
| AMD Ryzen Series APUs (Renoir) Support DDR4 4733 (OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & Non-ECC, Un-Buffered Memory* | |
| Max. Capacity Of System Memory: 64GB** | |
| Supports Extreme Memory Profile (XMP) Memory Modules | |
| 15μ Gold Contact In DIMM Slots | |
| BIOS | 128Mb AMI UEFI Legal BIOS With GUI Support |
| Supports “Plug And Play” | |
| ACPI 5.1 Compliance Wake Up Events | |
| Supports Jumperfree | |
| SMBIOS 2.3 Support | |
| CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-Adjustment | |
| Graphics | Integrated AMD Radeon Vega Series Graphics In Ryzen Series APU* |
| DirectX 12, Pixel Shader 5.0 | |
| Shared Memory Default 2GB. Max Shared Memory Supports Up To 16GB.** | |
| Three Graphics Output Options: D-Sub, DVI-D And HDMI | |
| Supports Triple Monitor | |
| Supports HDMI 2.1 With Max. Resolution Up To 4K X 2K (4096×2160) @ 60Hz | |
| Supports DVI-D With Max. Resolution Up To 1920×1200 @ 60Hz | |
| Supports D-Sub With Max. Resolution Up To 1920×1200 @ 60Hz | |
| Supports Auto Lip Sync, Deep Color (12bpc), XvYCC And HBR (High Bit Rate Audio) With HDMI 2.1 Port (Compliant HDMI Monitor Is Required) | |
| Supports HDR (High Dynamic Range) With HDMI 2.1 | |
| Supports HDCP 2.3 With DVI-D And HDMI 2.1 Ports | |
| Supports 4K Ultra HD (UHD) Playback With HDMI 2.1 Port | |
| Supports Microsoft PlayReady | |
| *Actual Support May Vary By CPU | |
| **The Max Shared Memory 16GB Requires 32GB System Memory Installed. | |
| Audio | 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) |
| Supports Surge Protection | |
| PCIE X1 Gigabit LAN 10/100/1000 Mb/S | |
| LAN | Realtek RTL8111H |
| Supports Wake-On-LAN | |
| Supports Lightning/ESD Protection | |
| Supports Energy Efficient Ethernet 802.3az | |
| Supports PXE | |
| Slots | 1x PCI Express 3.0 X16 Slot (PCIE2: X16 Mode)* |
| 1x PCI Express 3.0 X1 Slot | |
| *Supports NVMe SSD As Boot Disks | |
| Storage | CPU: |
| – 1x Ultra M.2 Socket (M2_1, Key M), Supports Type 2242/2260/2280 SATA3 6.0 Gb/S & PCIe Gen3x4 (32 Gb/S) Modes* | |
| Chipset: | |
| – 4x SATA3 6.0 Gb/S Connectors | |
| *Supports NVMe SSD As Boot Disks | |
| Supports ASRock U.2 Kit | |
| RAID | Supports RAID 0, RAID 1 And RAID 10 For SATA Storage Devices |
| Connector | 1x SPI TPM Header |
| 1x COM Port Header | |
| 1x Chassis Intrusion And Speaker Header | |
| 1x CPU Fan Connector (4-Pin)* | |
| 2x Chassis Fan Connectors (4-Pin) (Smart Fan Speed Control)** | |
| 1x 24 Pin ATX Power Connector | |
| 1x 4 Pin 12V Power Connector | |
| 1x Front Panel Audio Connector | |
| 2x USB 2.0 Headers (Support 4 USB 2.0 Ports) (Supports ESD Protection) | |
| 1x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 Ports) (Supports ESD Protection) | |
| *The CPU Fan Connector Supports The CPU Fan Of Maximum 1A (12W) Fan Power. | |
| **The Chassis Fan Supports The Water Cooler Fan Of Maximum 1A (12W) Fan Power. | |
| CHA_FAN2 Can Auto Detect If 3-Pin Or 4-Pin Fan Is In Use. | |
| Rear Panel I/O | 1x PS/2 Mouse/Keyboard Port |
| 1x D-Sub Port | |
| 1x DVI-D Port | |
| 1x HDMI Port | |
| 2x USB 2.0 Ports (Supports ESD Protection) | |
| 4x USB 3.2 Gen1 Ports (Supports ESD Protection) | |
| 1x RJ-45 LAN Port With LED (ACT/LINK LED And SPEED LED) | |
| HD Audio Jacks: Line In / Front Speaker / Microphone | |
| Software and UEFI | Software |
| – ASRock Motherboard Utility (A-Tuning) | |
| – ASRock XFast LAN | |
| UEFI | |
| – ASRock Full HD UEFI | |
| – ASRock Instant Flash | |
| *These Utilities Can Be Downloaded From ASRock Live Update & APP Shop. | |
| Certifications | FCC, CE |
| ErP/EuP Ready (ErP/EuP Ready Power Supply Is Required) | |
| Hardware Monitor | Temperature Sensing: CPU, Chassis |
| Fan Tachometer: CPU, Chassis Fans | |
| Quiet Fan (Auto Adjust Chassis Fan Speed By CPU Temperature): CPU, Chassis Fans | |
| Fan Multi-Speed Control: CPU, Chassis Fans | |
| CASE OPEN Detection | |
| Voltage Monitoring: 12V, 5V, 3.3V, CPU Vcore | |
| Form Factor | Micro ATX Form Factor: 23.0 cm X 20.1 cm |
| Solid Capacitor Design | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
