Description
SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
16+2+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Server Grade Low Loss PCB
The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.
Part number8 Layer PCB
The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.
Part number2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
Reinforced DIMM Slot
The reinforced DIMM slot is surfaced mounted onto the motherboard to give better physical strength as well as a more stable memory signal, with this superior revolutionary design, it is able to dramatically overclock DRAM module up to insane frequency.
DIY Friendly Design
Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.
Blazing OC Tuner
The Blazing OC Tuner allows AM5 CPU to switch between OC mode and PBO(Precision Boost Overdrive) mode when the CPU current hits threshold. Anything above current threshold will engage manual OC mode; if below current threshold then will engage Precision Boost Overdrive mode. This idea is to combine overclocking on all cores and automatic boost on a single core to get the best performance out of your CPU. There is no need to enter BIOS to setup up, you can modify all the settings on time under OS.
Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analogue output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
Works on Any Device!
Enjoy the vibrant and high-quality Surround Sound on all your favourite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favourite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.
ASRock Graphics Card Holder
Install your heavy graphics card on the holder; connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.
Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
PCIe Gen5 x4 for SSD
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
Part numberXXL M.2 Heatsink
The extra-large aluminium alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.
Anti-Drop Screw
Tired of dropping screws or screws missing inside chassis?
The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Part numberWi-Fi 6E 802.11ax
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.
M.2 Key-E Module Cap
The SMA cable is easy to loose, this is an unacceptable situation for every users. Now we fixed this issue with a little Key-E module cap.
Front USB 3.2 Gen2x2 Type-C
The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
Auto Driver Installer
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once you finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
Flexible Integrated IO Shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy colour schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.
| SPECIFICATIONS | |
| Brand | ASRock |
| Series | Steel Legend |

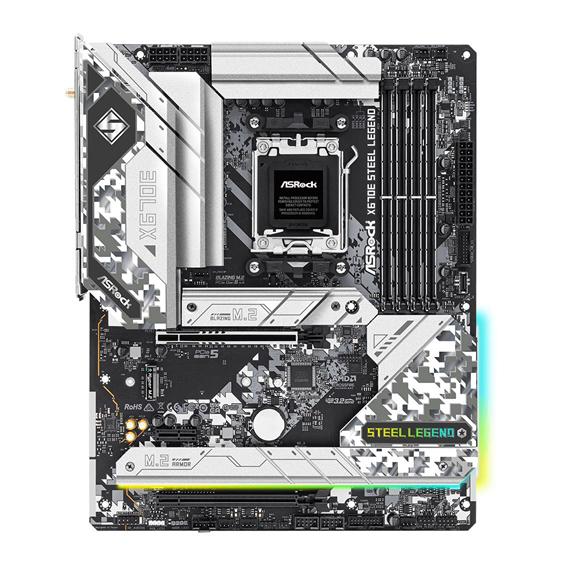

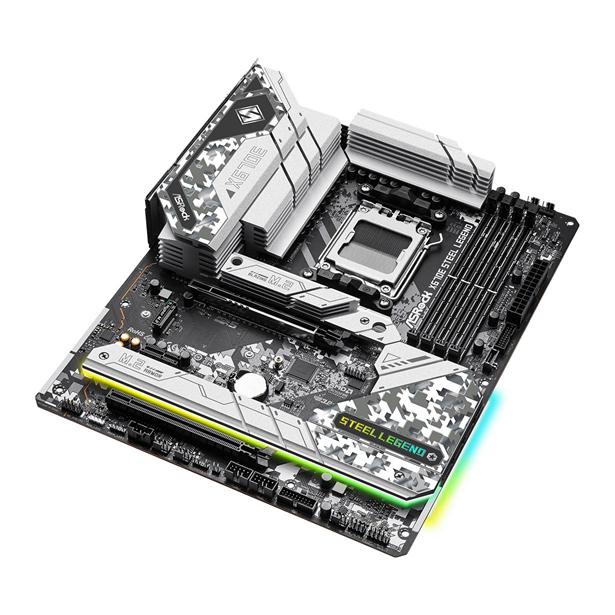

| Model | X670E Steel Legend |
| CPU Support | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD X670 / X670E |
| Memory Support | |
| AMD Ryzen 7000 Series | Dual Channel DDR5 Memory Technology |
| 4 x DDR5 DIMM Slots Up to 128GB | |
| Supports DDR5 ECC/non-ECC, un-buffered memory up to 6600 (OC) | |
| 1DPC 1R Up to 6600 MHz (OC), 4800 MHz Natively. | |
| 1DPC 2R Up to 6000 MHz (OC), 4800 MHz Natively. | |
| 2DPC 1R Up to 6000 MHz (OC), 4000 MHz Natively. | |
| Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules | |
| Video | |
| HDMI | 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| DisplayPort | 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz |
| * Actual support may vary by CPU with integrated RDNA2 graphics. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode |
| 1x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode | |
| AMD X670 Chipset | 1x PCIe 3.0 x1 Slot (PCIE2) |
| 1x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module | |
| Supports AMD Crossfire | |
| Supports NVMe SSD as boot disk | |
| Storage | |
| CPU Direct | 1x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode |
| AMD X670 Chipset | 1x Hyper M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode |
| 1x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode | |
| 1x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode | |
| 4x SATA3 6.0 Gb/s Connectors | |
| Supports ASRock U.2 Kit | |
| Supports NVMe SSD as boot disks | |
| Networking | |
| LAN | Realtek Dragon RTL8125BG 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| Supports Phantom Gaming LAN Software | |
| Realtek RTL8111 Gigabit LAN | |
| WiFi | AMD WiFi 6E 2×2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.3 |
| Audio | |
| Codec | Realtek ALC1220 Audio Codec |
| Nahimic Audio | |
| Impedance Sensing on Rear Out port | |
| Individual PCB Layers for R/L Audio Channel | |
| Connectivity | |

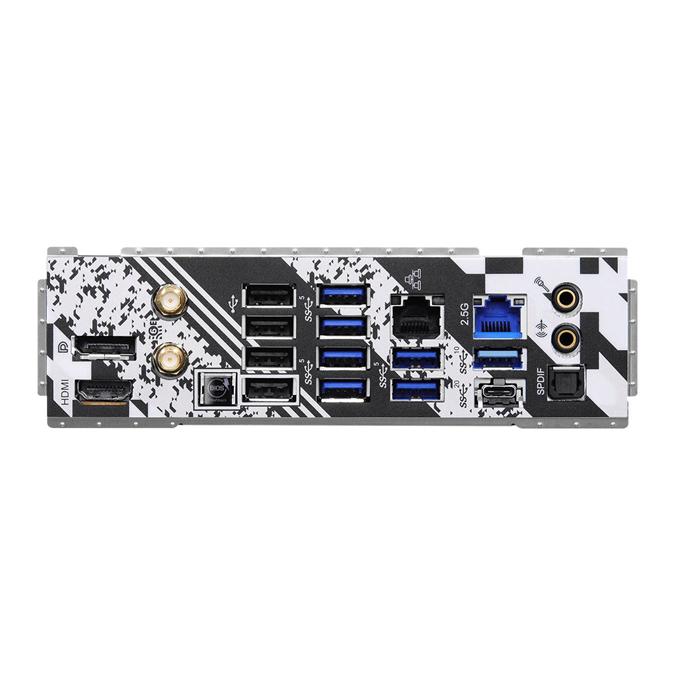

| Ports | 2x Antenna Ports |
| 1x HDMI Port | |
| 1x DisplayPort 1.4 | |
| 1x Optical SPDIF Out Port | |
| 1x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) | |
| 1x USB 3.2 Gen2 Type-A Port (10 Gb/s) | |
| 6x USB 3.2 Gen1 Ports | |
| 4x USB 2.0 Ports | |
| 2x RJ-45 LAN Ports | |
| 1x BIOS Flashback Button | |
| 1x Line Out Jack (Gold Audio Jack) | |
| 1x Microphone Input Jack (Gold Audio Jack) | |
| Buttons | 1x BIOS Flashback Button |
| General | |
| Internal Connectors | 1x SPI TPM Header |
| 1x Power LED and Speaker Header | |
| 1x RGB LED Header | |
| 3x Addressable LED Headers | |
| 1x CPU Fan Connector (4-pin) | |
| 1x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) | |
| 4x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) | |
| 1x 24 pin ATX Power Connector (Hi-Density Power Connector) | |
| 2x 8 pin 12V Power Connectors (Hi-Density Power Connector) | |
| 1x Front Panel Audio Connector | |
| 1x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) | |
| 2x USB 2.0 Headers (Support 4 USB 2.0 ports) | |
| 2x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) | |
| 1x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver) | |
| LED Displays | ASRock LED Diagnostic Array |
| BIOS | UEFI AMI BIOS |
| 256 Mb Flash ROM | |
| Form Factor | ATX Form Factor, 305 x 244 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Box Contents | 1x User Manual |
| 2x SATA Data Cables | |
| 1x ASRock WiFi 2.4/5/6 GHz Antenna | |
| 4x Screws for M.2 Sockets | |
| 1x Standoff for M.2 Socket | |
| 1x Graphics Card Holder | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
