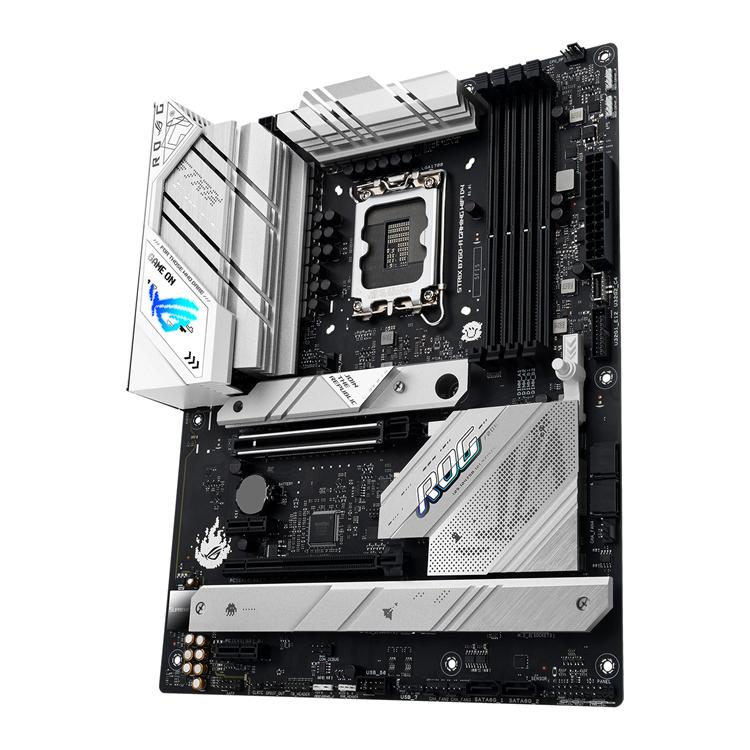

ASUS ROG STRIX B760-A Gaming WiFi DDR4 ATX Motherboard

• • Intel® LGA 1700 Socket: Ready for 13^th Gen Intel® Core™ Processors

• • Robust Power Solution: 8 + 1 power stages rated for 80A, ProCool power connector, high-quality alloy chokes, and durable capacitors are all leveraged to support the latest multi-core processors

• • Optimized VRM Thermals: Thick heatsinks bridged to the VRM with high-conductivity thermal pads, and the larger one integrated with the I/O cover for added surface area

• • Ample M.2 Support: Two PCIe 4.0 M.2 slots, one with a beefy heatsink, and the other strategically placed on the rear to save space

• • Next-Gen Networking: On-board Intel Wi-Fi 6E (802.11ax) and Intel 2.5G Ethernet with ASUS LANGuard

• • Abundant Connectivity: USB 3.2 Gen 2×2 Type-C® rear I/O port, seven additional USB ports, USB 3.2 Gen 2 front-panel connector, PCIe 5.0 x16 SafeSlot, HDMI® 2.1, and DisplayPort™ 1.4

• • Intelligent Control: ASUS-exclusive AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance

• • DIY-Friendly Design: Pre-mounted I/O shield, M.2 Q-Latch, and Q-LED

• • Industry-leading Gaming Audio: S1220A codec with Savitech SV3H712 amplifier, along with DTS® Sound Unbound™ and Sonic Studio III

• • Renowned Software: Bundled 60 Day AIDA64 Extreme Trial Subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

Additional Information:

Visit the Manufacturer Product Web Page for Full Details

Supports 13^th & 12^th Gen Intel® Core™ / Pentium® / Celeron® Processors for Socket BGA 1700

• • Windows® 11 / 10, 64 bit

Make and Model	ASUS ROG STRIX B760-A GAMING WIFI D4 Motherboard
Part Number	ROG STRIX B760-A GAMING WIFI D4
Windows® Support	Windows® 11 / 10, 64 bit
Chipset	Intel® B760 Chipset
CPU Socket	Intel® Socket 1700
CPU Support	13th & 12th Gen Intel® Core™ / Pentium® / Celeron® Processors for Socket BGA 1700 Supports Intel® Turbo Boost Technology 2.0 and / or Intel® Turbo Boost Max Technology 3.0 on matching CPUs.
Memory	4x DDR4 DIMM RAM Slots, Supports up to 128GB RAM (4x 32GB) Overclocked RAM: DDR4-5333 / 5066 / 5000 / 4800 / 4600 / 4400 / 4266 / 4000 / 3733 / 3600 / 3466 / 3400 / 3333 MHzStock Clocked RAM: DDR4-3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) Supports OptiMem II
Expansion Slots	1x PCIe 5.0 x16 slot 1x PCIe 3.0 x16 slot (supports x4 mode)* 2x PCIe 3.0 x1 slots* * PCIe x1(G3)_1 and PCIe x1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIe x1(G3)_1 or PCIe x1(G3)_2 slot is operating, PCIe x16(G3) will only supports x2 mode.
Multiple Graphic Cards	Multiple Graphic Cards are not supported by this Motherboard
Onboard Graphics	1x HDMI® v2.1 port (Up to 4K/60Hz) 1x DisplayPort v1.4 port (Up to 4K/60Hz)
Storage	M.2_1 PCIe 4.0 x4 Slot (Key M), type 2241/2260/2280 M.2_2 PCIe 4.0 x4 Slot (Key M), type 2242/2260/2280 M.2_4 PCIe 4.0 x4 Slot (Key M), type 2242/2260/2280 4x SATA III 6Gb/s ports Intel® Rapid Storage Technology supports SATA III RAID 0/1/5/10
USB Ports	9x Rear USB Ports: 1x USB 3.2 Gen 2×2 (20Gbps) Type-C port 1x USB 3.2 Gen 2 (10Gbps) Type-A port 1x USB 3.2 Gen 1 (5Gbps) Type-C port 2x USB 3.2 Gen 1 (5Gbps) Type-A ports 4x USB 2.0 (480Mbps) Type-A ports Supports 6x Front USB Ports: 1x USB 3.2 Gen 2 (10Gbps) USB Type-C port (via 1x USB 3.2 Gen 1 Connector) 2x USB 3.2 Gen 1 (5Gbps) Type-A ports (via 1x USB 3.2 Gen 1 Header) 3x USB 2.0 (480Mbps) ports (via 2x USB 2.0 Headers)
LAN	Intel® LAN Chipset: 1x 2.5Gb RJ45 LAN port ASUS LANGuard TUF LANGuard
WiFi	WiFi 6E Chipset: Tri Band 802.11ax (6 / 5 / 2.4GHz) 2×2 Antenna Array Supports Intel® Double Connect Technology
Bluetooth	WiFi 6E Chipset: Bluetooth v5.3 2×2 Antenna Array
Audio	ROG SupremeFX ALC4080 7.1-Channel High Definition Audio CODEC: – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/384 kHz playback Audio Features: – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Premium Audio Capacitors – Dedicated Audio PCB Layers – Audio Cover
Rear I/O Ports	1x USB 3.2 Gen 2×2 (20Gbps) Type-C port 1x USB 3.2 Gen 2 (10Gbps) Type-A port 1x USB 3.2 Gen 1 (5Gbps) Type-C port 2x USB 3.2 Gen 1 (5Gbps) Type-A ports 4x USB 2.0 (480Mbps) Type-A ports 1x HDMI® v2.1 port (Up to 4K/60Hz) 1x DisplayPort v1.4 port (Up to 4K/60Hz)1x Intel 2.5Gb Ethernet port 5x 3.5mm Audio jacks2x Wireless Antenna Jacks 1x BIOS FlashBack™ Button
Internal I/O Connectors	Power: 1x 24-pin Main Power connector 1x 8-pin +12V Power connector 1x 4-pin +12V Power connector Fan and Cooling: 1x 4-pin CPU Fan header 1x 4-pin CPU OPT Fan header 1x 4-pin AIO Pump header 2x 4-pin Chassis Fan headersStorage: 3x M.2 slots (Key M) 4x SATA 6Gb/s ports USB / Thunderbolt: 1x Thunderbolt™ 4 (40Gbps) / USB 4 (40Gbps) Header 1x USB 3.2 Gen 2 (10Gbps) USB Type-C port (via 1x USB 3.2 Gen 1 Connector) 2x USB 3.2 Gen 1 (5Gbps) Type-A ports (via 1x USB 3.2 Gen 1 Header) 3x USB 2.0 (480Mbps) ports (via 2x USB 2.0 Headers)Miscellaneous: 3x Addressable Gen 2 headers 1x Aura RGB header 1x Clear CMOS header 1x Front Panel Audio header (AAFP) 1x S/PDIF Out header 1x 20-5 pin System Panel header
LED Headers	3x Addressable Gen 2 headers 1x Aura RGB header
Special Features	Extreme Engine Digi+ – 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – PCIe Slot Q-Release – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-SlotASUS Thermal Solution – VRM heatsink backplate ASUS EZ DIY – BIOS FlashBack™ button – BIOS FlashBack™ LED – CPU Socket lever protector – ProCool – Pre-mounted I/O shield – SafeSlot – SafeDIMMAURA Sync – Aura RGB header – Addressable Gen 2 header
Software	ROG Exclusive Software: – GameFirst VI – ROG CPU-Z – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion – Sonic Radar III – DTS® Sound Unbound ASUS Exclusive Software: Armoury Crate: – AIDA64 Extreme (60 days free trial) – AURA Creator – AURA Sync – Fan Xpert 4 – Two-Way AI Noise Cancelation – Power Saving AI Suite 3: – PC Cleaner – DIGI+ VRMMyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY: – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – FlexKey – MemTest86
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Form Factor	ATX Form Factor
Dimensions (LxW)	305 x 244mm
Weight	N/A
