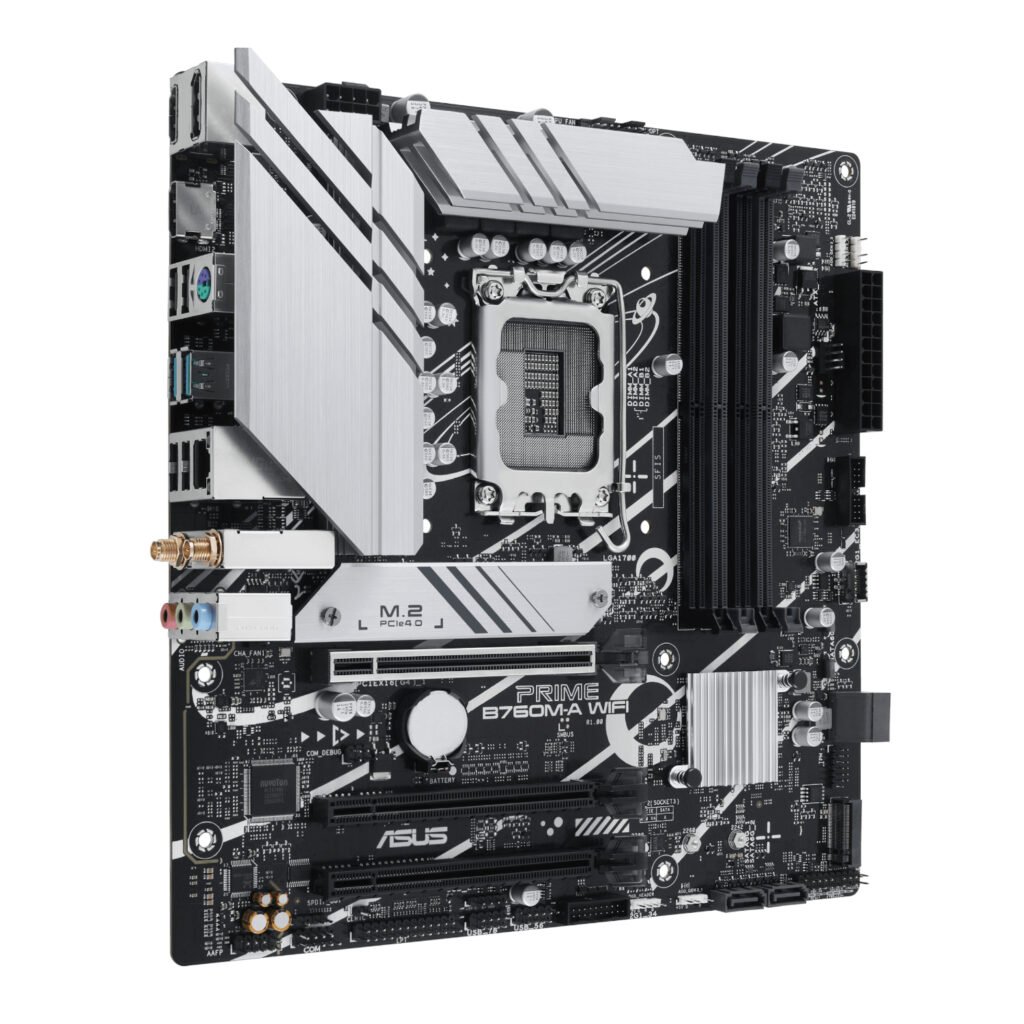

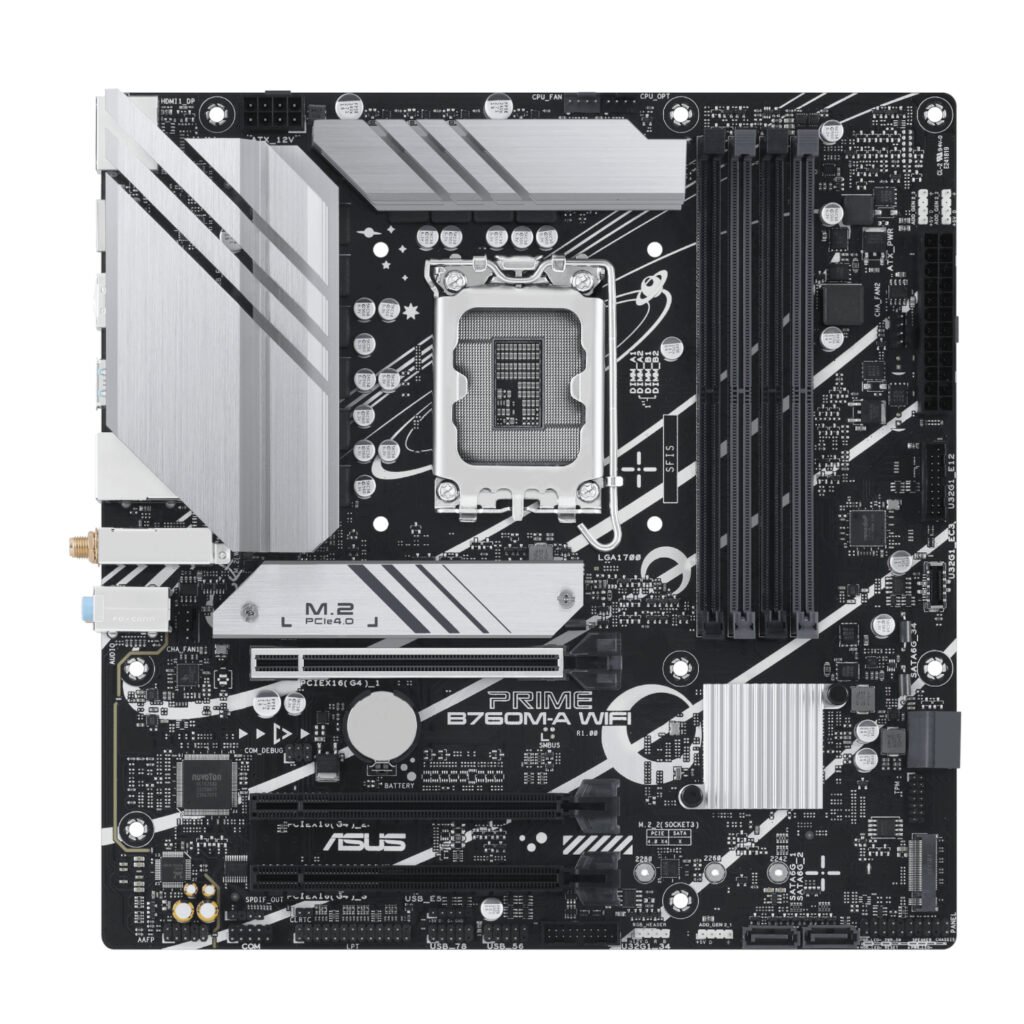

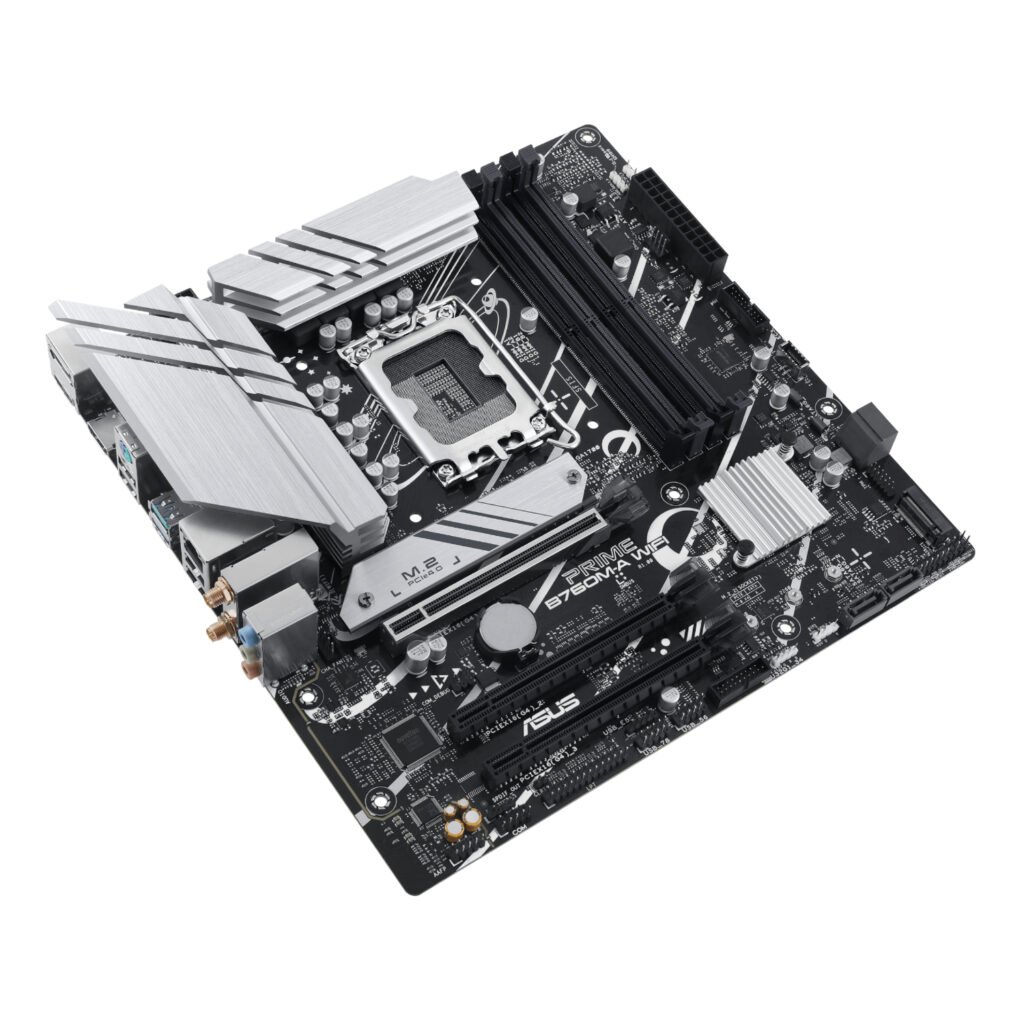

ASUS PRIME B760M-A WIFI DDR5 Intel LGA 1700 Micro-ATX Motherboard
R3756.00 Incl. Vat
Or as low as KEY FEATURES:
– Form Factor: Micro-ATX
– Chipset: Intel B760
– Socket: LGA 1700
– CPU Support: Intel 12th & 13th Gen
– Memory: 4× DDR5 DIMM, up to 128GB, DDR5-7200(OC), Intel XMP 3.0
– Expansion Slots: 1× PCIe 5.0 x16, 1× PCIe 4.0 x16, 1× PCIe 4.0 x4
– Storage: 2× M.2 PCIe 4.0 x4 NVMe, 4× SATA 6Gb/s
– USB Ports: Front USB Type-C, 2× USB 10Gb/s Type-A, 4× USB 2.0
– Audio: Realtek ALC, 3.5mm jacks
– Networking: Realtek 2.5Gb LAN, Wi-Fi 6, BT 5.2
– Display Outputs: 2× HDMI 2.1, 1× DP 1.4
– Cooling & Power: Heatsinked DIGI+ VRM
– RGB: ASUS Aura Sync
– Other Features: Q-DIMM, Q-Slot, Q-LED, Armoury Crate
– OS Support: Windows 10/11 64-bit
– Warranty: 3 Years
Description
ASUS PRIME B760M-A WIFI DDR5 Intel LGA 1700 Micro-ATX Motherboard
90MB1EL0-M0EAY0
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans. PRIME B760 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal. VRM heatsinks and thermal pads improve heat transfer from the MOSFETs and chocks for better cooling performance.
PRIME B760 series features comprehensive cooling controls that are configurable via Fan Xpert 2+ software or via the UEFI BIOS. Each header can dynamically reference three thermal sensors. Fan Xpert 2+ allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
The PRIME B760 series are built to handle the high core counts and bandwidth demands of 13th Gen Intel® Core™ Processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options. Stable power is essential to extract every last bit of performance out of Intel® processors. The PRIME B760M-A WIFI is geared to cater to the demands of these high-core-count CPUs.
FEATURES:
- Micro-ATX Form Factor
- Intel® B760 Chipset
- Supports Intel® 13th and 12th Gen Desktop Processors
- Support for DDR5 up to 7200+MT/s, AEMPIII
- PCIe 4.0 support for graphics cards
- Wi-Fi 6 and 2.5Gb Ethernet support for faster data transfer
SPECIFICATIONS |
|
| Brand | ASUS |
| Series | PRIME Series |
| Model | PRIME B760M-A WIFI (90MB1EL0-M0EAY0) |
| CPU Support | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel B760 Express |
| Memory Support | |
| Intel 13th Gen & 12th Gen Processors | 4x DIMM slots, Max. 128GB, DDR5 7200 (OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz Non-ECC, Un-buffered Memory |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) 3.0 | |
| OptiMem II | |
| Video | |
| HDMI | 2x HDMI 2.1 port, supporting a maximum resolution of UHD 4K 3840×2160 @ 60Hz, Support for HDCP 2.3, and HDR |
| DisplayPort | 1x DisplayPort 1.4 port, supporting a maximum resolution of UHD 4K 3840×2160 @ 60Hz, Support for HDCP 2.3, and HDR |
| Integrated graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical slot |
| Intel B760 Chipset | 1x PCIe 4.0 x16 Physical, x4 Electrical slot |
| 1x PCIe 4.0 x16 Physical, x1 Electrical slot | |
| Storage | |
| CPU Direct | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Intel B760 Chipset | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| 4x SATA 6Gb/s ports | |
| Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Networking | |
| LAN | Realtek 2.5 Gigabit LAN 10/100/1000/2500Mbps |
| WiFi | WiFi 6 2×2 MIMO Dual-Band Adapter |
| Bluetooth | Bluetooth 5.2 |
| Audio | |
| Codec | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Supports up to 24-Bit/192 kHz playback | |
| Audio Features | Audio Shielding |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |
| Rear optical S/PDIF out port | |

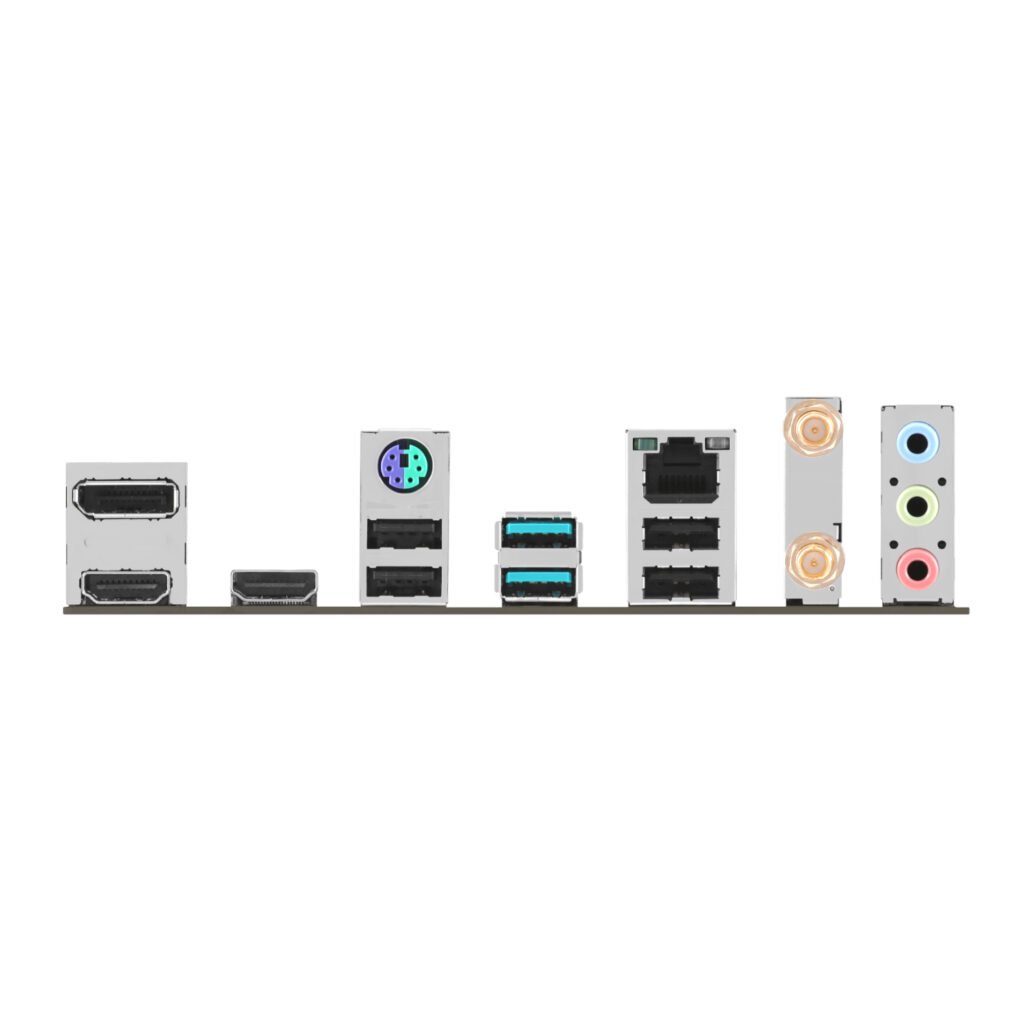

| Connectivity | |
| Ports | 2x USB 10Gb/s Type-A Ports |
| 4x USB 2.0 Type-A Ports | |
| 1x PS/2 Combo Port (Mouse, Keyboard) | |
| 2x SMA Connectors | |
| 2x HDMI 2.1, 1x DisplayPort 1.4 Ports | |
| 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone) | |
| 1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN | |
| General | |
| Internal Connectors | 1x 4-pin CPU Fan header |
| 1x 4-pin CPU OPT Fan header | |
| 2x 4-pin Chassis Fan headers | |
| 1x 24-pin Main Power connector | |
| 1x 8-pin 12V Power connector | |
| 2x M.2 slots (Key M) | |
| 4x SATA 6Gb/s ports | |
| 2x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports | |
| 1x USB 3.2 Gen 1 connector (supports USB Type-C) | |
| 2x USB 2.0 headers support 4 additional USB 2.0 ports | |
| 1x USB 2.0 header supports 1 additional USB 2.0 port | |
| 3x Addressable Gen 2 headers | |
| 1x Aura RGB header | |
| 1x Clear CMOS header | |
| 1x COM Port header | |
| 1x Front Panel Audio header (AAFP) | |
| 1x LPT header | |
| 1x S/PDIF Out header | |
| 1x SPI TPM header (14-1pin) | |
| 1x 20-3 pin System Panel header with Chassis intrude function | |
| Buttons | N/A |
| LED Displays | ASUS Q-LED Core Diagnostic LED |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| Remote Management | WOL by PME, PXE |
| Form Factor | Micro-ATX Form Factor, 244 x 244 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |

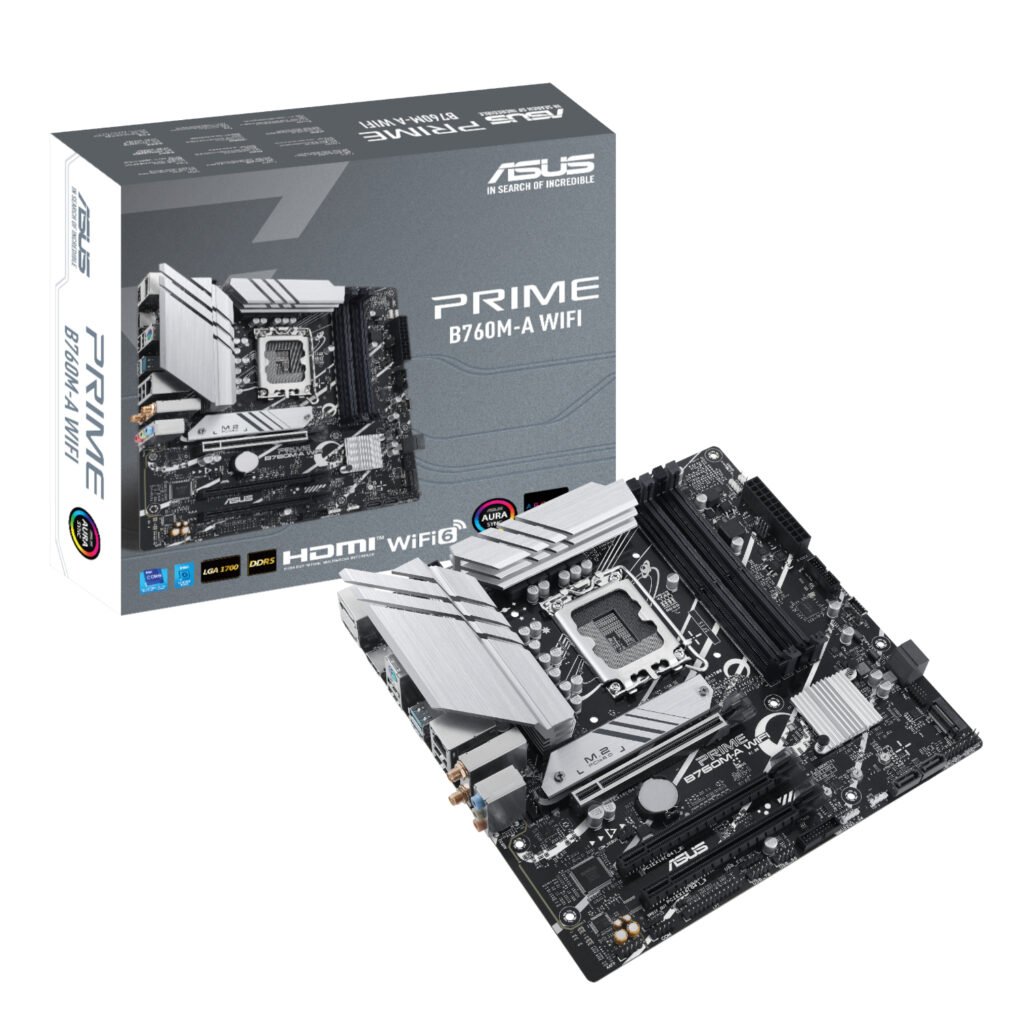

| Box Contents | 2 x SATA 6Gb/s cables |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x M.2 Rubber Package | |
| 1 x Screw package for M.2 SSD | |
| 1x I/O Shield | |
| 1 x User guide | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
