Description
Part numberCC-9011132
The CORSAIR Carbide Series 275R is a compact mid-tower ATX case that matches minimalist design and a beautiful tempered glass window with a straightforward interior layout and versatile cooling options. Room for up to a 360mm radiator in front, 240mm radiator in the roof, and a 120mm radiator in the rear allows you to fit any CORSAIR Hydro Series cooler or up to six 120mm cooling fans. A dedicated cable routing compartment and rubber grommets enable effortlessly clean builds and Direct Airflow Path(™) design provides airflow to the hottest components without any interference from drive cages
-

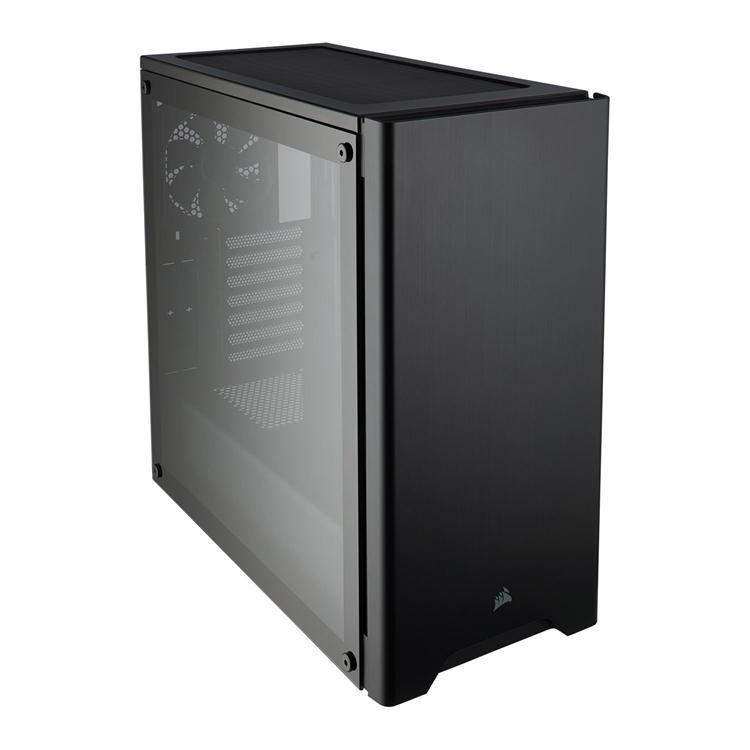

- Stunning Tempered Glass Window: Tempered glass side panel shows off your system in style
-
- Clean and Minimalist Design: Clean lines, curved edges with soft accent lighting.
-

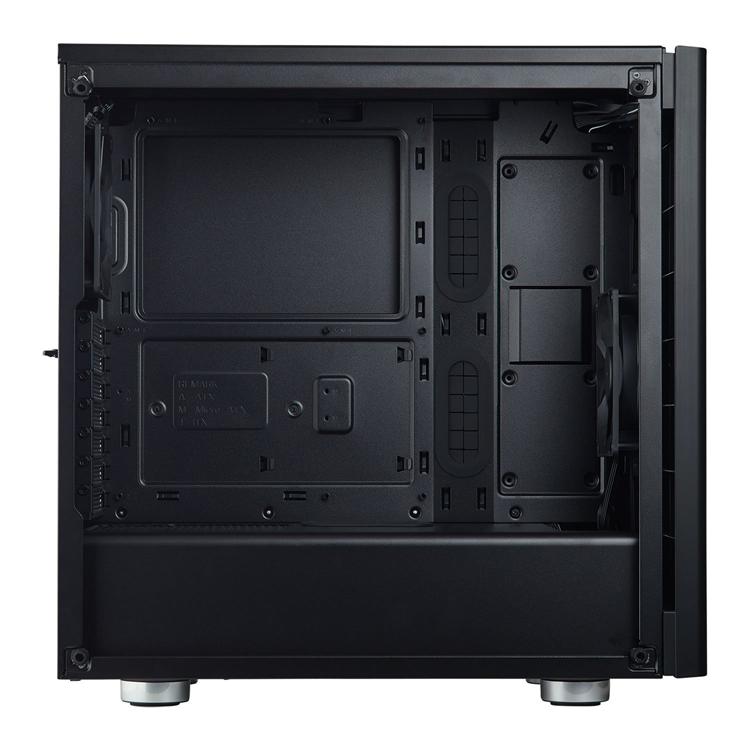

- Builder-Friendly Internal Layout: Simple and intuitive internal layout enables easy and quick building.
-
- Versatile Cooling Options: Room for up to 360mm radiator in front, 240mm radiator at top, and 120mm radiator in the rear.
-
- Expansive Storage Space: Rugged-construction steel drive tray provides ample of room for additional drives.
-
- Built-in Cable Routing: Dedicated cable routing compartment enables effortlessly clean builds.
-
- Direct Airflow Path™ Cooling: Cool air is directed to the hottest components, without any interference from drive cages.
PACKAGE CONTENTS
-
- Carbide Series 275R Tempered Glass ATX Mid-Tower Case
-
- Accessory Kit
-
- Quick Start Guide
COMPATIBILITY
-
- Mini-ITX
-
- MicroATX
-
- ATX
| SPECIFICATIONS | |
| Brand | Corsair |
| Series | Carbide Series |
| Model | CC-9011132-WW |
| Physical Details | |
| Material | Steel |
| Colour | Black |
| Side Panel | Tempered Glass |
| Expansion Slots | 7 |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX |
| I/O Ports | 2x USB Type-A |
| 2x 3.5mm Audio Jacks | |
| Dimensions | 460 x 211 x 455 mm |
| Weight | 10.14 kg |
| Drive Bays | 2x 3.5″ |
| 3x 2.5″ | |
| Radiator Compatibility | 120 mm, 140 mm, 240 mm, 280 mm, 360 mm |
| Corsair Liquid Cooler Compatibility | H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i |
| Clearance | |
| CPU Cooler Height Limitation | 170 mm |
| GPU Length Limitation | 370 mm |
| PSU Length Limitation | 180 mm |
| Warranty Information | |
| Warranty | 2 Year Warranty |
