Description

Corsair Obsidian Series 500D RGB SE Tempered Glass Premium Mid Tower Case

Part numberCC-9011139-WW

The Obsidian Series 500D RGB SE is a premium mid-tower enthusiast PC case with aluminum construction, smoked tempered glass panels, and stunning RGB lighting enabled by CORSAIR Commander PRO.
Compatible with CORSAIR iCUE

Brilliant RGB Lighting

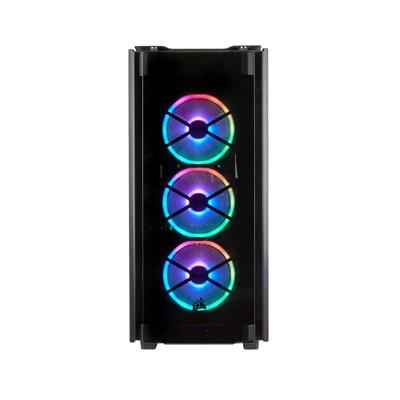

Three LL120 RGB fans create a symphony of stunning RGB colour, with space for up to six.

Sharp, Black and Beautiful

Iconic Obsidian series styling with a beautiful smoked tempered glass front panel and clean exterior lines, finished dazzling RGB lighting.

Built-In Smart Lighting and Fan Control

An integrated CORSAIR Commander PRO fan and lighting controller grants superior control over almost every aspect of your system via CORSAIR iCUE software.

Built Better

Solid aluminium top plate and door handles add a refined feel and premium look.

Removable Fan and Radiator Trays

Installing fans and radiators is now easy with removable trays that can hold up to five 120mm fans or four 140mm fans.

Keeping Your Components Cool

Direct Airflow Path™ design channels cool air where your PC needs it most.

Future-Proof Front Panel

Featuring a super-speed USB 3.1 Type-C port and additional connections for all modern peripherals.

Expansive Storage Space

Easy-to-use mounts for up to two 3.5in HDDs and three 2.5in SSDs.

Cable Routing Made Simple

Hide your cables behind the motherboard tray to keep your build looking tidy with the included PSU cover and rear cable cover.

Removable, Built-In Dust Filters

Keeps your system clean, long after your build is finished.

Intelligent Control. Unlimited Possibilities

Powerful CORSAIR iCUE software brings your system to life with dynamic synchronized RGB lighting across your whole system, customizable fan speeds to silence fans and advanced system monitoring.

CONTENTS AND SPECIFICATIONS

PACKAGE CONTENTS

• • Obsidian 500D RGB SE Case

• • Quick Start Guide

• • Accessory Box

COMPATIBILITY

• • ATX, Micro-ATX, Mini-ITX

SPECIFICATIONS
Brand	Corsair
Series	Obsidian
Model	CC-9011139-WW
Physical Details
Colour	Black
Case Form Factor	Mid-Tower
Case Motherboard Support	Mini-ITX, MicroATX, ATX
Maximum GPU Length	370mm
Maximum GPU Height	370mm
Maximum CPU Cooler Height	170mm
Case Expansion Slots	7
Case Material	Brushed Aluminium & Steel
Case Power Supply	ATX (not included)
External Connections	1x USB 3.1 Type-C
	2x USB 3.0
	1x Headphone Port
	1x Microphone Port
Drive Bays
Internal	2.5″: 3
	3.5″: 2
Fan Mount Locations
Front	3x 120mm/2x 140mm (3 LL120 RGB Fans Included)
Top	2x 120mm/2x 140mm
Rear	1x 120mm
Fan Specifications
Fan	LL120 RGB
Speed	600-1500 RPM
Airflow	43.25 CFM
Sound Level	24.8 dBA
Bearing	Hydraulic
Flow Type	Static Pressure
LED Color	RGB
Static Pressure	1.61 mmH2O
Radiator Mount Locations
Front	2x 120mm/1x 140mm/1x 240mm/1x 280mm/1x 360mm
Top	2x 120mm/1x 140mm/1x 240mm/1x 280mm
Rear	1x 120mm
Compatible Corsair Liquid Coolers	H55, H60, H75, H80i, H90, H100i, H105, H110i, H115i, H150i
General
Package Contents	Obsidian Series 500D RGB SE Mid Tower Case
	Quick Start Guide
	Accessory Box
Dimensions	502 x 237 x 507mm
Weight	11.75kg
Warranty Information
Warranty	2 Year Warranty
