Description

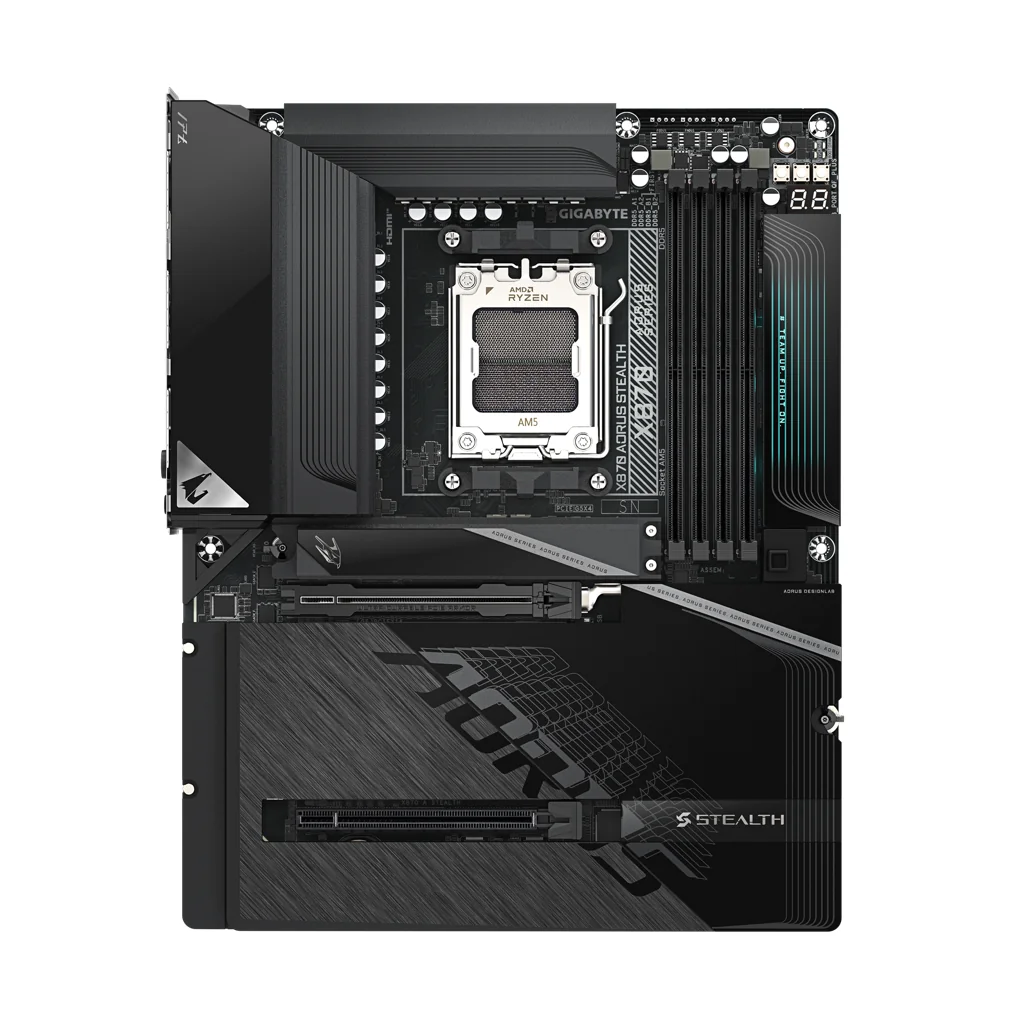

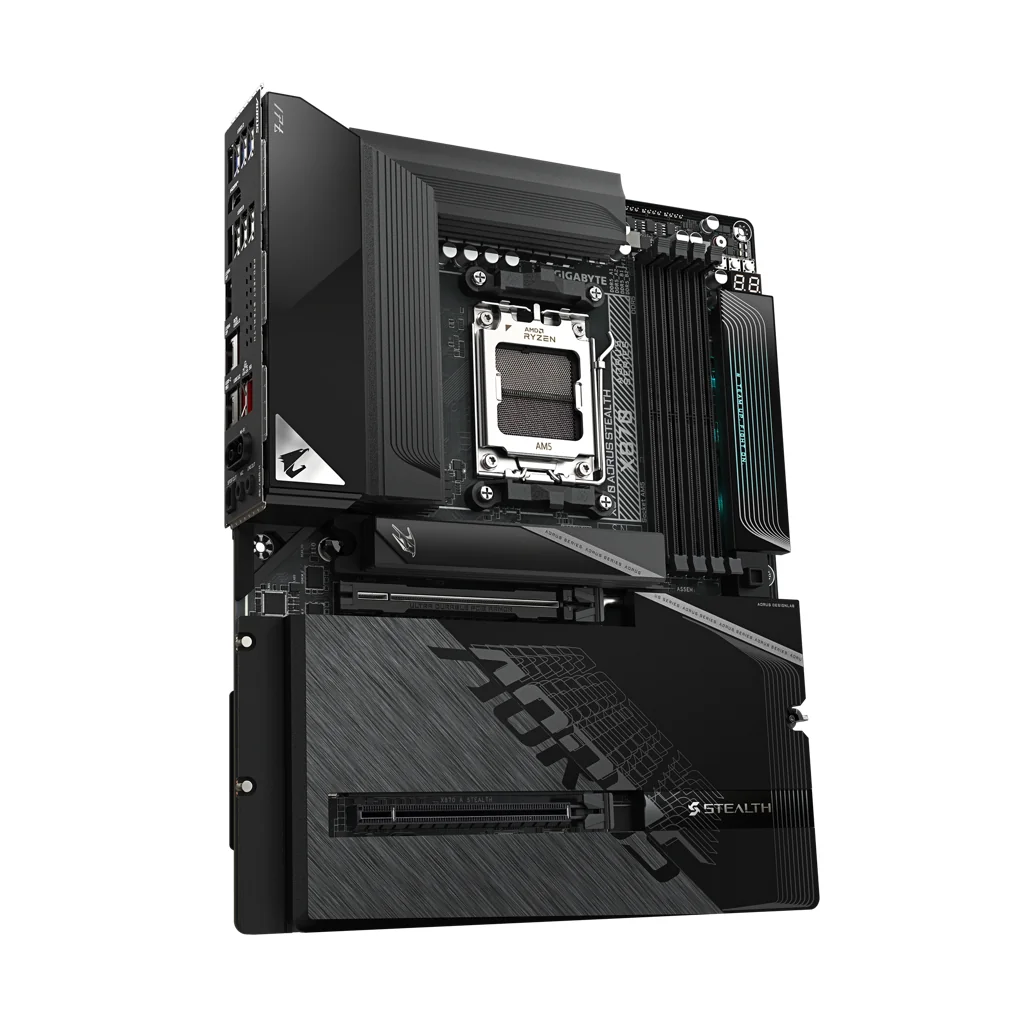

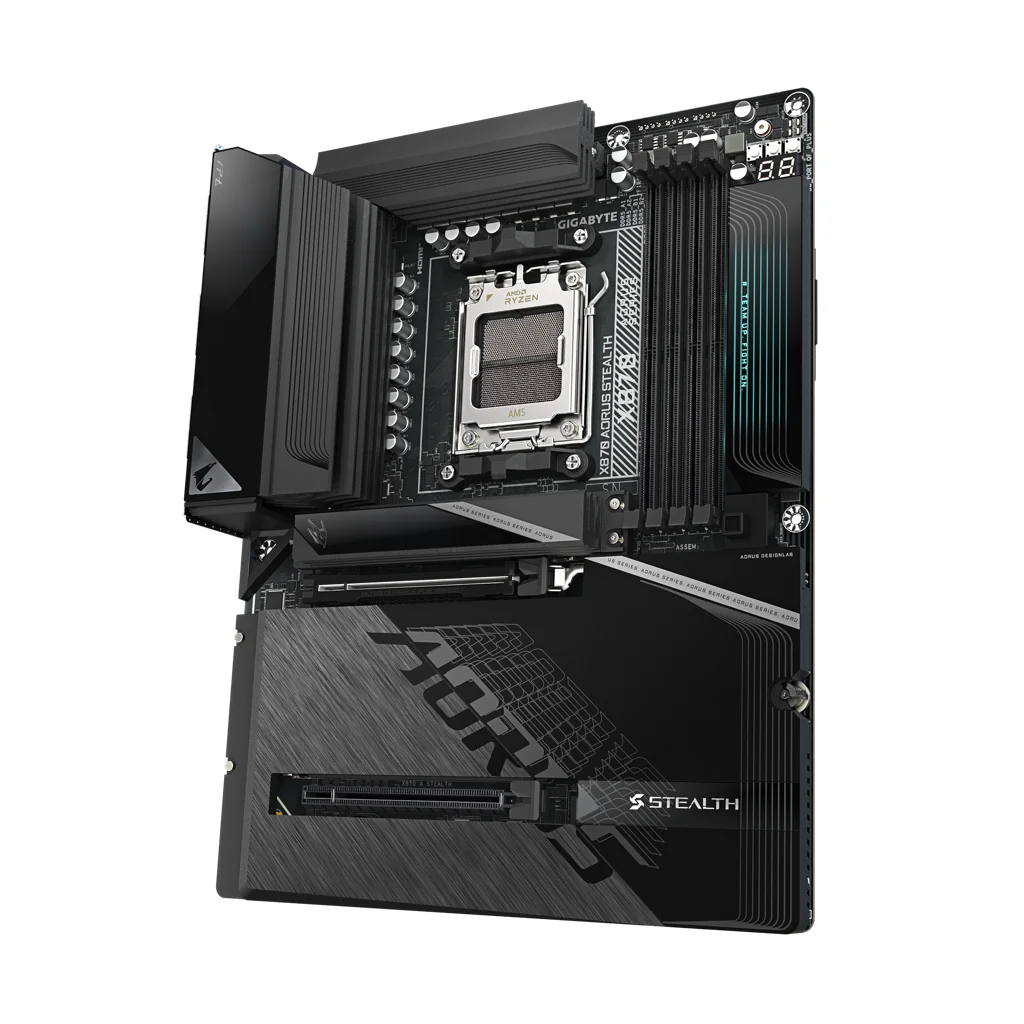

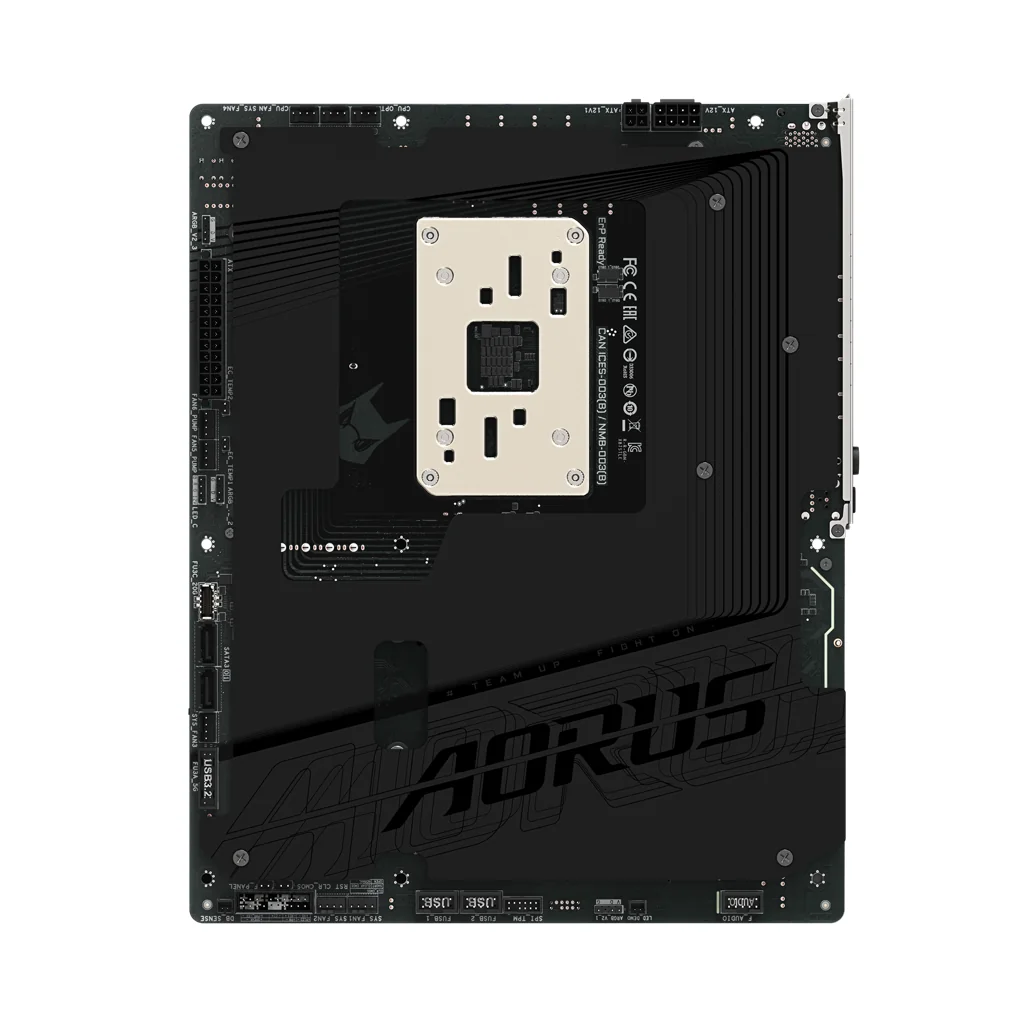

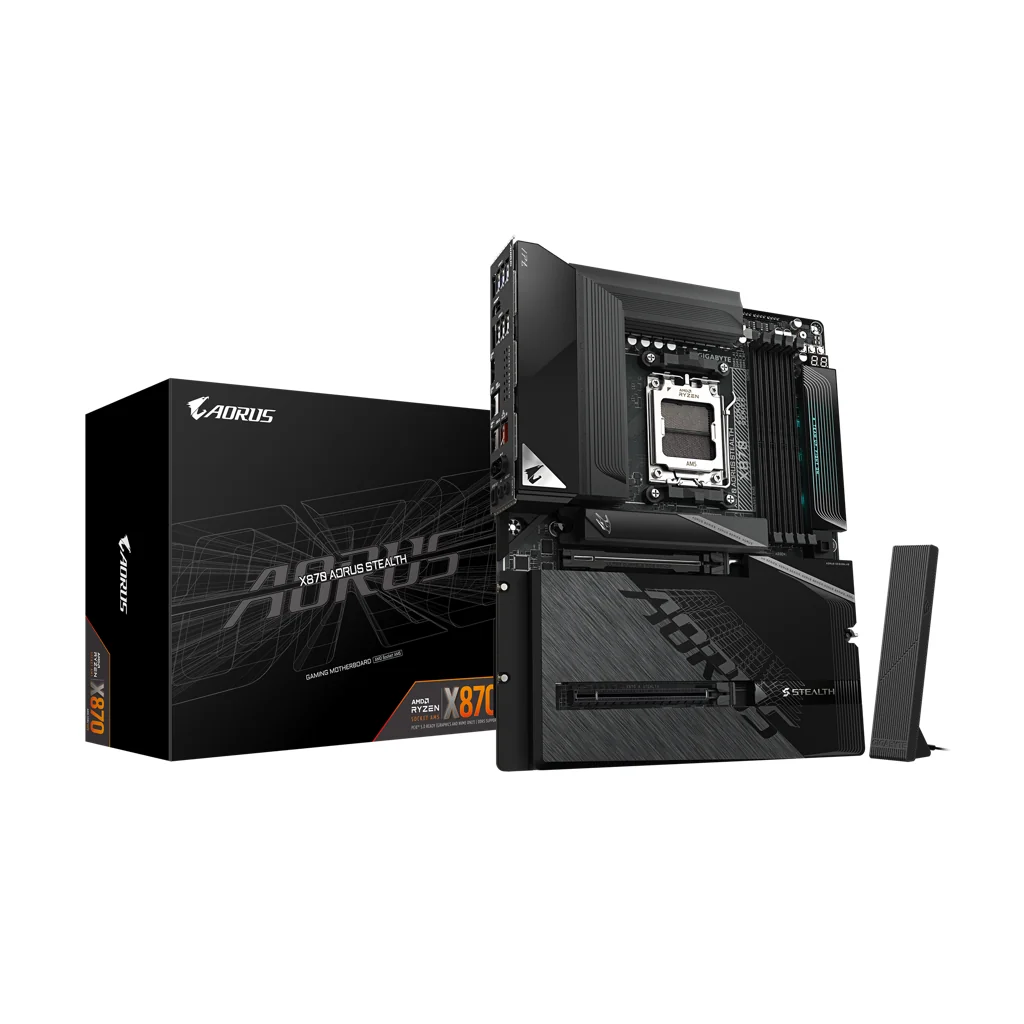

Part numberX870 AORUS STEALTH
The GIGABYTE X870 AORUS STEALTH is built for enthusiasts seeking a clean, high-performance system with advanced connectivity and next-generation hardware support. Featuring a unique “stealth” rear-connector design, it allows for cleaner cable management and a more refined build aesthetic.
Powered by the AMD X870 chipset and AM5 socket, it supports Ryzen 9000, 8000, and 7000 series processors, delivering exceptional performance for gaming, content creation, and demanding workloads. The motherboard supports DDR5 memory with high-frequency overclocking and up to 256GB capacity, ensuring smooth multitasking and system responsiveness.
Expansion and storage are future-ready, with a PCIe 5.0 x16 slot for graphics cards and four M.2 slots supporting both PCIe 5.0 and PCIe 4.0 NVMe SSDs.
Connectivity is a standout feature, including dual USB4 Type-C ports for ultra-fast data transfer and display output, WiFi 7 for ultra-low latency wireless performance, and 5GbE LAN for high-speed wired networking.
With robust VRM design, advanced thermal solutions, and GIGABYTE’s user-friendly features like Q-Flash Plus and EZ-Latch, the X870 AORUS STEALTH is designed for reliability, ease of use, and top-tier performance.
WHY IT’S A GREAT CHOICE:
NEXT-GEN AM5 PLATFORM
Supports the latest AMD Ryzen processors, delivering powerful performance with long-term upgrade flexibility.
STEALTH CLEAN BUILD DESIGN
Rear-facing connectors enable a cleaner, cable-free aesthetic for premium PC builds.
ULTRA-FAST DDR5 PERFORMANCE
Supports high-speed DDR5 memory for improved responsiveness and multitasking.
FUTURE-READY EXPANSION
PCIe 5.0 graphics and multiple M.2 slots ensure compatibility with next-gen GPUs and storage.
ADVANCED CONNECTIVITY
USB4, WiFi 7, and 5GbE LAN provide cutting-edge networking and high-speed data transfer.
SPECIFICATIONS:
| Feature | Details |
|---|---|
| Brand / Model | GIGABYTE X870 AORUS STEALTH |
| Form Factor | ATX |
| Dimensions | 30.5cm x 24.4cm |
| Socket | AM5 |
| Chipset | AMD X870 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Processors |
| Memory Support | 4 x DDR5 DIMM Slots, Dual Channel, Up to 256GB |
| Memory Speed | DDR5 (supports high-speed OC, up to ~8200MT/s depending on configuration) |
| Memory Profile Support | AMD EXPO / XMP |
| Memory Module Support | Non-ECC Unbuffered DIMM |
| Onboard Graphics Output | 1 x HDMI |
| Audio | Realtek HD Audio, 7.1-Channel |
| S/PDIF | Optical S/PDIF Out |
| LAN | Realtek 5GbE LAN |
| WiFi | WiFi 7 (Tri-band) |
| Bluetooth | Bluetooth (version not explicitly stated) |
| Main Graphics Slot | 1 x PCIe x16 slot (PCIe 5.0 with Ryzen 9000 / 7000) |
| Additional Expansion Slot | 1 x PCIe x16 slot (PCIe 4.0 x4) |
| M.2 Storage | 4 x M.2 Slots (PCIe 5.0 & PCIe 4.0 support) |
| SATA Storage | 2 x SATA 6Gb/s |
| RAID Support | RAID 0 / 1 / 5 / 10 for NVMe, RAID 0 / 1 for SATA |
| USB (Rear) | 2 x USB4 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1, USB 2.0 |
| Internal USB | USB-C header (USB 3.2 Gen 2×2), USB 3.2 headers, USB 2.0 headers |
| Fan / Pump Headers | Multiple fan and pump headers with Smart Fan support |
| RGB Headers | Addressable RGB Gen2 and RGB headers |
| Power Connectors | 24-pin ATX, 8-pin + 4-pin CPU power |

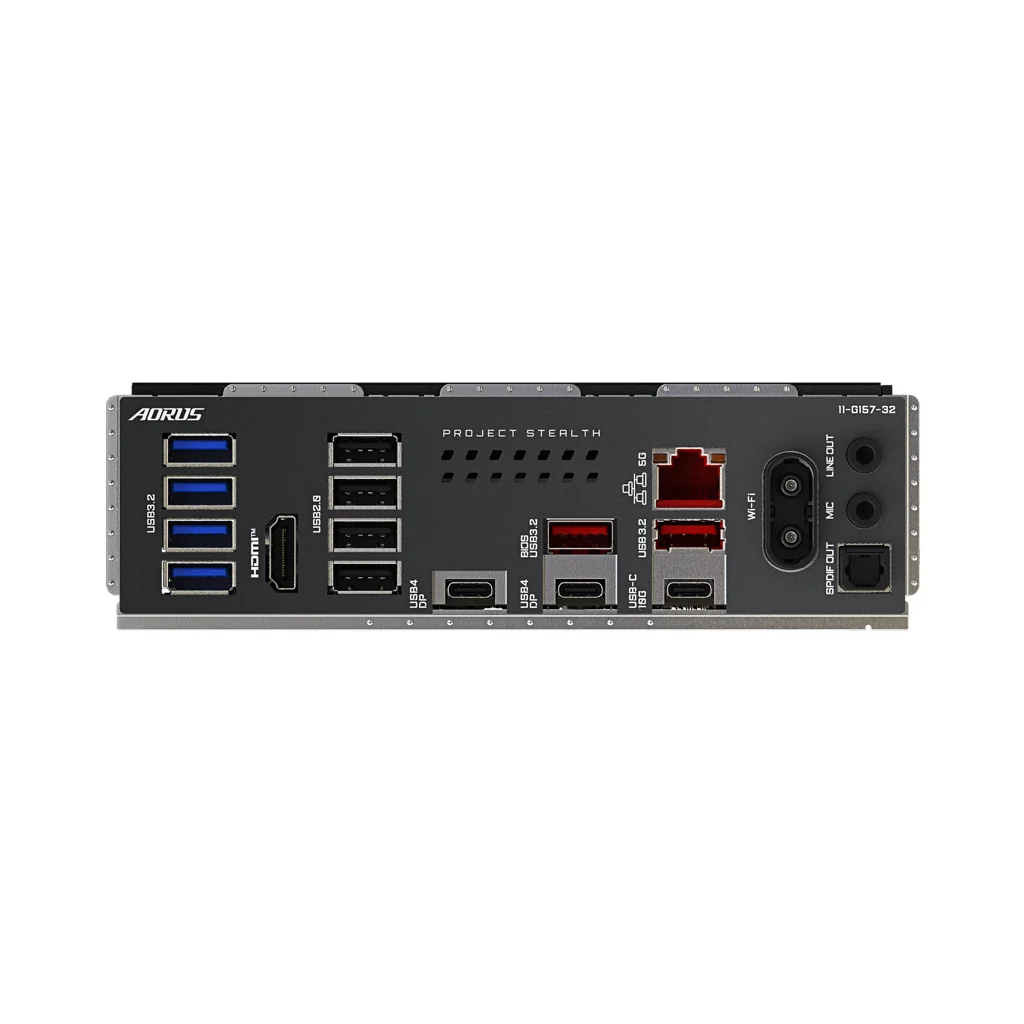

| Back Panel Connectors | HDMI, USB ports, RJ-45, antenna connectors, audio jacks, S/PDIF |
| BIOS | AMI UEFI BIOS, Q-Flash Plus |
| Unique Features | Stealth rear connectors, EZ-Latch, Q-Flash Plus, Smart Backup |
| Operating System | Windows 11 64-bit |
| Warranty | 3 Years |
