Description
X870E EAGLE X3D WIFI7

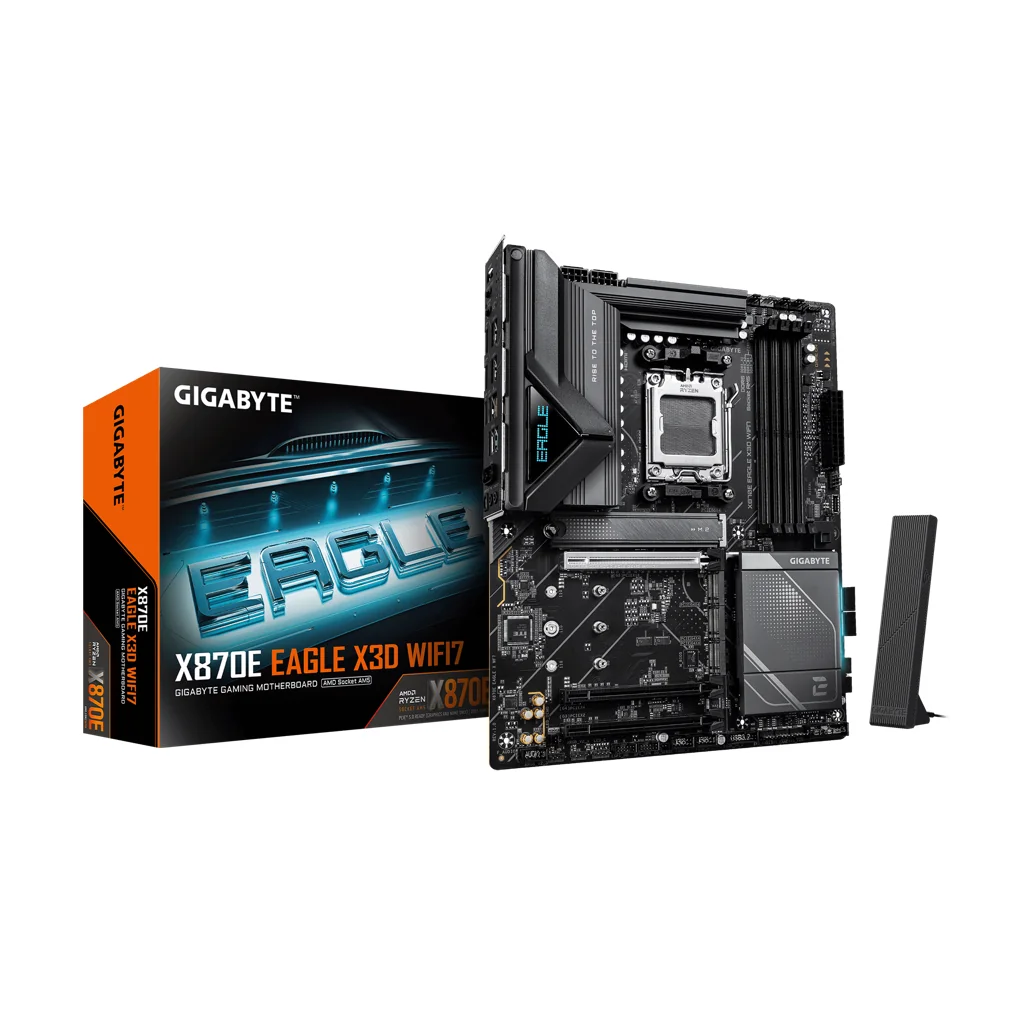

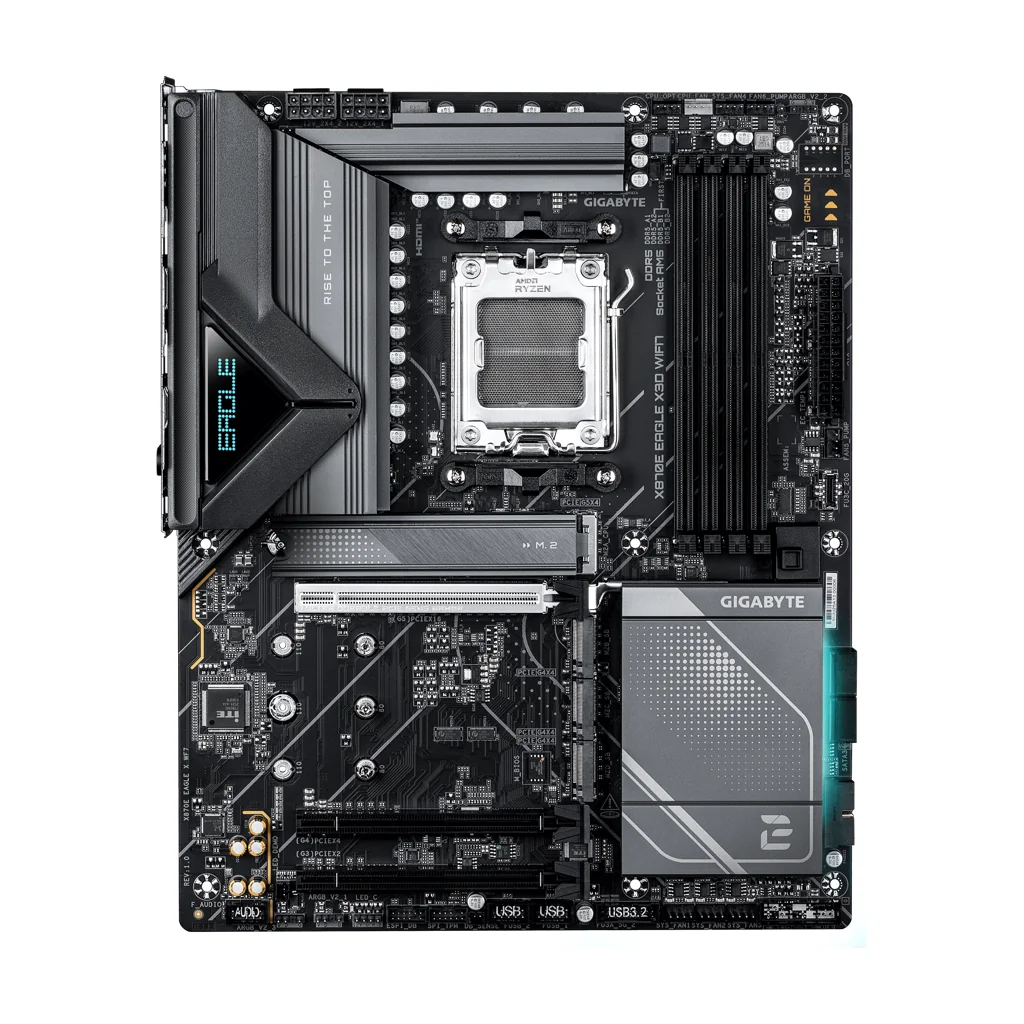

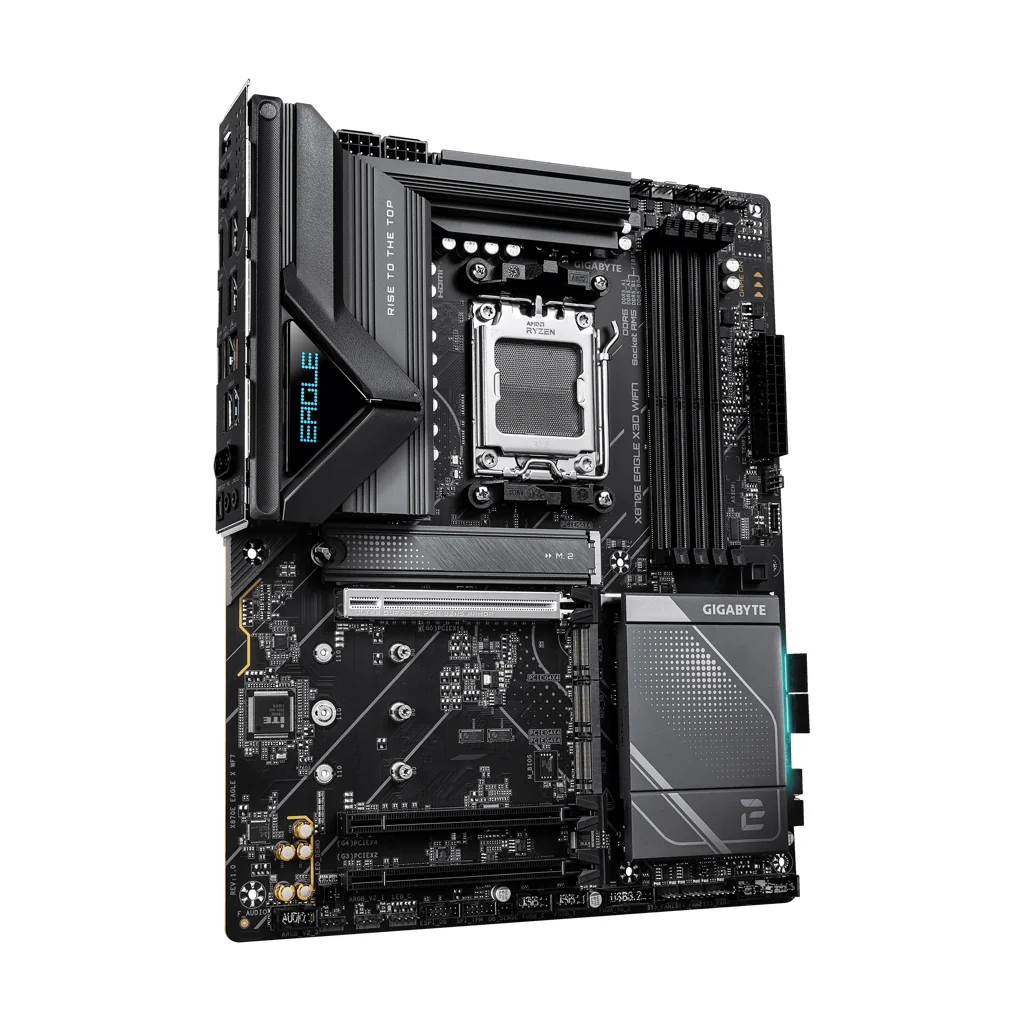

The GIGABYTE X870E EAGLE X3D WIFI7 is designed to deliver cutting-edge performance for AMD Ryzen AM5 platforms. Built on the flagship X870E chipset, it supports Ryzen 9000, 8000, and 7000 series processors, making it an excellent choice for gamers, creators, and power users.
With DDR5 memory support reaching up to 9000MHz (OC), the motherboard ensures fast system responsiveness and efficient multitasking. The PCIe 5.0 x16 slot provides full compatibility with next-generation graphics cards, while four M.2 slots—featuring both PCIe 5.0 and PCIe 4.0 support—enable ultra-fast NVMe storage configurations.
Connectivity is a major highlight, with dual USB4 Type-C ports delivering up to 40Gb/s transfer speeds and DisplayPort output support. Integrated WiFi 7 powered by a Qualcomm module and Bluetooth 5.4 provide ultra-fast wireless performance, while 5GbE LAN ensures stable high-speed wired networking.
The motherboard also features a robust 14+2+2 phase digital VRM design and advanced thermal solutions to maintain stability under heavy workloads. GIGABYTE’s X3D Turbo Mode enhances performance for Ryzen X3D processors, making it ideal for high-end gaming builds.
WHY IT’S A GREAT CHOICE:
NEXT-GEN AM5 PLATFORM
Supports the latest AMD Ryzen processors, offering powerful performance and future upgrade flexibility.
X3D PERFORMANCE OPTIMISATION
Built with X3D Turbo Mode support to maximise performance on Ryzen X3D CPUs.
HIGH-SPEED DDR5 MEMORY
Supports ultra-fast DDR5 speeds up to 9000MHz (OC) for enhanced responsiveness.
FUTURE-READY EXPANSION
PCIe 5.0 graphics and Gen5 M.2 storage ensure compatibility with next-generation hardware.
ADVANCED CONNECTIVITY
USB4, WiFi 7, and 5GbE LAN provide ultra-fast networking and data transfer capabilities.
SPECIFICATIONS:
| Feature | Details |
|---|---|
| Brand / Model | GIGABYTE X870E EAGLE X3D WIFI7 |
| Form Factor | ATX |
| Socket | AM5 |
| Chipset | AMD X870E |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series Processors |
| Memory Support | 4 x DDR5 DIMM Slots, Dual Channel, Up to 256GB |
| Memory Speed | DDR5 up to 9000MT/s (OC) |
| Memory Profile Support | AMD EXPO / XMP |
| Memory Module Support | Non-ECC Unbuffered DIMM |
| Graphics Slot | 1 x PCIe x16 slot (PCIe 5.0 with Ryzen 9000 / 7000) |
| Additional Expansion | 1 x PCIe x16 (PCIe 4.0 x4), 1 x PCIe x16 (PCIe 3.0 x2) |
| M.2 Storage | 4 x M.2 Slots (1 x PCIe 5.0, 3 x PCIe 4.0) |
| SATA Storage | 4 x SATA 6Gb/s |
| USB4 | 2 x USB4 Type-C (40Gb/s, DisplayPort support) |
| Rear USB | USB4 Type-C, USB 3.2 Gen2 Type-A, USB 3.2 Gen1, USB 2.0 |
| Video Output | 1 x HDMI (CPU dependent), USB4 DP output |
| LAN | Realtek 5GbE LAN |
| WiFi | Qualcomm WiFi 7 (2.4GHz / 5GHz / 6GHz) |
| Bluetooth | Bluetooth 5.4 |
| Audio | High Definition Audio (7.1-channel) |
| Power Design | 14+2+2 Phase Digital VRM |
| Internal Connectors | 24-pin ATX, dual 8-pin CPU, USB headers, RGB headers, fan headers |
| Cooling | Smart Fan, VRM Thermal Armor, M.2 Thermal Guard |

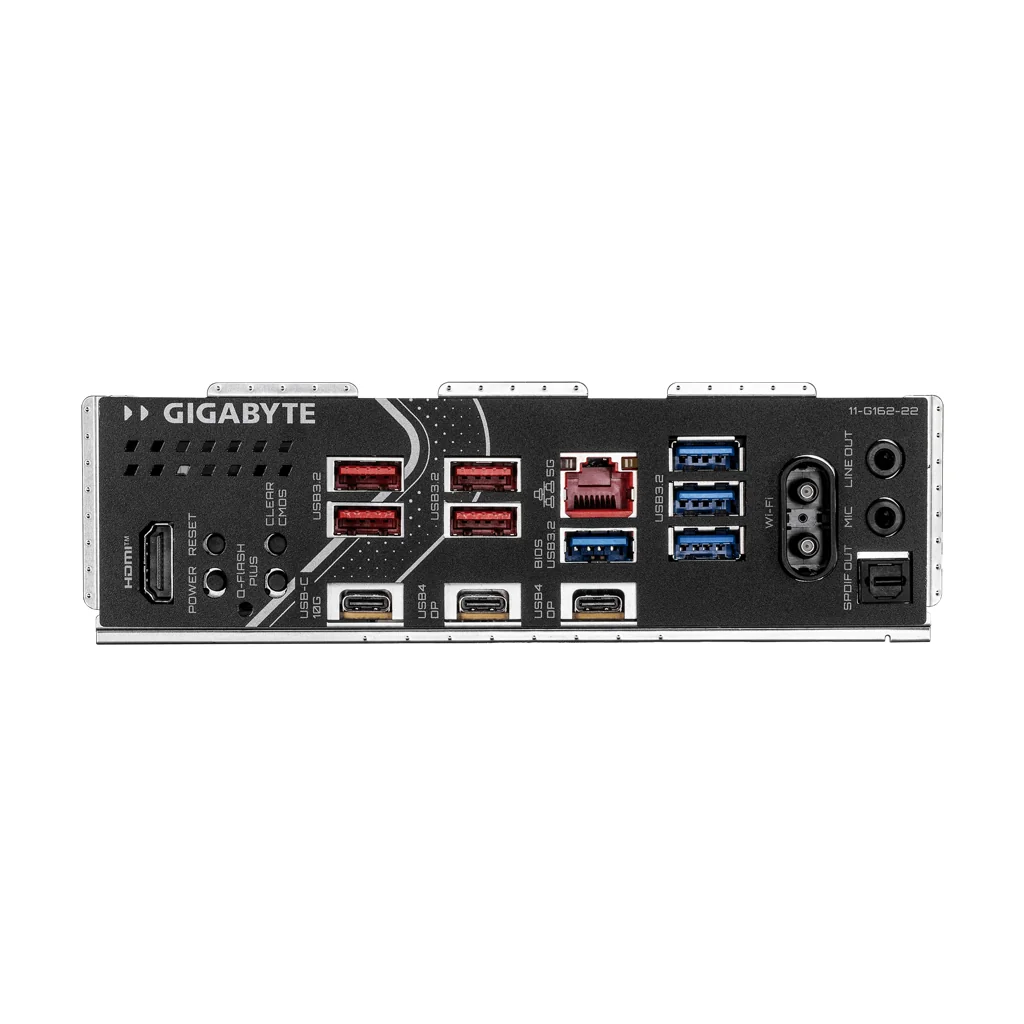

| Back Panel | HDMI, USB4, USB ports, RJ-45, antenna connectors, audio jacks, S/PDIF |
| BIOS | AMI UEFI BIOS, Q-Flash Plus |
| Operating System | Windows 11 64-bit |
| Warranty | 3 Years |
