R12469.00 Incl. Vat
(Displayed price above applies to EFT / Bank Transfer payments only.)
KEY FEATURES:
– ATX Form Factor
– Intel Z890 Chipset
– Intel Socket LGA1851
– 4x DIMM Slots, Max. 256GB, DDR5
– Supports up to DDR5-9500MHz+(OC)
– D5 Bionic Corsa: for Infinite Memory Performance
– 1x PCIe 5.0 x16 Slot (supports up to x16)
– 1x PCIe 4.0 x16 Slots (supports up to x4)
– 1x PCIe 3.0 x16 Slots (supports up to x1)
– Ultra Durable PCIe Armor
– Total Supports 5x M.2 Slots and 4x SATA 6Gb/s Ports
– 2x Intel Thunderbolt 4 USB 4 Type-C Connectors
– 6x USB 3.2 Gen 2 Type-A Ports, 4x USB 3.2 Gen 1 Type-A ports, 2x USB 2.0/1.1 Type-A Ports
– 1x Marvell AQtion AQC113C 10GbE LAN chip
– Intel BE200NGW Tri-Band 320MHz 802.11be Wi-Fi 7
– Bluetooth 5.4
– Realtek ALC1220 Audio Codec
– Rear ESS SABRE Hi-Fi 9118 DAC
– Digital Twin 18+1+2 Phases VRM Solution
– 110A Smart Power Stage
– AORUS AI Auto-Overclocking Software
– AI Perfdrive: Optimal & Customized BIOS Preset Profiles
– DDR Wind Blade: Enhanced Active Cooling for Memory Modules
– VRM Thermal Armor Advanced & M.2 Thermal Guard XL
– 1x RGB LED Header, 4 x ARGB LED Headers
– 3 Year Warranty

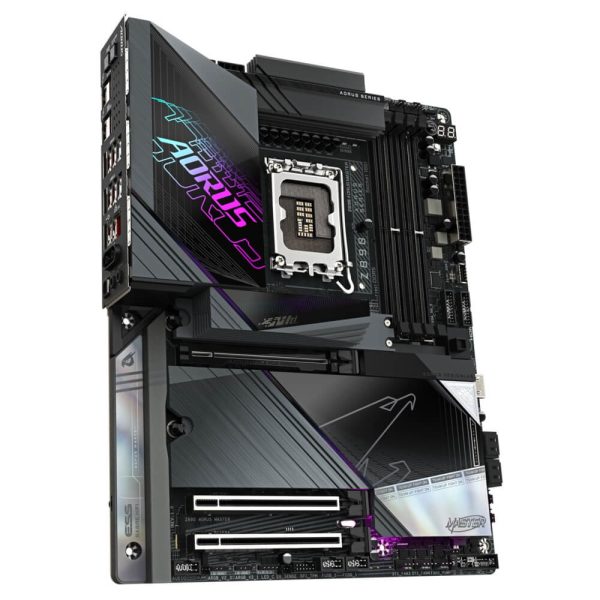

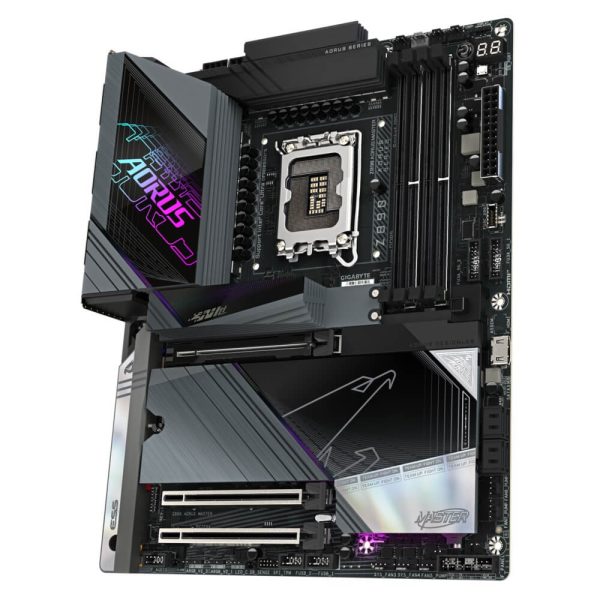

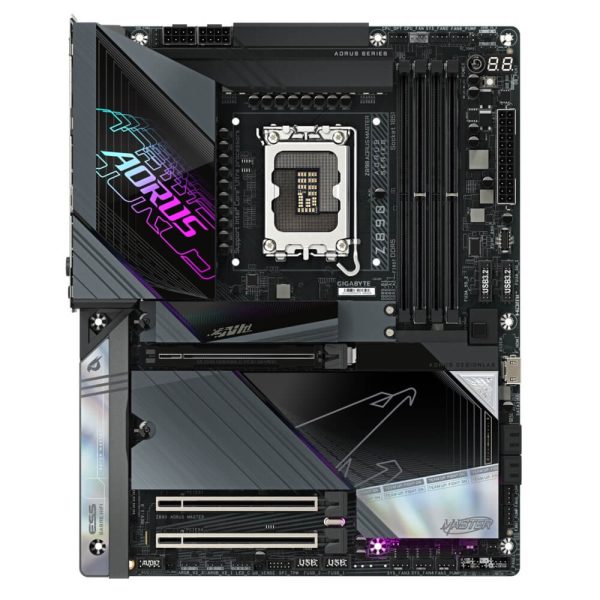

The Gigabyte Z890 AORUS MASTER sets the benchmark for high-performance Intel motherboards. Powered by the advanced Z890 chipset and supporting Intel Core Ultra (Series 2) CPUs via the LGA 1851 socket, it offers blazing-fast DDR5 memory, next-gen connectivity, exceptional thermal management, and builder-friendly design—all engineered for elite gamers, content creators, and power users.
Power & Memory
Robust 18+1+2‑phase Twin Digital VRM with 110 A Smart Power Stage and UD power connectors—on an 8-layer PCB—to ensure rock-solid stability during intense workloads
Supports up to 256 GB DDR5 memory, including DDR5‑9500 (OC), with AI-enhanced tuning via D5 Bionic Corsa and AI Snatch for optimized overclocking performance
Storage & Expansion
Five M.2 slots for ultra-high-speed NVMe storage configurations
PCIe 5.0 x16 reinforced slot with EZ-Latch for tool-free GPU installation and two additional slots for extension cards.
Connectivity & Networking
Dual Thunderbolt 4 / USB4 ports (40 Gb/s) with DisplayPort Alt-Mode ensure high-speed data transfer and display support
Wi‑Fi 7 with directional ultra-high gain antenna and 10 GbE LAN deliver blazing-fast networking for gaming, streaming, and VR applications
Audio & Aesthetics
Audiophile-grade sound via ESS SABRE reference DAC (ES9118), high fidelity with 32‑bit/192 kHz resolution, superior dynamic range, and premium WIMA capacitors ensure immersive and precise audio
Cooling & Build Quality
VRM Thermal Armor Advanced with integrated I/O shield and high-performance thermal pads, alongside M.2 Thermal Guards, deliver exceptional heat dissipation under load
Ultra Durable™ design with reinforced components and build-quality for long-term reliability.
Builder-Friendly Features
EZ-Latch mechanisms for PCIe and M.2 slots, WIFI EZ-Plug antenna, EZ-Debug Zone, Q‑Flash Plus, Sensor Panel Link, and customizable BIOS options ensure seamless installation and maintenance
Cutting-Edge Performance Boost
Ultra Turbo Mode, a new BIOS-level feature exclusive to Z890 boards, offers up to 35% increase in gaming FPS and 68% memory performance boost—available via BIOS update
With unmatched power delivery, future-ready connectivity, expansive storage, and intelligent BIOS tuning like Ultra Turbo Mode, the Gigabyte Z890 AORUS MASTER redefines what high-end ATX platforms can deliver. It’s the top-tier board for creators, gamers, and enthusiasts who demand maximum performance and reliability.
SPECIFICATIONS |
|
| Brand | Gigabyte |
| Series | AORUS MASTER |
| Model | Z890 AORUS MASTER |
| CPU | LGA1851 socket: Support for Intel Core Ultra Processors |
| L3 cache varies with CPU | |
| * Please refer to “CPU Support List” for more information. | |
| Chipset | Intel Z890 Express Chipset |
| Memory | Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C) /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. |
| 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to “Memory Support List” for more information.) | |
| Onboard Graphics | Integrated Graphics Processor-Intel HD Graphics support: |
| – 2 x Intel Thunderbolt 4 connectors (USB4 USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs | |
| When a Thunderbolt monitor is installed, the maximum resolution supported is 5120×2880@60 Hz with 24 bpp (single display output). | |
| When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840×2160@240 Hz (single display output). | |
| * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, “Back Panel Connectors,” for more information.) | |
| * Support for DisplayPort 2.1 version and HDCP 2.3 | |
| – 1 x front HDMI port, supporting a maximum resolution of 1920×1080@30 Hz | |
| * Support for HDMI 1.4 version. | |
| (Graphics specifications may vary depending on CPU support.) | |
| Support for up to triple-display at the same time | |
| Audio | Realtek ALC1220 CODEC |
| * The front panel line out jack supports DSD audio. | |
| ESS ES9118 DAC chip | |
| Support for DTS:X Ultra | |
| High Definition Audio | |
| 2/4/5.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
| LAN | Marvell AQtion AQC113C 10GbE LAN chip |
| (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | Intel Wi-Fi 7 BE200NGW |
| – 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands | |
| – BLUETOOTH 5.4 | |
| – Support for 11be 320MHz wireless standard | |
| (Actual data rate may vary depending on environment and equipment.) | |
| * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.) | |
| ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country’s regulations. | |
| Expansion Slots | CPU: |
| – 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) | |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. | |
| * The PCIEX16 slot shares bandwidth with the M2D_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2D_CPU connector. | |
| Chipset: | |
| – 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) | |
| – 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) | |
| Storage Interface | CPU: |
| – 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) | |
| – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) | |
| – 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU) | |
| Chipset: | |
| – 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) | |
| – 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) | |
| – 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB | CPU: |
| – 2 x USB4 USB Type-C ports on the back panel | |
| Chipset: | |
| – 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel | |
| Chipset+USB 3.2 Gen 2×2 Hub: | |
| – 1 x USB Type-C port with USB 3.2 Gen 2×2 support, available through the internal USB header | |
| Chipset+2 USB 3.2 Gen 1 Hubs: | |
| – 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) | |
| Chipset+2 USB 2.0 Hubs: | |
| – 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 2 x 8-pin ATX 12V power connectors | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 4 x system fan headers | |
| 4 x system fan/water cooling pump headers | |
| 4 x addressable RGB Gen2 LED strip headers | |
| 1 x RGB LED strip header | |
| 5 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x USB Type-C header, with USB 3.2 Gen 2×2 support | |
| 2 x USB 3.2 Gen 1 headers | |
| 2 x USB 2.0/1.1 headers | |
| 1 x noise detection header | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x HDMI port (Note) | |
| 1 x power button | |
| 1 x reset button | |
| 1 x reset jumper | |
| 1 x Clear CMOS jumper | |
| 2 x temperature sensor headers | |
| Voltage Measurement Points | |
| (Note) Actual support may vary by CPU | |

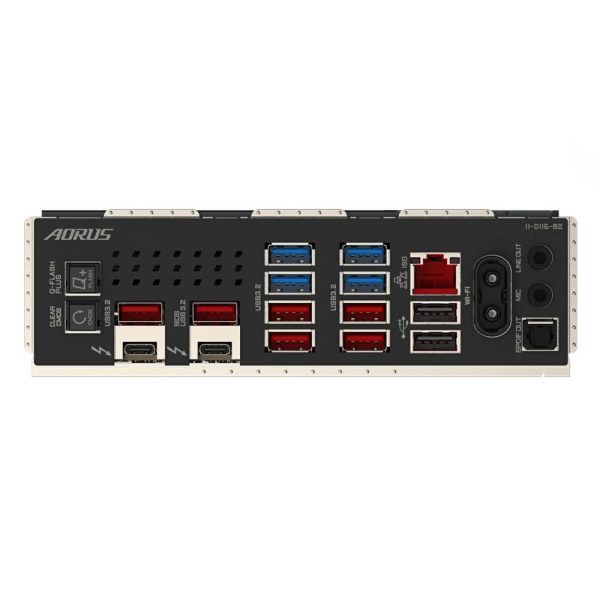

| Back Panel Connectors | 1 x Q-Flash Plus button |
| 1 x Clear CMOS button | |
| 2 x Intel Thunderbolt 4 connectors (USB4 USB Type-C ports) | |
| 6 x USB 3.2 Gen 2 Type-A ports (red) | |
| 4 x USB 3.2 Gen 1 ports | |
| 2 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 2 x antenna connectors (2T2R) | |
| 2 x audio jacks | |
| 1 x optical S/PDIF Out connector | |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| Noise detection | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Operating System | Support for Windows 11 64-bit |
| Form Factor | ATX Form Factor |
| 30.5cm x 24.4cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
| Weight | 2 kg |
|---|---|
| Motherboard Brand | |
| Motherboard Category | |
| Motherboard Chipset | |
| Motherboard Form Factor | |
| Motherboard Ram Support | |
| Motherboard Socket Type |
