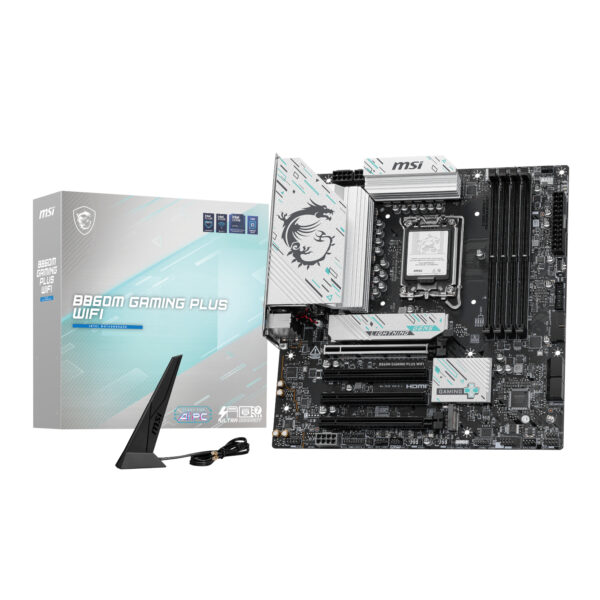

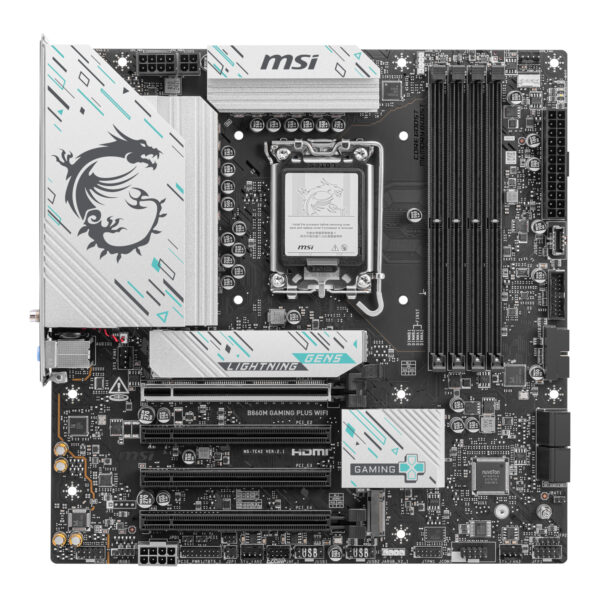

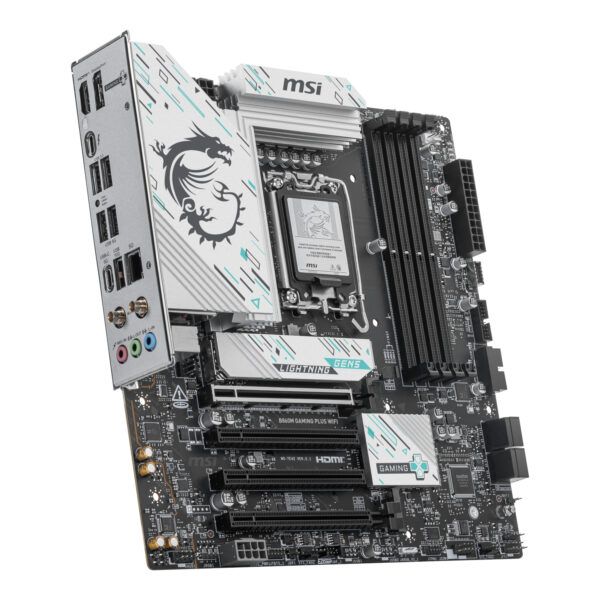

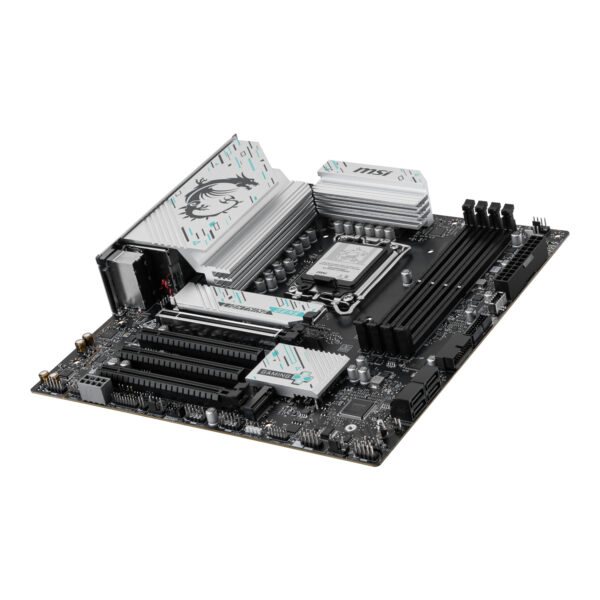

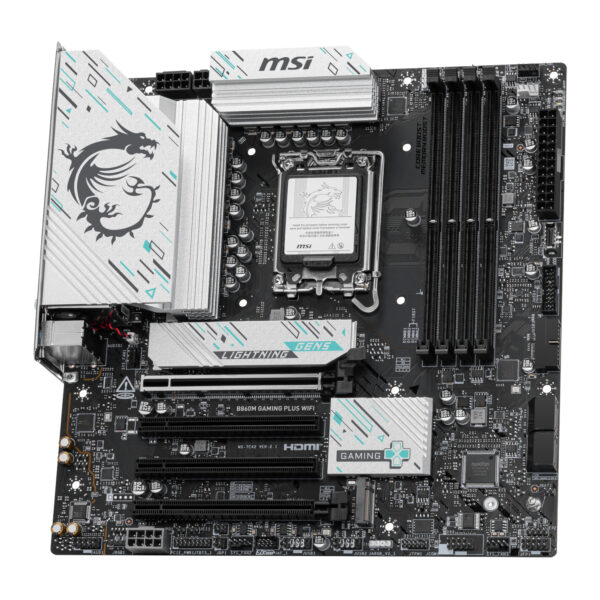

MSI B860M GAMING PLUS WIFI Intel B860 LGA1851 Micro-ATX DDR5 Motherboard
R3805.00 Incl. Vat
Or as low as KEY FEATURES:
– Intel B860 Chipset • Modern performance platform
– LGA1851 Socket • Intel Core Ultra (Series 2) ready
– DDR5 Memory • Up to 8800+ MT/s (OC)
– PCIe 5.0 x16 • Next-gen GPU support
– Triple M.2 Slots • Gen5 & Gen4 NVMe storage
– WiFi 7 + Bluetooth • Ultra-fast wireless connectivity
– 5G LAN • High-speed wired networking
– Thunderbolt 4 USB-C • High-speed connectivity
– 3 Year Warranty
Description
MSI B860M GAMING PLUS WIFI Intel B860 LGA1851 Micro-ATX DDR5 Motherboard
B860M GAMING PLUS WIFI
The MSI B860M GAMING PLUS WIFI is designed to deliver next-generation performance and connectivity for Intel Core Ultra (Series 2) systems. Built on the Intel B860 chipset, it provides a balanced platform for gaming, content creation, and everyday computing with modern features and strong reliability.
With DDR5 memory support reaching speeds up to 8800+ MT/s (OC), the motherboard ensures fast data transfer and improved responsiveness. The PCIe 5.0 x16 slot offers full bandwidth for modern GPUs, while multiple M.2 slots—including PCIe Gen5 support—enable ultra-fast NVMe storage performance.
Connectivity is a major highlight, featuring Thunderbolt 4, WiFi 7, and 5G LAN for high-speed data transfer and low-latency networking. The board also includes front USB Type-C support and a wide range of USB options for modern peripherals.
MSI enhances usability with EZ DIY features such as EZ PCIe Clip II, EZ M.2 Clip II, and a pre-installed I/O shield, making installation and upgrades simple and efficient. Advanced thermal solutions, including extended heatsinks and M.2 Shield Frozr, ensure stable performance under load.
WHY IT’S A GREAT CHOICE:
NEXT-GEN INTEL PLATFORM
Supports Intel Core Ultra processors, delivering modern performance and future upgrade potential.
EXTREME DDR5 PERFORMANCE
High-speed DDR5 memory enables faster system responsiveness and multitasking efficiency.
FUTURE-READY EXPANSION
PCIe 5.0 graphics and Gen5 storage ensure compatibility with next-generation hardware.
ADVANCED CONNECTIVITY
WiFi 7, Thunderbolt 4, and 5G LAN provide ultra-fast networking and data transfer.
GAMING-READY DESIGN
Robust power delivery and cooling ensure stable performance during gaming and heavy workloads.
SPECIFICATIONS:
| Feature | Details |
|---|---|
| Brand / Model | MSI B860M GAMING PLUS WIFI |
| Form Factor | Micro-ATX |
| Socket | LGA1851 |
| Chipset | Intel B860 |
| CPU Support | Intel Core Ultra (Series 2) Processors |
| Memory Support | 4 x DDR5 DIMM Slots, Dual Channel |
| Memory Speed | DDR5 up to 8800+ MT/s (OC) |
| Memory Profile Support | Intel XMP |
| Power Design | 12+1+1+1 Duet Rail Power System |
| Expansion Slots | 1 x PCIe 5.0 x16, additional PCIe slots |
| M.2 Storage | 3 x M.2 Slots (PCIe 5.0 & PCIe 4.0) |
| SATA Storage | Supported (exact ports not specified) |
| USB / Thunderbolt | 1 x Thunderbolt 4 Type-C |

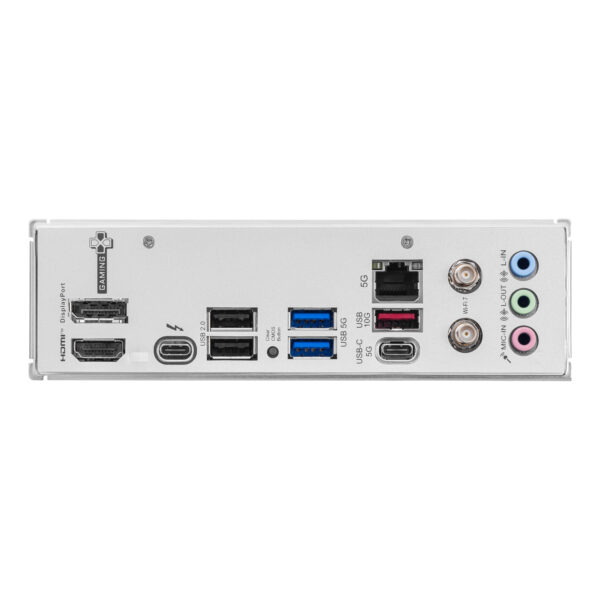

| Rear USB | USB 10Gbps, USB 5Gbps, USB 2.0 |
| Video Output | HDMI, DisplayPort (CPU dependent) |
| LAN | 5G LAN |
| WiFi | WiFi 7 |
| Bluetooth | Supported (version not specified) |
| Audio | HD Audio (Audio Boost) |
| Cooling | Extended Heatsinks, M.2 Shield Frozr |
| Internal Headers | USB headers, fan headers, RGB headers, front panel connectors |
| BIOS | UEFI BIOS, Flash BIOS |
| Special Features | EZ PCIe Clip II, EZ M.2 Clip II, EZ Antenna, AI Engine |
| Operating System | Windows 11 64-bit |
| Warranty | 3 Years |
