MSI H810M GAMING WIFI6E Intel H810 LGA1851 Micro-ATX DDR5 Motherboard
R3044.00 Incl. Vat
Or as low as KEY FEATURES:
– Intel H810 Chipset • Entry-level gaming platform
– LGA1851 Socket • Intel Core Ultra (Series 2) support
– DDR5 Memory • Up to 6400+ MT/s (OC)
– PCIe 5.0 x16 • Next-gen GPU compatibility
– M.2 PCIe 4.0 • Fast NVMe storage support
– WiFi 6E + Bluetooth 5.3 • Reliable wireless connectivity
– 2.5G LAN • High-speed wired networking
– USB 20Gbps Type-C • Modern high-speed connectivity
– 3 Year Warranty
Description

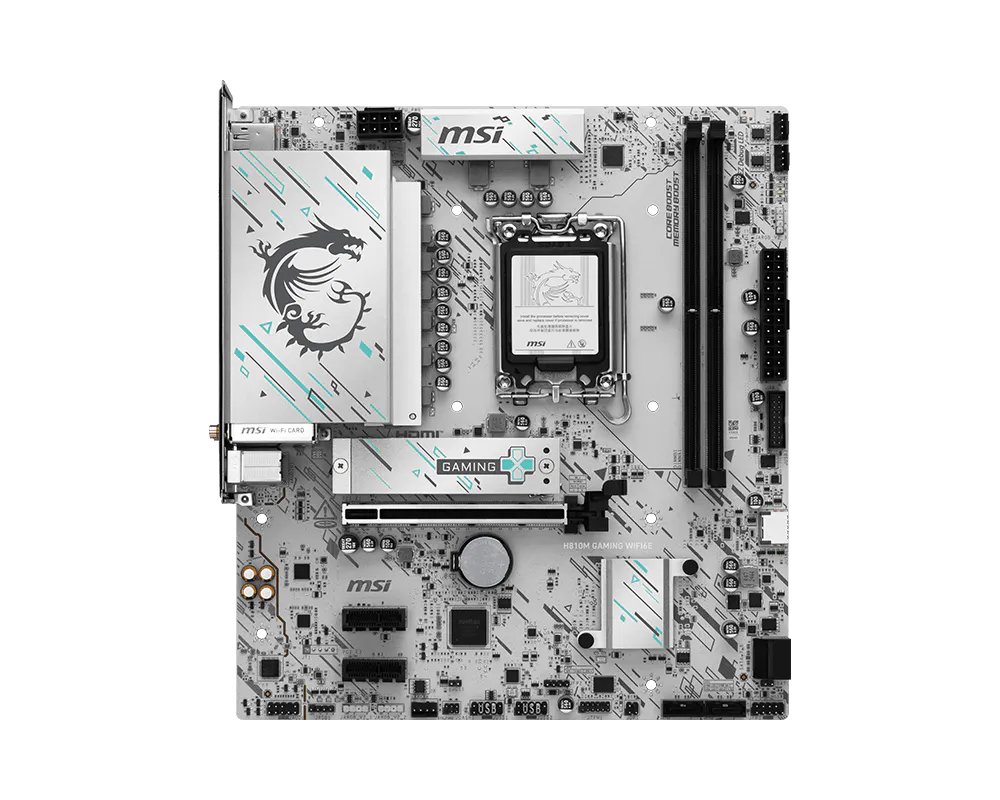

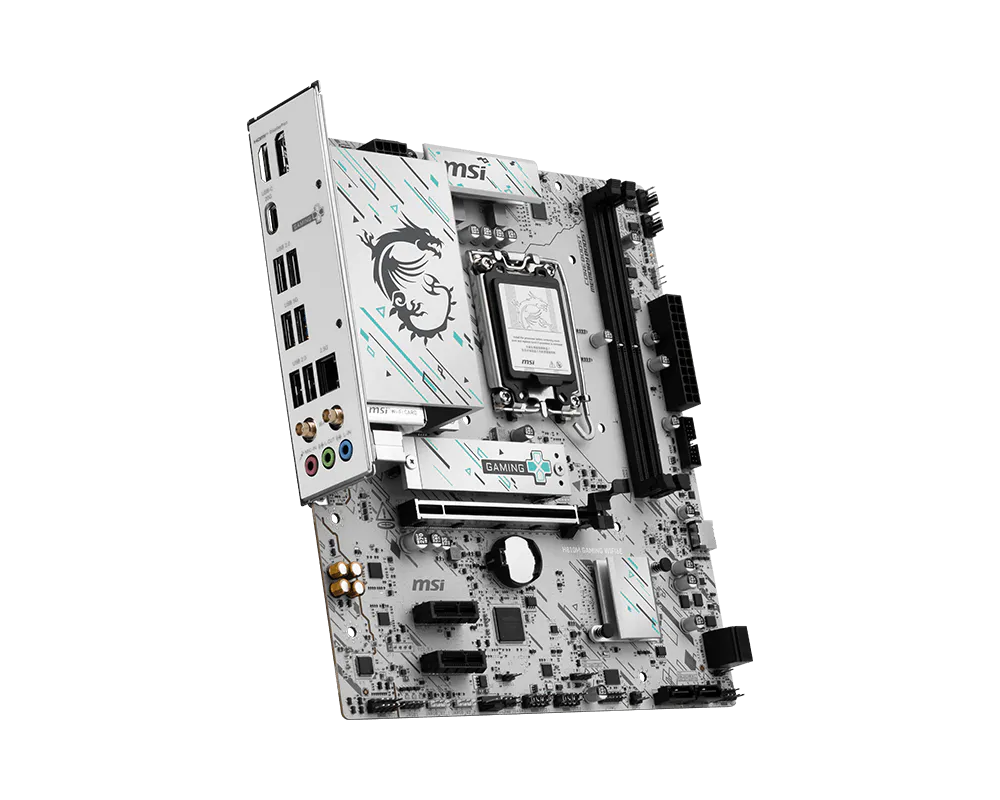

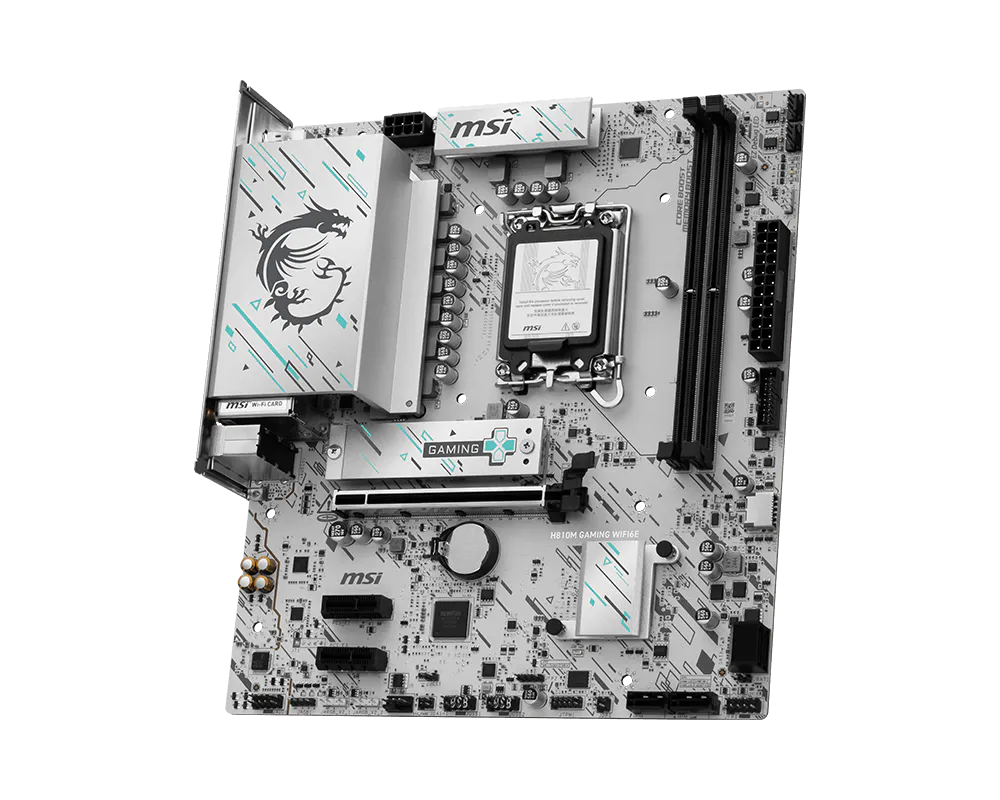

MSI H810M GAMING WIFI6E Intel H810 LGA1851 Micro-ATX DDR5 Motherboard
H810M GAMING WIFI6E
The MSI H810M GAMING WIFI6E is built to bring modern gaming features to Intel’s latest Core Ultra (Series 2) platform. Powered by the Intel H810 chipset and LGA1851 socket, it provides a reliable and efficient foundation for gaming, productivity, and everyday computing.
With support for DDR5 memory up to 6400+ MT/s (OC), the motherboard delivers improved bandwidth and responsiveness, making it ideal for multitasking and gaming workloads. The PCIe 5.0 x16 slot ensures compatibility with next-generation graphics cards, while the M.2 PCIe 4.0 slot provides fast NVMe storage for quick boot times and application loading.
Connectivity is a strong point, featuring integrated WiFi 6E and Bluetooth 5.3 for fast wireless networking, alongside a 2.5G LAN port for stable wired performance. The board also includes HDMI and DisplayPort outputs for flexible display options.
MSI enhances the experience with gaming-focused features such as M.2 Shield Frozr, extended heatsinks, and EZ DIY design elements like EZ PCIe Clip II and EZ M.2 Clip II, ensuring easier installation and better thermal performance.
WHY IT’S A GREAT CHOICE:
NEXT-GEN INTEL PLATFORM
Supports Intel Core Ultra processors, delivering a modern and future-ready system foundation.
FAST DDR5 PERFORMANCE
High-speed DDR5 memory improves system responsiveness and efficiency for gaming and multitasking.
STRONG CONNECTIVITY OPTIONS
WiFi 6E, Bluetooth 5.3, and 2.5G LAN ensure fast and reliable networking.
MODERN EXPANSION SUPPORT
PCIe 5.0 graphics and NVMe storage keep your system ready for next-gen hardware.
EASY BUILD FEATURES
EZ DIY design and thermal solutions make installation and upgrades simple and efficient.
SPECIFICATIONS:
| Feature | Details |
|---|---|
| Brand / Model | MSI H810M GAMING WIFI6E |
| Form Factor | Micro-ATX |
| Socket | LGA1851 |
| Chipset | Intel H810 |
| CPU Support | Intel Core Ultra (Series 2) Processors |
| Memory Support | 2 x DDR5 DIMM Slots, Dual Channel, Up to 128GB |
| Memory Speed | DDR5 6400 – 4800 MT/s (JEDEC), 6400+ MT/s (OC) |
| Memory Profile Support | Intel XMP 3.0 |
| Memory Type | Non-ECC, Unbuffered DIMM |
| Onboard Graphics | Integrated graphics support (CPU dependent) |

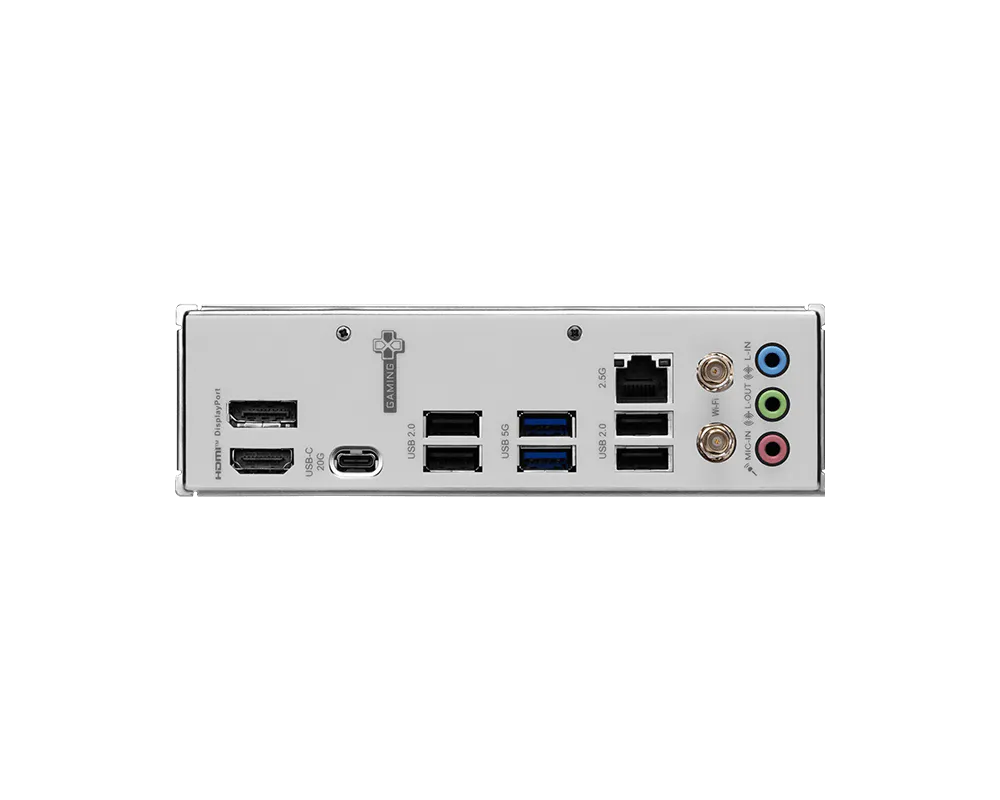

| Video Output | 1 x HDMI 2.1, 1 x DisplayPort 1.4 |
| Audio | 7.1-Channel HD Audio (Audio Boost) |
| LAN | Realtek 2.5G LAN |
| WiFi | WiFi 6E (802.11ax) |
| Bluetooth | Bluetooth 5.3 |
| Expansion Slots | 1 x PCIe 5.0 x16, 2 x PCIe x1 |
| M.2 Storage | 1 x M.2 PCIe 4.0 x4 |
| SATA Storage | 4 x SATA 6Gb/s |
| USB Ports | USB 20Gbps Type-C, USB 10Gbps Type-C, USB 5Gbps Type-A, USB 2.0 |
| Cooling | Extended Heatsinks, M.2 Shield Frozr |
| Internal Headers | USB headers, fan headers, RGB headers, front panel connectors |
| BIOS | UEFI BIOS, Flash BIOS |
| Special Features | EZ PCIe Clip II, EZ M.2 Clip II, EZ Antenna |
| Operating System | Windows 11 64-bit |
| Warranty | 3 Years |
