Description
BUSINESS ELEGANCE

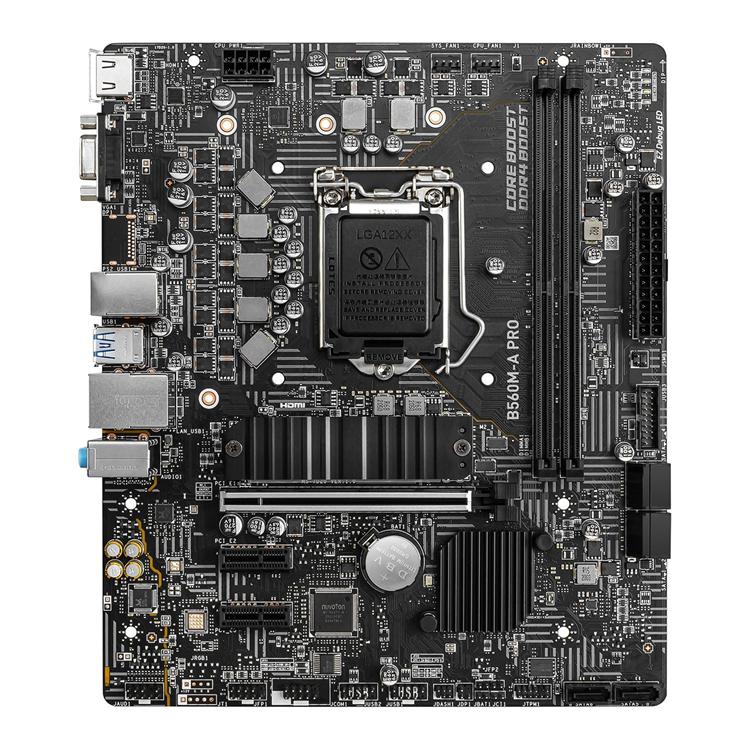

The MSI B560M-A PRO MATX motherboard is here to support the very latest 10th and 11th Generation Intel processor support. Bursting with exclusive features and high-speed connectivity – the latest 4th Gen PCI-e and M.2, plus Audio/Core & DDR4 Memory boosts. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility. Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller. MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.Intel B560 Chipset
The MSI B560M-A PRO MATX motherboard is here to support the very latest 10th and 11th Generation Intel processor support. Bursting with exclusive features and high-speed connectivity – the latest 4th Gen PCI-e and M.2, plus Audio/Core & DDR4 Memory boosts. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility. Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller. MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker.Intel B560 Chipset
LGA 1200 CPU Socket
10th & 11th Gen Intel Compatible CPUs
mATX Form Factor
Special Features of the B560M-A PRO Motherboard
DDR4 BOOST
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.LIGHTNING GEN 4 SOLUTION
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
The fully isolated DDR circuit to deliver pure data signals for the best gaming and overclocking performance.LIGHTNING GEN 4 SOLUTION
The latest Gen 4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
2.5G NETWORK SOLUTION
Featuring premium 2.5G LAN with LAN manager delivers better network experience.
PCIE STEEL ARMOR
Protecting VGA cards against bending and EMI for better performance, stability and strength.
Premium M.2 SHIELD FROZR Solution
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
Experience Core Boost
FASTER AND UNDISTORTED CURRENT DELIVERY
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Unmatched Memory Performance
ADVANCED PERFORMANCE WITH DDR4 BOOST
MSI OC LAB does not merely work hard on extreme overclocking. Compare to B460 motherboard memory XMP profile, MSI does have great improvement on performance and efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
MSI OC LAB does not merely work hard on extreme overclocking. Compare to B460 motherboard memory XMP profile, MSI does have great improvement on performance and efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.
Fast and Future-Ready Storage
LIGHTNING GEN 4 PCI-E AND STEEL ARMOR DESIGN
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. Utilizing 11th Gen Intel Core processors, MSI B560 PRO motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel® Optane™ Memory device.
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. Utilizing 11th Gen Intel Core processors, MSI B560 PRO motherboards feature latest Lightning Gen 4 M.2 which is the fastest onboard storage solution on the market with up to 64 Gb/s transfer speed. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. PC Enthusiasts can now enjoy the performance of an SSD on their HDD by coupling it with the new Intel® Optane™ Memory device.
Professional Gaming Audio with an Isolated Design
AMPLIFY YOUR GAME WITH AUDIO BOOST
Make sure you enjoy the purest sound quality in both stereo and surround sound. A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured, thanks to high quality audio capacitors. Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels. Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.
Make sure you enjoy the purest sound quality in both stereo and surround sound. A high fidelity sound experience with exceptional acoustics and realism for studio level headphones is ensured, thanks to high quality audio capacitors. Using separated layers in the PCB ensures equally pristine sound quality for both left and right audio channels. Audio Boost protects your ears by eliminating those annoying loud popping sounds when you plug/unplug devices or turn your PC on/off.
High-Bandwidth and Low-Latency Network
CONNECT WITH USB 3.2 GEN 1
Featuring 2.5Gbps LAN which provides incredible data transfer speed faster than general Gigabit LAN. MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency. Transfer lots of data, music and movies over USB easier. USB 3.2 Gen 1 ports are ready in both front and rear IO, provides wide variety of options to connect your USB 3.2 Gen 1 devices.
Specifications
| Core Specifications | |
|---|---|
| Edition | B560M-A PRO |
| Form Factor | MicroATX |
| CPU Socket | 1200 |
| Chipset | Intel B560 |
| RAM Memory Support | |
|---|---|
| Memory Type | DDR4 |
| Memory Channel | Dual (2) |
| Memory Type (ECC) | Non-ECC |
| Memory Type (R/U) | UDIMM (Unbuffered) |
| Memory Speed (Mhz) |
|
| Max. Memory Capacity | 64GB |
| Audio | |
|---|---|
| Audio | Realtek ALC897 7.1 HD Audio |
| Graphics Support | |
|---|---|
| Primary GPU Interface | PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible] |
| NVIDIA SLI Support | Not Supported |
| AMD CrossFire Support | N/A |
| Integrated Graphics | Requires Processor Graphics or Discrete GPU |
| On-Board Graphics Connectors |
|
| Internal Connectivity | |
|---|---|
| Expansion Slots |
|
| SATA Support | SATA3 |
| RAID Support via | RAID 0/1/10/5 (Intel RSTe) |
| Storage Mode Support |
|
| Internal I/O |
|
| External Connectivity | |
|---|---|
| Network Interface Type | Wired 2.5 Gigabit LAN |
| Network Chip/Modules |
|

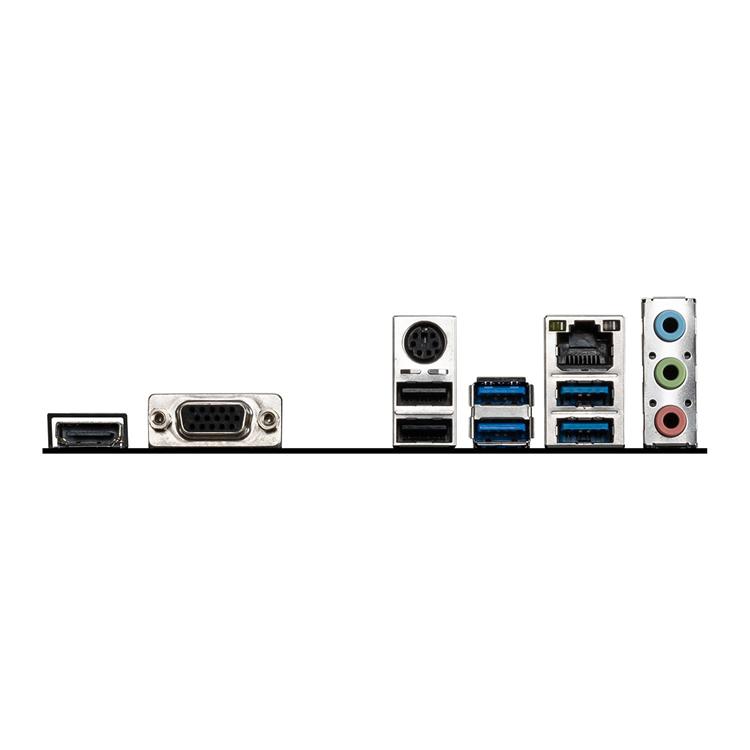

| Rear I/O Connectors |
|
| Additional Specifications | |
|---|---|
| Water Cooled | No |
| Cooling | Passive Heatsinks |
| QPI Speed | N/A |
| Board Dimensions | 236 mm x 202 mm mm |
