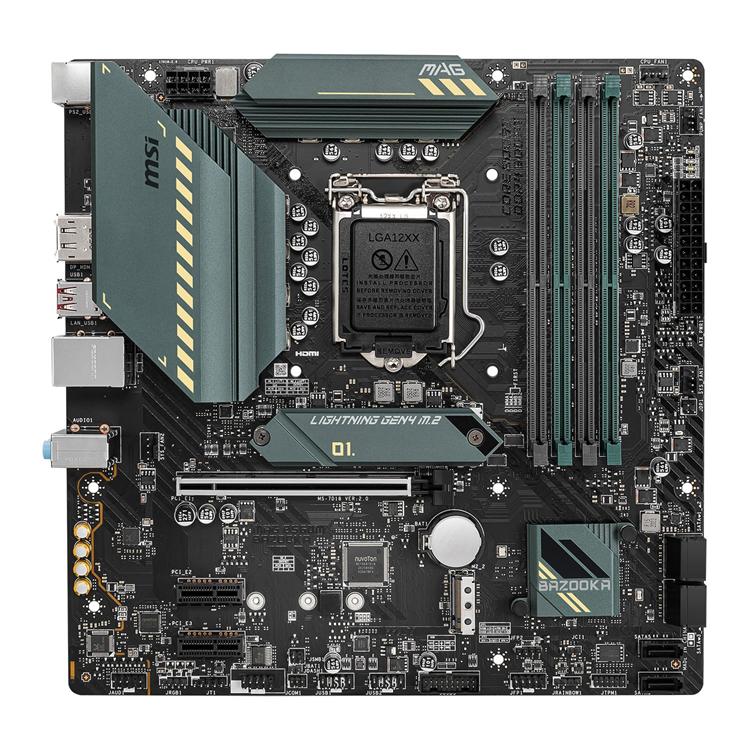

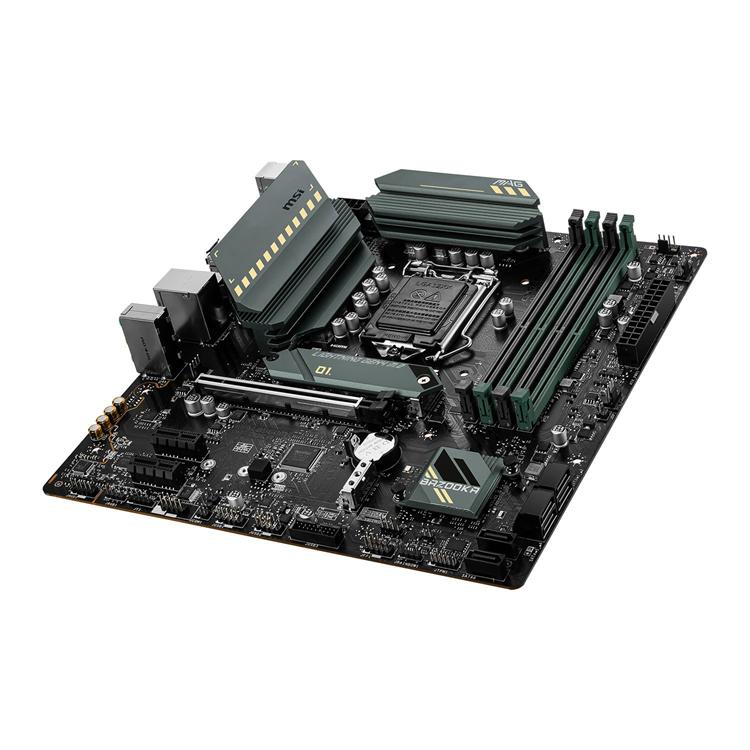

MSI MAG B560M BAZOOKA Intel B560 PCIe 4.0 Micro-ATX Motherboard
MSI MAG B560M BAZOOKA Intel B560 PCIe 4.0 Micro-ATX Motherboard - Image 2
MSI MAG B560M BAZOOKA Intel B560 PCIe 4.0 Micro-ATX Motherboard - Image 3
MSI MAG B560M BAZOOKA Intel B560 PCIe 4.0 Micro-ATX Motherboard - Image 4

MSI MAG B560M BAZOOKA Intel B560 PCIe 4.0 Micro-ATX Motherboard

R2293.00 Incl. Vat

KEY FEATURES:
– Micro-ATX Form Factor
– Intel B560 Chipset
– Intel LGA1200 Socket
– 4x DDR4 DIMM Slots, Supports up to 128GB
– Supports up to DDR4-2933
– 1x PCI-E 3.0 x16, 2x PCI-E 3.0 x1 Slots
– 6x SATA 6Gbps Ports, 2x M.2 Slots
– 2x USB 3.2 Type-A Gen 2 10Gbps, 2x USB Type-A
– 2x USB 3.2 Type-A Gen 1 5Gbps
– 1x HDMI, 1x DisplayPort, 3x Audio Jacks
– Realtek RTL8125B 2.5Gbps Gigabit LAN
– Realtek ALC897 Codec
– 3 Year Warranty

Out of stock

SKU: MAGB560MBAZOOKA Categories: , , , Tags: , , , , ,

Description

PREMIUM HARDWARE DESIGN
The MSI MAG B560M BAZOOKA MATX motherboard is here to support the very latest 10th and 11th Generation Intel processor support. Bursting with exclusive features and high-speed connectivity – the latest 4th Gen PCI-e and M.2, plus Audio/Core & DDR4 Memory boosts. MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. With years of experience, MSI is no stranger to building high-performance motherboards. MSI, R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.

Specifications

Core Specifications
Edition MAG B560M BAZOOKA
Form Factor MicroATX
CPU Socket 1200
Chipset Intel B560
RAM Memory Support
Memory Type DDR4
Memory Channel Dual (2)
Memory Type (ECC) Non-ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
    • DDR4 – 2133
    • DDR4 – 2400
    • DDR4 – 2666
    • DDR4 – 2933
    • DDR4 – 3000(OC)
    • DDR4 – 3200(OC)
    • DDR4 – 3300(OC)
    • DDR4 – 3333(OC)
    • DDR4 – 3400(OC)
    • DDR4 – 3466(OC)
    • DDR4 – 3600(OC)
    • DDR4 – 3733(OC)
    • DDR4 – 3866(OC)
    • DDR4 – 4000(OC)
    • DDR4 – 4133(OC)
    • DDR4 – 4200(OC)
    • DDR4 – 4266(OC)
    • DDR4 – 4300(OC)
    • DDR4 – 4400(OC)
    • DDR4 – 4533(OC)
    • DDR4 – 4600(OC)
    • DDR4 – 4800(OC)
    • DDR4 – 5000(OC)
    • DDR4 – 5066(OC)
Max. Memory Capacity 128GB
Audio
Audio Realtek ALC897 7.1 HD Audio
Graphics Support
Primary GPU Interface PCIe 4.0 (x16) [PCIe 3.0 Backwards Compatible]
NVIDIA SLI Support N/A
AMD CrossFire Support 2-Way CrossFire
Integrated Graphics Requires Processor Graphics or Discrete GPU
On-Board Graphics Connectors
    • DisplayPort 1.4
    • HDMI 2.0b
Internal Connectivity
Expansion Slots
    • 1 x M.2, 22-42/60/80, PCIe Gen3x4/SATA3
    • 1 x M.2, 22-42/60/80, PCIe Gen4x4/SATA3
    • 2 x PCIe 3.0 x1
    • 1 x PCIe 4.0 x16
    • 6 x SATA 6GB/s
SATA Support SATA3
RAID Support via
Storage Mode Support
Internal I/O
    • 1 x 24-pin (Power)
    • 1 x 4-pin CPU Fan Connector
    • 2 x 4-pin System Fan Connector
    • 1 x 4-pin Water Pump Connector
    • 1 x 8-pin (Power)
    • 1 x Chassis Intrusion connector
    • 1 x Clear CMOS jumper
    • 1 x Front Panel Audio Header
    • 2 x M.2 Connector
    • 6 x SATA III – 6Gb/s
    • 1 x Serial (COM) Header
    • 2 x System panel connector
    • 1 x TPM (Trusted Platform Module)
    • 2 x USB 2.0 Header
    • 1 x USB 3.2 Gen1 Header
External Connectivity
Network Interface Type Wired 2.5 Gigabit LAN (10/100/1000/2500)
Network Chip/Modules 1 x Realtek RTL8125B

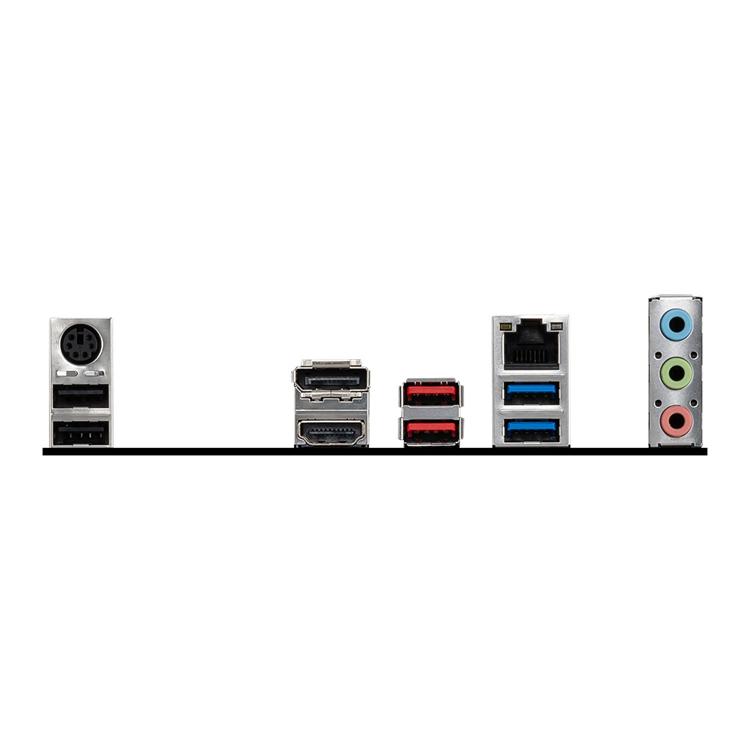

Rear I/O Connectors
    • 1 x 7.1 Audio I/O
    • 1 x DisplayPort
    • 1 x HDMI
    • 1 x PS/2 Keyboard/Mouse Combo
    • 1 x RJ-45
    • 2 x USB 2.0
    • 2 x USB 3.2 Gen1 Type-A
    • 2 x USB 3.2 Gen2 Type-A
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions
Note

Additional information

Weight 2 kg
CPU Socket Type

CPU Cooling Socket Support

Memory Form Factor

Memory Type

Motherboard Brand

Motherboard Category

Motherboard Chipset

Form Factor

Motherboard Socket Type
