Description

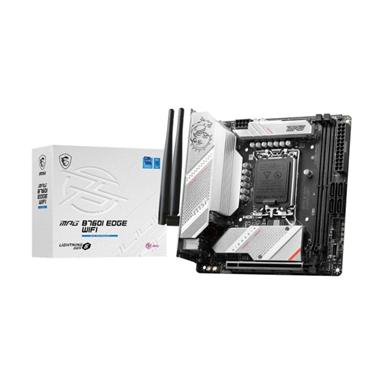

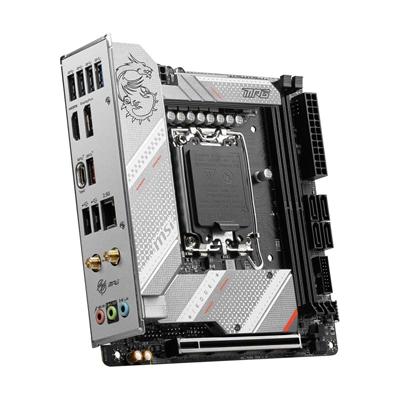

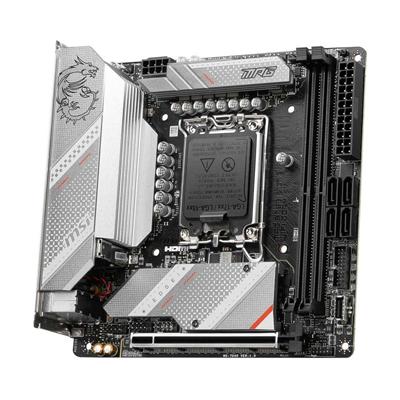

B760I EDGE WIFI DDR4
BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
8-Layer Server Grade PCB
8-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.
| SPECIFICATIONS | |
| Brand | MSI |
| Series | MPG Series |
| Model | MPG B760I EDGE WIFI DDR4 |
| CPU Support | Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors |
| Chipset | Intel B760 Express |
| Memory Support | |
| Intel 12th & 13th Gen Processors | 2x DDR4, Maximum Memory Capacity 64GB |
| Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR) | |
| Max. overclocking frequency: | |
| – 1DPC 1R Max speed up to 5333 MHz | |
| – 1DPC 2R Max speed up to 4800 MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports Intel Extreme Memory Profile (XMP) | |
| Video | |
| HDMI | 1x HDMI 2.1 port, supporting a maximum resolution of 4096×2160 @ 60Hz, supports HDCP 2.3 |
| DisplayPort | 1x DisplayPort 1.4 port, supporting a maximum resolution of 8K 7680 x 4320 @ 60Hz, supports HDCP 2.3 |
| Integrated Intel graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 5.0 x16 Physical, x16 Electrical Slot (PCIE1) |
| Storage | |
| CPU Direct | M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices |
| Intel B760 Chipset | M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices |
| 4 x SATA3 6.0 Gb/s Connectors | |
| Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Networking | |
| LAN | Realtek Dragon RTL8125BG 2.5 Gigabit LAN Port 10/100/1000/2500Mbps |
| WiFi | Intel AX210 WiFi 6E 2×2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.3 |
| Audio | |
| Codec | Realtek ALC897 High Definition Audio |
| 2/4/5.1/7.1-channel support with front-panel jack retasking | |
| Connectivity | |
| Ports | 1x USB 10Gb/s Type-C Port |
| 1x USB 10Gb/s Type-A Port | |
| 4x USB 5Gb/s Type-A Ports | |
| 2x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1, 1x DisplayPort 1.4 Port | |
| 2x SMA Connectors | |
| 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone) | |
| 1x Realtek Dragon RTL8125BG 2.5 Gigabit Ethernet RJ-45 LAN Port | |
| Buttons | N/A |
| General | |
| Internal Connectors | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 1x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 2x USB 2.0 ports | |
| 2x USB 3.2 Gen1 Type A ports | |
| 1x USB 3.2 Gen2 Type C ports | |
| LED Displays | MSI EZ Debug LED |
| BIOS | AMI UEFI Legal BIOS with GUI support |
| Form Factor | Mini-ITX Form Factor, 170 x 170mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Boxed Accessories | Quick Installation Guide |
| 2x M.2 screw & standoff set | |
| 1x SATA Cable | |
| 1x Pair Movable WiFi antenna | |
| 1x Rainbow RGB LED Extension Cable | |
| Pack of Cable stickers | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
