R4235.00 Incl. Vat
(Displayed price above applies to EFT / Bank Transfer payments only.)
KEY FEATURES:
– Mini-ITX Form Factor
– Intel B760 Chipset
– Socket LGA 1700
– Supports Intel 12th, 13th, 14th Gen Processors
– 2x DDR5 DIMM Slots, Supports Up to 96GB
– Supports up to DDR5-7200 (OC)
– Supports Intel XMP 3.0 Memory
– 1x PCIe 5.0 x16 Slot (x16 Physical)
– 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
– 4x SATA 3.0 Ports
– 1x USB 10Gb/s Type-C Port
– 1x USB 10Gb/s Type-A Port
– 4x USB 5Gb/s Type-A Ports
– 2x USB 2.0 Type-A Ports
– 1x HDMI 2.1, 1x DisplayPort 1.4 Port
– 2x SMA Connectors
– 3x 3.5mm Audio Jacks (Line In, Line Out, Microphone)
– Realtek Dragon RTL8125BG 2.5 Gigabit Ethernet RJ-45 LAN Port
– intel AX210 WiFi 6E 2×2 MIMO Tri-Band Adapter, Bluetooth 5.3
– Realtek ALC897 High-Definition Audio Codec
– 8+1+1 Phase Digital VRM Solution
– MSI M.2 Shield Frozr Heatsinks
– MSI Mystic Light RGB Sync
– MSI EZ Debug LEDs
– Supports Windows 10, Windows 11 64-bit
– 3 Year Warranty
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
Control In One Click
MSI Motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
Frozr AI Cooling
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a propler value by adopting the MSI AI Engine.
Auto Detect Your Fan
MSI Fan Headers automatically detect Fans running in DC / PWM Mode for optimal control of Fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your System satys silent, no matter what.
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
LIGHTNING GEN 5 PCI-E
Doubling the bandwidth of PCI-E v4, the bandwidth of a x16 PCI-E v5.0 interface can reach 128GB/s!
SMT PCIE 5.0 SLOT
The advanced SMT (Surface Mount Technology) PCIE slot diminishes interference and electrical noise, fully supporting the PCI-E 5.0 signal requirements.
REINFORCED HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
EXTEND YOUR RGB EXPERIENCE WITH EASE
Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
MSI’s premium network solution provides incredible data transfer speed for demanding users. Mystic Light Extension pin header provides an easy way to control RGB strips, etc.

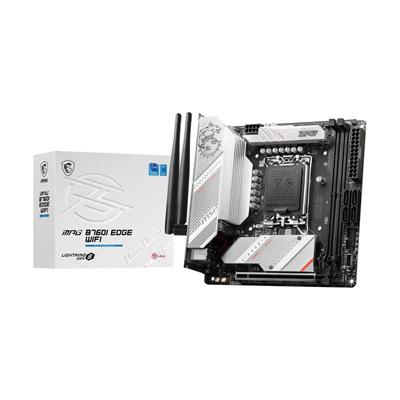

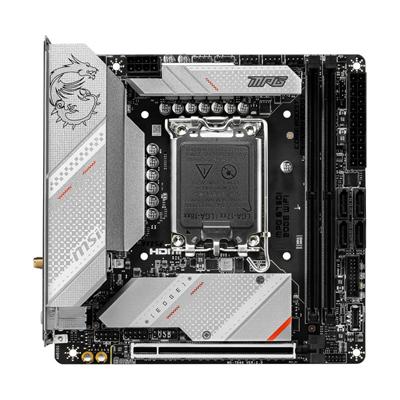

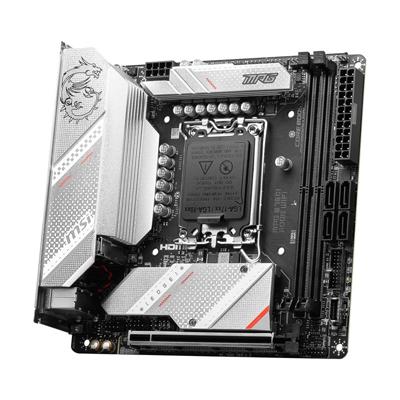

| Make and Model | MSI MPG B760I EDGE WIFI Motherboard |
|---|---|
| Part Number | MPG B760I EDGE WIFI |
| Operating Systems | Supports Windows® 11 / 10, 64-bit |
| Chipset | Intel® B760 Chipset |
| CPU | Supports 13th + 12th Gen Intel® Core™ Processors for Socket LGA1700 |
| Memory | 2x DDR5 RAM Slots, up to 96GB (2x 48GB) Supports Stock Clocked RAM: DDR5-5600 / 5600 / 5200 / 5000 / 4800 MHzSupports OC RAM: DDR5-7200+ / 7200 / 7000 / 6800 / 6600 / 6400 / 6200 / 6000 / 5800 MHz Ram Overclocking Guide:
Supports Intel® XMP 3.0 OC |
| Expansion Slots | 1x PCIe 5.0 x16 slot |
| Multi-GPU Support | Not available |
| Onboard Graphics | 1x HDMI v2.1 with HDR port, up to 4K/60Hz 1x DisplayPort v1.4 port with HBR3, up to 8K/60Hz (Available only on processors featuring integrated graphics. Also, graphics specifications may vary depending on the CPU installed.) |
| Storage | 2x M.2 PCIe v4.0 x 4 NVMe 2280 Slots: M.2_1 Source supports PCIe 4.0 x4, up to 2280 devices M.2_2 Source supports PCIe 4.0 x4 / SATA mode, up to 2280 devices 4x SATA III 6Gb ports |
| RAID Support | 4x SATA III ports support RAID 0, RAID 1, RAID 5 & RAID 10 |
| USB | Intel® B660 chipset: Back I/O Panel: 1x USB 3.2 Gen2 (10Gbps) Type C port 1x USB 3.2 Gen2 (10Gbps) Type A port 4x USB 3.2 Gen1 (5Gbps) Type A ports 2x USB 2.0 (480Mbps) Type A portsInternal Connectors: 1x USB 3.2 Gen 2 (10Gbps) Type-C port via 1x internal connector 2x USB 3.2 Gen 1 (5Gbps) Type-A ports via 1x internal connector 2x USB 2.0 Type-A (480Mbps) ports via 1x internal connector |
| LAN | Realtek® RTL8125BG Chipset: 1x 2.5Gbe RJ45 LAN port |
| WiFi | Intel Wi-Fi 6E Chipset*: Intel Wireless module is pre-installed in the dedicated M.2 (Key-E) WiFi Slot Supports MU-MIMO TX/RX, 6GHz / 5GHz / 2.4GHz (160MHz) up to 2.4Gbps Supports 802.11 a/b/g/n/ac/ax |
| Bluetooth | Intel Wi-Fi 6E Chipset: Supports Bluetooth® 5.3 w/ FIPS, FISMA |
| Audio | Realtek® ALC897 Codec 7.1-Channel USB High Definition Audio 1x S/PDIF output 3x 3.5mm HD Audio jacks |

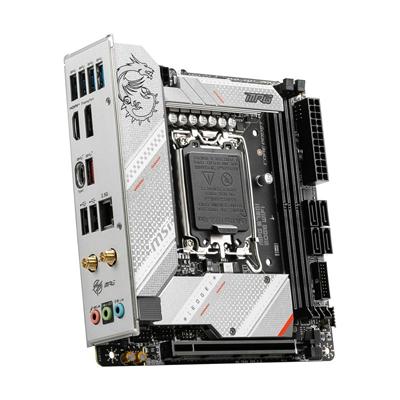

| Back Panel I/O | 1x USB 3.2 Gen2 (10Gbps) Type C port 1x USB 3.2 Gen2 (10Gbps) Type A port 4x USB 3.2 Gen1 (5Gbps) Type A ports 2x USB 2.0 (480Mbps) Type A ports 1x DisplayPort v1.4 port (8k60Hz) 1x HDMI v2.1 port w/ HDR (4K60Hz)1x 2.5G RJ45 LAN port 2x Wireless Antennas3x 3.5mm HD Audio jacks |
| Internal I/O Connectors | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 1x System Fan2x Front Panel (JFP) 1x Chassis Intrusion (JCI)1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) |
| Form Factor | Mini ITX Form Factor |
| Dimensions (LxW) | 170 x 170mm |
| Weight | N/A |
| Weight | 8 kg |
|---|---|
| Motherboard Brand | |
| Motherboard Category | |
| Motherboard Chipset | |
| Motherboard Form Factor | |
| Motherboard Ram Support | |
| Motherboard Socket Type |
