Description
BUSINESS ELEGANCE REDEFINED

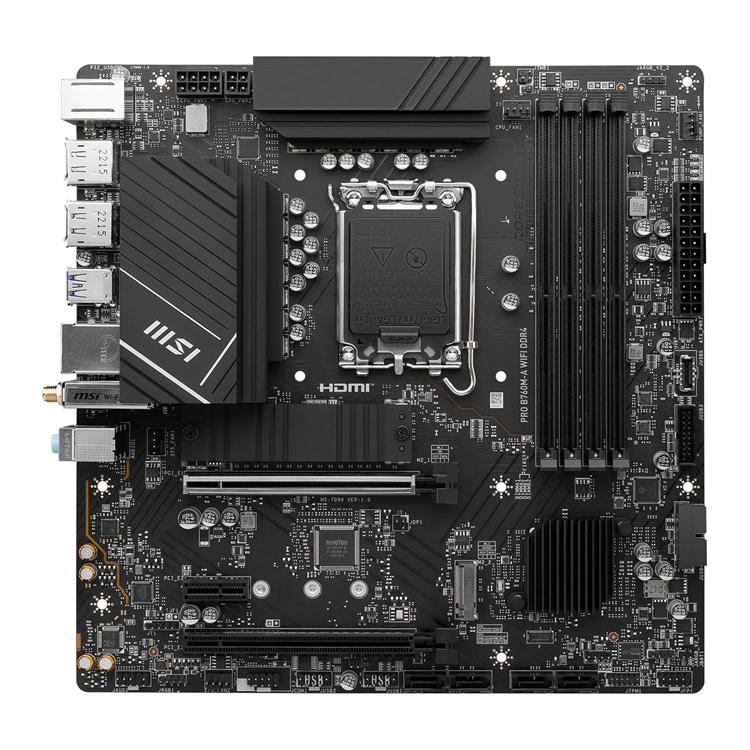

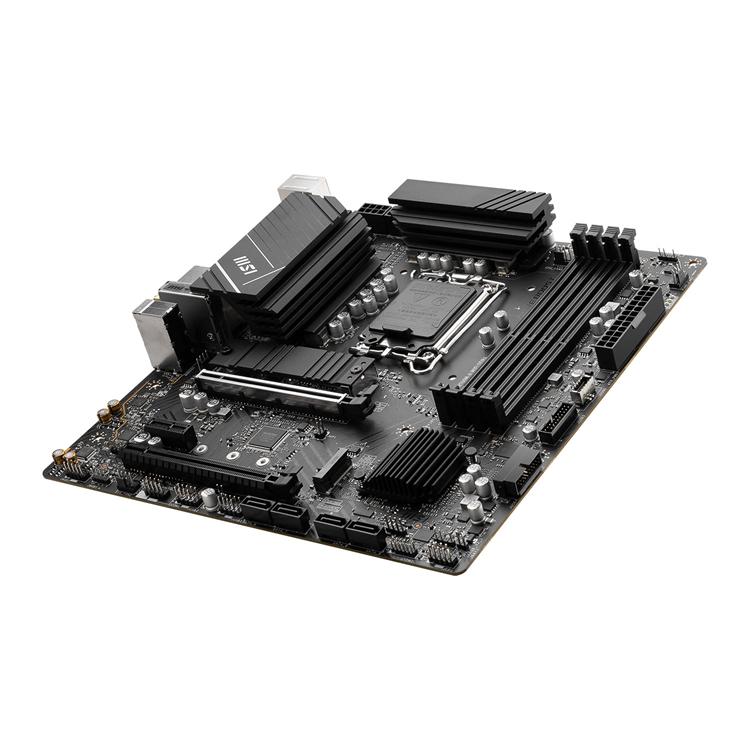

Meet the PRO B760M-A WIFI DDR4, here to support the very latest 13th Generation Intel processors. Boasting the new Intel 1700 LGA, the PRO B760M-A WIFI DDR4 is perfect for both daily users and professionals from all walks of life and is filled with the latest technologies including PCIe 4.0, DDR4 support, expansive storage options with 2x M.2 slots (PCIe 4.0 x4), Core & Memory boosts, M.2 Shield Frozr and chipset heatsinks and a fully comprehensive rear I/O. These features combined deliver an efficient and productive experience, optimised for professional workflows. If your looking to take your productivity to the next level, do it with MSI PRO series motherboards.
Intel B760 Chipset
LGA 1700 CPU Socket
12th/13th Gen Intel® Core™ Processors Compatible CPU
M-ATX Form Factor
Meet the PRO B760M-A WIFI DDR4, here to support the very latest 13th Generation Intel processors. Boasting the new Intel 1700 LGA, the PRO B760M-A WIFI DDR4 is perfect for both daily users and professionals from all walks of life and is filled with the latest technologies including PCIe 4.0, DDR4 support, expansive storage options with 2x M.2 slots (PCIe 4.0 x4), Core & Memory boosts, M.2 Shield Frozr and chipset heatsinks and a fully comprehensive rear I/O. These features combined deliver an efficient and productive experience, optimised for professional workflows. If your looking to take your productivity to the next level, do it with MSI PRO series motherboards.
Intel B760 Chipset
LGA 1700 CPU Socket
12th/13th Gen Intel® Core™ Processors Compatible CPU
M-ATX Form Factor
An Exclusive Set of Features
MEMORY BOOST
LIGHTNING GEN 4
M.2 SHIELD FROZR
2.5G NETWORK SOLUTION
EXTENDED HEATSINKS
WIFI 6E
LIGHTNING GEN 4
M.2 SHIELD FROZR
2.5G NETWORK SOLUTION
EXTENDED HEATSINKS
WIFI 6E
Massive Cooling Potential
1. EXTENDED HEATSINK
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
2. M.2 SHIELD FROZR
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
3. HEAVY PLATED VRM HEATSINK
The VRM heatsink covers the upper MOS and helps dissipate the heat.
4. 7W/MK THERMAL PAD
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
5. CHIPSET HEATSINK
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
2. M.2 SHIELD FROZR
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
3. HEAVY PLATED VRM HEATSINK
The VRM heatsink covers the upper MOS and helps dissipate the heat.
4. 7W/MK THERMAL PAD
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
5. CHIPSET HEATSINK
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
Embrace Powerful Performance
12+1+1 POWER DESIGN
Unleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, MSI PRO Series motherboards are ready to sustain heavy daily work.
Unleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, MSI PRO Series motherboards are ready to sustain heavy daily work.
Meet The Latest Generation
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
MSI STEEL ARMOR
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
MSI STEEL ARMOR
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Maximise Your Storage Capabilities
FAST AND FUTURE READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

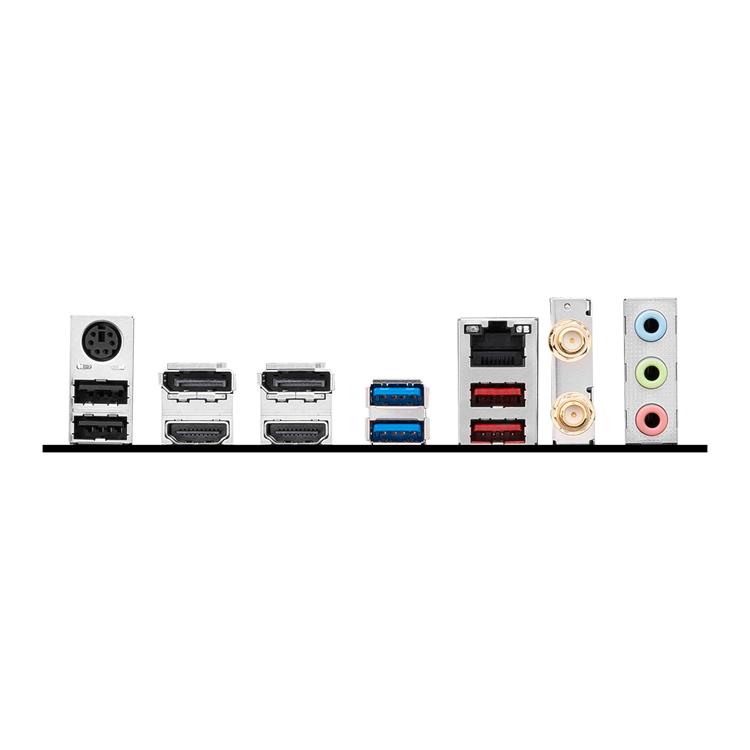

Fully Comprehensive I/O Panel
REAR:
1: Keyboard / Mouse
2: DisplayPort
3: USB 3.2 Gen 1 5Gbps (Type-A)
4: 2.5G LAN
5: Wi-Fi / Bluetooth
6: Audio Connectors
7: USB 2.0
8: HDMI™
9: USB 3.2 Gen 2 10Gbps (Type-A)
| SPECIFICATIONS | |
| Brand | MSI |
| Series | PRO Series |
| Model | PRO B760M-A WIFI DDR4 |
| CPU Support | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| LGA1700 socket: Support for 13th Generation Intel Core, Pentium Gold and Celeron Processors | |
| Chipset | Intel B760 Express |
| Memory Support | |
| Intel 12th & 13th Gen Series | 4x DDR4, Maximum Memory Capacity 128GB |
| Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) | |
| Max. overclocking frequency: | |
| 1DPC 1R Max speed up to 5333 MHz | |
| 1DPC 2R Max speed up to 4800 MHz | |
| 2DPC 1R Max speed up to 4400 MHz | |
| 2DPC 2R Max speed up to 4000 MHz | |
| Supports Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Supports Intel Extreme Memory Profile | |
| Video | |
| DisplayPort | 2x DisplayPort, supporting a maximum resolution of 4096×2160 @ 60 Hz, Support for DisplayPort 1.4 and HDCP 2.3 |
| HDMI | 2x HDMI port, supporting a maximum resolution of 4096×2160 @ 60 Hz, Support for HDMI 2.1 and HDCP 2.3 |
| Integrated Intel graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical Slot |
| Intel B760 Chipset | 1x PCIe 4.0 x16 Physical, x4 Electrical Slot |
| 1x PCIe 3.0 x1 Physical, x1 Electrical Slot | |
| Storage | |
| CPU Direct | M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
| Intel B760 Chipset | M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| 4x SATA 6Gb/s connectors | |
| Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Networking | |
| LAN | Realtek 8125BG 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| WiFi | Intel AX211 WiFi 6E 2×2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.3 |
| Audio | |
| Codec | Realtek ALC897 Codec |
| 7.1-Channel USB High Performance Audio | |
| Supports S/PDIF output | |
| Connectivity | |
| Ports | 2x USB 10Gb/s Type-A Ports |
| 2x USB 5Gb/s Type-A Ports | |
| 2x USB 2.0 Type-A Ports | |
| 2x DisplayPort 1.4 | |
| 2x HDMI 2.1 | |
| 3x 3.5mm Audio Jacks (Line Out, Line In, Microphone) | |
| 1x PS/2 Combo Port | |
| 2x SMA Connectors | |
| Buttons | N/A |
| General | |
| Internal Connectors | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 1x Pump Fan | |
| 2x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 2x Addressable V2 RGB LED connector (JARGB_V2) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 | |
| 4x USB 3.2 Gen1 Type A | |
| 1x USB 3.2 Gen1 Type C | |
| I/O Controller | NUVOTON NCT6687D Controller Chip |
| LED Displays | 4x EZ Debug LED |
| BIOS | 1x 256 Mb flash |
| UEFI AMI BIOS | |
| ACPI 6.4, SMBIOS 3.5 | |
| Multi-language | |
| Form Factor | Micro-ATX Form Factor, 244 x 244mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Boxed Accessories | Quick installation guide |
| European Union regulatory notice | |
| 1x SATA 6Gb/s cable | |
| 1x Wi-Fi antenna set | |
| 1x I/O Shielding | |
| 1 x M.2 screw and standoff package (1 set/pack) | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
