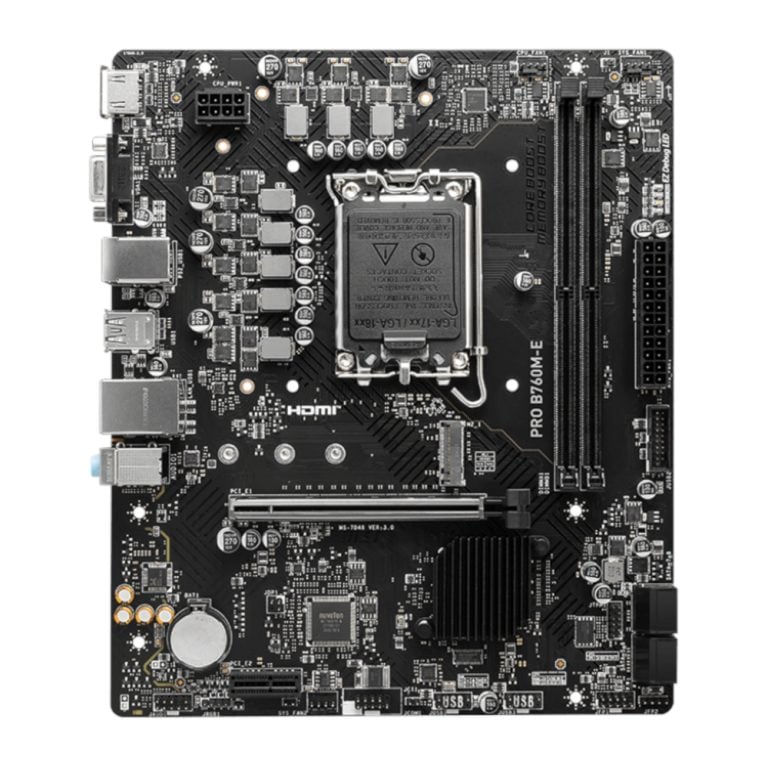

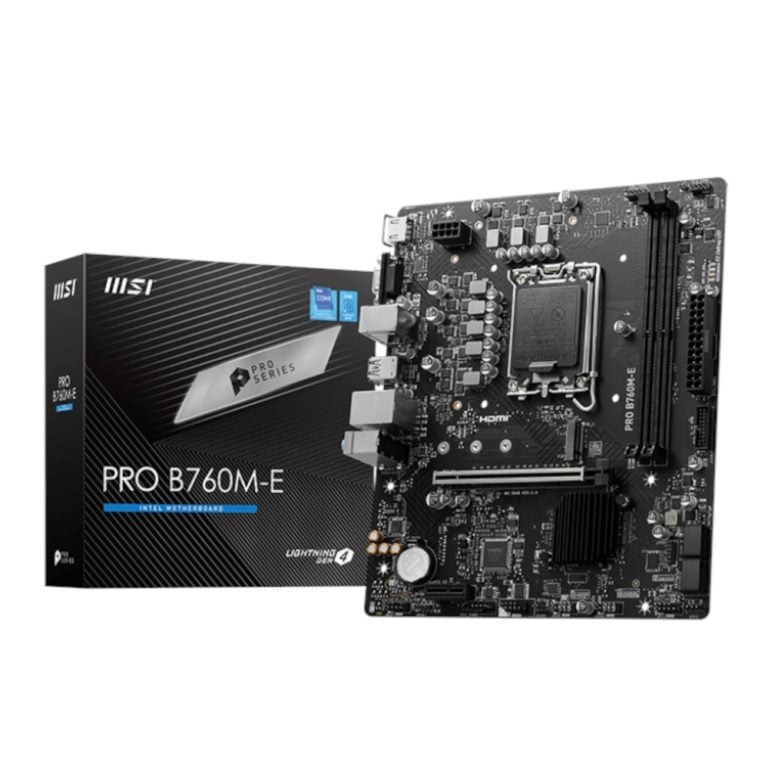

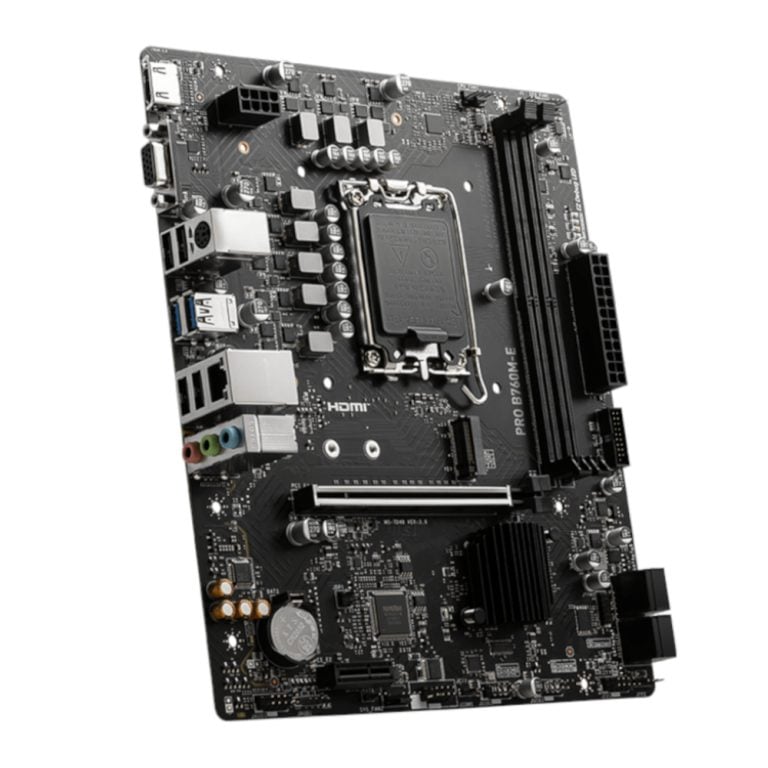

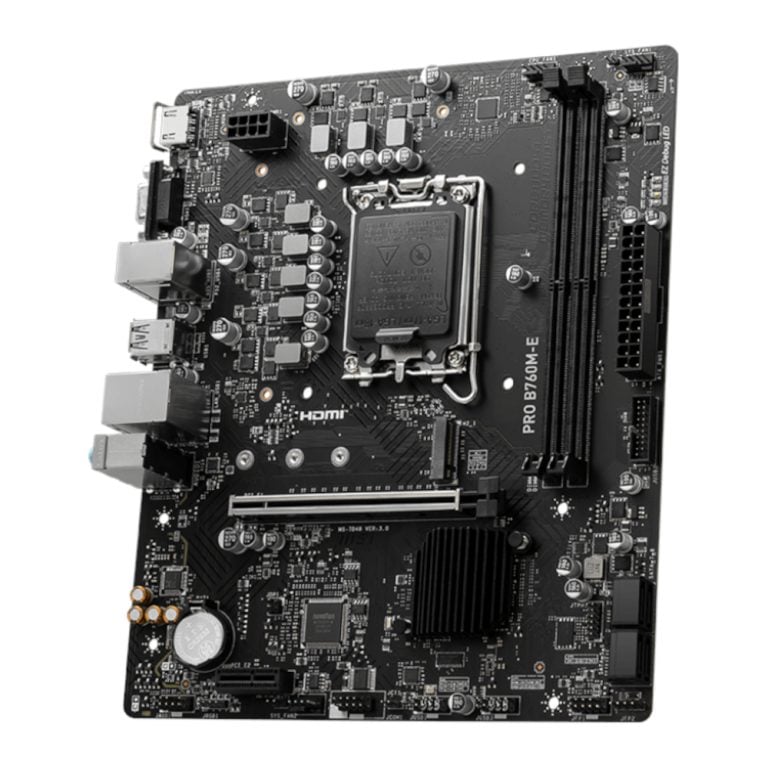

MSI PRO B760M-E DDR5 Intel B760 LGA 1700 Micro-ATX Motherboard
R2126.00 Incl. Vat
Or as low as KEY FEATURES:
– Micro-ATX Form Factor Motherboard
– Intel B760 Chipset
– LGA 1700 Socket Supports 12th, 13th & 14th Gen Core Processors
– 2x DDR5 DIMM Slots, Up to 128GB (2x64GB)
– Supports Up to DDR5-6400 (OC)
– 1x PCIe 4.0 x16 Slot
– 1x PCIe 3.0 x1 Slot
– 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
– 4x SATA 3.0 Ports
– 2x USB 5Gbps Type-A Ports
– 4x USB 2.0 Type-A Ports
– 1x PS/2 Combo Port
– 1x HDMI 1.4 Port
– 1x VGA D-Sub Port
– 3x 3.5mm Audio Jacks
– Realtek Gigabit Ethernet RJ-45 LAN Port
– Realtek ALC897 High-Definition Audio Codec
– MSI EZDebug LED
– MSI Steel Armour PCIe Slot Design
– MSI Mystic Light RGB Sync
– Supports Windows 11 64-bit
– 3 Year Warranty
Description
MSI PRO B760M-E DDR5 Intel B760 LGA 1700 Micro-ATX Motherboard
PRO B760M-E DDR5
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Double ESD protection doubles up the grounding layer around the mounting holes, preventing static discharge devices from damaging the motherboard. MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.
FEATURES:
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 6400+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCI-E 4.0, Lightning Gen4 x4 M.2
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
SPECIFICATIONS |
|
| Brand | MSI |
| Series | PRO Series |
| Model | PRO B760M-E DDR5 |
| CPU Support | LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors |
| LGA1700 socket: Support for 13th Generation Intel Core, Pentium Gold and Celeron Processors | |
| LGA1700 socket: Support for 14th Generation Intel Core Processors | |
| Chipset | Intel B760 Express |
| Memory Support | |
| Intel 12th & 13th Gen Series | 2x DDR5, Maximum Memory Capacity 128GB |
| Memory Support DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) | |
| Max. overclocking frequency: | |
| 1DPC 1R Max speed up to 6400 MHz | |
| 1DPC 2R Max speed up to 5600 MHz | |
| Supports Intel XMP 3.0 OC | |
| Supports Dual-Controller Dual-Channel mode | |
| Supports non-ECC, un-buffered memory | |
| Video | |
| VGA | 1x VGA D-Sub, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz |
| HDMI | 1x HDMI port, supporting a maximum resolution of 4096×2160 @ 30 Hz, Support for HDMI 1.4 and HDCP |
| Integrated Intel graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical Slot |
| Intel B760 Chipset | 1x PCIe 3.0 x1 Physical, x1 Electrical Slot |
| Storage | |
| CPU Direct | 1x M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
| Intel B760 Chipset | 4x SATA 6Gbps connectors |
| Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10 | |
| Networking | |
| LAN | Realtek RTL8111H Gigabit LAN 10/100/1000Mbps |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek ALC897 Codec |
| 7.1-Channel USB High Performance Audio with front-panel jack retasking | |
| Connectivity | |

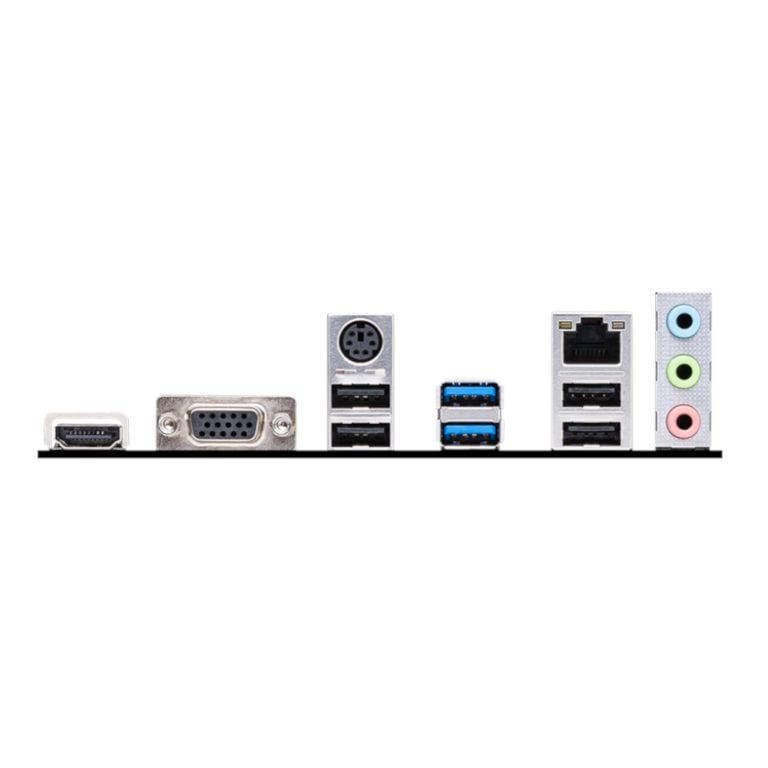

| Ports | 2x USB 2Gbps Type-A Ports |
| 4x USB 2.0 Type-A Ports | |
| 1x VGA D-Sub | |
| 1x HDMI 1.4 | |
| 3x 3.5mm Audio Jacks (Line Out, Line In, Microphone) | |
| 1x PS/2 Combo Port | |
| 1x Realtek RTL8111H Gigabit LAN | |
| Buttons | N/A |
| General | |
| Internal Connectors | 1x Power Connector(ATX_PWR) |
| 1x Power Connector(CPU_PWR) | |
| 1x CPU Fan | |
| 2x System Fan | |
| 2x Front Panel (JFP) | |
| 1x Chassis Intrusion (JCI) | |
| 1x Front Audio (JAUD) | |
| 1x Com Port (JCOM) | |
| 1x RGB LED connector(JRGB) | |
| 1x TPM pin header(Support TPM 2.0) | |
| 4x USB 2.0 ports | |
| 2x USB 5Gbps Type A ports | |
| I/O Controller | NUVOTON NCT6687-D Controller Chip |
| LED Displays | 4x EZ Debug LED |
| BIOS | 1x 256 Mb flash |
| UEFI AMI BIOS | |
| ACPI 6.4, SMBIOS 3.5 | |
| Multi-language | |
| Form Factor | Micro-ATX Form Factor, 236.16 x 200mm (H x W) |
| Operating System Support | Windows 11 64-bit |
| Boxed Accessories | Quick installation guide |
| European Union regulatory notice | |
| 1x SATA 6Gb/s cable | |
| 1x M.2 screw and standoff package (1 set/pack) | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
