MSI PRO B760M-E DDR4 Intel B760 Raptor Lake LGA 1700 Micro-ATX Desktop Motherboard
MSI PRO B760M-E DDR4 Intel B760 Raptor Lake LGA 1700 Micro-ATX Desktop Motherboard - Image 2
MSI PRO B760M-E DDR4 Intel B760 Raptor Lake LGA 1700 Micro-ATX Desktop Motherboard - Image 3
MSI PRO B760M-E DDR4 Intel B760 Raptor Lake LGA 1700 Micro-ATX Desktop Motherboard - Image 4

MSI PRO B760M-E DDR4 Intel B760 Raptor Lake LGA 1700 Micro-ATX Desktop Motherboard

R1988.00 Incl. Vat


(Displayed price above applies to EFT / Bank Transfer payments only.)

SKU PROB760M-EDDR4 Categories , , , , Tags , , , , , , ,

KEY FEATURES:
– Micro-ATX Form Factor Motherboard
– Intel B760 Chipset
– LGA 1700 Socket Supports 12th & 13th Gen Core Processors
– 2x DDR4 DIMM Slots, Up to 64GB (2x32GB)
– Supports Up to DDR4-4800 (OC)
– 1x PCIe 4.0 x16 Slot
– 1x PCIe 3.0 x1 Slot
– 1x M.2 2280 PCIe 4.0 x4 NVMe SSD Slot
– 4x SATA 3.0 Ports
– 2x USB 5Gb/s Type-A Ports
– 4x USB 2.0 Type-A Ports
– 1x PS/2 Combo Port
– 1x HDMI 1.4 Port, 1x VGA D-Sub Port
– 3x 3.5mm Audio Jacks (Line Out, Line In, Microphone)
– Realtek RTL8111H Gigabit Ethernet RJ-45 LAN
– Realtek ALC897 High-Definition Audio Codec
– MSI EZDebug LED
– MSI Steel Armour PCIe Slot Design
– MSI Mystic Light RGB Sync
– MSI Center Software
– Supports Windows 10, Windows 11 64-bit
– 3 Year Warranty

Description

MSI PRO B760M-E DDR4 Intel B760 Raptor Lake LGA 1700 Micro-ATX Desktop Motherboard

BUSINESS ELEGANCE REDEFINED
Meet the PRO B760M-E DDR4, here to support the very latest 13th Generation Intel processors. Boasting the new Intel 1700 LGA, the PRO B760M-E DDR4 is perfect for both daily users and professionals from all walks of life and is filled with the latest technologies including PCIe 4.0, DDR4 support, expansive storage options with 1x M.2 slot (PCIe 4.0 x4), Core & Memory boosts and a fully comprehensive rear I/O. These features combined deliver an efficient and productive experience, optimised for professional workflows. If your looking to take your productivity to the next level, do it with MSI PRO series motherboards.
Intel B760 Chipset
LGA 1700 CPU Socket
12th/13th Gen Intel® Core™ Processors Compatible CPU
mATX Form Factor

An Outstanding Feature Set

CORE BOOST
MEMORY BOOST
LIGHTNING GEN 4
AUDIO BOOST

Massive Cooling Potential

1. CHIPSET HEATSINK
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.

Meet The Latest Generation

LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
MSI STEEL ARMOR
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

Maximise Your Storage Capabilities

FAST AND FUTURE READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

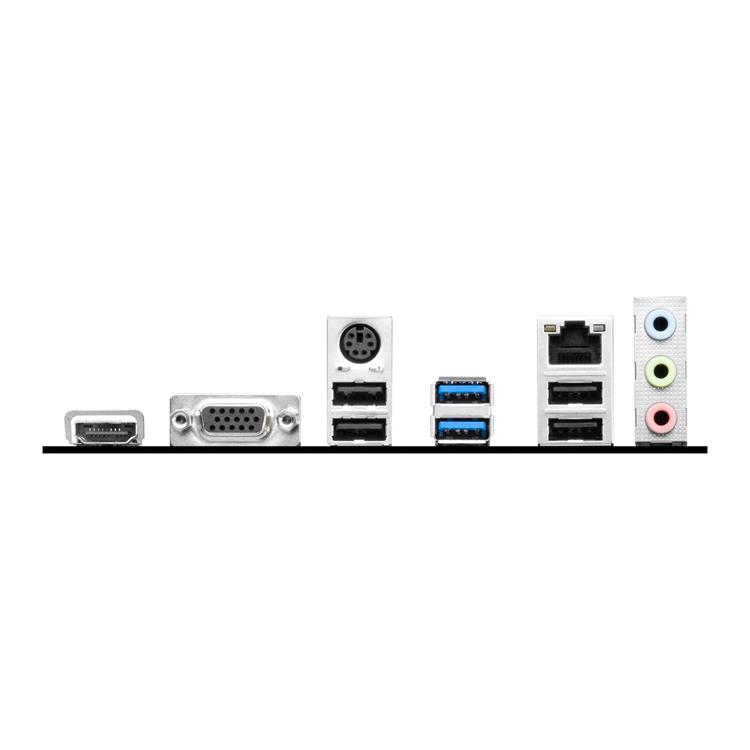

Fully Comprehensive I/O Panel

REAR:

1: HDMI™
2: VGA
3: Keyboard / Mouse
4: USB 3.2 Gen 1 5Gbps (Type-A)
5: LAN port
6: Audio Connectors
7: USB 2.0
8: USB 2.0

SPECIFICATIONS
Brand MSI
Series PRO Series
Model PRO B760M-E DDR4
CPU Support LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and Celeron Processors
LGA1700 socket: Support for 13th Generation Intel Core, Pentium Gold and Celeron Processors
Chipset Intel B760 Express
Memory Support
Intel 12th & 13th Gen Series 2x DDR4, Maximum Memory Capacity 64GB
Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
1DPC 1R Max speed up to 4800 MHz
1DPC 2R Max speed up to 4600 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel Extreme Memory Profile
Video
VGA 1x VGA D-Sub, maximum resolution of 2048×1536 50Hz, 2048×1280 60Hz, 1920×1200 60Hz
HDMI 1x HDMI port, supporting a maximum resolution of 4096×2160 @ 30 Hz, Support for HDMI 1.4 and HDCP
Integrated Intel graphics required. Actual support may vary by CPU.
Expansion Slots
CPU Direct 1x PCIe 4.0 x16 Physical, x16 Electrical Slot
Intel B760 Chipset 1x PCIe 3.0 x1 Physical, x1 Electrical Slot
Storage
CPU Direct 1x M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
Intel B760 Chipset 4x SATA 6Gb/s connectors
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Networking
LAN Realtek RTL8111H Gigabit LAN 10/100/1000Mbps
WiFi N/A
Bluetooth N/A
Audio
Codec Realtek ALC897 Codec
7.1-Channel USB High Performance Audio with front-panel jack retasking
Connectivity
Ports 3x USB 2Gb/s Type-A Ports
4x USB 2.0 Type-A Ports
1x VGA D-Sub
1x HDMI 1.4
3x 3.5mm Audio Jacks (Line Out, Line In, Microphone)
1x PS/2 Combo Port
1x Realtek RTL8111H Gigabit LAN
Buttons N/A
General
Internal Connectors 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
2x USB 2.0
1x USB 3.2 Gen1 Type A
I/O Controller NUVOTON NCT6687D Controller Chip
LED Displays 4x EZ Debug LED
BIOS 1x 256 Mb flash
UEFI AMI BIOS
ACPI 6.4, SMBIOS 3.5
Multi-language
Form Factor Micro-ATX Form Factor, 236.16 x 200mm (H x W)
Operating System Support Windows 10 64-bit
Windows 11 64-bit
Boxed Accessories Quick installation guide
European Union regulatory notice
1x SATA 6Gb/s cable
1 x M.2 screw and standoff package (1 set/pack)
Warranty Information
Warranty 3 Year Warranty

Additional information

Weight 2 kg
Motherboard Chipset

Motherboard Socket Type

Motherboard Form Factor

Motherboard Ram Support

Motherboard Brand

Motherboard Category
