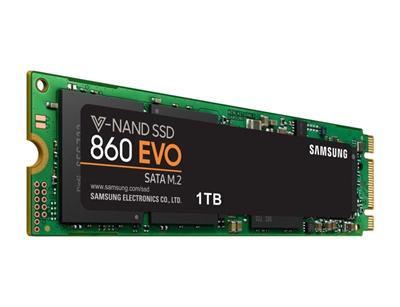

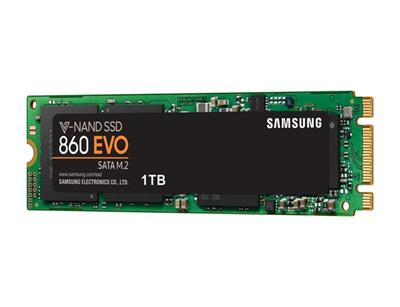

Samsung 860 EVO 1TB SATA 6Gb/s M.2 SSD

Description

Samsung 860 EVO. SSD capacity: 1000 GB, SSD form factor: M.2, Read speed: 550 MB/s, Write speed: 520 MB/s, Data transfer rate: 6 Gbit/s, Component for: PC/notebook

The SSD to trust
The newest edition to the world’s best-selling SATA SSD series, the Samsung 860 EVO. Specially designed for mainstream PCs and laptops, with the latest V-NAND and a robust algorithm-based controller, this fast and reliable SSD comes in a wide range of compatible form factors and capacities.

Enhanced performance
Speeds are more consistent, even with heavy workloads and multi-tasks. The 860 EVO performs at sequential writes up to 520 MB/s with Intelligent TurboWrite technology, and sequential reads up to 550 MB/s. The TurboWrite buffer size is upgraded from 12 GB to 78 GB for faster file transfer.
Boosted endurance
Safely store and render large sized 4K videos and 3D data used by the latest applications, up to 8x higher TBW (Terabytes Written) than the previous 850 EVO. The latest V-NAND technology gives you up to 2,400 TBW, or is backed by a 5-year limited warranty.
Smart compatibility
Benefit from faster, more fluid communication with your host system. The refined ECC algorithm and a new MJX controller generate higher speeds, and the improved queued trim enhances Linux compatibility. Our advanced engineering makes the 860 EVO more compatible with your computing system.
Multi form factors
Whatever size your computer needs, there is an 860 EVO for you. Choose among the 2.5-inch size for desktop PCs and laptops, and the SATA-based M.2 (2280) or the mSATA for ultra-slim computing devices.
Technical highlights

• • Available in capacities of 250 GB, 500 GB and 1 TB

• • Innovative and stand-out 3D V-NAND memory technology

• • High performance: up to 550 MB/s data throughput, up to 98,000 IOPS

• • TurboWrite function for high write performance of up to 520 MB/s

• • AES 256-bit hardware encryption and TCG/Opal 2.0 support

• • Dynamic Thermal Guard monitors the temperature

Details:

• • Design: Solid State Module (SSM)

• • Form factor: M.2 2280

• • Interface: M.2/B-M-key (SATA 6 Gb/s)

• • Read: 550 MB/s

• • Write: 520 MB/s

• • IOPS 4K read/write: 98k/90k

• • Memory cells: 3D-NAND TLC, Samsung

• • TBW: 600 TB

• • MTBF: 1.5 million hours

• • Controller: Samsung MJX, 8 channels

• • Cache: 512 MB LPDDR4

• • Protocol: AHCI

• • Encryption: 256-bit AES, TCG Opal 2.0

• • Power consumption: 2.2 W (in operation), 0.05 W (idle)

• • Dimensions: 80 x 22 x 3.5 mm
