Description

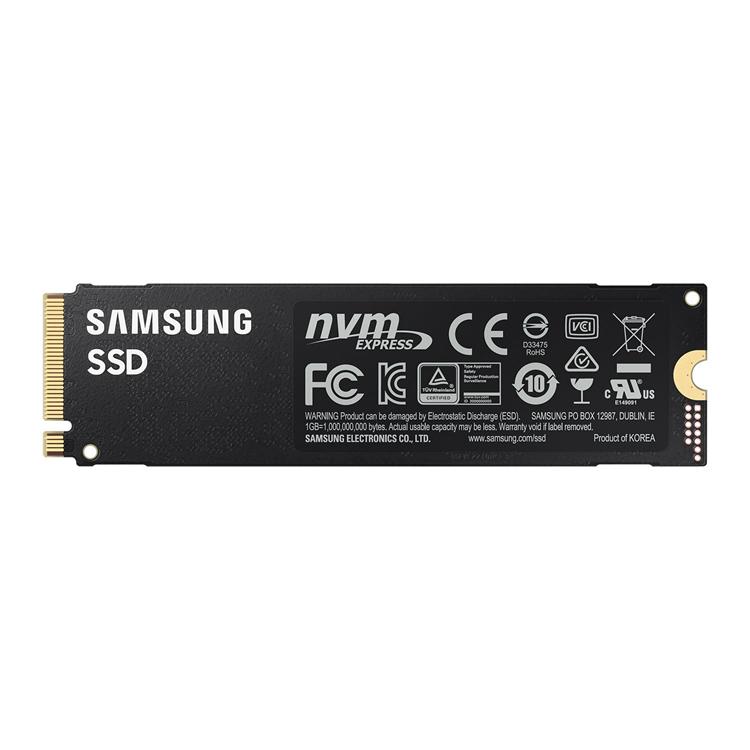

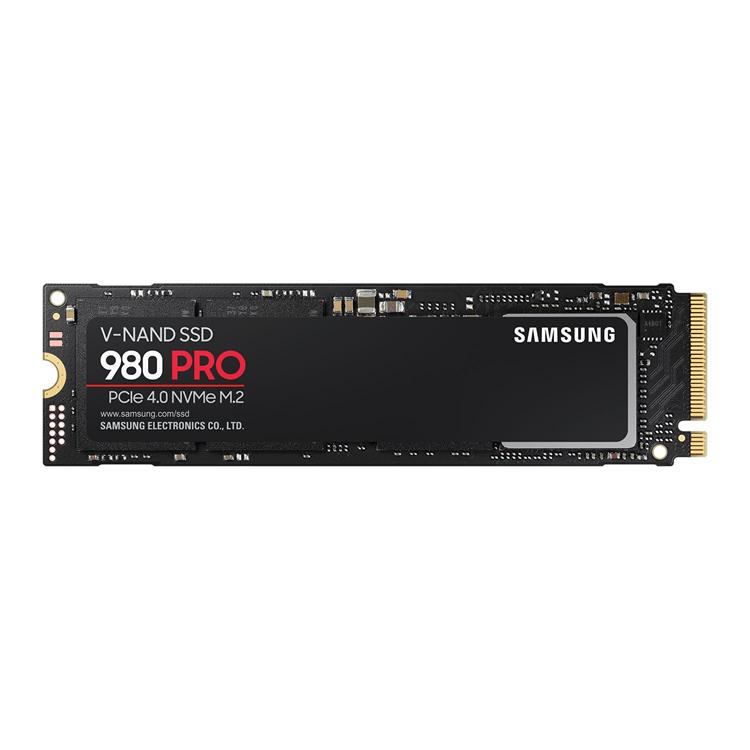

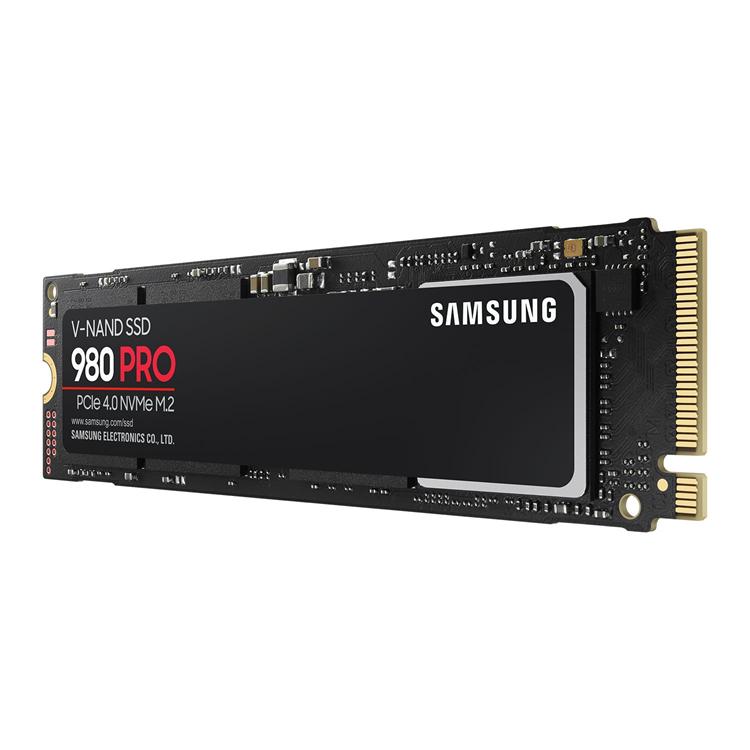

1TB Samsung 980 PRO NVMe M.2 SSD
Samsung Deliver a Winning Combination
* Performance may vary depending on the SSD’s firmware version and the system hardware & system configuration. Performance measurements are based on IOmeter 1.1.0. The write performances were measured with Intelligent TurboWrite technology being activated. The sequential write performances after Intelligent TurboWrite region are: up to 500 MB/s(250GB), 1,000 MB/s(500GB) and 2,000 MB/s(1TB). * Test system configuration: AMD Ryzen 9 3900X 12-Core Processor CPU@3.79GHz, DDR4 2666MHz 16GBx2, OS-Windows 10 Pro 64bit, Chipset-ASUS-X570-ROG CROSSHAIR VIII FORMULA* Results are based on a comparison with Samsung PCIe 3.0 NVMe SSDs and SATA SSDs.* To maximize the performance of the 980 PRO, please check whether your system supports PCIe 4.0 at the Intel or AMD website.
Reliable Thermal Control
Automatic Protection with a Smart Thermal Solution
Efficient M.2 Solid State Drive
Samsung Magician Software
Samsung’s Superior Performance
QUALITY YOU CAN TRUST
Experience true reliability with Samsung, the world’s favourite brand for flash memory since 2003. Samsung’s world-renowned DRAM and NAND are produced in-house, allowing end-to-end integration for quality you can trust.
*Source: 2003-2019 IHS Markit data: NAND suppliers’ revenue market share.
| Specifications | |
|---|---|
| Capacity | 1TB |
| Edition | 980 PRO |
| Form Factor | M.2 (2280) |
| Height | 2.38 mm |
| Interface | PCIe 4.0 (x4) |
| Host Controller Interface | NVMe 1.3 |
| Controller | Samsung Elpis |
| Flash Memory Type | Samsung 12-Layer V-NAND 3-bit MLC |
| Max. Read | 7000 MB/s |
| Max. Write | 5000 MB/s |
| DRAM Cache Memory | 1GB |
| DRAM Cache Memory Type | LPDDR4 |
| Max. Random Read 4K | 1,000,000 IOPS |
| Max. Random Write 4K | 1,000,000 IOPS |
| Latency | N/A |
| Special Features | Samsung Magician Software Support |
| Power Consumption (active) | |
| Max. Endurance Rating | 600TBW |
| MTBF | |
| Max. Operating Vibration | |
| Max. Non-operating Vibration | |
| Max. Operating Shock | |
| Max. Non-operating Shock | |
| Connectivity | 1 x M.2 (PCIe) |
| OS Support | Windows OS |
| Bracket | N/A |
| Dimensions | 80.15 x 22.15 x 2.38 mm (WxHxD) |
| Weight | 9 g |
| Package Type | Retail |
