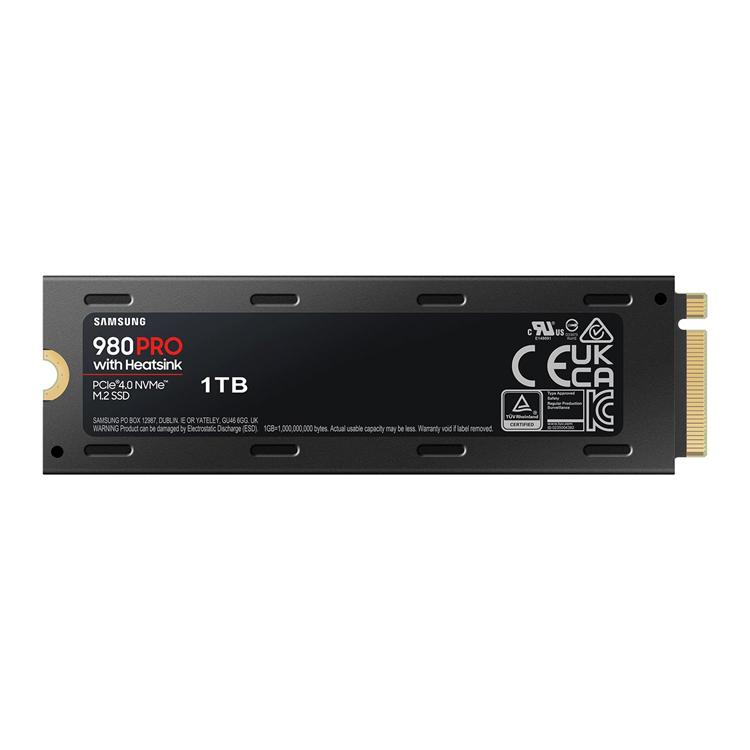

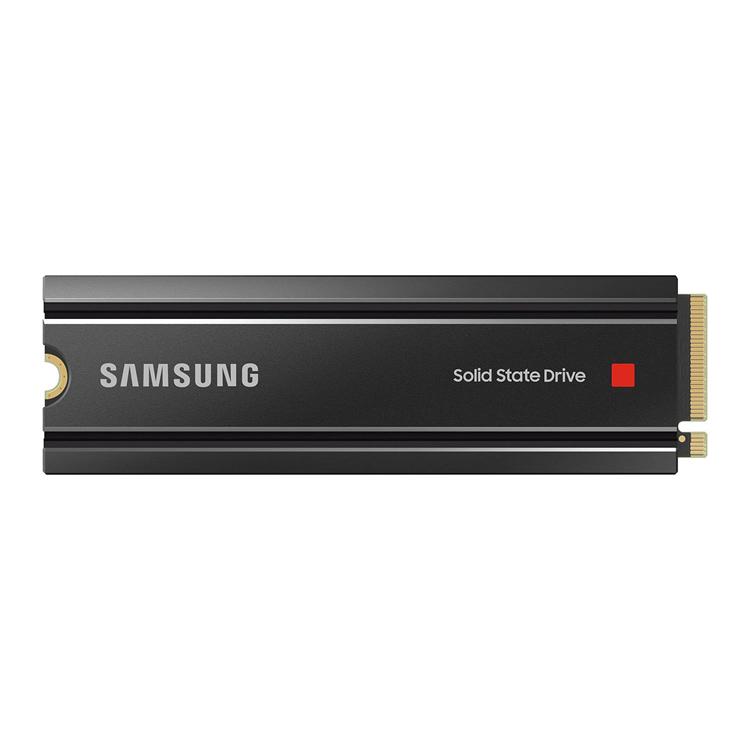

Samsung MZ-V8P1T0CW 980 PRO 1TB NVMe M.2 2280 PCI-Express 4.0 x4 SSD With Heatsink

n

SSD 980 PRO – Next-Level Performance with Maximum Heat Control

nUnleash the power of the Samsung 980 PRO with Heatsink for next-level computing and gaming. With a PCIe 4.0 NVMe interface, get up to 2x the data transfer rate of PCIe 3.0* while remaining compatible with PCIe 3.0.
n
nThe integrated heatsink disperses heat to maintain speed, power efficiency, and thermal control, preventing downtime from overheating on Playstation® 5 and PCs.
n
n* Results are based on a comparison with Samsung PCIe 3.0 NVMe SSDs and SATA SSDs.
n

n
• 1TB storage

n

• Space-saving and compact M.2 2280 form factor

n

• Genuine PCIe 4.0 NVMe speed (up to 7,000MB/s Seq. reads; 5,000MB/s Seq. writes)

n

• Samsung V-NAND SSD

n

n* Performance may vary based on system hardware & configuration.
n
n

n
nTop Speed
n
nGet read speeds up to 7,000 MB/s¹ with 980 PRO with Heatsink and push the limits of what SSDs can do. Powered by an in-house controller designed to harmonize the flash memory components and the interface for top speed – with a PCIe 4.0² interface that’s 2x faster than PCIe 3.0 SSDs³ and 12x faster than Samsung SATA SSDs⁴ – every component of this NVMe™ SSD is manufactured by Samsung for performance that lasts.
n
n1. Performance may vary depending on the SSD’s firmware version and the system hardware & system configuration. Performance measurements are based on IOmeter 1.1.0. The write performances were measured with Intelligent TurboWrite technology being activated.
n2. To maximize the performance of the 980 PRO, please check whether your system supports PCIe 4.0 at the Intel or AMD website.
n3. Results are based on a comparison with Samsung PCIe 3.0 NVMe SSDs and SATA SSDs.
n4. Test system configuration: AMD Ryzen™ 9 3900X 12-Core Processor CPU@3.79GHz, DDR4 2666MHz 16GBx2, OS-Windows® 10 Pro 64bit, Chipset-ASUS-X570-ROG CROSSHAIR VIII FORMULA
n
nA Winning Combination
n
nThe 980 PRO with Heatsink delivers an additional layer of thermal control for smart heat management to reduce heat. Achieve fully immersive gameplay with sustained high-performance bandwidth and throughput for heavy-duty applications in gaming, graphics, data analytics, and more. Load games fast, so you can play more and wait less.
n
nA Winning Combination
n
nDesigned with hardcore gamers and tech-savvy users in mind, the 980 PRO offers high-performance bandwidth and throughput for heavy-duty applications in gaming, graphics, data analytics, and more. It’s fast at loading games so you can play more and wait less.
n
nSmart Thermal Control
n
nHigh-performance SSDs require high-performance thermal control. The 980 PRO with Heatsink uses Samsung’s own nickel-coated high-end controller to deliver effective thermal control of the NAND chip. With the added heatsink, play confidently on PlayStation® 5 gaming consoles and PC systems without worries of sudden performance drops from overheating.
n
nA Perfect Fit for PlayStation® 5
n
nThe 980 PRO with Heatsink has a thin 8.6mm housing, which perfectly fits the PlayStation® 5. Its slim size and optimized power efficiency are also ideal for building high-performance PC computing and gaming systems.
n
nSmart Thermal Solution
n
nEmbedded with Samsung’s cutting-edge thermal control algorithm, the 980 PRO manages heat on its own to deliver durable and reliable performance. To minimize performance fluctuations in the long haul, Samsung’s Dynamic Thermal Guard technology maintains the 980 PRO’s temperature at optimal levels.
n
nSamsung Magician Software
n
nUnlock the full potential of 980 PRO with Samsung Magician’s advanced, yet intuitive optimization tools. Monitor drive health, optimize performance, protect valuable data, and receive important updates with Magician to ensure you’re always getting the best performance out of your SSD.
n
nWorld’s No. 1 Flash Memory
n
nExperience the performance and reliability that you can only get from the world’s number one brand for flash memory since 2003. All firmware and components, including Samsung’s world-renowned DRAM and NAND, are produced in-house, allowing end-to-end integration for quality you can trust.
n
n* Source: 2003-Q3 2020 IHS Markit data: NAND suppliers’ revenue market share.
n

Additional Information:

nVisit the Manufacturer Product Web Page for Full Details
n
n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

n

Make and Model	Samsung 980 PRO PCIe 4.0 NVMe SSD w/ Heatsink
Part Number	MZ-V8P1T0CW
Capacity	1TB nFormatted capacity is less due to O/S formatting, partitioning, applications, etc.
Form Factor	M.2 2280
Interface	PCIe Gen 4.0 x4 nNVMe 1.3c
Sequential Bandwidth	Sequential Reads: Up to 7,000 MB/sec* nSequential Writes: Up to 5,000 MB/sec*
Random IOPS	4KB, QD32 Random Read: Up to 1,000,000 IOPS n4KB, QD1 Random Read: N/A n n4KB, QD32 Random Write: Up to 1,000,000 IOPS n4KB, QD1 Random Write: N/A
Cache Memory	1GB Low Power DDR4 SDRAM
Controller	Samsung in-house controller
Flash Type	Samsung V-NAND 3-bit MLC
AES Encryption	AES 256-bit Encryption (SED) nTCG Opal v2.0 nEncrypted drive (IEEE1667)
Garbage Collection	Auto Garbage Collection Algorithm
TRIM Support	Yes
S.M.A.R.T. Support	Yes
MTBF	1.5 Million Hours
Endurance	Total Bytes Written: 600TB Written
Temperature	Operating: 0 ~ 70° C
Shock	1,500G for 0.5ms (Half Sine Wave)
Power	Idle: 35mW nAverage: 6.2W Typical nMaximum: 8.9W (Burst Mode)
Voltage	3.3V ± 5 % Allowable voltage
Dimensions (WxHxD)	24 x 80 x 8.6 mm
Weight	Approx. 30.5g
