Description
Part number90MB1CW0-M0EAY0

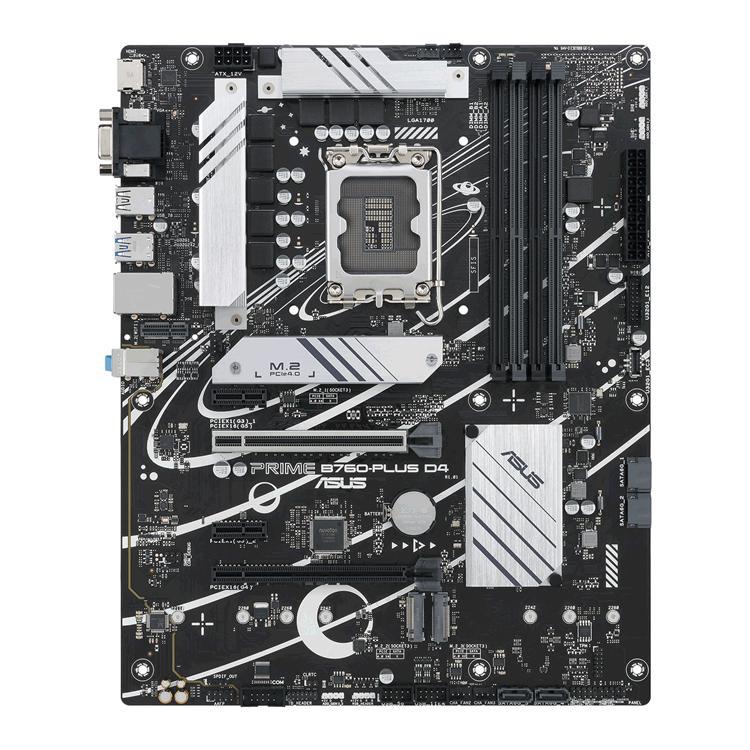

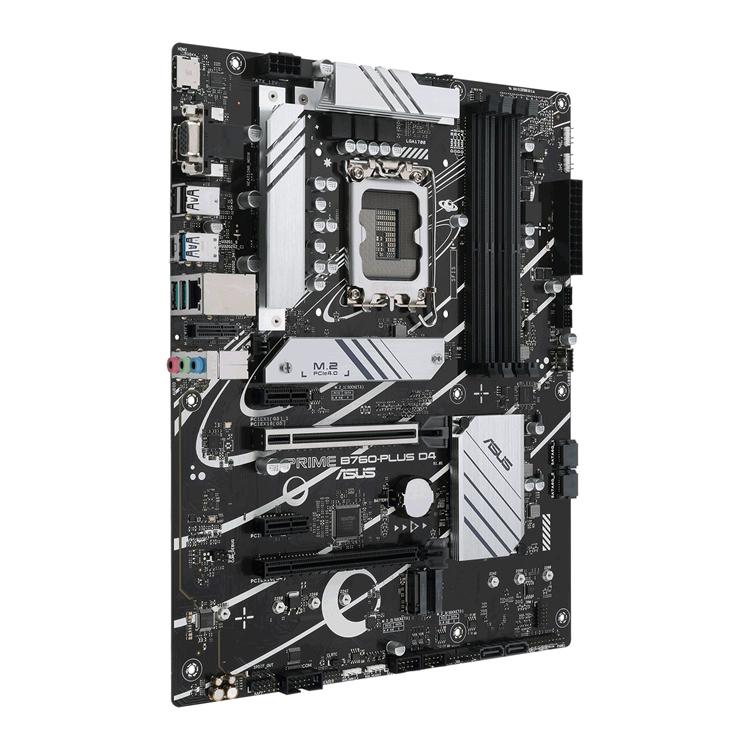

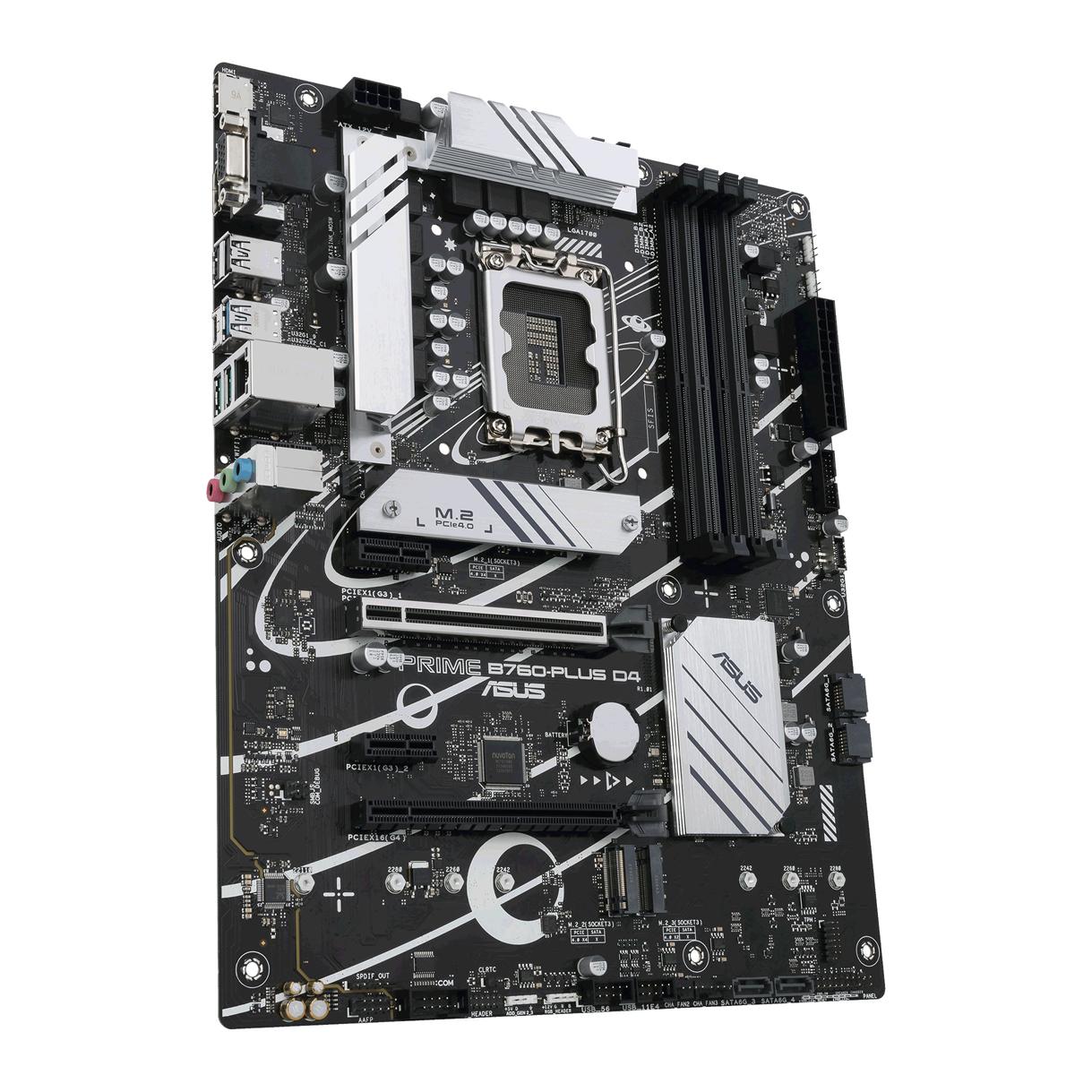

ASUS Introduces the PRIME B760-PLUS D4 Motherboard
ASUS Prime B760-PLUS D4 Intel® B760 (13th and 12th Gen) LGA 1700 ATX Motherboard with PCIe 5.0, 3x PCIe 4.0 M.2 Slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI®, SATA III 6 Gbps, USB 3.2 Gen 2×2 Type-C, Front USB 3.2 Gen 1 Type-C, Thunderbolt™ 4 / USB 4 Support & Aura Sync
-
- Intel® LGA 1700 Socket: Ready for 13th Gen Intel® Core™ processors
-
- Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2×2 Type-C®, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ (USB4®) header support
-
- Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
-
- ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
-
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
Features
The Prime B760 Series Plus Motherboard Without WiFi
If you require WiFi Connectivity at the start, or later on, you can install an optional M.2 Key E, CNVi / PCIe Wifi Module.
The ASUS Prime B760-PLUS D4 Motherboard is expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors; equipped with outstanding features, including PCIe 5.0 support, three PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet, Vertical M.2 slot (Key E), Rear USB 3.2 Gen 2×2 Type-C, front USB 3.2 Gen 1 Type-C.
Compatibility
Supports 13th & 12th Gen Intel® Core™ / Pentium® / Celeron® Processors for Socket BGA 1700
System Requirements
-
- Windows® 11 / 10, 64 bit
Specifications
| Make and Model | ASUS PRIME B760-PLUS D4 Motherboard |
|---|---|
| Part Number | PRIME B760-PLUS D4 |
| Windows® Support | Windows® 11 / 10, 64 bit |
| Chipset | Intel® B760 Chipset |
| CPU Socket | Intel® Socket 1700 |
| CPU Support | 13th & 12th Gen Intel® Core™ / Pentium® / Celeron® Processors for Socket BGA 1700 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 on matching CPUs. |
| Memory | 4x DDR4 DIMM RAM Slots, Supports up to 128GB RAM (4x 32GB) Overclocked RAM: DDR4-5066 / 5000 / 4800 / 4600 / 4400 / 4266 / 4000 / 3733 / 3600 / 3466 / 3400 / 3333 MHzStock Clocked RAM: DDR4-3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) |
| Expansion Slots | 1x PCIe 5.0 x16 slot 1x PCIe 4.0 x16 slot (supports x4 mode) 2x PCIe 3.0 x1 slots |
| Multiple Graphic Cards | Multiple Graphic Cards are not supported by this Motherboard |
| Onboard Graphics | 1x HDMI® v2.1 port (Up to 4K/60Hz) 1x DisplayPort v1.4 port (Up to 4K/60Hz) 1x VGA port |
| Storage | M.2_1 PCIe 4.0 x4 Slot (Key M), type 2242/2260/2280 M.2_2 PCIe 4.0 x4 Slot (Key M), type 2242/2260/2280/22110 M.2_3 PCIe 4.0 x2 Slot (Key M), type 2242/2260/2280 4x SATA III 6Gb/s ports Intel® Rapid Storage Technology supports SATA III RAID 0/1/5/10 |
| USB Ports | 6x Rear USB Ports: 1x USB 3.2 Gen 2×2 (20Gbps) Type-C port 2x USB 3.2 Gen 2 (10Gbps) Type-A ports 1x USB 3.2 Gen 1 (5Gbps) Type-A ports 2x USB 2.0 (480Mbps) Type-A ports Supports 7x Front USB Ports: 1x USB 3.2 Gen 1 (5Gbps) USB Type-C port (via 1x USB 3.2 Gen 1 header) 2x USB 3.2 Gen 1 (5Gbps) Type-A ports (via 1x USB 3.2 Gen 1 header) 4x USB 2.0 (480Mbps) ports (via 2x USB 2.0 Headers) |
| Thunderbolt™ Header | 1x Thunderbolt™ 4 (40Gbps) / USB 4 (40Gbps) Type-C header |
| LAN | REALTEK LAN Chipset: 1x 2.5Gb RJ45 LAN port |
| WiFi | WiFi Module Not Included Supports optional Key E, CNVi / PCIe Wifi Module |
| Bluetooth | Bluetooth Module Not Supported Supports optional Key E, CNVi / PCIe Wifi Module |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC: – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback – Supports up to 7.1 Channel Audio* * A chassis with an HD Audio Module in the front panel is required for 7.1 Surround Sound audio output. Audio Features: – Audio Shielding – Premium audio capacitors – Dedicated audio PCB layers |

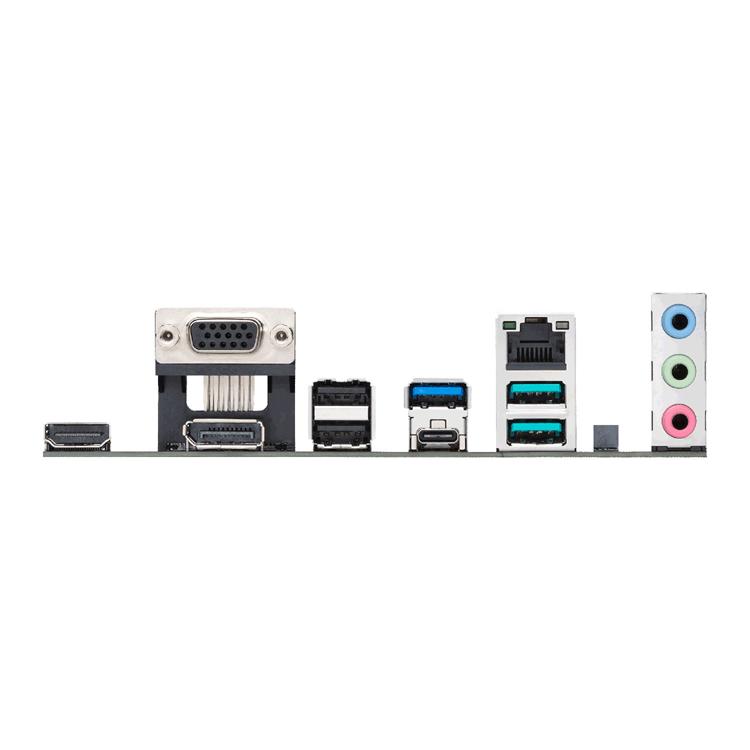

| Rear I/O Ports | 1x USB 3.2 Gen 2×2 (20Gbps) Type-C port 2x USB 3.2 Gen 2 (10Gbps) Type-A ports 1x USB 3.2 Gen 1 (5Gbps) Type-A ports 2x USB 2.0 (480Mbps) Type-A ports 1x HDMI® v2.1 port (Up to 4K/60Hz) 1x DisplayPort v1.4 port (Up to 4K/60Hz) 1x VGA port1x Realtek 2.5Gb Ethernet port 3x 3.5mm Audio jacks |
| Internal I/O Connectors | Power: 1x 24-pin Main Power connector 1x 8-pin +12V Power connector Fan and Cooling: 1x 4-pin CPU Fan header 1x 4-pin AIO Pump header 3x 4-pin Chassis Fan headersStorage: 3x M.2 slots (Key M) 4x SATA 6Gb/s ports USB & Thunderbolt: 1x Thunderbolt™ 4 (40Gbps) / USB 4 (40Gbps) Type-C port (via 1x USB 4 Type-C header) 1x USB 3.2 Gen 1 (5Gbps) USB Type-C port (via 1x USB 3.2 Gen 1 header) 2x USB 3.2 Gen 1 (5Gbps) Type-A ports (via 1x USB 3.2 Gen 1 header) 4x USB 2.0 (480Mbps) ports (via 2x USB 2.0 Headers) Miscellaneous |
| LED Headers | 3x Addressable Gen 2 headers 1x Aura RGB header |
| Special Features | ASUS 5X PROTECTION III: – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design: – Q-DIMM – Q-LED Core – Q-SlotASUS EZ DIY: – ProCool ASUS Thermal Solution: – M.2 heatsink – VRM heatsink design Aura Sync: |
| Software | ASUS Exclusive Software: Armoury Crate: – Aura Creator – Aura Sync – Fan Xpert 2+ – Power Saving AI Suite 3: – DIGI+ VRM – PC CleanerASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY: – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Form Factor | ATX Form Factor |
| Dimensions (LxW) | 305 x 244mm |
| Weight | N/A |
