Part number90MB1CX0-M0EAY0
ASUS Introduces the PRIME B760M-A AX D4 Motherboard

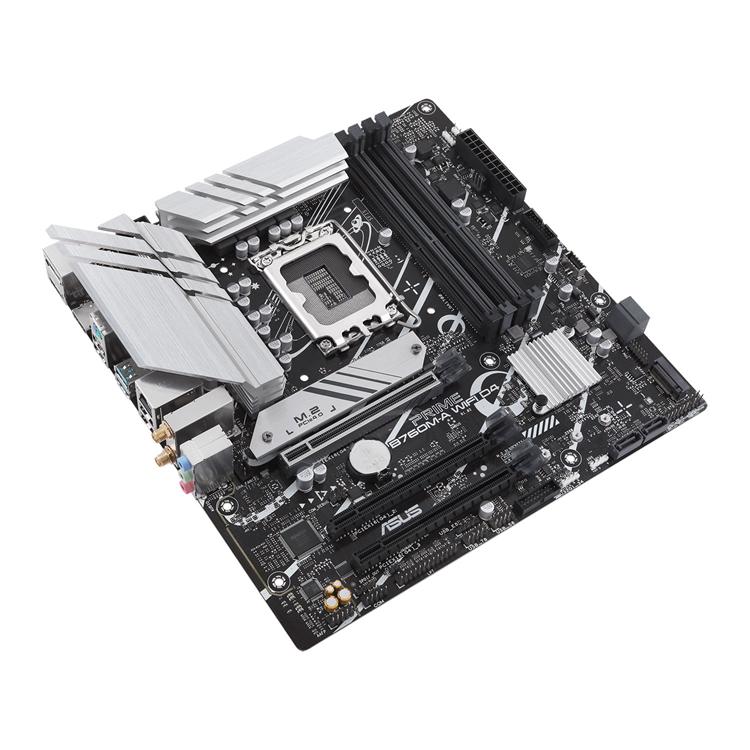

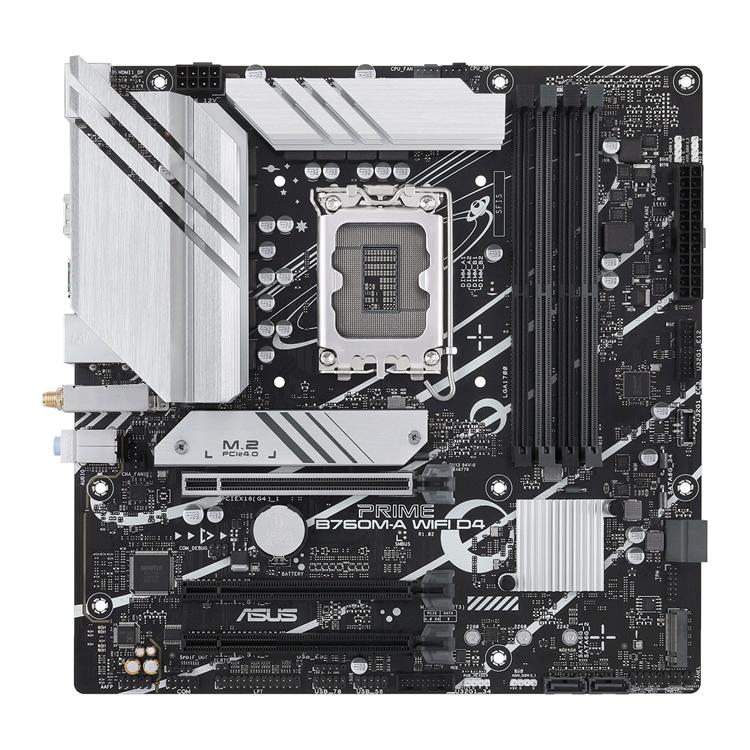

ASUS PRIME B760M-A AX D4 mATX Motherboard for Intel® B760 LGA 1700 13th and 12th Gen Processors.
The ASUS PRIME B760M-A AX D4 is built for productivity, with a robust power design, comprehensive connectivity and intelligent tuning options to unleash the full potential of your 12th or 13th Gen Intel® Core™ Processor.
This Motherboard is equipped with outstanding features including PCIe 4.0 support, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, Rear USB 3.2 Gen 2 ports, Front USB 3.2 Gen 1 Type-C®, DisplayPort + Dual HDMI® Ports, Addressable Gen 2 headers, Aura RGB header, Aura Sync, Q-LED Core, ASUS OptiMem II, Fan Xpert 2+, Power Saving, Armoury Crate, ASUS 5X PROTECTION III, and SafeSlot Core+ technologies.
Features
-
- Intel® LGA 1700 Socket: Ready for 13th Gen Intel® Core™ Processors
-
- Ultrafast Connectivity: PCIe 4.0 x16 Slot, two PCIe 4.0 M.2 slots, Realtek 2.5Gb Ethernet, Rear USB 3.2 Gen 2×2, Front USB 3.2 Gen 1 Type-C® Header support
-
- Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
-
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
-
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
-
- CEC Tier II Ready: Enhanced Motherbord energy efficiency reduces power consumption and lowers internal case temperatures

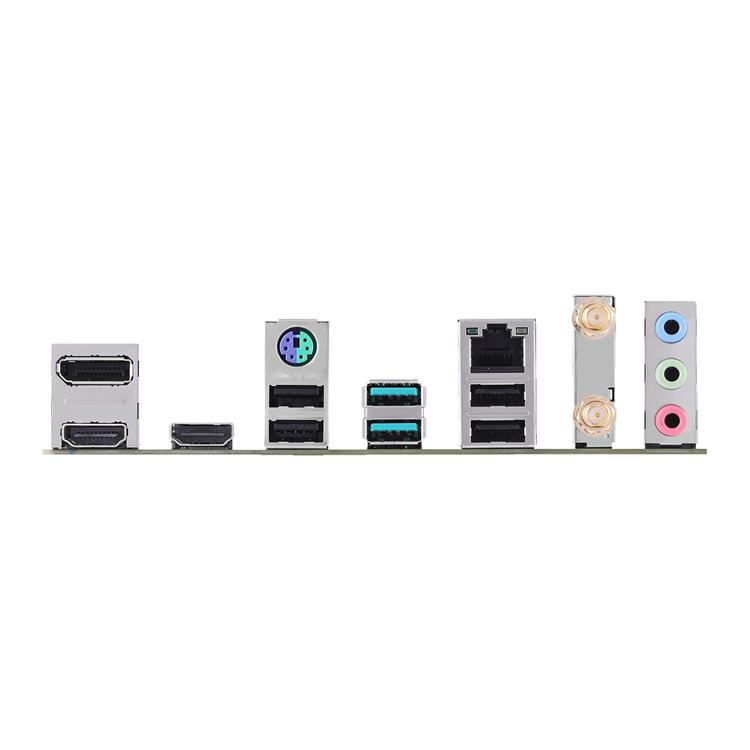

Rear I/O Ports
Compatibility
Supports 13th & 12th Gen Intel® Core™ / Pentium® / Celeron® Processors for Socket BGA 1700
System Requirements
-
- Windows® 11 / 10, 64 bit
Specifications
| Make and Model | ASUS PRIME B760M-A AX D4 Motherboard |
|---|---|
| Part Number | PRIME B760M-A AX D4 |
| Windows® Support | Windows® 11 / 10, 64 bit |
| Chipset | Intel® B760 Chipset |
| CPU Socket | Intel® Socket 1700 |
| CPU Support | 13th & 12th Gen Intel® Core™ / Pentium® / Celeron® Processors for Socket BGA 1700 Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 on matching CPUs. |
| Memory | 4x DDR4 DIMM RAM Slots, Supports up to 128GB RAM (4x 32GB) Overclocked RAM: DDR4-5333 / 5066 / 5000 / 4800 / 4600 / 4400 / 4266 / 4000 / 3733 / 3600 / 3466 / 3400 / 3333 MHzStock Clocked RAM: DDR4-3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) Supports OptiMem II |
| Expansion Slots | 1x PCIe 4.0 x16 slot 1x PCIe 4.0 x16 slot (supports x4 mode) 2x PCIe 4.0 x1 slots |
| Multiple Graphic Cards | Multiple Graphic Cards are not supported by this Motherboard |
| Onboard Graphics | 2x HDMI® v2.1 port (Up to 4K/60Hz) 1x DisplayPort v1.4 port (Up to 4K/60Hz) |
| Storage | M.2_1 PCIe 4.0 x4 Slot (Key M), type 2242/2260/2280 M.2_2 PCIe 4.0 x4 Slot (Key M), type 2242/2260/2280 4x SATA III 6Gb/s ports Intel® Rapid Storage Technology supports SATA III RAID 0/1/5/10 |
| USB Ports | 6x Rear USB Ports: 2x USB 3.2 Gen 2 (10Gbps) Type-A ports 4x USB 2.0 (480Mbps) Type-A ports Supports 10x Front USB Ports: 2x USB 3.2 Gen 1 (5Gbps) USB Type-C ports (via 2x USB 3.2 Gen 1 Connectors) 4x USB 3.2 Gen 1 (5Gbps) Type-A ports (via 2x USB 3.2 Gen 1 header) 4x USB 2.0 (480Mbps) ports (via 2x USB 2.0 Headers) |
| LAN | REALTEK LAN Chipset: 1x 2.5Gb RJ45 LAN port |
| WiFi | WiFi 6 Chipset: Dual Band 802.11ax 2×2 Antenna Array |
| Bluetooth | WiFi 6 Chipset: Bluetooth v5.2 2×2 Antenna Array |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC: – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – Supports up to 24-Bit/192 kHz playback – Supports up to 7.1 Channel Audio* * A chassis with an HD Audio Module in the front panel is required for 7.1 Surround Sound audio output. Audio Features: – Audio Shielding – Premium Audio Capacitors – Dedicated Audio PCB Layers |
| Rear I/O Ports | 2x USB 3.2 Gen 2 (10Gbps) Type-A ports 4x USB 2.0 (480Mbps) Type-A ports 2x HDMI® v2.1 ports (Up to 4K/60Hz) 1x DisplayPort v1.4 port (Up to 4K/60Hz)1x Realtek 2.5Gb Ethernet port 3x 3.5mm Audio jacks 2x Wireless Antenna Jacks |
| Internal I/O Connectors | Power: 1x 24-pin Main Power connector 1x 8-pin +12V Power connector Fan and Cooling: 1x 4-pin CPU Fan header 1x 4-pin AIO Pump header 2x 4-pin Chassis Fan headersStorage: 2x M.2 slots (Key M) 4x SATA 6Gb/s ports USB: 2x USB 3.2 Gen 1 (5Gbps) USB Type-C ports (via 2x USB 3.2 Gen 1 Connectors) 4x USB 3.2 Gen 1 (5Gbps) Type-A ports (via 2x USB 3.2 Gen 1 header) 4x USB 2.0 (480Mbps) ports (via 2x USB 2.0 Headers) Miscellaneous |
| LED Headers | 3x Addressable Gen 2 headers 1x Aura RGB header |
| Special Features | ASUS 5X PROTECTION III: – DIGI+ VRM – LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design: – Q-DIMM – Q-LED Core – Q-SlotASUS EZ DIY: – ProCool ASUS Thermal Solution: – M.2 heatsink – VRM heatsink design Aura Sync: |
| Software | ASUS Exclusive Software: Armoury Crate: – Aura Creator – Aura Sync – Fan Xpert 2+ – Power Saving AI Suite 3: – DIGI+ VRM – PC CleanerASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS: ASUS EZ DIY: – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Form Factor | mATX Form Factor |
| Dimensions (LxW) | 244 x 244mm |
| Weight | N/A |
