Description
Part numberPRIME B760M-K DDR5

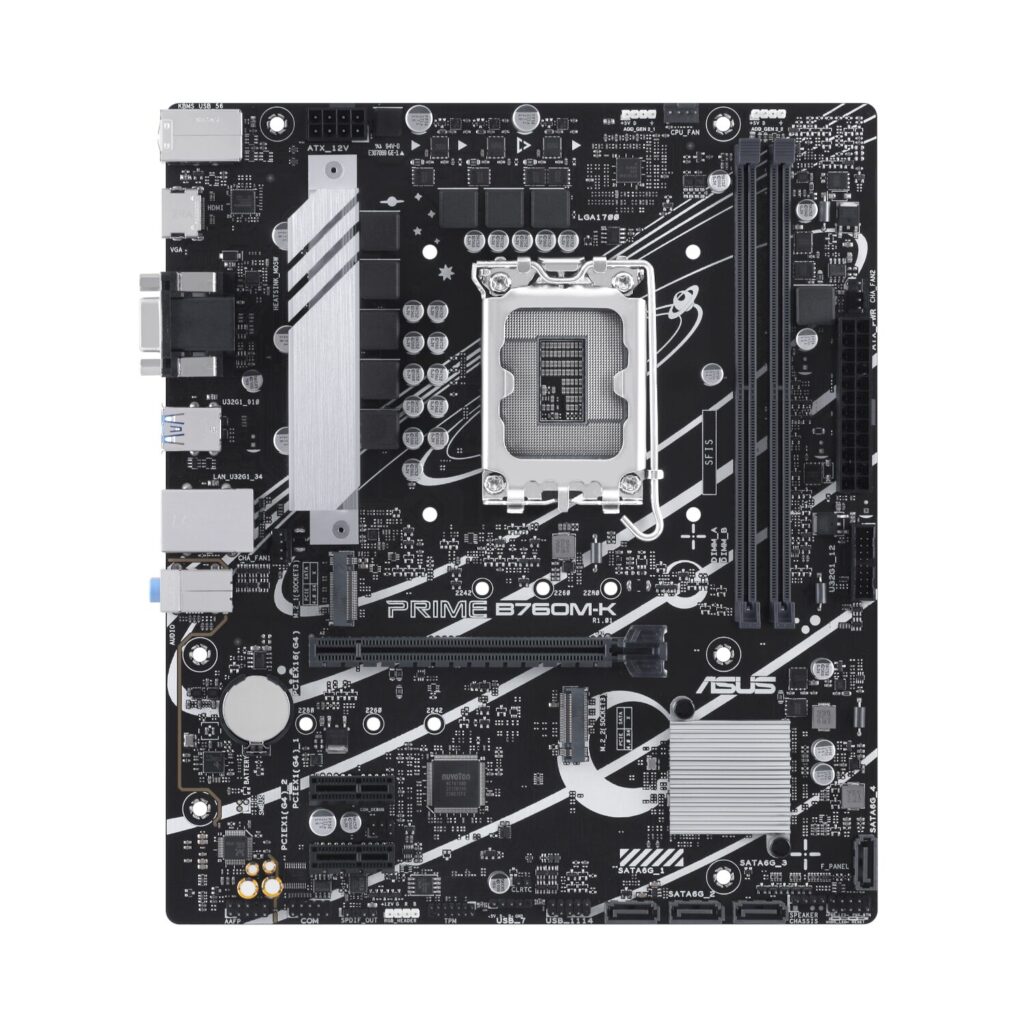

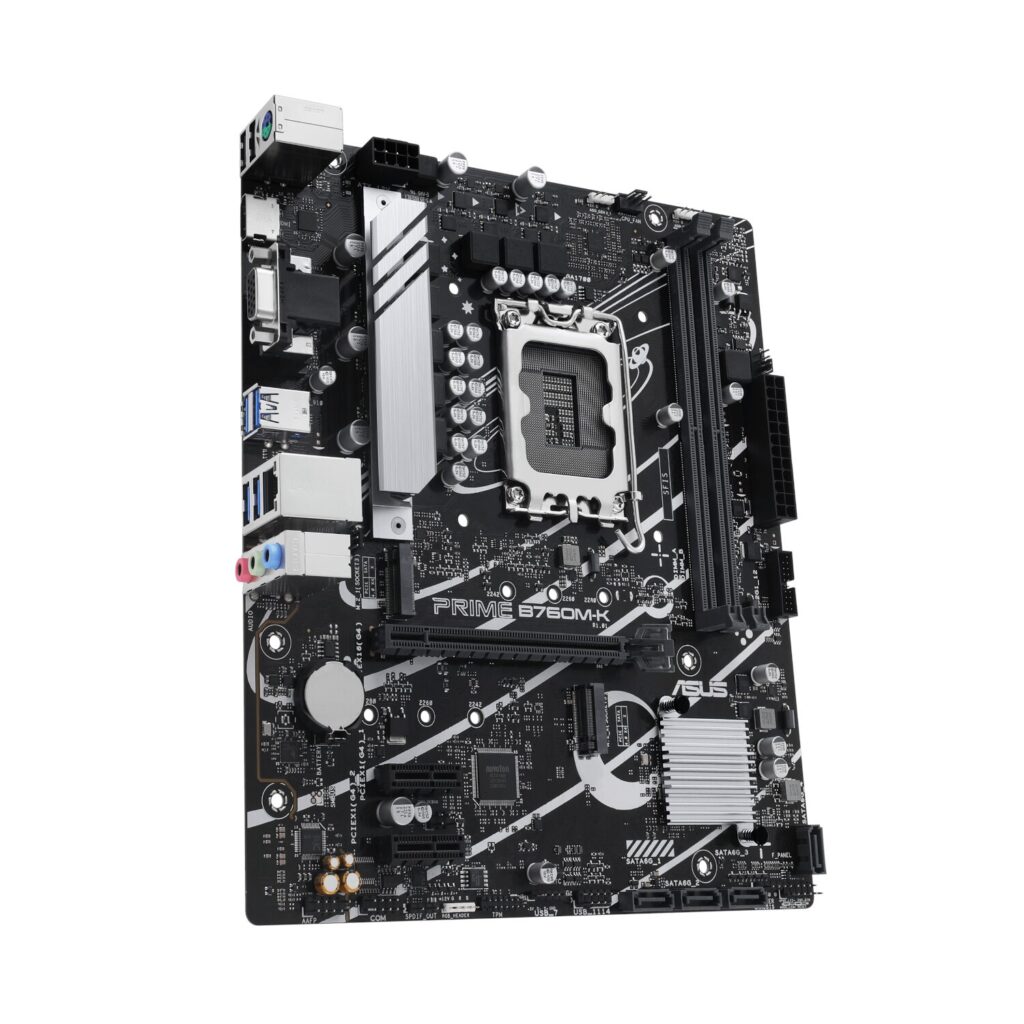

Unleash next-gen performance with the ASUS PRIME B760M-K , a micro-ATX motherboard engineered for versatility, stability, and productivity. Built to support 12th and 13th Gen Intel® Core™ processors, this board is ideal for users seeking a reliable foundation for gaming rigs, creative workstations, or compact business PCs. The ASUS PRIME B760M-K blends essential functionality with premium-grade features, including PCIe 4.0 support, dual M.2 slots for ultra-fast NVMe storage, and ASUS-exclusive technologies designed to optimise performance and cooling.
Targeted at users who demand more from their motherboard without exceeding budget constraints, the ASUS PRIME B760M-K features robust power delivery and customisable fan controls via Fan Xpert 2+. Whether you’re building a gaming setup or a multi-tasking productivity system, this board supports DDR4 memory up to 5333 MHz (OC), ensuring seamless multitasking and reduced load times.
With a clean, professional aesthetic and compatibility with ASUS Aura Sync RGB lighting, the ASUS PRIME B760M-K delivers both visual flair and operational excellence. Enhanced connectivity options, including 2.5Gb Ethernet and rear USB 3.2 Gen 1 ports, round out this high-performance package, making it a future-ready solution for today’s computing demands.
FEATURES:
- LGA1700 Socket Compatibility – Supports 12th & 13th Gen Intel® Core™, Pentium® Gold, and Celeron® processors.
- PCIe 4.0 Ready – Unlocks faster data transfer rates for next-gen GPUs and storage solutions.
- Dual M.2 Slots – Accommodates up to two NVMe SSDs for rapid boot times and data access.
- DDR4 Memory Support – Supports up to 64GB of DDR4 RAM, overclockable to 5333 MHz (OC).
- 2.5Gb Ethernet – High-speed LAN connectivity for lag-free online gaming and streaming.
- USB 3.2 Gen 1 Ports – Fast data transfers and compatibility with a wide range of peripherals.
- Fan Xpert 2+ – Intelligent cooling profiles ensure optimal thermal performance.
- ASUS DIGI+ VRM – Industry-leading digital power control for stable power delivery.
- ASUS LANGuard & Overvoltage Protection – Enhanced durability with hardware-level safeguards.
- ASUS Armoury Crate – Unified software for system tuning, RGB control, and driver updates.
- Aura Sync Compatibility – Customise and synchronise RGB lighting across compatible devices.
SPECIFICATIONS |
|
| Brand | ASUS |
| Series | PRIME Series |
| Model | PRIME B760M-K DDR5 |
| CPU Support | Intel 12th & 13th Gen Processors |
| Chipset | Intel B760 |
| Memory Support | |
| Intel 12th & 13th Gen | 2x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | |
| Video | |
| HDMI | 1x HDMI 2.1 TMDS, supports HDCP 2.3 and max. resolution up to 4K 60Hz |
| VGA D-Sub | 1x VGA D-Sub Port, supports up to 2048×1536 resolution @ 60Hz |
| Integrated Intel graphics Required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical Slot |
| Intel B760 Chipset | 2x PCIe 4.0 x1 Physical Slots |
| Storage | |
| CPU Direct | 1x M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Intel B760 Chipset | 1x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| 4x SATA3 6.0 Gb/s Connectors | |
| Intel RST supports RAID 0 and RAID 1 for SATA storage devices | |
| Networking | |
| LAN | Realtek RTL8125BG 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek ALC897 High Definition 7.1 CH HD Audio |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Supports up to 24-Bit/192 kHz playback | |
| Audio Shielding | |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |
| Connectivity | |
| Ports | 4x USB 3.2 Gen 1 ports (Type-A) |
| 2x USB 2.0 ports Type-A) | |
| 1x VGA port | |
| 1x HDMI 2.1 port | |
| 1x Realtek 2.5G Ethernet port | |
| 3x Audio jacks (Line In, Line Out, Microphone) | |
| 1x PS/2 Combo port (Keyboard, Mouse) | |
| Buttons | N/A |
| General | |
| Internal Connectors | 1x 4-pin CPU Fan header |
| 2x 4-pin Chassis Fan headers | |
| 1x 24-pin Main Power connector | |
| 1x 8-pin 12V Power connector | |
| 2x M.2 slots (Key M) | |
| 4x SATA 6Gb/s ports | |
| 1x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports | |
| 2x USB 2.0 headers support 3 additional USB 2.0 ports | |
| 2x Addressable Gen 2 headers | |
| 1x Aura RGB header | |
| 1x Clear CMOS header | |
| 1x COM Port header | |
| 1x Front Panel Audio header (AAFP) | |
| 1x S/PDIF Out header | |
| 1x Speaker header | |
| 1x SPI TPM header (14-1pin) | |
| 1x 10-1 pin System Panel header | |
| LED Displays | N/A |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | Micro-ATX Form Factor, 244 x 211 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Box Contents | 2x SATA 6Gb/s cables |
| 1x I/O Shield | |
| 2x M.2 anchors | |
| 1x User guide | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
