Asus ROG STRIX B760-F GAMING WIFI Intel B760 Raptor Lake LGA 1700 ATX DDR5 Desktop Motherboard

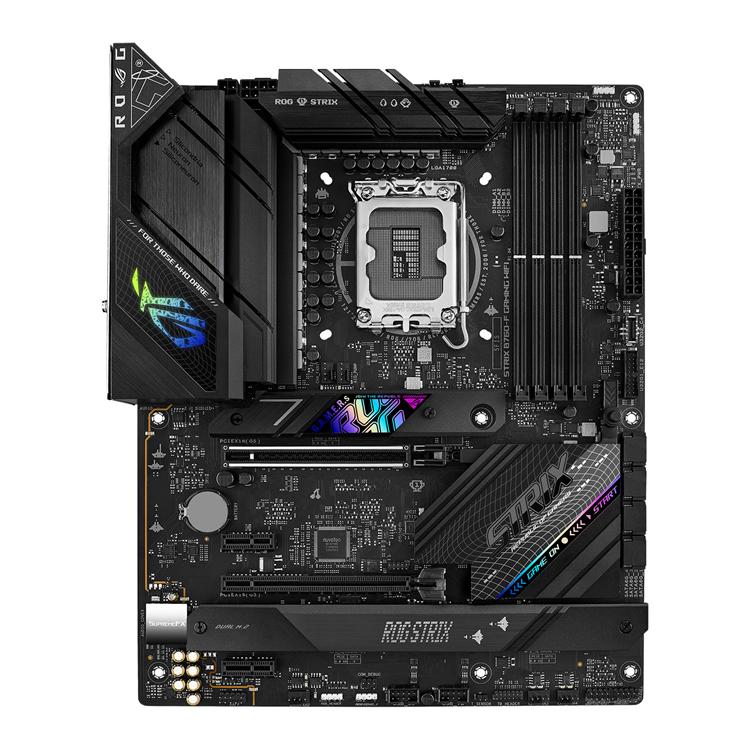

Asus ROG STRIX B760-F GAMING WIFI Intel B760 Raptor Lake LGA 1700 ATX DDR5 Desktop Motherboard - Image 2

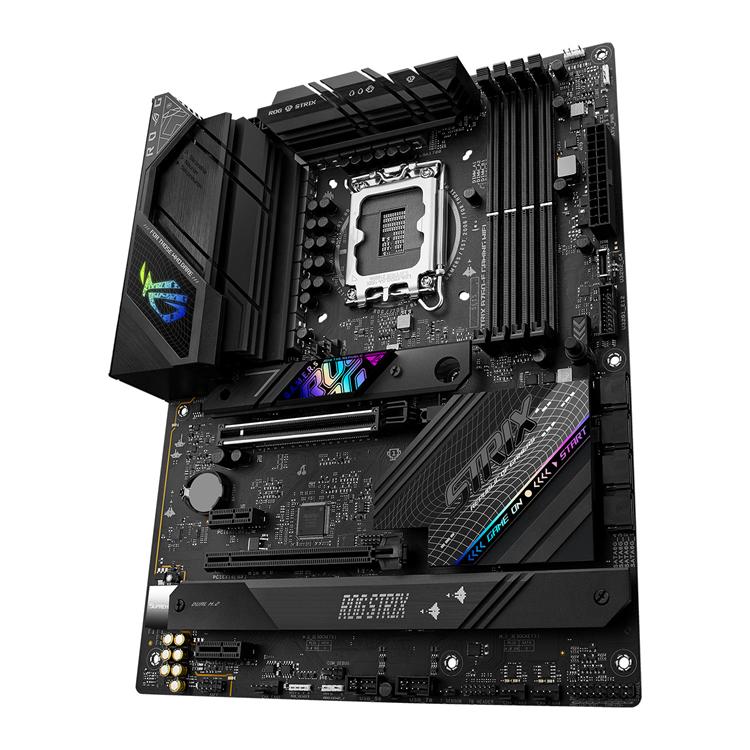

Asus ROG STRIX B760-F GAMING WIFI Intel B760 Raptor Lake LGA 1700 ATX DDR5 Desktop Motherboard - Image 3
Asus ROG STRIX B760-F GAMING WIFI Intel B760 Raptor Lake LGA 1700 ATX DDR5 Desktop Motherboard - Image 4

Asus ROG STRIX B760-F GAMING WIFI Intel B760 Raptor Lake LGA 1700 ATX DDR5 Desktop Motherboard

R6157.00 Incl. Vat


(Displayed price above applies to EFT / Bank Transfer payments only.)

SKU ROGSTRIXB760-FGAMINGWIFI Categories , , , , Tags , , , , , , , , ,

KEY FEATURES:
– ATX Form Factor Motherboard
– Intel B760 Chipset
– LGA 1700 Socket Supports 12th & 13th Gen Core Processors
– 4x DDR5 DIMM Slots, Up to 128GB
– Supports Up to DDR5-7800 (OC)
– 1x PCIe 5.0 x16 Slot
– 1x PCIe 3.0 x4 (x16 Physical) Slot
– 1x PCIe 3.0 x1 (x16 Physical) Slot
– 3x M.2 PCIe 4.0 x4 NVMe SSD Slots
– 4x SATA 3.0 Ports
– 1x USB 3.2 Gen 2×2 Type-C Port
– 1x USB 3.2 Gen 2 Type-A Port
– 6x USB 3.2 Gen 1 Type-A Ports
– 1x DisplayPort 1.4, 1x HDMI 2.1
– 6x 3.5mm Audio Jacks (Support 7.1 Surround), 1x S/PDIF Optical Audio
– Intel 2.5 Gigabit Ethernet RJ-45 LAN
– Intel AX211 WiFi 6E 2×2 MIMO Tri-band Adapter, Bluetooth 5.3
– Realtek ALC4080 High-Definition Audio Codec
– Twin 16+1 Phase Robust VRM
– Extreme Engine Digi+
– ASUS Q Design
– ASUS Aura Sync RGB Software
– ROG Exclusive Software
– AI Suite 3
– 3 Year Warranty

Description

Asus ROG STRIX B760-F GAMING WIFI Intel B760 Raptor Lake LGA 1700 ATX DDR5 Desktop Motherboard

ROG STRIX B760-F GAMING WIFI

90MB1CU0-M0EAY0

ASUS Introduces the ROG STRIX B760-F GAMING WIFI

ASUS ROG Strix B760-F Gaming WiFi Intel® B760 (13th and 12th Gen) LGA 1700 ATX Motherboard w/ 16 + 1 power stages, DDR5 up to 7800MHz (OC), PCIe 5.0 x16 Slot, 3x M.2 PCIe x4 slots, WiFi 6E, Rear USB 3.2 Gen 2×2 (20Gbps) Type-C Port, and Aura Sync RGB.

The ASUS ROG Strix B760-F Gaming WiFi 6E Gaming motherboard is designed with boosted power delivery and optimized cooling to cope with the demands of powerful 13th and 12th Gen Intel® Core™ processors.

Enjoy Wi-Fi 6E, DDR5 Memory and PCI Express® 5.0 for superfast data transfer, memory and leading storage options and performance.

Once again, the ROG Strix Series B760-F Gaming WiFi is unmistakably ROG with its futuristic design elements, iridescent ROG logo, monochrome finish and Aura Lighting that will give your build a subtle but vibrant look.

Features

  • Intel® LGA 1700 Socket: Ready for 13th Gen Intel® Core™ Processors
  • Robust Power Solution: 16 + 1 power stages, ProCool power connectors, high-quality alloy chokes, and durable capacitors are all leveraged to support the latest multi-core processors
  • Optimized VRM Thermals: Thick heatsinks bridged to the power stages w/ high-conductivity thermal pads keep cool during heavy workloads
  • High-Performance Networking: On-board Intel Wi-Fi 6E (802.11ax) and Intel 2.5G Ethernet with ASUS LANGuard
  • Abundant Connectivity: USB 3.2 Gen 2×2 Type-C® rear I/O port, seven additional USB 3.2 Gen 2 and Gen 1 ports, USB 3.2 Gen 2 front-panel connector, PCIe 5.0 x16 SafeSlot, HDMI® 2.1, and DisplayPort™ 1.4
  • Intelligent Control: ASUS-exclusive AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
  • DIY-Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, BIOS FlashBack™ button, Clear CMOS button, and Q-LED
  • Industry Leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound™ and Sonic Studio III
  • Renowned Software: Bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

Compatibility

Supports 13th & 12th Gen Intel® Core™ / Pentium® / Celeron® Processors for Socket BGA 1700

System Requirements

  • Windows® 11 / 10, 64 bit

Specifications

Make and Model ASUS ROG STRIX B760-F GAMING WIFI Motherboard
Part Number ROG STRIX B760-F GAMING WIFI
Windows® Support Windows® 11 / 10, 64 bit
Chipset Intel® B760 Chipset
CPU Socket Intel® Socket 1700
CPU Support 13th & 12th Gen Intel® Core™ / Pentium® / Celeron® Processors for Socket BGA 1700
Supports Intel® Turbo Boost Technology 2.0 and / or Intel® Turbo Boost Max Technology 3.0 on matching CPUs.
Memory 4x DDR5 DIMM RAM Slots, Supports up to 128GB RAM (4x 32GB)
Overclocked RAM: DDR5-7200 / 7000 / 6800 / 6600 / 6400 / 6200 / 6000 / 5800 MHzStock Clocked RAM: DDR5-5600 / 5400 / 5200 / 5000 / 4800 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Supports OptiMem II
Expansion Slots 1x PCIe 5.0 x16 slot
1x PCIe 3.0 x16 slot (supports x4 mode)*
2x PCIe 3.0 x1 slots
Multiple Graphic Cards Multiple Graphic Cards are not supported by this Motherboard
Onboard Graphics 1x HDMI® v2.1 port (Up to 4K/60Hz)
1x DisplayPort v1.4 port (Up to 8K/60Hz)
Storage M.2_1 PCIe 4.0 x4 Slot (Key M), type 2241/2260/2280
M.2_2 PCIe 4.0 x4 Slot (Key M), type 2242/2260/2280/22110
M.2_3 PCIe 4.0 x4 Slot (Key M), type 2242/2260/2280
4x SATA III 6Gb/s ports
Intel® Rapid Storage Technology supports SATA III RAID 0/1/5/10
USB / Thunderbolt Ports 8x Rear USB Ports:
1x USB 3.2 Gen 2×2 (20Gbps) Type-C port
1x USB 3.2 Gen 2 (10Gbps) Type-A port
6x USB 3.2 Gen 1 (5Mbps) Type-A ports
Supports 8x Front USB / Thunderbolt Ports:
1x Thunderbolt™ 4 (40Gbps) / USB 4 (40Gbps) Type-C Header
1x USB 3.2 Gen 2 (10Gbps) USB Type-C port (via 1x USB 3.2 Gen 1 Connector)
2x USB 3.2 Gen 1 (5Gbps) Type-A ports (via 1x USB 3.2 Gen 1 Header)
4x USB 2.0 (480Mbps) ports (via 2x USB 2.0 Headers)
LAN Intel® LAN Chipset:
1x 2.5Gb RJ45 LAN port
ASUS LANGuard
WiFi WiFi 6E Chipset:
Tri Band 802.11ax (6 / 5 / 2.4GHz)
2×2 Antenna Array
Supports Intel® Double Connect Technology
Bluetooth WiFi 6E Chipset:
Bluetooth v5.3
2×2 Antenna Array
Audio ROG SupremeFX ALC4080 7.1-Channel High Definition Audio CODEC:
– Impedance sense for front and rear headphone outputs
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
– Supports up to 32-Bit/384 kHz playback
Audio Features:
– SupremeFX Shielding Technology
– Savitech SV3H712 AMP
– Premium Audio Capacitors
– Audio Cover
– Rear optical S/PDIF out port
– 5x 3.5mm Audio jacks*
Note* The Rear Lime Coloured 3.5mm Audio Port (Line out) does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
Rear I/O Ports 1x USB 3.2 Gen 2×2 (20Gbps) Type-C port
1x USB 3.2 Gen 2 (10Gbps) Type-A port
6x USB 3.2 Gen 1 (5Mbps) Type-A ports
1x HDMI v2.1 port (Up to 4K/60Hz)
1x DisplayPort v1.4 port (Up to 8K/60Hz)1x Intel 2.5Gb Ethernet port
5x 3.5mm Audio jacks*
* The Rear Lime Coloured 3.5mm Audio Port (Line out) does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.
1x Optical S/PDIF out port

2x Wireless Antenna Jacks
1x BIOS FlashBack™ Button
1x Clear CMOS button
Internal I/O Connectors Power:
1x 24-pin Main Power connector
1x 8-pin +12V Power connector
1x 4-pin +12V Power connector
Fan and Cooling:
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
4x 4-pin Chassis Fan headersStorage:
3x M.2 slots (Key M)
4x SATA 6Gb/s ports
USB / Thunderbolt:
1x Thunderbolt™ 4 (40Gbps) / USB 4 (40Gbps) Type-C Header
1x USB 3.2 Gen 2 (10Gbps) USB Type-C port (via 1x USB 3.2 Gen 1 Connector)
2x USB 3.2 Gen 1 (5Gbps) Type-A ports (via 1x USB 3.2 Gen 1 Header)
4x USB 2.0 (480Mbps) ports (via 2x USB 2.0 Headers)

Miscellaneous:
3x Addressable Gen 2 headers
1x Aura RGB header
1x 12-1 pin Front Panel Audio header (AAFP)
1x 20-3 pin System Panel header with Chassis intrude function
1x Thermal Sensor header
LED Headers 3x Addressable Gen 2 headers
1x Aura RGB header
Special Features Extreme Engine Digi+
– 5K Black Metallic Capacitors
ASUS Q-Design
– M.2 Q-Latch
– PCIe Slot Q-Release
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-SlotASUS Thermal Solution
– M.2 heatsink
– VRM heatsink backplate
ASUS EZ DIY
– BIOS FlashBack™ button
– BIOS FlashBack™ LED
– Clear CMOS button
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeSlot
– SafeDIMM

AURA Sync
– Aura RGB header
– Addressable Gen 2 header
Software ROG Exclusive Software:
– GameFirst VI
– ROG CPU-Z
– Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion
– Sonic Radar III
– DTS® Sound Unbound
ASUS Exclusive Software:
Armoury Crate:
– AIDA64 Extreme (60 days free trial)
– AURA Creator
– AURA Sync
– Fan Xpert 4
– Two-Way AI Noise Cancelation
AI Suite 3:
– Performance And Power Saving Utility
– PC Cleaner
– DIGI+ VRMMyAsus
Norton 360 for Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY:
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– MemTest86
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME
Form Factor ATX Form Factor
Dimensions (LxW) 305 x 244mm
Weight N/A
