90MB1EQ0-M0EAY0
GO BIG AND STAY COMPACT

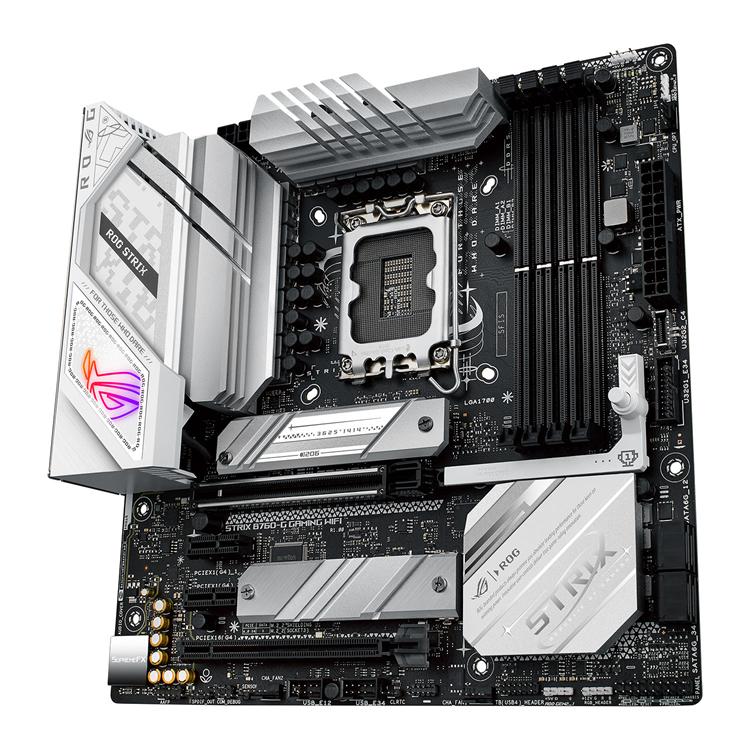

the ROG Strix B760-G Gaming Wi-Fi is a monochrome powerhouse, ready to propel your next mATX rig. It bears the same high-bandwidth connectivity as its trusty counterpart, but diverges with lightning-fast DDR5 memory and buffed power stages to complement high-speed Intel 13th Gen processors. White and silver accents pair perfectly with the ASUS AP201, and retro insignias give it a dash of classic Strix style.
Intel® B760 Chipset
LGA 1700 CPU Socket
13th Gen Intel® Compatible Processors
Micro-ATX Form Factor
Outstanding Architecture and Power Solution
1ProCool Power Connectors
Intel® LGA 1700 Socket for 13th/12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
1 x PCIe 5.0 x16 SafeSlot (x16) [CPU]
1 x PCIe 4.0 x16 Slots (x4) [CHIPSET]
2 x PCIe 4.0 x1 Slot
12 + 1 Power Stages
DDR5 7800+ (OC)
4 x DIMM
Dual Channel
2 x M.2 2280 (PCIe 4.0 x4)
All Round Performance
INCREDIBLE SPEEDS
Well-placed and optimised heatsinks cover the VRM and M.2 slots to keep performance pushed to the max, even in cramped quarters.
TEAMED POWER ARCHITECTURE
12 + 1 power stages each rated to 60A deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.
ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.
SIX-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.
OPTIMEM II
OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
Undeniably ROG Strix
ID DESIGN
Diagonal slats, brushed aluminium, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix B760-G bears all of them with pride.
Create Your Dream Gaming Setup
Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.
PCIE PERFORMANCE
The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with two PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximise performance.
Supreme Networking Capability
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
INTEL® 2.5 GB ETHERNET
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.
Fine Quality Components for Exceptional Clarity & Fidelity
UNIQUE DESIGN FEATURES FOR POWERFUL AUDIO
ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B760-G implementation features the S1220A codec for high-resolution playback up to 32-bit/192 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.

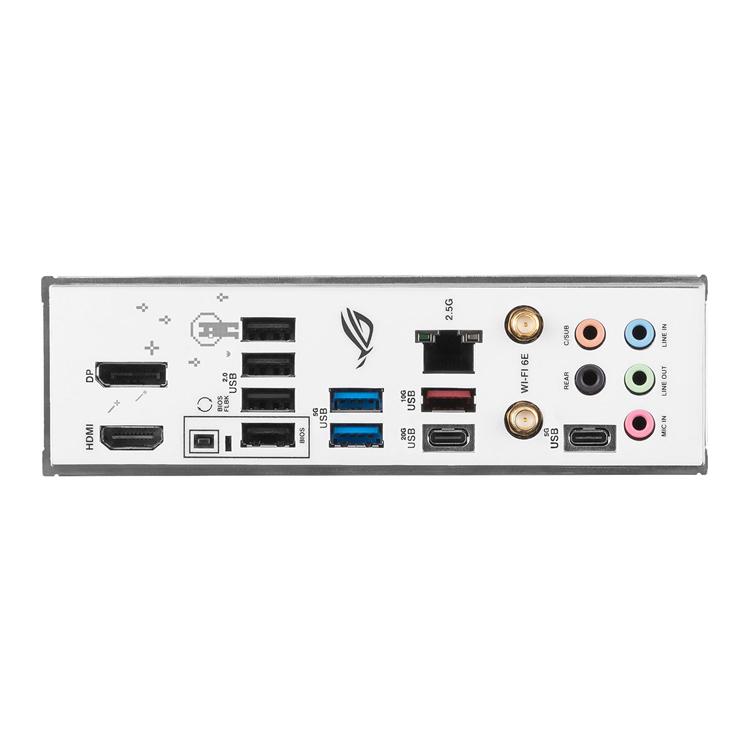

Full Connectivity
1 – 1x HDMI® Port
2 – 1x Display Port
3 – BIOS FlashBack™
4 – 4 x USB 2.0 Ports
5 – 2 x USB 3.2 Gen 1 Ports (USB Type-A)
6 – Intel® 2.5G Ethernet
7 – 1 x USB 3.2 Gen 2 Port (USB Type-A)
8 – 1 x USB 3.2 Gen 2×2 Port (USB Type-C)
9 – Wi-Fi 6E
10 – 5x Audio Jacks
Control Your Rig with Armoury Crate
ACCOUNT MANAGEMENT SOFTWARE
Armoury Crate is a software utility designed to provide centralised control of supported ROG gaming products. From a single intuitive interface, Armoury Crate puts command of all your Aura gear at your fingertips with the new Aura Creator suite ready. The software also provides control of settings for a growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even offers dedicated product registration and ROG news feeds to help you stay in touch with the ROG gaming community.
| SPECIFICATIONS | |
| Brand | ASUS |
| Series | ROG STRIX Series |
| Model | ROG STRIX B760-G GAMING WIFI (90MB1EQ0-M0EAY0) |
| CPU Support | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel B760 Express |
| Memory Support | |
| Intel 13th Gen & 12th Gen Processors | 4x DIMM slots, Max. 192GB, DDR5 7800 (OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) 3.0 | |
| OptiMem II | |
| Video | |
| HDMI | 1x HDMI 2.1 port, supporting a maximum resolution of UHD 4K 3840×2160 @ 60Hz, Support for HDCP 2.3, and HDR |
| DisplayPort | 1x DisplayPort 1.4 port, supporting a maximum resolution of UHD 4K 3840×2160 @ 60Hz, Support for HDCP 2.3, and HDR |
| Expansion Slots | |
| CPU Direct | 1x PCIe 5.0 x16 Physical, x16 Electrical slot |
| Intel B760 Chipset | 1x PCIe 4.0 x16 Physical, x4 Electrical slot |
| 2x PCIe 4.0 x1 Physical, x1 Electrical slots | |
| Storage | |
| CPU Direct | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Intel B760 Chipset | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| 4x SATA 6Gb/s ports | |
| Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Networking | |
| LAN | Realtek 2.5 Gigabit LAN 10/100/1000/2500Mbps, with ASUS LANGuard |
| WiFi | WiFi 6E 2×2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.3 |
| Audio | |
| Codec | Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC |
| Impedance sense for front and rear headphone outputs | |
| Internal audio Amplifier for headphone and speakers | |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | |
| Supports up to 32-Bit/192 kHz playback (not supported for 7.1 surround) | |
| Audio Features | Savitech SV3H712 AMP with SupremeFX Shielding Technology |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |
| Audio Cover | |
| Connectivity | |
| Ports | 1x USB 20Gbps Type-C Port |
| 1x USB 10Gb/s Type-A Ports | |
| 2x USB 5Gb/s Type-A Ports | |
| 1x USB 5Gb/s Type-C Ports | |
| 4x USB 2.0 Type-A Ports | |
| 2x SMA Connectors | |
| 1x HDMI 2.1 Port | |
| 1x DisplayPort 1.4 Port | |
| 5x 3.5mm Audio Jacks (Support 7.1 Surround) | |
| 1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN | |
| General | |
| Internal Connectors | 1x 4-pin CPU Fan header |
| 1x 4-pin CPU OPT Fan header | |
| 1x 4-pin AIO Pump header | |
| 2x 4-pin Chassis Fan header(s) | |
| 1x 24-pin Main Power connector | |
| 1x 8-pin 12V Power connector | |
| 1x 4-pin 12V Power connector | |
| 2x M.2 slots (Key M) | |
| 4x SATA 6Gb/s ports | |
| 1x USB 3.2 Gen 2 connector (supports USB Type-C) | |
| 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2x USB 2.0 headers support additional 4 USB 2.0 ports | |
| 3x Addressable Gen 2 header(s) | |
| 1x AURA RGB header(s) | |
| 1x Clear CMOS header | |
| 1x Front Panel Audio header (AAFP) | |
| 1x S/PDIF Out header | |
| 1x 20-3 pin System Panel header with | |
| 1x Thermal Sensor header | |
| 1x Thunderbolt (USB4) header | |
| Buttons | BIOS FlashBack button with status LED |
| LED Displays | ASUS Q-LED Diagnostic LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Remote Management | WOL by PME, PXE |
| Form Factor | ATX Form Factor, 244 x 244 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Box Contents | 2x SATA 6Gb/s cables |
| 1x Thermal pad for M.2 | |
| 1x ASUS Wi-Fi moving antennas | |
| 1x Cable ties pack | |
| 1x Rubber Package(s) for M.2 | |
| 1x Q-Latch package(s) for M.2 | |
| 1x ROG key chain | |
| 1x ROG Strix stickers | |
| 1x ROG Strix thank you card | |
| 1x User manual | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
