Description
Part number90MB1D90-M0EAY0
ASUS Introduces the ROG STRIX B760-I GAMING WIFI Motherboard

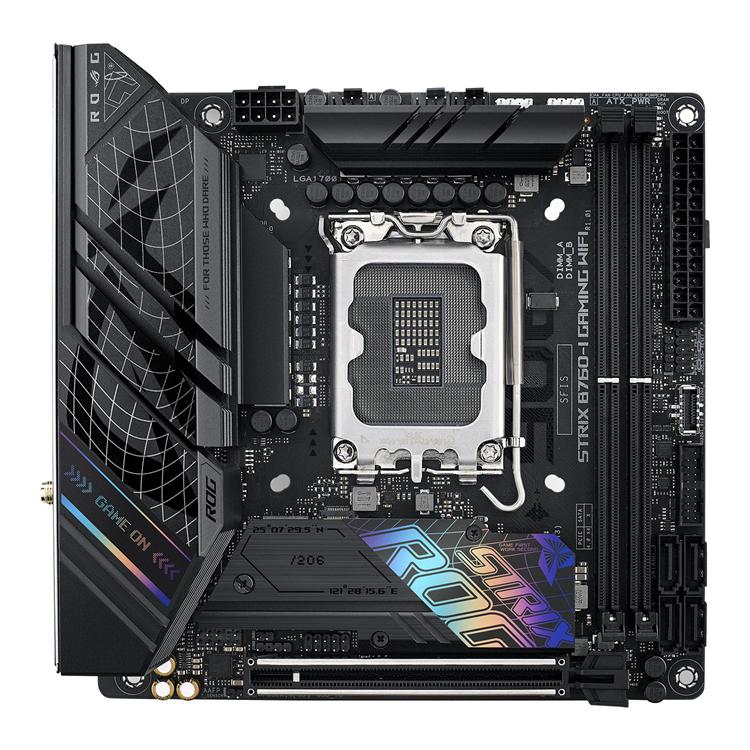

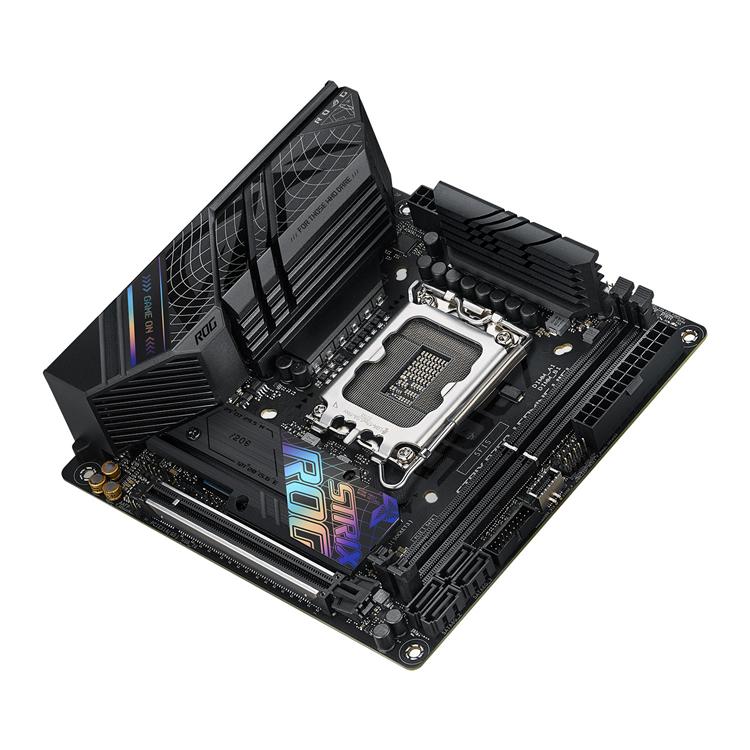

ASUS ROG STRIX B760-I GAMING WIFI mini-ITX Motherboard for Intel® B760 LGA 1700 13th and 12th Gen Processors.
ASUS ROG Strix B760-I Gaming WiFi is the perfect backbone for gamers who pursue ultimate performance out of their Intel 13th and 12th Gen mini-ITX PC builds.
With boosted power delivery and innovative cooling utilizing a skived cooling fin design, the ROG Strix B760-I Gaming WiFi is the perfect compact mini-ITX platform for your next gaming battle station.
Features
- Intel® LGA 1700 Socket: Ready for 13th Gen Intel® Core™ Processors
- Robust Power Solution: 8 + 1 power stages rated for 80A, ProCool power connector, high-quality alloy chokes, and durable capacitors are all leveraged to support the latest multi-core processors
- Optimized VRM Thermals: Thick heatsinks bridged to the VRM with high-conductivity thermal pads, and the larger one integrated with the I/O cover for added surface area
- Ample M.2 Support: Two PCIe 4.0 M.2 slots, one with a beefy heatsink, and the other strategically placed on the rear to save space
- Next-Gen Networking: On-board Intel Wi-Fi 6E (802.11ax) and Intel 2.5G Ethernet with ASUS LANGuard
- Abundant Connectivity: USB 3.2 Gen 2×2 Type-C® rear I/O port, seven additional USB ports, USB 3.2 Gen 2 front-panel connector, PCIe 5.0 x16 SafeSlot, HDMI® 2.1, and DisplayPort™ 1.4
- Intelligent Control: ASUS-exclusive AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY-Friendly Design: Pre-mounted I/O shield, M.2 Q-Latch, and Q-LED
- Industry-leading Gaming Audio: S1220A codec with Savitech SV3H712 amplifier, along with DTS® Sound Unbound™ and Sonic Studio III
- Renowned Software: Bundled 60 Day AIDA64 Extreme Trial Subscription and intuitive UEFI BIOS dashboard with integrated MemTest86
Compatibility
Supports 13th & 12th Gen Intel® Core™ / Pentium® / Celeron® Processors for Socket BGA 1700
System Requirements
- Windows® 11 / 10, 64 bit
Specifications
| Make and Model | ASUS ROG STRIX B760-I GAMING WIFI Motherboard |
|---|---|
| Part Number | ROG STRIX B760-I GAMING WIFI |
| Windows® Support | Windows® 11 / 10, 64 bit |
| Chipset | Intel® B760 Chipset |
| CPU Socket | Intel® Socket 1700 |
| CPU Support | 13th & 12th Gen Intel® Core™ / Pentium® / Celeron® Processors for Socket BGA 1700 Supports Intel® Turbo Boost Technology 2.0 and / or Intel® Turbo Boost Max Technology 3.0 on matching CPUs. |
| Memory | 2x DDR5 DIMM RAM Slots, Supports up to 64GB RAM (2x 32GB) Overclocked RAM: DDR5-7600 / 7466 / 7200 / 7000 / 6800 / 6600 / 6400 / 6200 / 6000 / 5800 MHz Stock Clocked RAM: DDR5-5600 / 5400 / 5200 / 5000 / 4800 MHz Non-ECC, Un-buffered Memory |
| Expansion Slots | 1x PCIe 5.0 x16 slot |
| Multiple Graphic Cards | Multiple Graphic Cards are not supported by this Motherboard |
| Onboard Graphics | 2x HDMI® v2.1 port (Up to 4K/60Hz) 1x DisplayPort v1.4 port (Up to 4K/60Hz) |
| Storage | M.2_1 PCIe 4.0 x4 Slot (Key M), type 2260/2280 M.2_2 PCIe 4.0 x4 Slot (Key M), type 2242/2260/2280 4x SATA III 6Gb/s ports Intel® Rapid Storage Technology supports SATA III RAID 0/1/5/10 |
| USB Ports | 8x Rear USB Ports: 1x USB 3.2 Gen 2×2 (20Gbps) Type-C port 1x USB 3.2 Gen 1 (5Gbps) Type-C ports 3x USB 3.2 Gen 1 (5Gbps) Type-A ports 3x USB 2.0 (480Mbps) Type-A ports Supports 5x Front USB Ports: 1x USB 3.2 Gen 2 (10Gbps) USB Type-C port (via 1x USB 3.2 Gen 1 Connector) 2x USB 3.2 Gen 1 (5Gbps) Type-A ports (via 1x USB 3.2 Gen 1 Header) 2x USB 2.0 (480Mbps) ports (via 1x USB 2.0 Header) |
| LAN | Intel® LAN Chipset: 1x 2.5Gb RJ45 LAN port ASUS LANGuard |
| WiFi | WiFi 6E Chipset: Tri Band 802.11ax (6 / 5 / 2.4GHz) 2×2 Antenna Array |
| Bluetooth | WiFi 6E Chipset: Bluetooth v5.3 2×2 Antenna Array |
| Audio | ROG SupremeFX S1220A 7.1-Channel High Definition Audio CODEC: – Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) – Supports up to 32-Bit/192 kHz playback* * Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported with 7.1 Surround Sound audio. Audio Features: – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Premium Audio Capacitors |

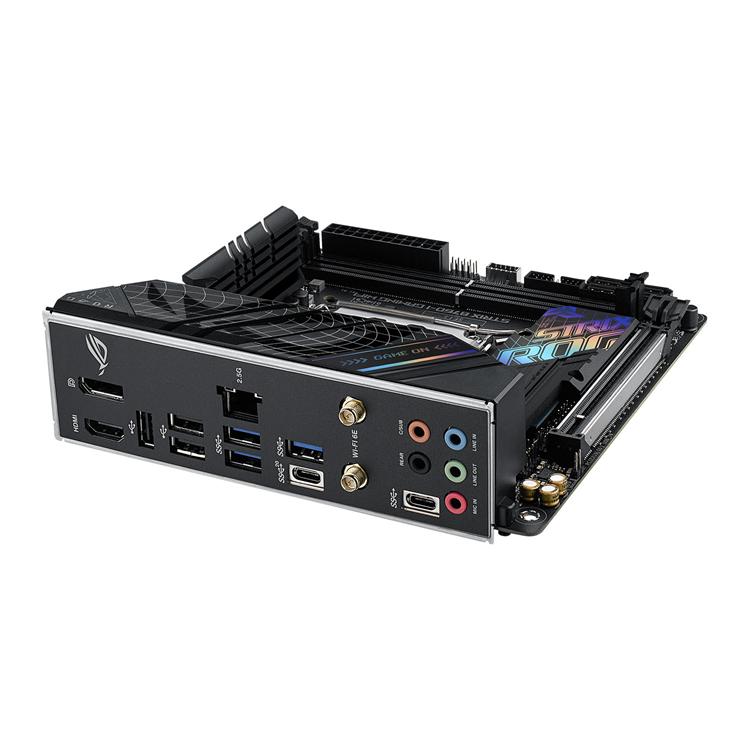

| Rear I/O Ports | 1x USB 3.2 Gen 2×2 (20Gbps) Type-C port 1x USB 3.2 Gen 1 (5Gbps) Type-C ports 3x USB 3.2 Gen 1 (5Gbps) Type-A ports 3x USB 2.0 (480Mbps) Type-A ports 1x HDMI® v2.1 port (Up to 4K/60Hz) 1x DisplayPort v1.4 port (Up to 4K/60Hz) 1x Intel 2.5Gb Ethernet port 2x Wireless Antenna Jacks |
| Internal I/O Connectors | Power: 1x 24-pin Main Power connector 1x 8-pin +12V Power connector Fan and Cooling: 1x 4-pin CPU Fan header 1x 4-pin AIO Pump header 2x 4-pin Chassis Fan headers Storage: Miscellaneous |
| LED Headers | 1x Addressable Gen 2 header 1x Aura RGB header |
| Special Features | Extreme Engine Digi+ – 5K Black Metallic Capacitors ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution AURA Sync |
| Software | ROG Exclusive Software: – GameFirst VI – ROG CPU-Z – Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion – Sonic Radar III – DTS® Sound Unbound ASUS Exclusive Software: Armoury Crate: – AIDA64 Extreme (60 days free trial) – AURA Creator – AURA Sync – Fan Xpert 4 – Two-Way AI Noise Cancelation – Power Saving AI Suite 3: – Performance And Power Saving Utility PC Cleaner DIGI+ VRM MyAsus |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Form Factor | mini-ITX Form Factor |
| Dimensions (LxW) | 170 x 170mm |
| Weight | N/A |
