Description

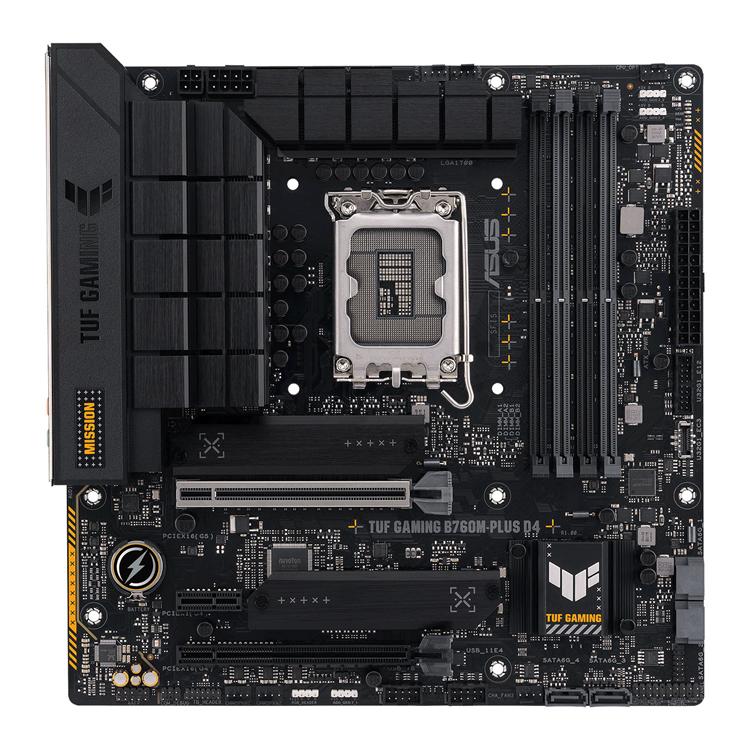

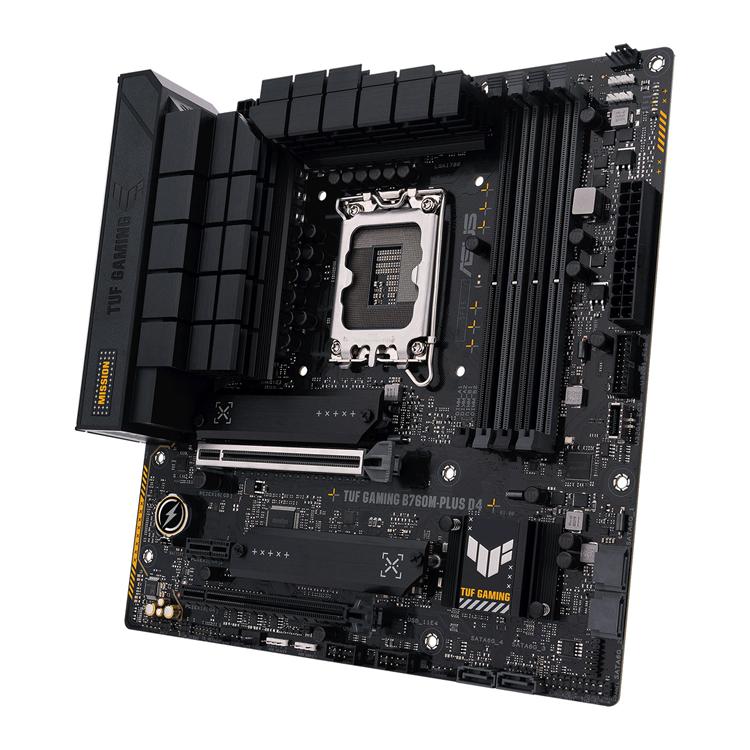

TUF GAMING B760M-PLUS D4
GET TUF. GAME TOUGH.
TUF GAMING B760M-PLUS D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
Intel® B760 Chipset
LGA 1700 CPU Socket
13th Gen Intel® Compatible Processors
Micro-ATX Form Factor
TUF GAMING B760M-PLUS D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
Intel® B760 Chipset
LGA 1700 CPU Socket
13th Gen Intel® Compatible Processors
Micro-ATX Form Factor
Rock Solid Performance
INCREDIBLE SPEED & STABILITY
With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR4 memory and PCIe 4.0 storage, the TUF GAMING B760M-PLUS D4 is the perfect foundation for your next Intel battle rig.
DRMOS POWER STAGES
12+1 power stages combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.
TUF CAPACITORS
The TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.
SIX-LAYER PCB
The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
DRAM OVERCLOCKING PERFORMANCE
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
COMPREHENSIVE FAN CONTROLS
TUF GAMING B760M motherboards feature comprehensive fan controls that can be configured via the Fan Xpert 2+ utility in Armoury Crate or via the award-winning ASUS UEFI BIOS.
MULTIPLE TEMPERATURE SOURCE
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 2+ or via the UEFI.
With upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs, plus support for DDR4 memory and PCIe 4.0 storage, the TUF GAMING B760M-PLUS D4 is the perfect foundation for your next Intel battle rig.
DRMOS POWER STAGES
12+1 power stages combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible Intel processors.
TUF CAPACITORS
The TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.
SIX-LAYER PCB
The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.
DRAM OVERCLOCKING PERFORMANCE
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
COMPREHENSIVE FAN CONTROLS
TUF GAMING B760M motherboards feature comprehensive fan controls that can be configured via the Fan Xpert 2+ utility in Armoury Crate or via the award-winning ASUS UEFI BIOS.
MULTIPLE TEMPERATURE SOURCE
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling, and all settings can be easily managed by Fan Xpert 2+ or via the UEFI.
Build With Confidence
TUF GAMING ALLIANCE
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
SAFESLOT CORE+ & SAFEDIMM
SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence.
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.
TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
SAFESLOT CORE+ & SAFEDIMM
SafeSlot Core+ is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed. In addition, the ASUS SafeDIMM sheath is added to support and protect memory modules on select ASUS motherboards, empowering you to insert modules with speed, accuracy and confidence.
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the M.2 SSD, neatly eliminating the need for screws.
Supreme Networking Capability
2.5 GB ETHERNET
2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
2.5 Gb on-board Ethernet kicks your LAN connection up a notch with a bandwidth improvement of up to 2.5X. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
Fine Quality Components for Exceptional Clarity & Fidelity
REALTEK 7.1 SURROUND SOUND
The unique audio codec designed in close collaboration with Realtek for TUF GAMING B760M motherboards feature an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.
The unique audio codec designed in close collaboration with Realtek for TUF GAMING B760M motherboards feature an unprecedented 98 dB signal-to-noise ratio for the stereo line out, providing pristine audio quality.

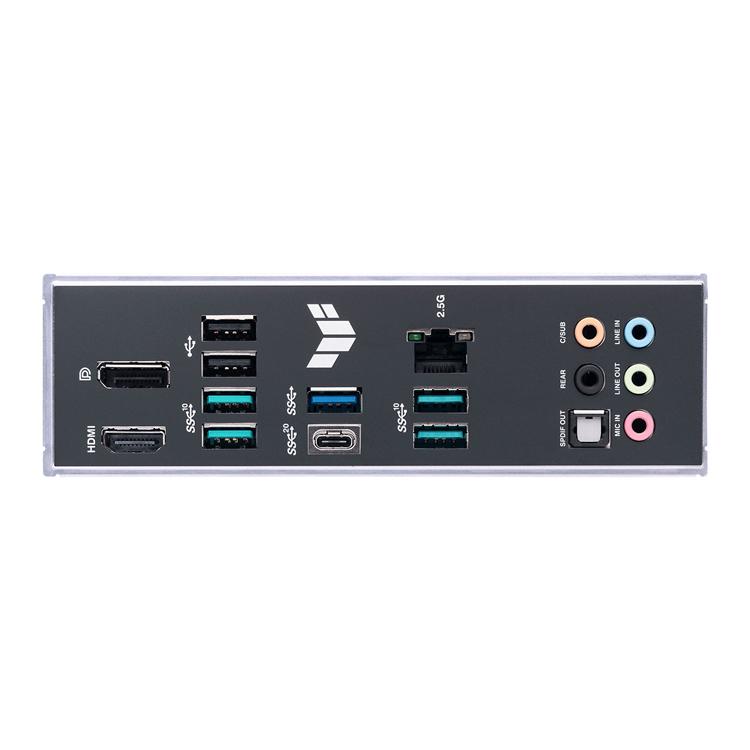

Full Connectivity
1 – 1x HDMI® Port
2 – 1x DisplayPort
3 – 2x USB 3.2 Gen 2
4 – 2x USB 2.0
5 – 1x USB 3.2 Gen 1
6 – 1x USB 3.2 Gen 2×2 Type-C®
7 – 2x USB 3.2 Gen 2
8 – Realtek 2.5G Ethernet
9 – Optical S/PDIF Out Port
10 – 5x Audio Jacks
2 – 1x DisplayPort
3 – 2x USB 3.2 Gen 2
4 – 2x USB 2.0
5 – 1x USB 3.2 Gen 1
6 – 1x USB 3.2 Gen 2×2 Type-C®
7 – 2x USB 3.2 Gen 2
8 – Realtek 2.5G Ethernet
9 – Optical S/PDIF Out Port
10 – 5x Audio Jacks
Control Your Rig with Armoury Crate
CENTRALISED CONTROL
The ASUS-exclusive Armoury Crate software centralises control of all supported gaming products. A single intuitive interface lets you customise RGB lighting for all compatible devices and link them to Aura Sync for unified illumination. It also displays information from (and enables control of) a growing hardware ecosystem. Armoury Crate also enables easy product registration and features a news section to keep you in touch with the gaming community.
| SPECIFICATIONS | |
| Brand | ASUS |
| Series | TUF Gaming Series |
| Model | TUF GAMING B760M-PLUS D4 (90MB1DI0-M0EAY0) |
| CPU Support | Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Chipset | Intel B760 Express |
| Memory Support | |
| Intel 13th Gen & 12th Gen Processors | 4x DIMM, Max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| OptiMem II | |
| Video | |
| HDMI | 1x HDMI 2.1 port, supporting a maximum resolution of UHD 4K 3840×2160 @ 60Hz, Support for HDMI 2.1 version, HDCP 2.3, and HDR |
| DisplayPort | 1x DisplayPort 1.4 port, supporting a maximum resolution of UHD 4K 3840×2160 @ 60Hz, Support for HDCP 2.3, and HDR |
| Integrated graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 5.0 x16 Physical, x16 Electrical slot |
| Intel B760 Chipset | 1x PCIe 4.0 x16 Physical, x4 Electrical slot |
| 1x PCIe 4.0 x1 Physical, x1 Electrical slot | |
| Storage | |
| CPU Direct | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Intel B760 Chipset | M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| 4x SATA 6Gb/s ports | |
| Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Networking | |
| LAN | Realtek Dragon 2.5 Gigabit LAN 10/100/1000/2500Mbps |
| TUF LANGuard Surge Protection | |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Supports up to 24-Bit/192 kHz playback | |
| Audio Features | Audio Shielding |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |
| Rear optical S/PDIF out port | |
| Connectivity | |
| Ports | 1x USB 20Gb/s Type-C Port |
| 4x USB 10Gb/s Type-A Port | |
| 1x USB 5Gb/s Type-A Ports | |
| 2x USB 2.0 Type-A Ports | |
| 1x HDMI 2.1 | |
| 1x DisplayPort 1.4 Port | |
| 5x 3.5mm Audio Jacks support surround sound | |
| 1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN Port | |
| 1x Optical S/PDIF Port | |
| General | |
| Internal Connectors | 1x 4-pin CPU Fan header |
| 1x 4-pin CPU OPT Fan header | |
| 1x 4-pin AIO Pump header | |
| 3x 4-pin Chassis Fan headers | |
| 1x 24-pin Main Power connector | |
| 1x 8-pin 12V Power connector | |
| 1x 4-pin 12V Power connector | |
| 2x M.2 slots (Key M) | |
| 4x SATA 6Gb/s ports | |
| 1x USB 3.2 Gen 1 connector (supports USB Type-C) | |
| 1x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2x USB 2.0 headers support additional 4 USB 2.0 ports | |
| 3x Addressable Gen 2 headers | |
| 1x AURA RGB header | |
| 1x Clear CMOS header | |
| 1x Front Panel Audio header (AAFP) | |
| 1x 20-3 pin System Panel header with Chassis intrude function | |
| 1x Thunderbolt (USB4) header | |
| Buttons | N/A |
| LED Displays | ASUS Q-LED Diagnostic LEDs (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| Remote Management | WOL by PME, PXE |
| Form Factor | Micro-ATX Form Factor, 244 x 244 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Box Contents | 2 x SATA 6Gb/s cables |
| 1 x M.2 Rubber Package | |
| 1 x Screw package for M.2 SSD | |
| 1 x TUF Gaming sticker | |
| 1 x TUF Certification card | |
| 1 x User guide | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
