ASUS TUF GAMING B760M-PLUS WiFi DDR4 M-ATX Motherboard

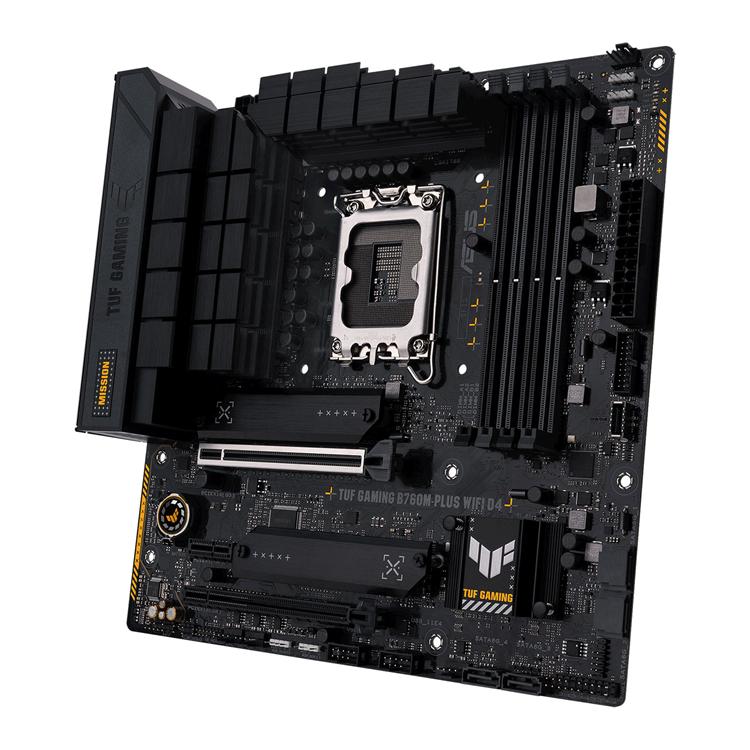

ASUS TUF GAMING B760M-PLUS WiFi DDR4 M-ATX Motherboard - Image 2

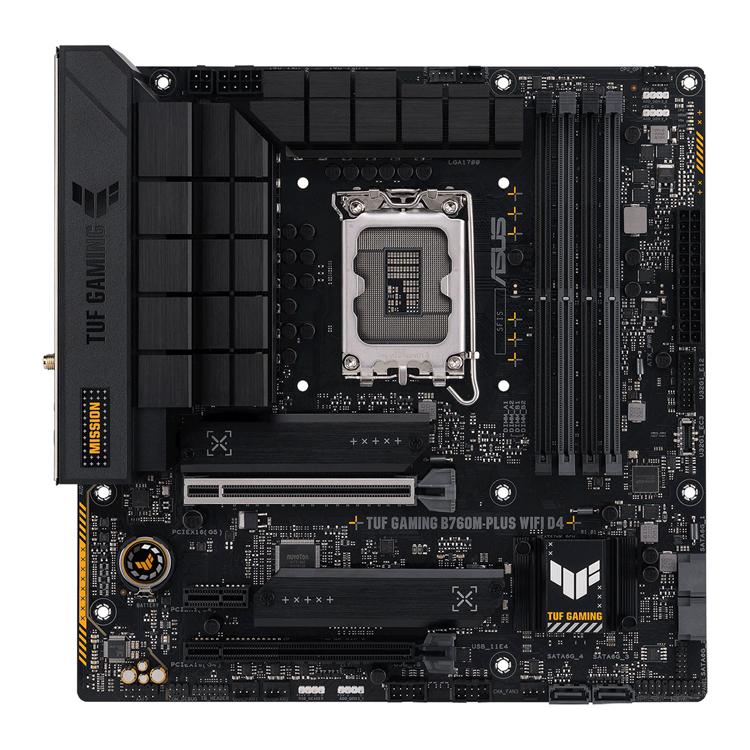

ASUS TUF GAMING B760M-PLUS WiFi DDR4 M-ATX Motherboard - Image 3
ASUS TUF GAMING B760M-PLUS WiFi DDR4 M-ATX Motherboard - Image 4

ASUS TUF GAMING B760M-PLUS WiFi DDR4 M-ATX Motherboard

R3959.00 Incl. Vat

KEY FEATURES:
– Micro-ATX Form Factor
– Intel B760 Chipset
– Socket LGA 1700
– Supports Intel 12th & 13th Gen Processors
– 4x DDR4 DIMM Slots, Supports Up To 128GB
– Supports Up to DDR4-5333 (OC)
– Supports Intel XMP 2.0 Memory Modules
– 1x PCIe 5.0 x16 Slot (x16 Physical)
– 1x PCIe 4.0 x4 Slot (x16 Physical)
– 1x PCIe 4.0 x1 Slot (x1 Physical)
– 2x M.2 2280 PCIe 4.0 x4 NVMe SSD Slots
– 4x SATA 3.0 6.0Gbps Ports
– Supports Front-Panel USB Type-C Port
– 1x USB 20Gb/s Type-C Port
– 4x USB 10Gb/s Type-A Ports
– 1x USB 5Gb/s Type-A Port
– 2x USB 2.0 Type-A Ports, 2x SMA Connectors
– 1x HDMI 2.1, 1x DisplayPort 1.4 Port
– 5x 3.5mm Audio Jacks Support Surround Sound, 1x S/PDIF Optical Audio Port
– Realtek 2.5 Gigabit Ethernet RJ-45 LAN
– WiFi 6 2×2 MIMO Dual-Band Adapter, Bluetooth 5.2
– Realtek High Definition Audio Codec
– 12+1 DrMOS Power Stages with DIGI+ VRM Solution
– ASUS Q-Design including Q-DIMM & M.2 Q-Latch
– ASUS Aura RGB Sync
– ASUS Q-LED Diagnostic LEDs
– ASUS Armoury Crate Software
– 3 Year Warranty

Out of stock

SKU: ASUS TUF GAMING B760M-PLUS WIFI D4 Categories: , , , , Tags: , , , , , , , , ,

Description

TUF GAMING B760M-PLUS WIFI D4

90MB1DG0-M0EAY0

The TUF GAMING B760M-PLUS WIFI D4 Motherboard

Intel® B760 Chipset (13th and 12th Gen) LGA 1700 mATX motherboard with PCIe 5.0 x16 Slot, Dual 4.0 M.2 Slots, DDR4, WiFi 6, Realtek 2.5Gb Ethernet Port, DisplayPort + HDMI® Ports, SATA 6 Gbps Ports, USB 3.2 Gen 2×2 Type-C® Port, Front USB 3.2 Gen 1 Type-C Port, Thunderbolt™ 4 / USB 4 Coneector, Aura Sync
ASUS TUF GAMING B760M-PLUS WIFI D4 takes all the essential elements of the latest 13th Gen Intel® Core™ processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid, stable performance for those marathon gaming sessions.
Aesthetically, this ASUS TUF GAMING B760M-PLUS WIFI D4 Motherboard sports the new TUF Gaming logo, and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.

Features

    • Intel® LGA 1700 Socket: Ready for 13th Gen Intel® Core™ processors
    • Enhanced Power Solution: 12+1 DrMOS power stages, six-layer PCB, 8+4 ProCool sockets, military-grade TUF components and Digi+ VRM for maximum durability
    • Comprehensive Cooling: Enlarged VRM heatsinks, M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4
    • Latest Connectivity: PCIe 5.0 slot, PCIe 4.0 M.2 slots, rear USB 3.2 Gen 2×2 Type-C®, front panel header for USB 3.2 Gen 1 Type-C® and Thunderbolt™ 4 / USB 4 connector
    • Two Way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences



Additional Information:

Visit the Manufacturer Product Web Page for Full Details

Download the Manufacturer Product Manual

Compatibility

Supports 13th & 12th Gen Intel® Core™ / Pentium® / Celeron® Processors for Socket BGA 1700

System Requirements

    • Windows® 11 / 10, 64 bit



Specifications

Make and Model ASUS PRIME TUF GAMING B760M-PLUS WIFI D4 mATX Motherboard
Part Number PRIME TUF GAMING B760M-PLUS WIFI D4
Windows® Support Windows® 11 / 10, 64 bit
Chipset Intel® B760 Chipset
CPU Socket Intel® Socket 1700
CPU Support 13th & 12th Gen Intel® Core™ / Pentium® / Celeron® Processors for Socket BGA 1700
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 on matching CPUs.
Memory 4x DDR4 DIMM RAM Slots, Supports up to 128GB RAM (4x 32GB)
Overclocked RAM: DDR4-5333 / 5066 / 5000 / 4800 / 4600 / 4400 / 4266 / 4000 / 3733 / 3600 / 3466 / 3400 / 3333 MHzStock Clocked RAM: DDR4-3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Supports OptiMem II
Expansion Slots 1x PCIe 5.0 x16 slot
1x PCIe 4.0 x16 slot (supports x4 mode)
1x PCIe 4.0 x1 slot
Multiple Graphic Cards Multiple Graphic Cards are not supported by this Motherboard
Onboard Graphics 1x HDMI® v2.1 port (Up to 4K/60Hz)
1x DisplayPort v1.4 port (Up to 4K/60Hz)
Storage M.2_1 PCIe 4.0 x4 Slot (Key M), type 2242/2260/2280
M.2_2 PCIe 4.0 x4 Slot (Key M), type 2242/2260/2280
4x SATA III 6Gb/s ports
Intel® Rapid Storage Technology supports SATA III RAID 0/1/5/10
USB Ports 8x Rear USB Ports:
1x USB 3.2 Gen 2×2 (20Gbps) Type-C port
4x USB 3.2 Gen 2 (10Gbps) Type-A ports
1x USB 3.2 Gen 1 (5Gbps) Type-A port
2x USB 2.0 (480Mbps) Type-A ports
Supports 7x Front USB Ports:
1x USB 3.2 Gen 1 (5Gbps) USB Type-C port (via 1x USB 3.2 Gen 1 header)
2x USB 3.2 Gen 1 (5Gbps) Type-A ports (via 1x USB 3.2 Gen 1 header)
4x USB 2.0 (480Mbps) ports (via 2x USB 2.0 Headers)
Note: USB_E4 and USB_EC3 connectors can only be enabled / disabled together.
LAN REALTEK LAN Chipset:
1x 2.5Gb RJ45 LAN port
WiFi WiFi 6 Chipset:
Dual Band 802.11 ax
2×2 Antenna Array
Bluetooth Bluetooth v5.2
2×2 Antenna Array
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC:
– Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback
– DTS Audio Processing
Audio Features:
– Audio Shielding
– Premium Audio Capacitors
– Dedicated Audio PCB Layers1x Rear Optical S/PDIF Out port
5x Rear 3.5mm Audio Jacks

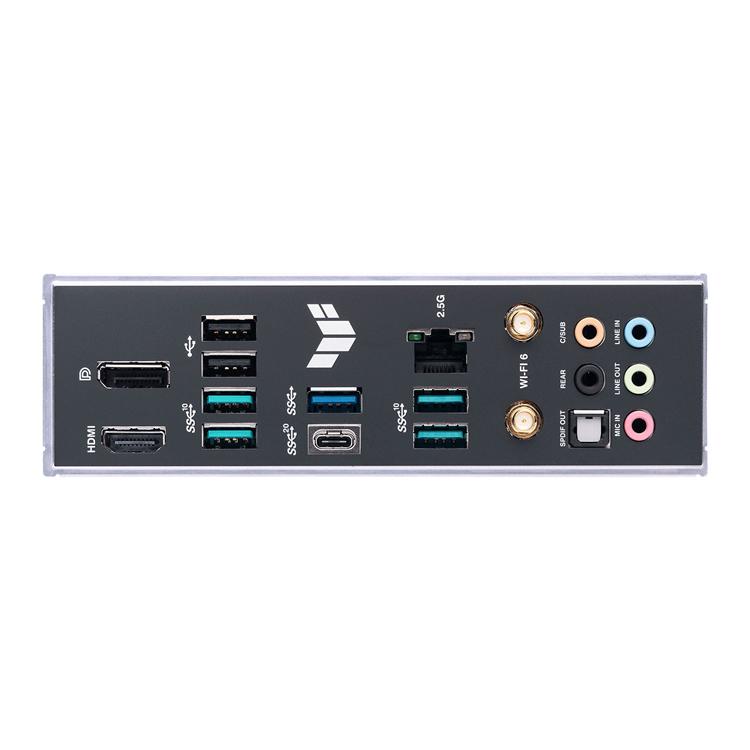

Rear I/O Ports 1x USB 3.2 Gen 2×2 (20Gbps) Type-C port
4x USB 3.2 Gen 2 (10Gbps) Type-A ports
1x USB 3.2 Gen 1 (5Gbps) Type-A port
2x USB 2.0 (480Mbps) Type-A ports
1x HDMI® v2.1 ports (Up to 4K/60Hz)
1x DisplayPort v1.4 port (Up to 4K/60Hz)1x Realtek 2.5Gb Ethernet port
1x Rear Optical S/PDIF Out port
5x Rear 3.5mm Audio Jacks2x WiFi Antenna jacks
Internal I/O Connectors Power:
1x 24-pin Main Power connector
1x 8-pin +12V Power connector
1x 4-pin +12V Power connector
Fan and Cooling:
1x 4-pin CPU Fan header
1x 4-pin CPU OPT Fan header
1x 4-pin AIO Pump header
3x 4-pin Chassis Fan headersStorage:
2x M.2 slots (Key M)
4x SATA 6Gb/s ports
USB:
1x USB 3.2 Gen 1 (5Gbps) USB Type-C port (via 1x USB 3.2 Gen 1 header)
2x USB 3.2 Gen 1 (5Gbps) Type-A ports (via 1x USB 3.2 Gen 1 header)
4x USB 2.0 (480Mbps) ports (via 2x USB 2.0 Headers)Miscellaneous
3x Addressable Gen 2 headers
1x Aura RGB header
1x Clear CMOS header
1x Front Panel Audio header (AAFP)
1x 20-3 pin System Panel header with Chassis intrude function
LED Headers 3x Addressable Gen 2 headers
1x Aura RGB header
Special Features ASUS TUF PROTECTION:
– DIGI+ VRM (- Digital power design with DrMOS)
– ESD Guards
– TUF LANGuard
– Overvoltage Protection
– SafeSlot Core+
– Stainless-Steel Back I/O
ASUS Q-Design:
– M.2 Q-Latch
– Q-DIMM
– Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
– Q-SlotASUS Thermal Solution:
– M.2 heatsink
– VRM heatsink design
ASUS EZ DIY:
– CPU Socket lever protector
– ProCool
– Pre-mounted I/O shield
– SafeDIMMAURA Sync:
– AURA RGB header
– Addressable Gen 2 headers
Software ASUS Exclusive Software:
Armoury Crate:
– Aura Creator
– Aura Sync
– Fan Xpert 2+
– Power Saving
– Two-Way AI Noise Cancelation
AI Suite 3:
– DIGI+ VRM
– PC CleanerTUF GAMING CPU-Z
DTS Audio Processing
My ASUS
Norton 360 For Gamers
WinRAR
UEFI BIOS
ASUS EZ DIY:
– ASUS CrashFree BIOS 3
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Form Factor mATX Form Factor
Dimensions (LxW) 244 x 244mm
Weight N/A

Additional information

Weight 2 kg
Motherboard Chipset

Motherboard Socket Type

Motherboard Form Factor

Motherboard Ram Support

Motherboard Brand

Motherboard Category
