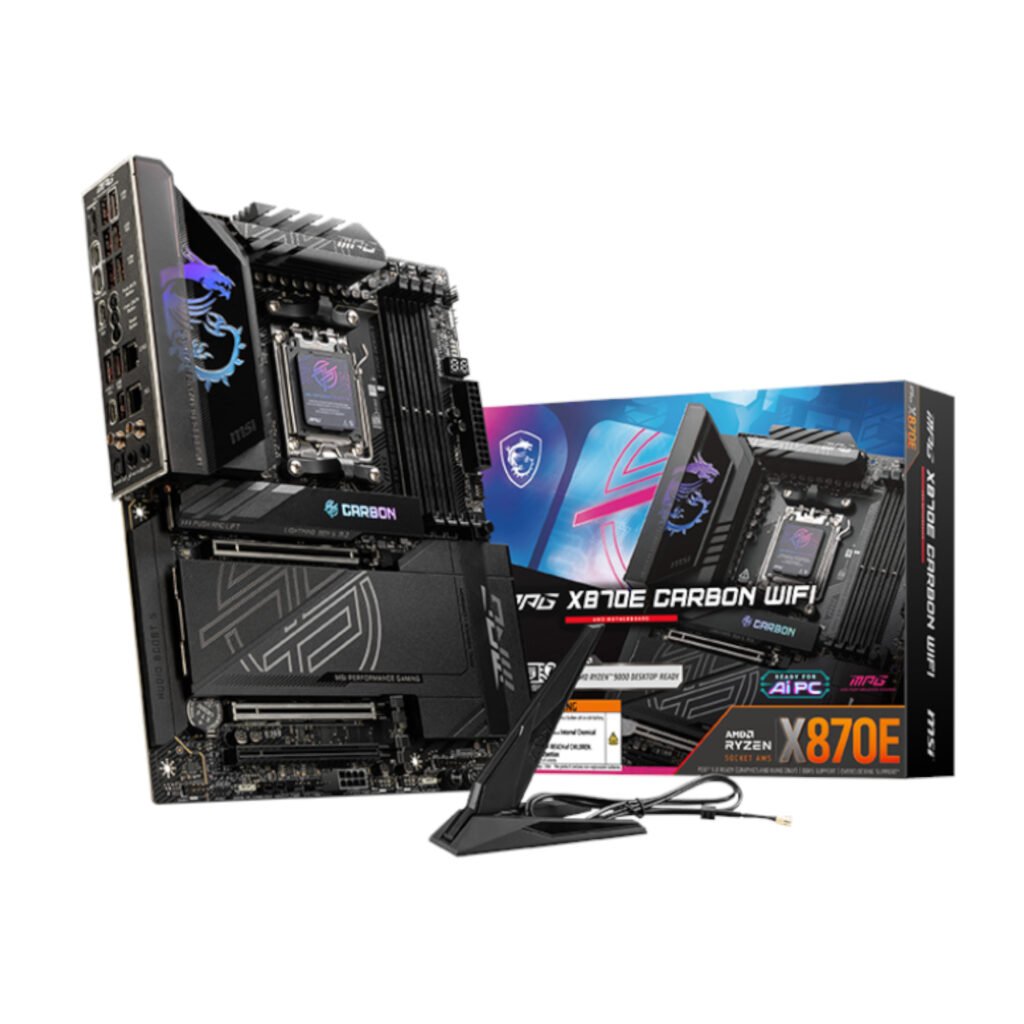

MSI MPG X870E CARBON WIFI ATX Motherboard
R9507.00 Incl. Vat
Or as low as KEY FEATURES:
– ATX Motherboard with AMD X870E chipset & AM5 socket
– Supports AMD Ryzen 7000 / 8000 / 9000 Series CPUs
– Supports DDR5 up to 8400+ MHz (OC), up to 256GB, AMD EXPO & Intel XMP 3.0 ready
– Expansion Slots: 1x PCIe 5.0 x16, 1x PCIe 5.0 x4, 1x PCIe 4.0 x4
– Storage: 2x M.2 PCIe 5.0, 2x M.2 PCIe 4.0, 4x SATA 6Gb/s
– USB Ports: 2x USB 40Gbps Type-C (with DisplayPort), 2x USB 10Gbps Type-C, 7x USB 10Gbps Type-A
– Display Output: 1x HDMI 2.1 (FRL)
– Networking: 5Gb LAN + 2.5Gb LAN + WiFi 7 + Bluetooth 5.4
– Audio: Realtek ALC4080 HD Audio, 7.1 channel with S/PDIF
– Power Design: 18+2+1 Duet Rail with premium components
– Cooling: Extended heatsinks, M.2 Shield Frozr, MOSFET thermal pads
– Extra Features: EZ PCIe Release, EZ Debug LED, 7-segment display, Mystic Light RGB
– Warranty: 3 Years
Description
MSI MPG X870E CARBON WIFI ATX Motherboard
MPG X870E CARBON WIFI employs a carbon black colour scheme and stylish pattern over Mystic light RGB lighting to show a different identity. It is also powerful inside by featuring 5G LAN, true Wi-Fi 7 solution, USB 40Gbps, Supplemental PCIe Power, and the latest EZ DIY designs, making this motherboard one of the best X870E ATX motherboards for Ryzen 9000 series processors.
MSI’s premium MPG (MSI PERFORMANCE GAMING) series is engineered for gamers who demand strong performance and sleek design. Each product showcases cutting-edge aesthetics and vibrant colours, reflecting MPG’s commitment to exceptional design. With optimized configurations, MPG creates a visually striking and powerful gaming experience that leads the trends.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
MSI’s exclusive EZ M.2 Shield Frozr II and EZ M.2 Clip II make M.2 installation seamless. An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 18+2+1 Duet Rail Power System. Combining dual power connectors and 110A Smart Power Stage, MPG X870E CARBON WIFI is ready for the challenge of high-end processors.
Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.
FEATURES:
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 18+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, and Memory Boost
- Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
- Ultra Connect: USB4 and 5G LAN + 2.5G LAN with Wi-Fi 7 Solution
- Audio Boost 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Compatibility
Operating System Support:
Requires Windows® 11, 64-bit
Processor Support:
This MSI Motherboard supports AMD Ryzen Desktop Processors for Socket AM5.
Specifications
| Make and Model | MSI MPG X870E CARBON WIFI Motherboard |
|---|---|
| Part Number | MPG X870E CARBON WIFI |
| Operating System | Supports Windows® 11, 64-bit |
| Chipset | AMD X870E Chipset |
| CPU Support | Supports AMD Ryzen Desktop Processors for Socket AM5 |
| Memory | 4x DDR5 DIMM RAM Sockets Supports Oveclocked RAM up to DDR5-8400 (in 1DPC 1R) Supports MSI Memory Boost Technology Supports AMD EXtended Profiles for Overclocking (AMD EXPO) |
| Expansion Slots | 2x PCI-E 5.0 x16 slots 1x PCI-E 4.0 x16 slot |
| Onboard Graphics | Requires Processor with integrated Graphics 1x HDMI™ 2.1 port w/ FRL supports 8K UHD @ 60Hz 2x USB 4 Type-C ports support Alt Display Mode |
| Storage | 2x M.2 Gen5 x4 (128 Gbps) slots 2x M.2 Gen4 x4 (64 Gbps) slots 4x SATA III (6 Gbps) ports |
| LAN | Realtek® 5Gb Ethernet Chipset: 1x RJ45 5Gb LAN port Realtek® 2.5Gb Ethernet Chipset: |
| Wireless Communication | Wi-Fi 7 Wireless Codec: IEEE 802.11 a/b/g/n/ac/ax/be Tri Band (2.4 / 5 / 6 GHz) |
| Bluetooth | Wi-Fi 7 Wireless Codec: Bluetooth v5.4 |
| Audio | 7.1 Channel AUDIO Codec: 7.1 Channel HD Audio w/ Audio Boost 5 2x 3.5mm Combo Audio jacks |
| USB | Rear I/O Panel: 2x USB 4 (40Gbps) Type-C ports support Alt Display Mode 2x USB 3.2 Gen2 (10Gbps) Type-C ports 9x USB 3.2 Gen2 (10Gbps) Type-A ports Internal USB Headers: |
| Back Panel I/O | 2x USB 4 (40Gbps) Type-C ports support Alt Display Mode 2x USB 3.2 Gen2 (10Gbps) Type-C ports 9x USB 3.2 Gen2 (10Gbps) Type-A ports 1x HDMI v2.1 port w/ FRL 1x RJ-45 5Gb LAN port 2x 3.5mm Audio jacks 2x Antenna ports (2T2R) 1x Flash BIOS button |
| Internal I/O Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 4x USB 2.0 ports |
| I/O Controller | To Be Announced |
| BIOS | To Be Announced |
| Form Factor | ATX Form Factor |
| Dimensions (LxW) | 305 x 244mm |
| Weight | N/A |
